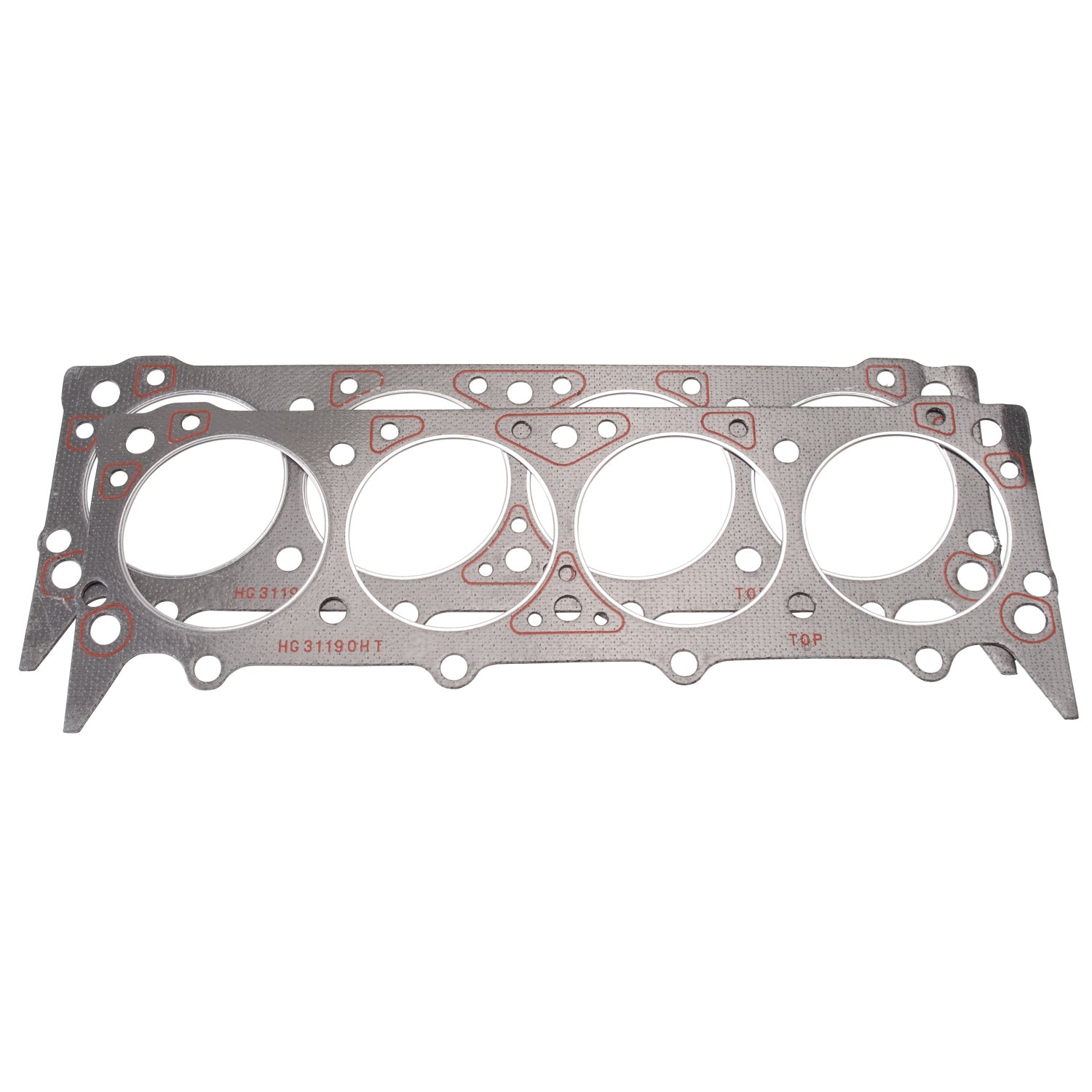

Edelbrock part #7329 head gasket is intended for AMC 304-401 CID V8 engines. This gasket comes as a set and has a 4.275" bore size, .045" compressed thickness and 10.6 cc volume. This gasket will fit the 304 AMC small bore applications even though the Edelbrock cylinder head will not. This head gasket is graphite with a steel core and has a stainless steel fire ring. Gasket is compatible with cast iron or aluminum cylinder heads.
Specifications:
Description_ABR |
Head Gasket |
Description_ASM |
AMC:-:290 (4.8L)-401 (6.8L) |
Description_DEF |
Engine Cylinder Head Gasket |
Description_EXT |
Edelbrock #7329 is a Cylinder Head Gasket Set for 1967-91 AMC 304-401 CID V8 Engines. It has a 4.275" Bore Size, .045" Compressed Thickness and 10.60 cc Volume. Will fit 304 AMC Small Bore even though the Edelbrock Cylinder Head will not. |
Description_MKT |
Edelbrock part #7329 head gasket is intended for AMC 304-401 CID V8 engines. This gasket comes as a set and has a 4.275" bore size, .045" compressed thickness and 10.6 cc volume. This gasket will fit the 304 AMC small bore applications even though the Edelbrock cylinder head will not. This head gasket is graphite with a steel core and has a stainless steel fire ring. Gasket is compatible with cast iron or aluminum cylinder heads. |
Description_INV |
Edelbrock AMC Cylinder Head Gaskets |
Description_LAB |
Cylinder Head Gasket Set for AMC/Jeep |
Description_TRA |
This gasket comes as a set and has a 4.275" bore size, .045" compressed thickness and 10.6 cc volume. This gasket will fit the 304 AMC small bore applications even though the Edelbrock cylinder head will not. |
Cylinder Bore Diameter |
4.275 |
Thickness |
0.045 |
Configuration |
Two Piece |
Color |
Gray |
Grade Type |
Performance |
Gasket Sealant Included |
No |
RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
Length |
0.0000 |
Width |
10.0000 |
Height |
25.0000 |
Weight |
1.0000 |
