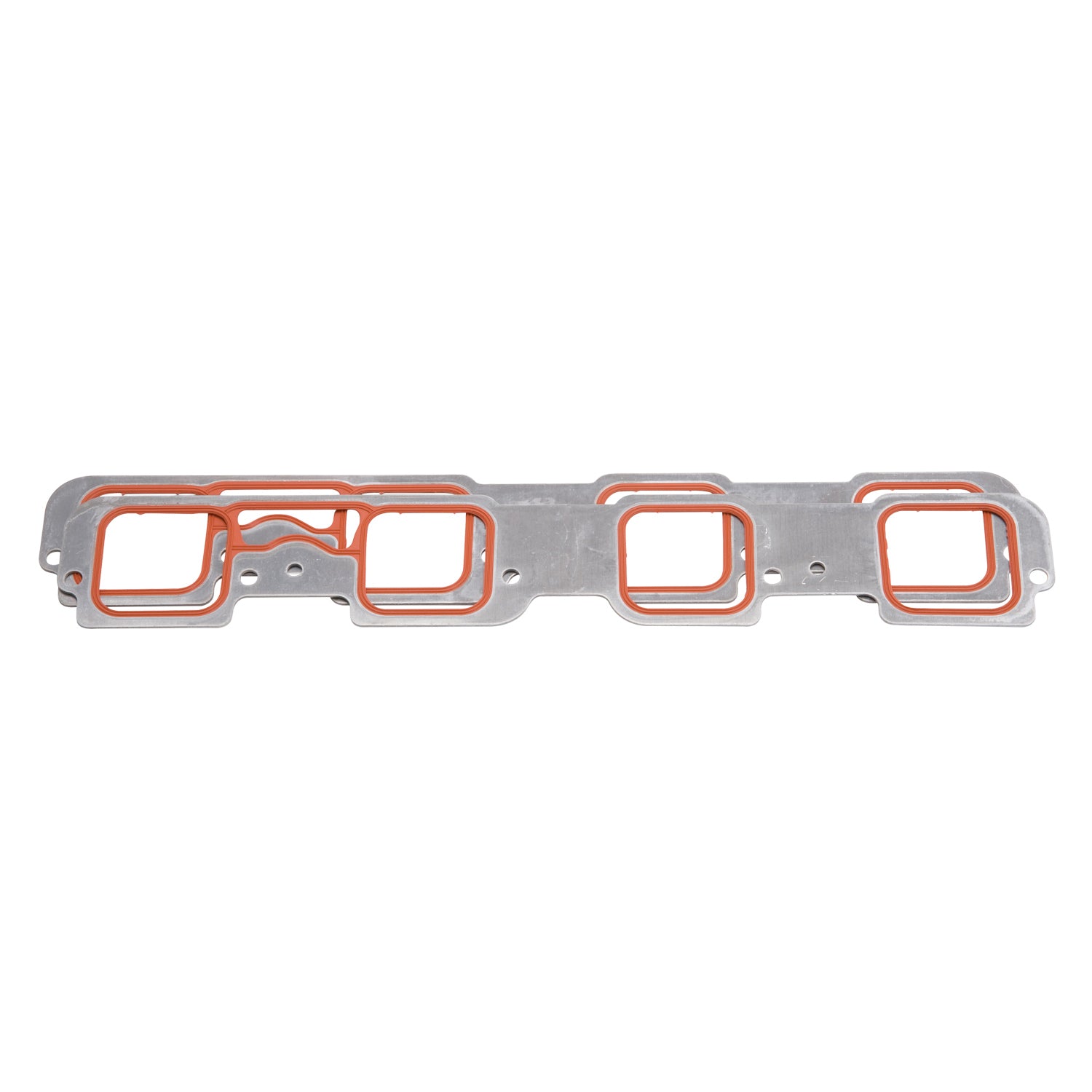

Edelbrock Part #7250 Intake Gaskets for 5.7L & 6.1L (Gen III) Chrysler HEMI allow for optimum flow and performance. Any gasket can create a seal, but a good gasket can do it with less clamping force, and for a longer period of time. The new MP-2N Micropore technology does not use solvents making our gaskets environmentally friendly. Impervious to most chemicals, this synthetic fiber composite provides a high recovery under load. This means that when compressed, the gasket will conform to any imperfections on the sealing surface even using lower flange pressures. A nitrile bead around each port opening makes the seal even better.
Specifications:
| Description_ABR |
INT MAN GASK |
| Description_ASM |
Gen III HEMI:345 (5.7L)/370 (6.1L)/392 (6.4L) |
| Description_DEF |
Engine Intake Manifold Gasket Set |
| Description_LAB |
Edelbrock Intake Manifold Gasket #7250, Chrysler HEMI Gen III 5.7L, 6.1L (Qty 2) |
| Description_MKT |
Edelbrock Part #7250 Intake Gaskets for 5.7L & 6.1L (Gen III) Chrysler HEMI allow for optimum flow and performance. Any gasket can create a seal, but a good gasket can do it with less clamping force, and for a longer period of time. The new MP-2N Micropore technology does not use solvents making our gaskets environmentally friendly. Impervious to most chemicals, this synthetic fiber composite provides a high recovery under load. This means that when compressed, the gasket will conform to any imperfections on the sealing surface even using lower flange pressures. A nitrile bead around each port opening makes the seal even better. |
| Description_EXT |
Edelbrock Intake Manifold Gasket for 5.7L & 6.1L (Gen III) Chrysler HEMI. Top quality Edelbrock gaskets ensure a perfect seal every time. |
| Description_INV |
Edelbrock Intake Manifold Gasket |
| Description_TRA |
Port Size: 1.93 x 1.97 in. Thickness: .060in. We recommend the use of Edelbrock Gasgacinch (Part #9300) on the intake manifold mounting surfaces of the cylinder head and on the bottom side of the intake manifold gaskets (side without silicon beads). The Gasgacinch will secure the gaskets in place, ensuring a proper seal. Silicon beads facing up towards intake manifold. |
| Quantity |
Set of 2 |
| Manifold Gasket Bolt Hole Quantity |
7 |
| Type |
Engine Intake Manifold Gasket |
| Bolt Hole Quantity |
7 |
| Grade Type |
OEM |
| Material |
Steel |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valley Pan Included |
No |
| Configuration |
Two Piece |
| Port Quantity |
1 |
| Recommended Use |
For Use With Part Numbers 1532, 1533, 1534, 1535, 1538, 15175, 15353 |
| Port Shape |
Square |
| Finish |
Gray |
| Length |
0.0000 |
| Width |
5.0000 |
| Height |
21.0000 |
