Edelbrock 7193 RPM 440 Chrysler Intake Manifold

2 sold in last 8 days
Edelbrock
ds_BDVJ_7193
Engine Intake Manifold
$594.95
$594.95
customers are viewing this product
Edelbrock 7193 RPM 440 Chrysler Intake Manifold
Details

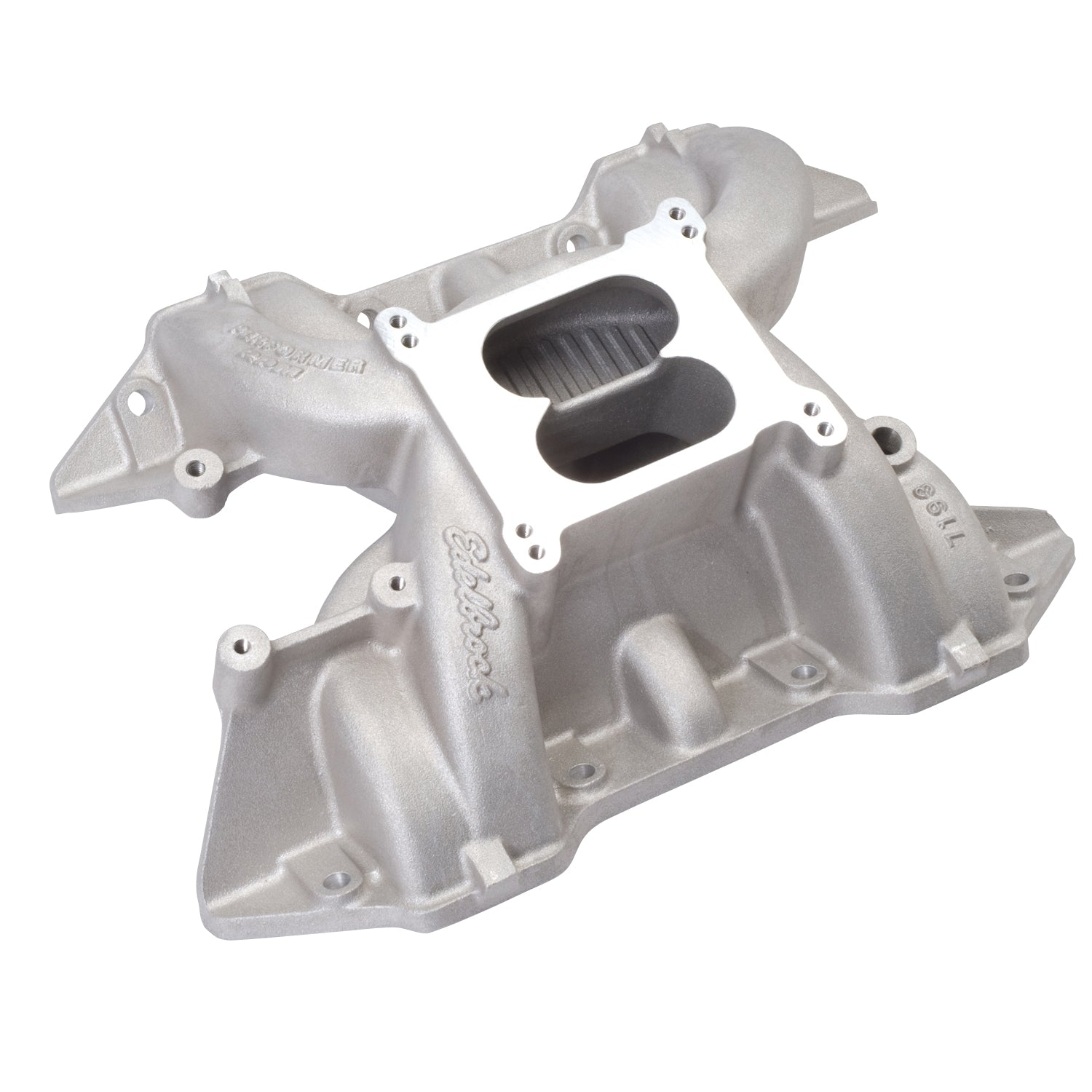

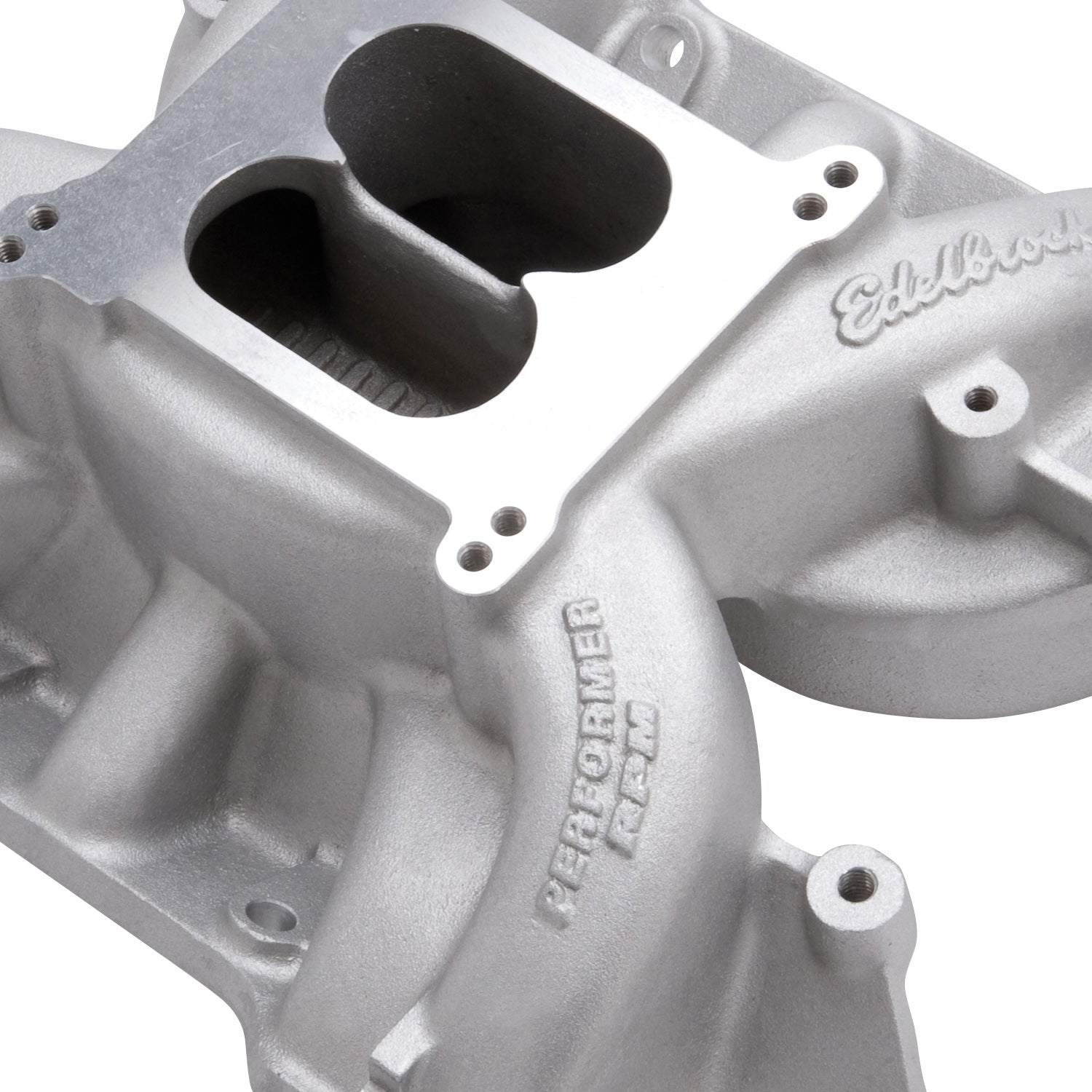

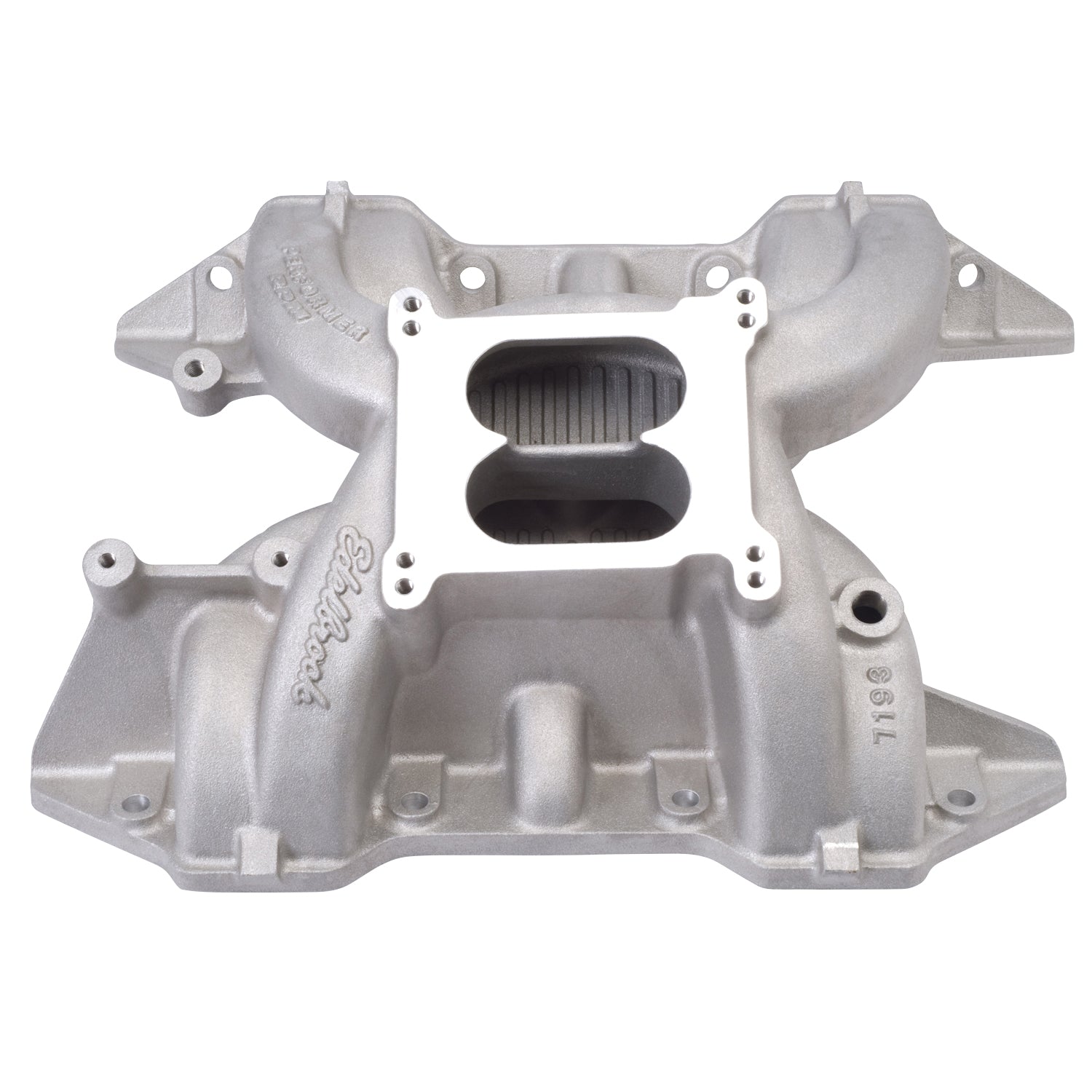

Edelbrock part #7193 Performer RPM 440 intake manifold is designed for 413-426-440 c.i.d. Chrysler V8 applications. The dual-plane design results in excellent low-rpm torque and outstanding high-rpm hp. For high-performance street/strip applications.

Specifications:

Description_ABR Intake Mnfld
Description_ASM Chrysler:Big-Block RB Series:413 (6.8L)/426 (7.0L)/440 (7.2L)
Description_DEF Engine Intake Manifold
Description_EXT Edelbrock Performer RPM Intake Manifold for Chrysler 413-426-440 Big-Block V8
Description_LAB Performer RPM Big Block Chrysler RB Intake Manifold
Description_INV RPM 440 Chrysler Intake Manifold
Description_MKT Edelbrock part #7193 Performer RPM 440 intake manifold is designed for 413-426-440 c.i.d. Chrysler V8 applications. The dual-plane design results in excellent low-rpm torque and outstanding high-rpm hp. For high-performance street/strip applications.
Description_TRA Recommended intake gasket: Edelbrock #7225.
Description_TRA Manifold height: A-4.90", B-5.80"
Description_TRA Carb pad height: 5.35". Manifold is 1.7" taller than stock
Description_TRA Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use #1481 or #1843 throttle/transmission lever kit.
Description_TRA Port exit dimensions: 1.13" x 2.09"
Description_TRA Manifold measure 8.75" across block
Description_TRA Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
Description_TRA Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Finish Satin
EGR Port No
Single Or Dual Plane Type Dual
Flange Type 4150
CNC Ported No
Rear Maximum Height 5.800
Series Performer RPM
Grade Type Performance
Vehicle Model Chrysler
Front Maximum Height 4.900
RGL WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Center Maximum Height 5.350
Material Aluminum
Gasket Or Seal Included No
Basic Operating RPM Range 1500-6500
Length 8.0000
Width 15.0000
Height 24.0000
Weight 20.0000
