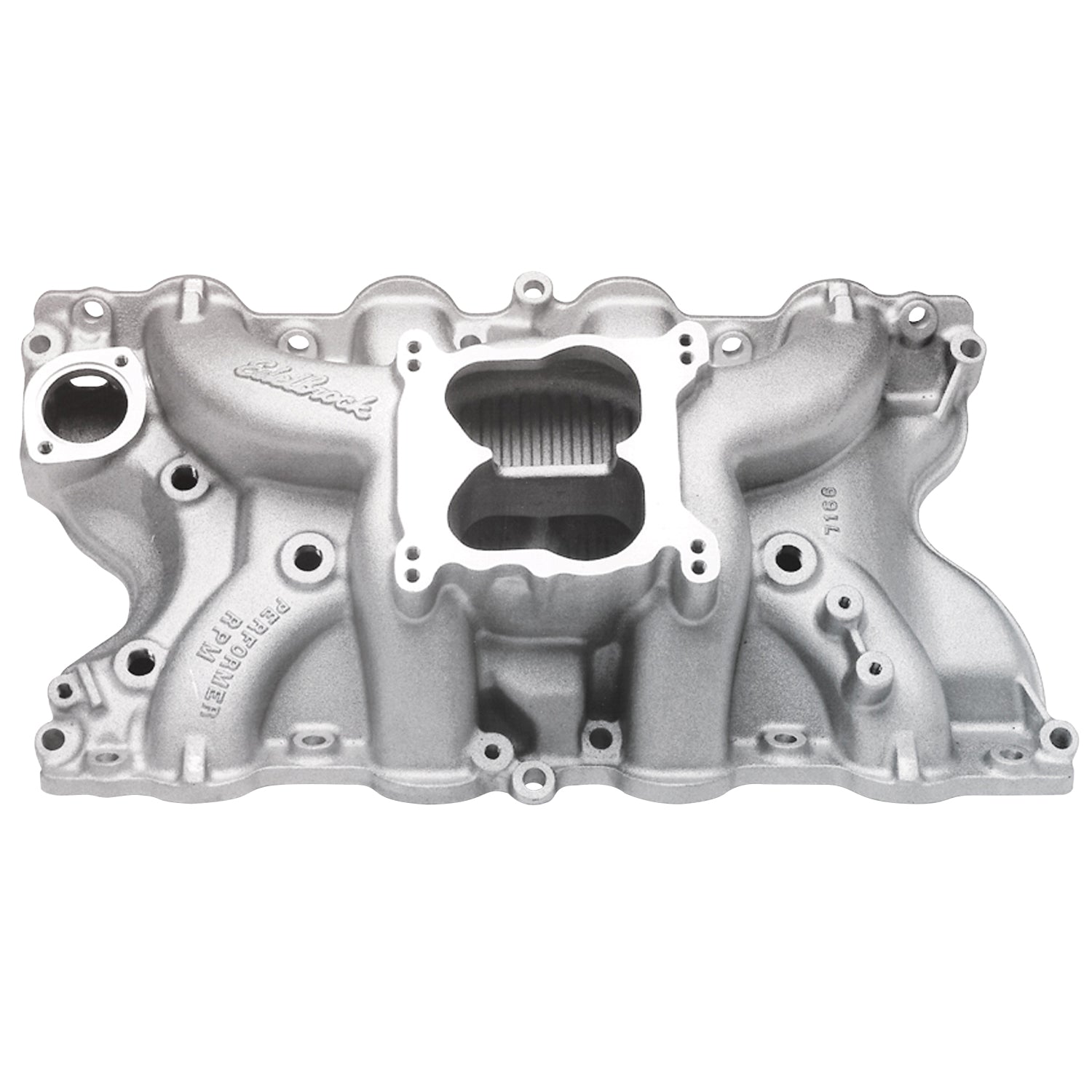

Edelbrock part #7166 Performer RPM 460 intake manifold is designed for high-performance's street 429/460 Ford V8's with standard or Cobra-Jet cylinder heads. Latest technology in dual-plane design results in excellent low- and mid-range torque and outstanding horsepower on appropriately equipped engines. Will accept square-bore or spread-bore carburetors. Will not fit 1988 and later models. Note: Early Cobra-Jets came with Quadrajets.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Big-Block:429 (7.0L )/460 (7.5L) |
| Description_DEF |
Engine Intake Manifold |
| Description_INV |
RPM 460 Ford Intake Manifold |
| Description_EXT |
Edelbrock Performer RPM 460 Intake Manifold for Ford 429/460 Big-Block V8 |
| Description_LAB |
Performer RPM Big Block Ford 460 Intake Manifold |
| Description_MKT |
Edelbrock part #7166 Performer RPM 460 intake manifold is designed for high-performance's street 429/460 Ford V8's with standard or Cobra-Jet cylinder heads. Latest technology in dual-plane design results in excellent low- and mid-range torque and outstanding horsepower on appropriately equipped engines. Will accept square-bore or spread-bore carburetors. Will not fit 1988 and later models. Note: Early Cobra-Jets came with Quadrajets. |
| Description_TRA |
Recommended intake gasket: Edelbrock #7223 or Fel-Pro #1230/# 1231 |
| Description_TRA |
Manifold height: A-4.81", B-6.15" |
| Description_TRA |
Carb pad height: 5.48" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. For automatic transmission use #1483 and #1495 or #1844. |
| Description_TRA |
Port exit dimensions: 1.76" x 2.06" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Grade Type |
Performance |
| Series |
Performer RPM |
| Single Or Dual Plane Type |
Dual |
| Gasket Or Seal Included |
No |
| Material |
Aluminum |
| Basic Operating RPM Range |
1500-6500 |
| Center Maximum Height |
5.480 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Flange Type |
4150 |
| Finish |
Satin |
| Vehicle Model |
Ford |
| Front Maximum Height |
4.810 |
| Rear Maximum Height |
6.150 |
| CNC Ported |
No |
| EGR Port |
No |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
24.0000 |
