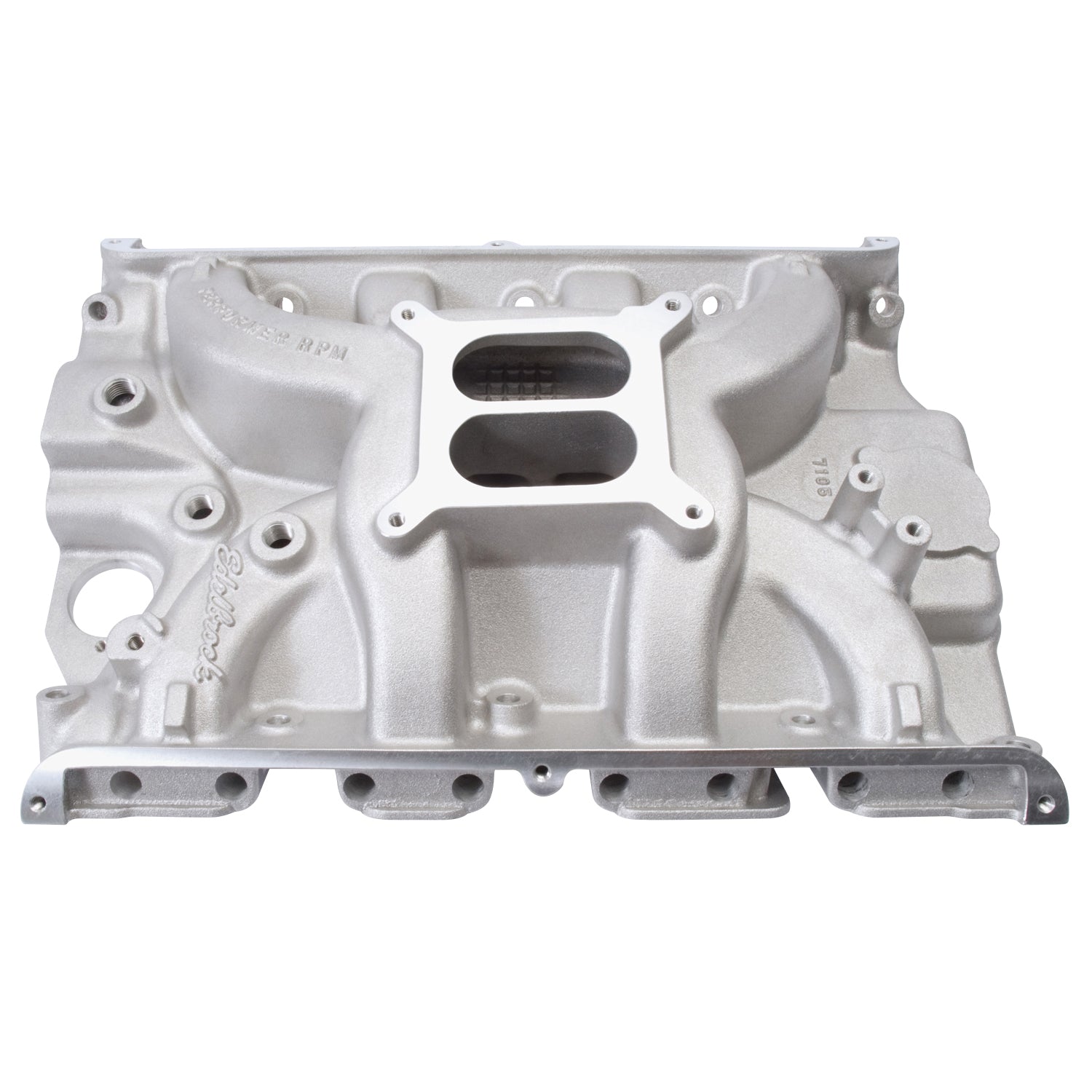

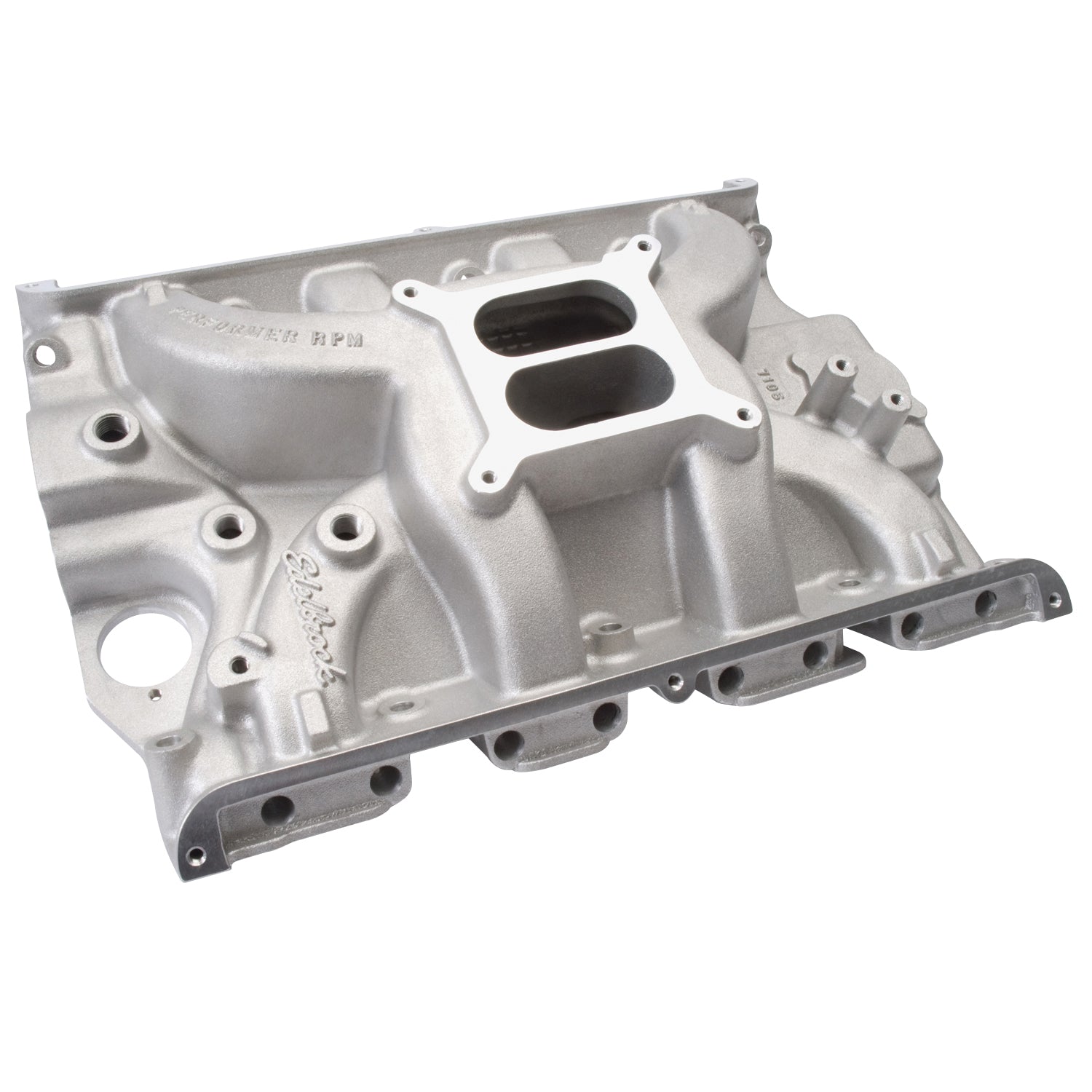

Edelbrock part #7105 Performer RPM FE intake manifold is designed for high-performance's street 390-406-410-427-428 c.i.d. Ford FE V8's with standard 390-428 c.i.d., 427 low/medium-rise or Edelbrock Performer RPM FE heads. The dual-plane constant cross-sectional area design builds low and mid- range acceleration while optimized runner paths make exceptional top-end horsepower. Has provision for adding the PCV or breather flange at rear. No exhaust crossover passage.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L) |
| Description_DEF |
Engine Intake Manifold |
| Description_LAB |
Performer RPM Ford FE 390 Intake Manifold |
| Description_MKT |
Edelbrock part #7105 Performer RPM FE intake manifold is designed for high-performance's street 390-406-410-427-428 c.i.d. Ford FE V8's with standard 390-428 c.i.d., 427 low/medium-rise or Edelbrock Performer RPM FE heads. The dual-plane constant cross-sectional area design builds low and mid- range acceleration while optimized runner paths make exceptional top-end horsepower. Has provision for adding the PCV or breather flange at rear. No exhaust crossover passage. |
| Description_EXT |
Edelbrock Performer RPM 390 Intake Manifold for 1958-1976 Ford 332-428 FE Big-Block V-8 |
| Description_INV |
RPM Ford FE Intake Manifold |
| Description_TRA |
Recommended intake gasket: Edelbrock #7224 |
| Description_TRA |
Manifold height: A-4.89", B-6.04" |
| Description_TRA |
Carb pad height: 5.46" |
| Description_TRA |
Carb recommendations: Edelbrock Thunder Series AVS or Performer Series 650-800 cfm. For automatic transmissions use #1483 or #1844 |
| Description_TRA |
Port exit dimensions: 1.16" x 1.97" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Center Maximum Height |
5.460 |
| Front Maximum Height |
4.890 |
| Gasket Or Seal Included |
No |
| Vehicle Model |
Ford |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rear Maximum Height |
6.040 |
| Series |
Performer RPM |
| Flange Type |
4150 |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Dual |
| Basic Operating RPM Range |
1500-6500 |
| CNC Ported |
No |
| Material |
Aluminum |
| Finish |
Satin |
| EGR Port |
No |
| Length |
7.0000 |
| Width |
17.0000 |
| Height |
27.0000 |
| Weight |
29.0000 |
