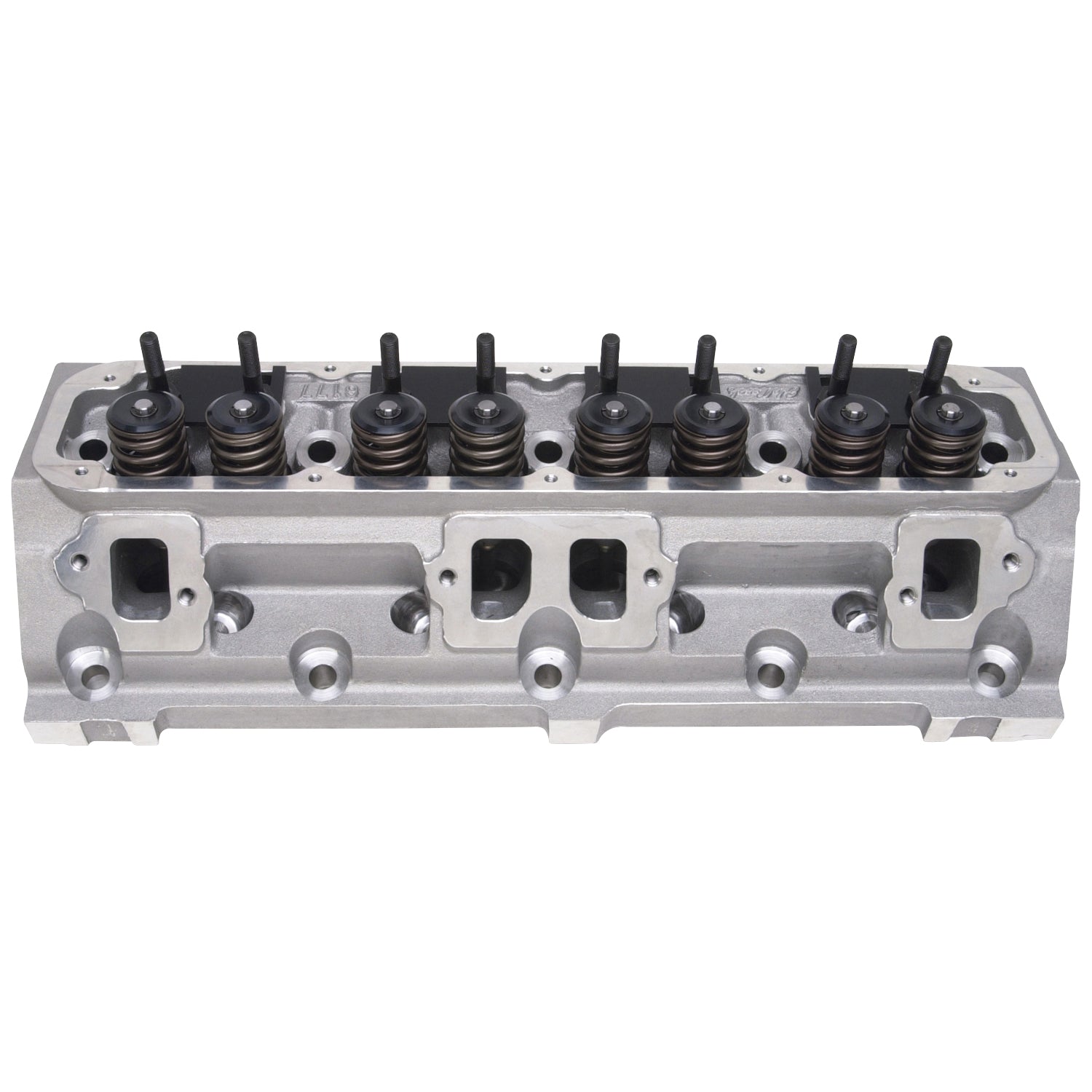

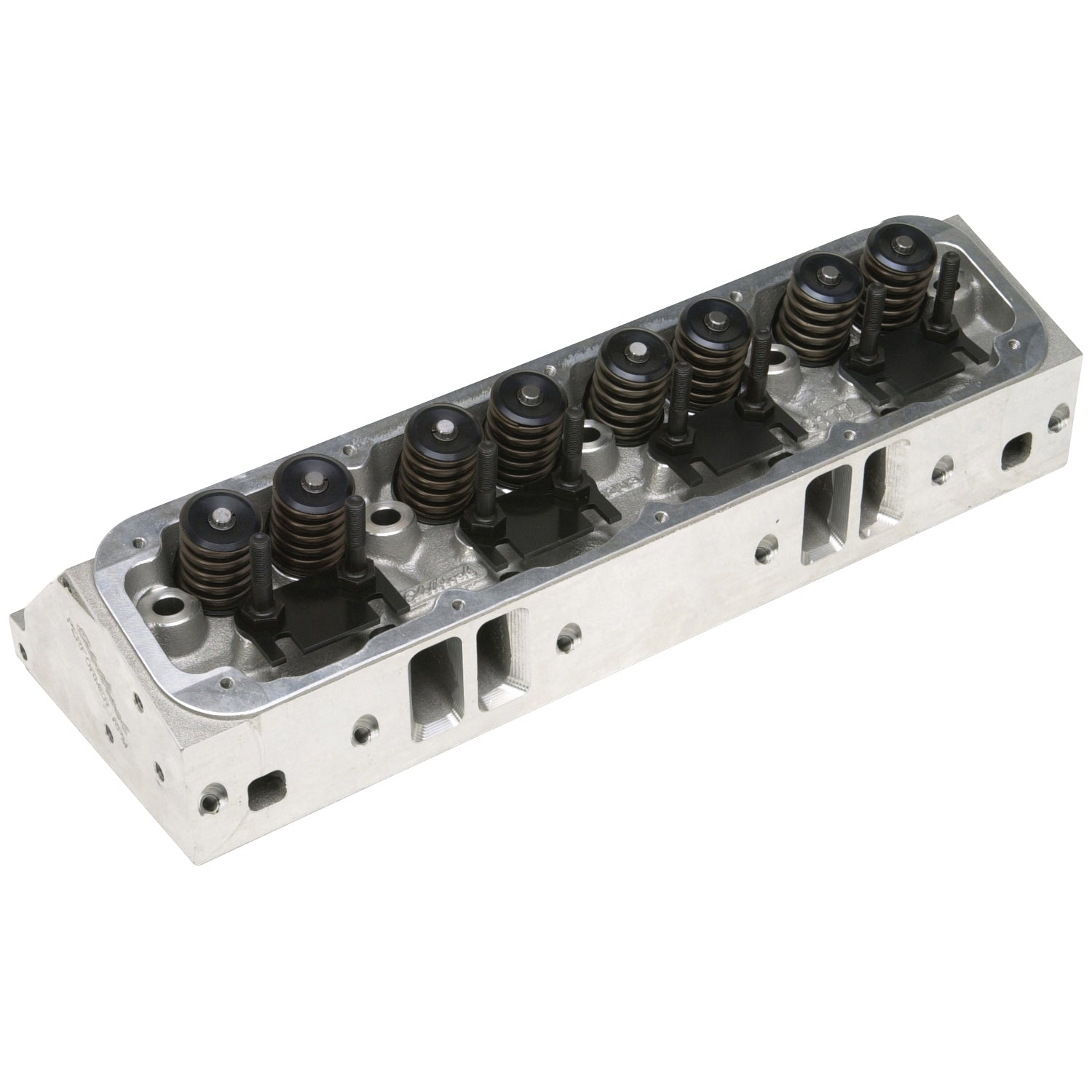

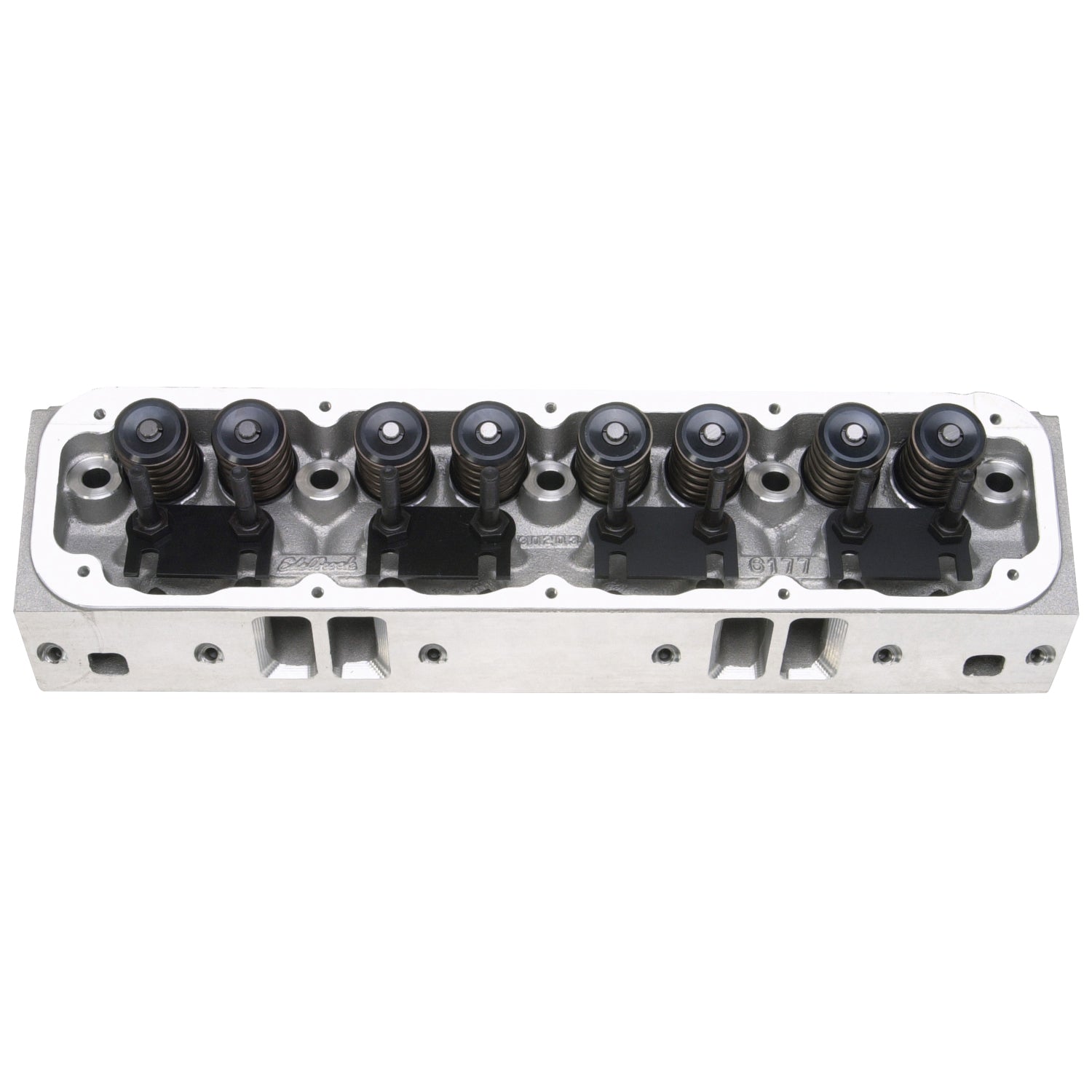

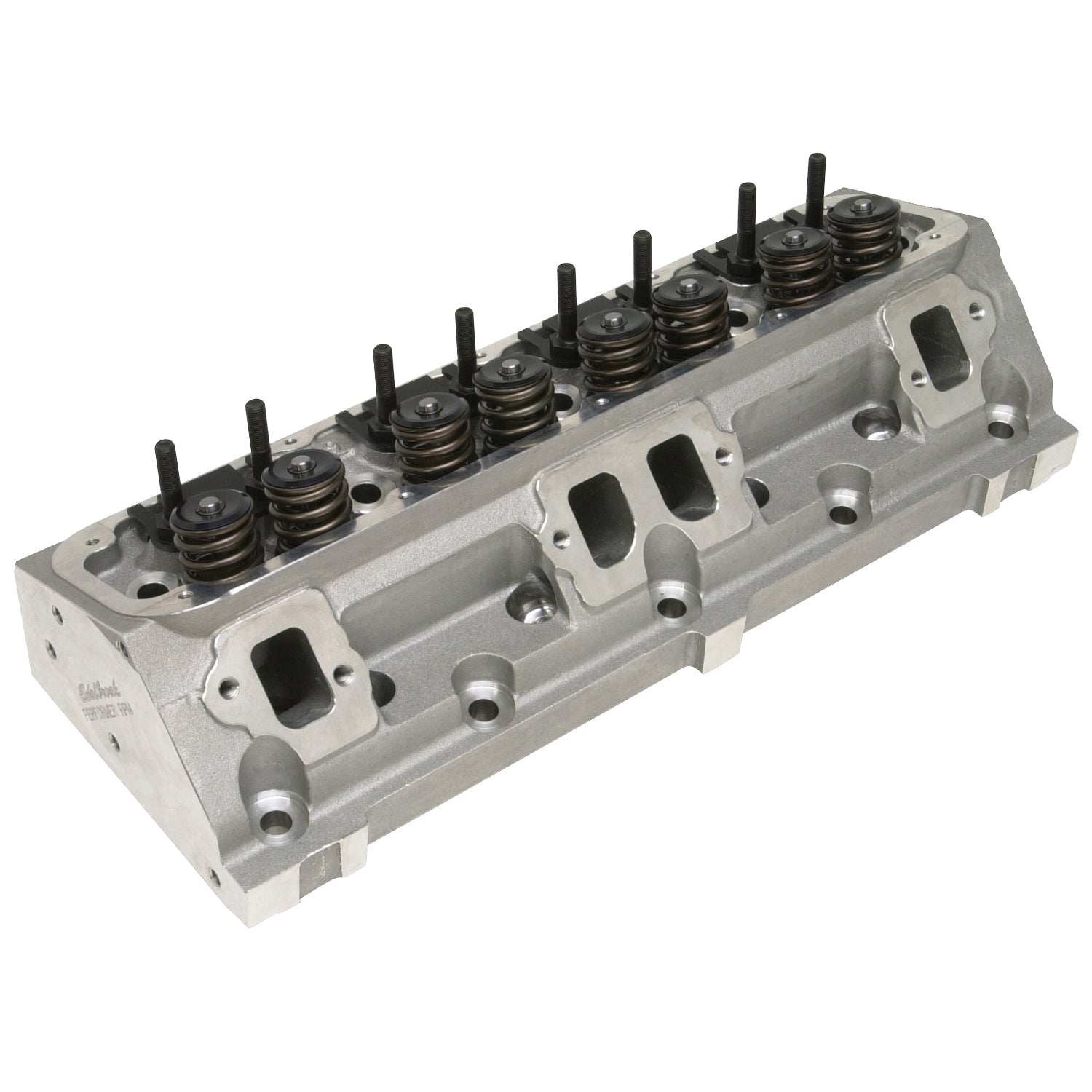

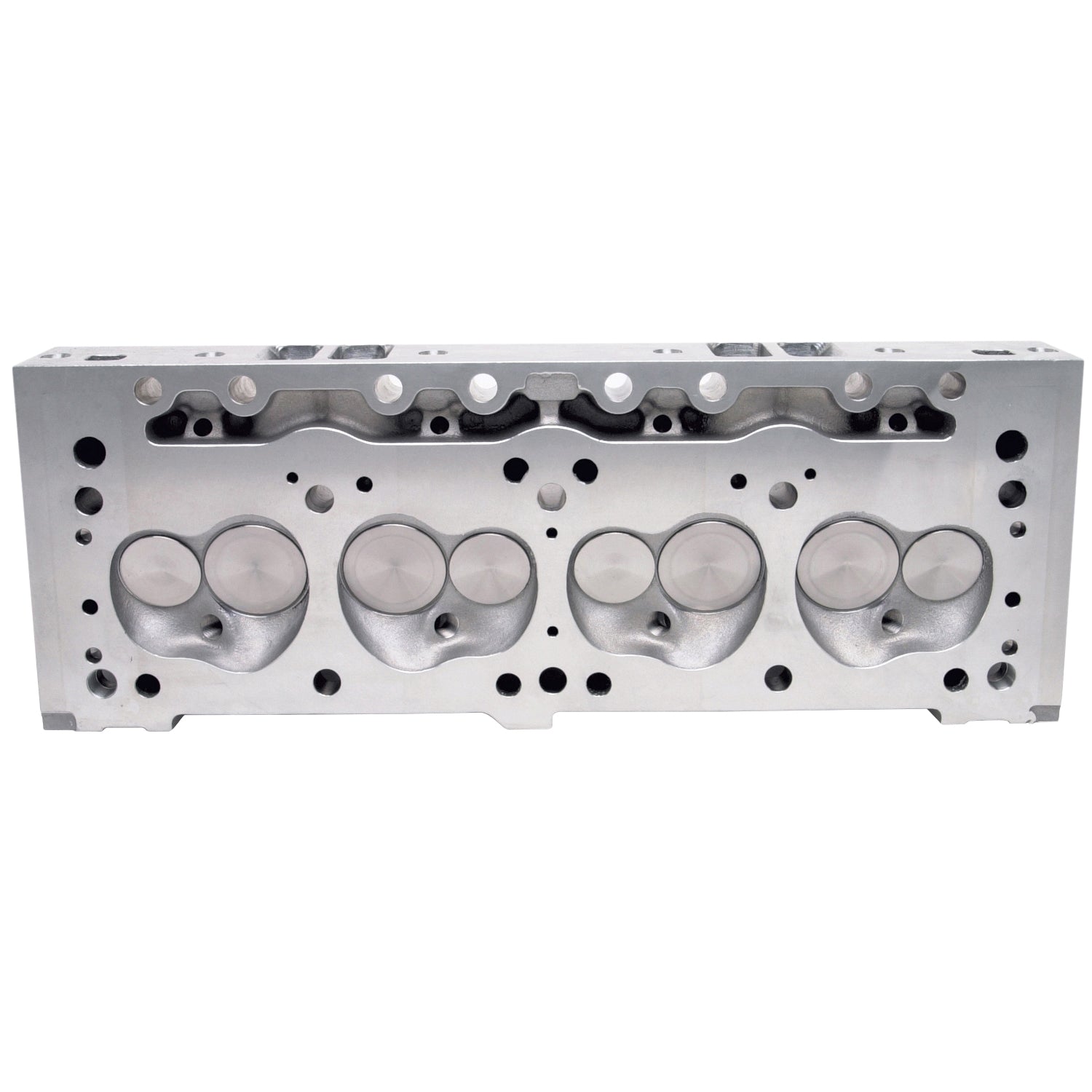

The Edelbrock #61779 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61779 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF |
Engine Cylinder Head |
| Description_EXT |
Edelbrock part #61779 Performer RPM cylinder heads are designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. |
| Description_LAB |
RPM Small-Block Chrysler Magnum Cylinder Head Hydraulic Flat Tappet |
| Description_MKT |
The Edelbrock #61779 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61779 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_INV |
Edelbrock SB Chrysler Cylinder Head |
| Description_TRA |
EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS |
| Description_TRA |
Match with the Edelbrock RPM Air-Gap Magnum manifold #7577 |
| Description_TRA |
Cylinder heads exhaust flanges in stock location to allow use of stock exhaust if desired |
| Description_TRA |
Accepts small-block Chevy adjustable 1.6 ratio rockers and classic valve covers #4177 and #41773 |
| Description_TRA |
Requires hardened pushrods, #9638. |
| Description_TRA |
Match with Edelbrock head gasket sets. |
| Description_TRA |
Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA |
Deck thickness: 5/8" |
| Description_TRA |
Rocker stud diameter: 3/8" |
| Description_TRA |
Pushrod diameter: 5/16" (width of slot in guide plate). |
| Valve Stem Diameter |
0.3438 |
| EGR Port |
No |
| Series |
Performer RPM |
| Valve Spring Diameter |
1.46 |
| Exhaust Port Location |
Standard |
| Family |
Performer RPM |
| Combustion Chamber Volume |
58 |
| Rocker Arm Stud Diameter |
0.375 |
| Intake Valve Diameter |
2.02 |
| Seat Material |
Ductile Iron |
| Seat Angle |
Exhaust 45 deg/Intake 45 |
| Intake Runner Volume |
176 |
| Head Casting Number |
N/A |
| Retainer Included |
Yes |
| Valve Angle |
18 |
| Guide Plates Included |
Yes |
| Valve Spring Maximum Lift |
0.580 |
| Material |
Aluminum |
| Grade Type |
Performance |
| Deck Thickness |
0.625 |
| Quantity |
Sold Individually |
| Exhaust Valve Diameter |
1.60 |
| Construction Type |
Complete |
| Horsepower |
350-500 |
| CNC Ported |
No |
| Valve Included |
Yes |
| Exhaust Runner Volume |
75 |
| Valve Springs Included |
Yes |
| Guide Material |
Manganese Bronze |
| Guide Plate Material |
Hardened Steel |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Camshaft Type |
Flat Tappet |
| Length |
10.0000 |
| Width |
11.0000 |
| Height |
26.0000 |
| Weight |
33.0000 |
