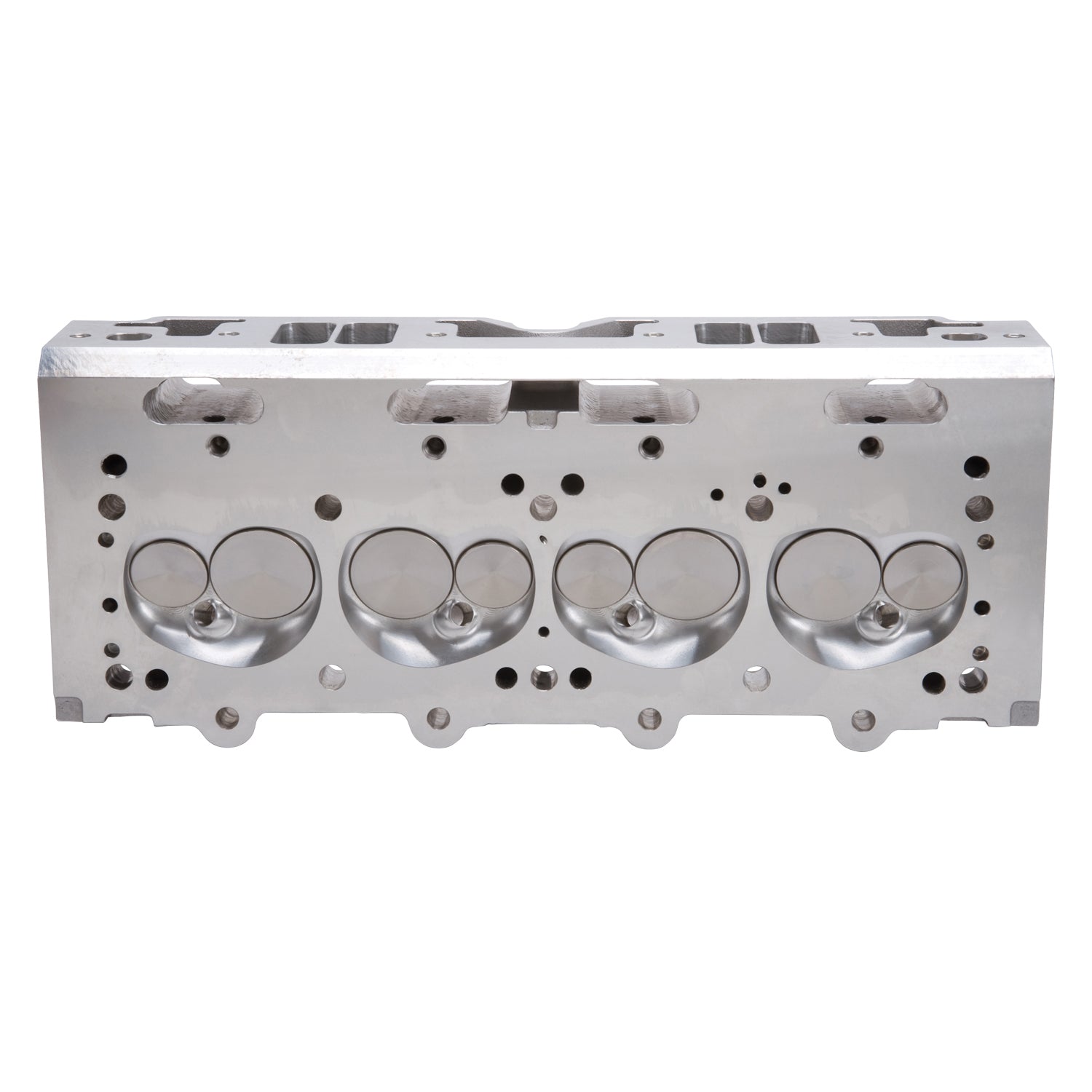

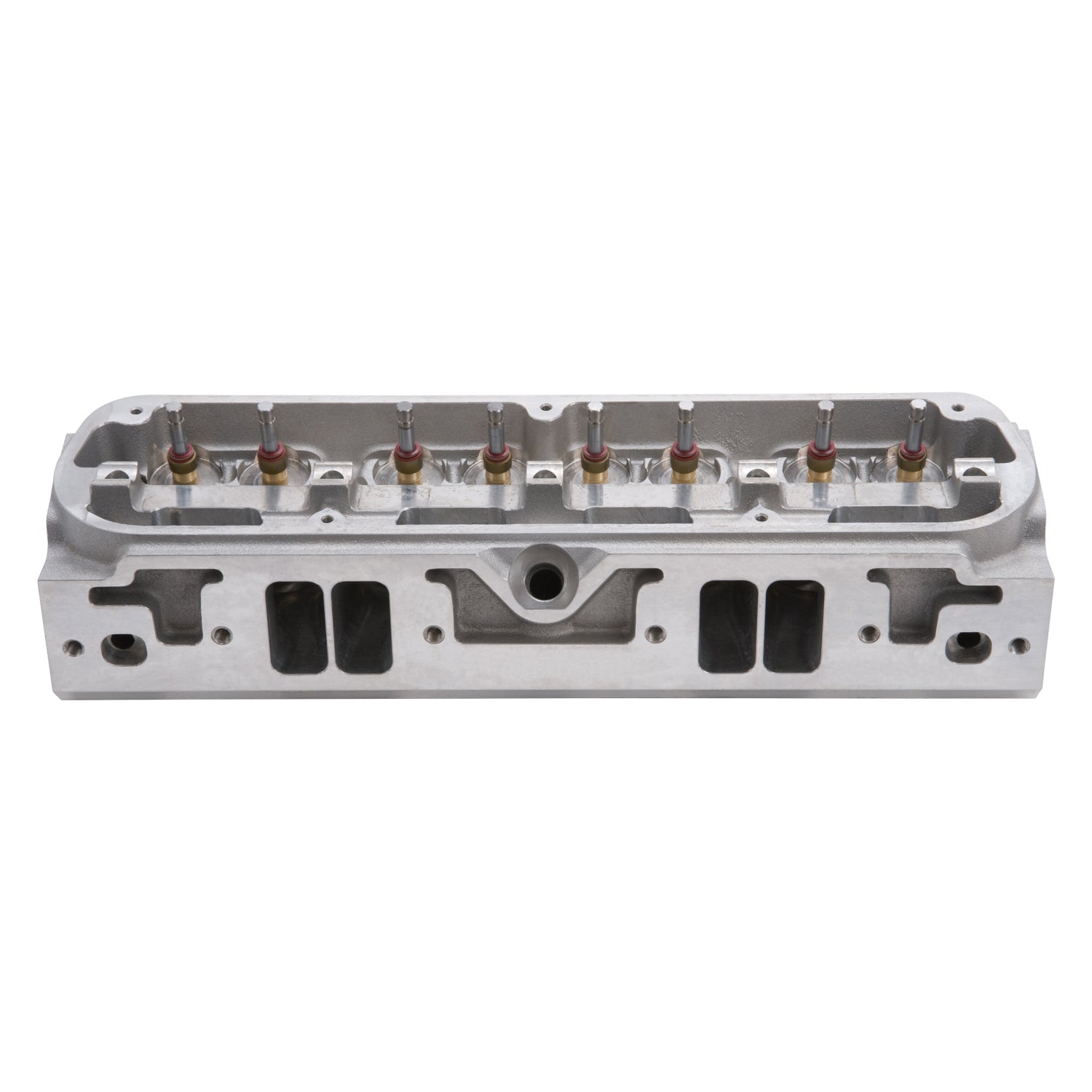

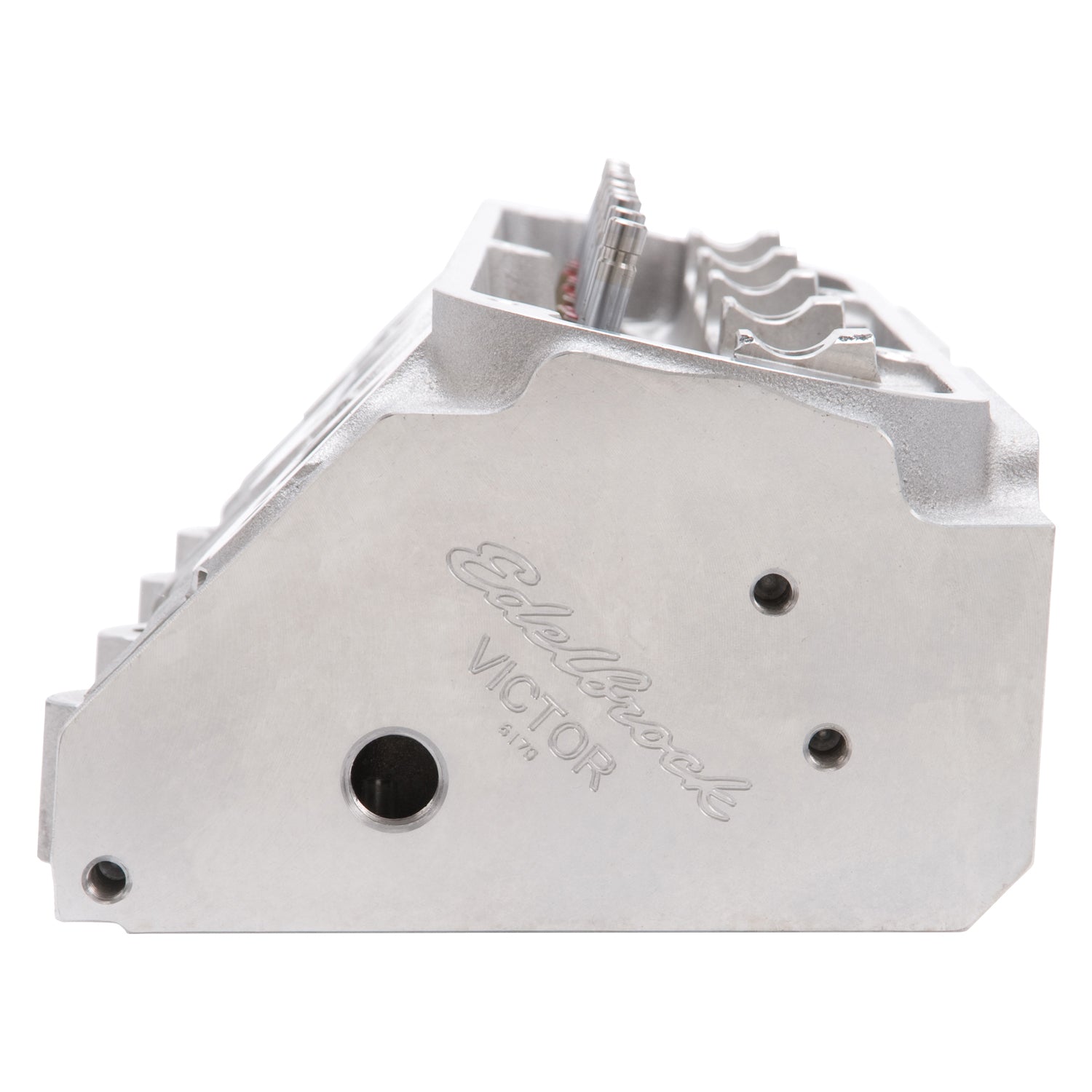

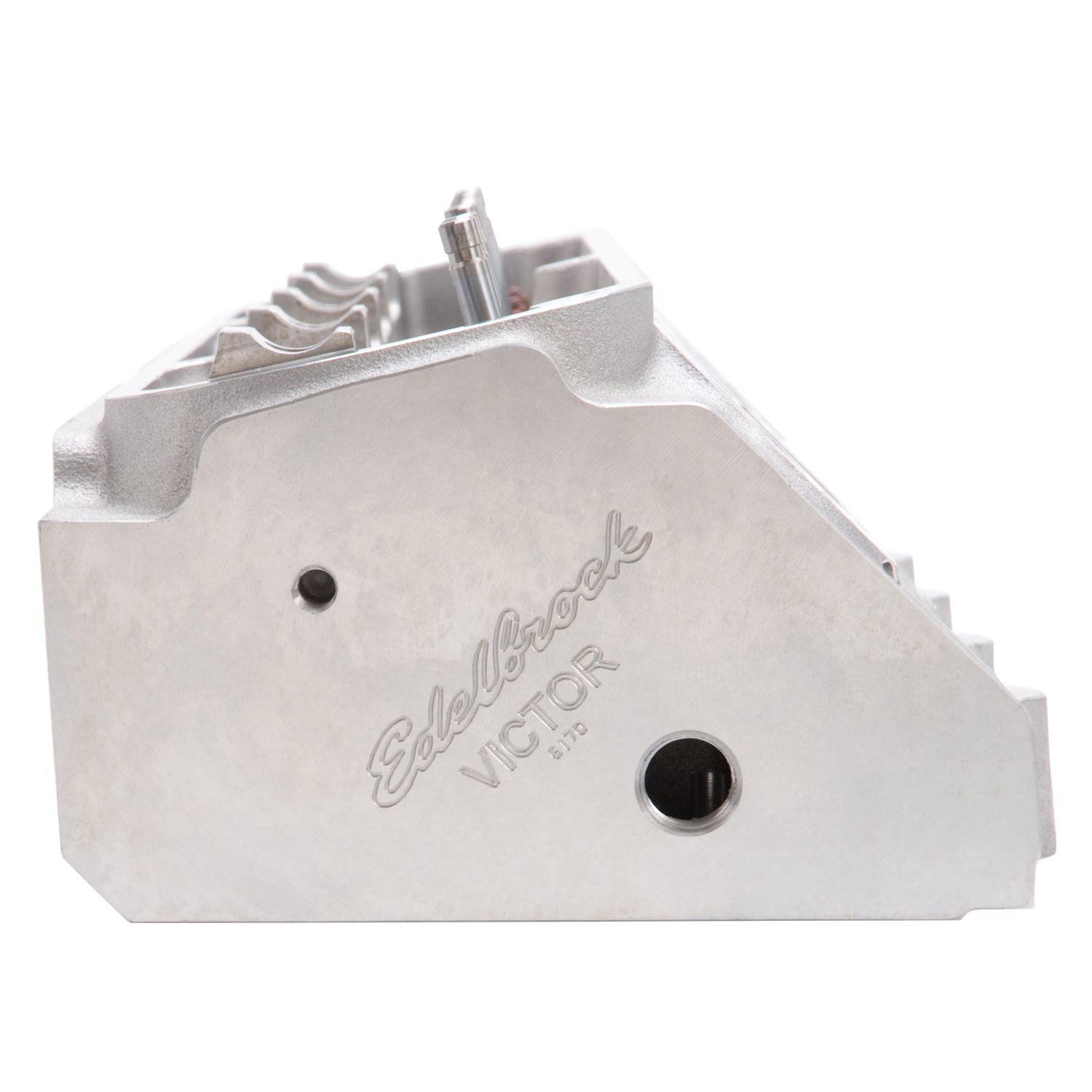

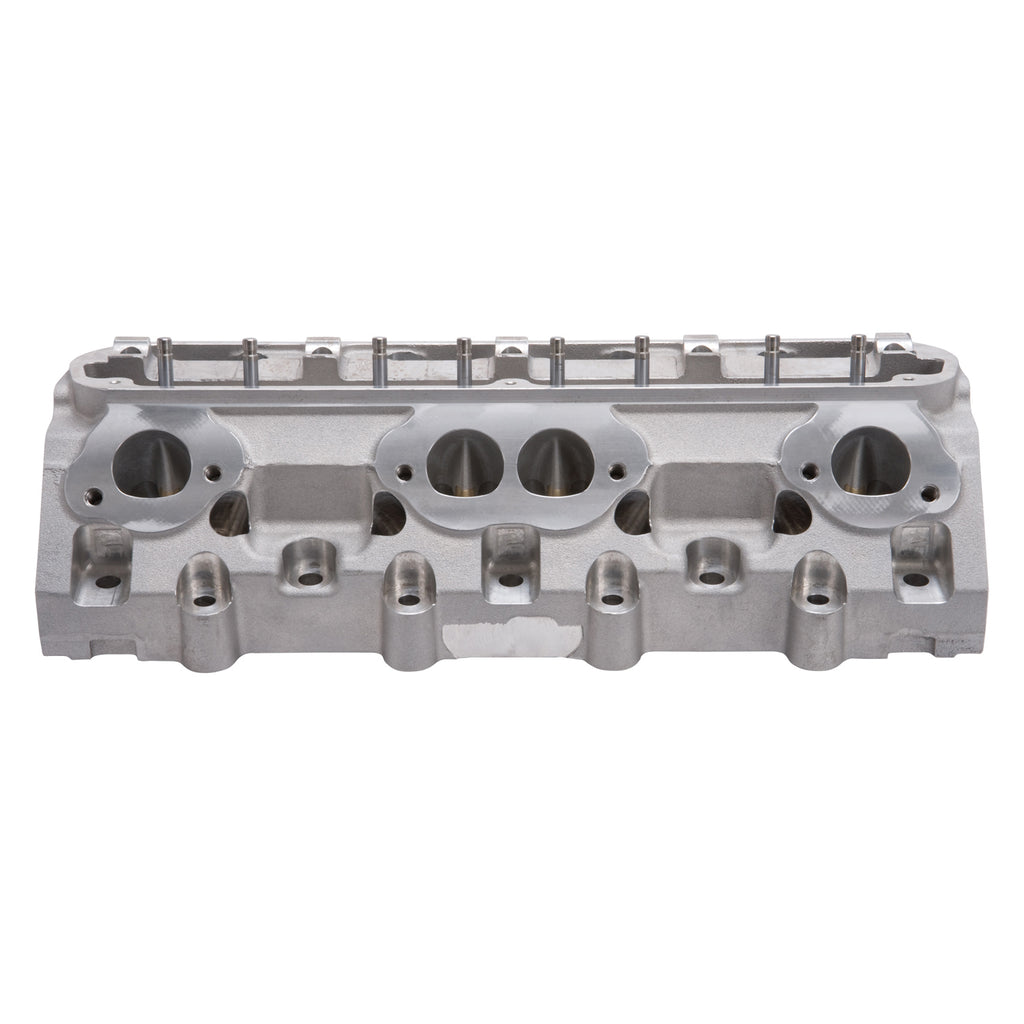

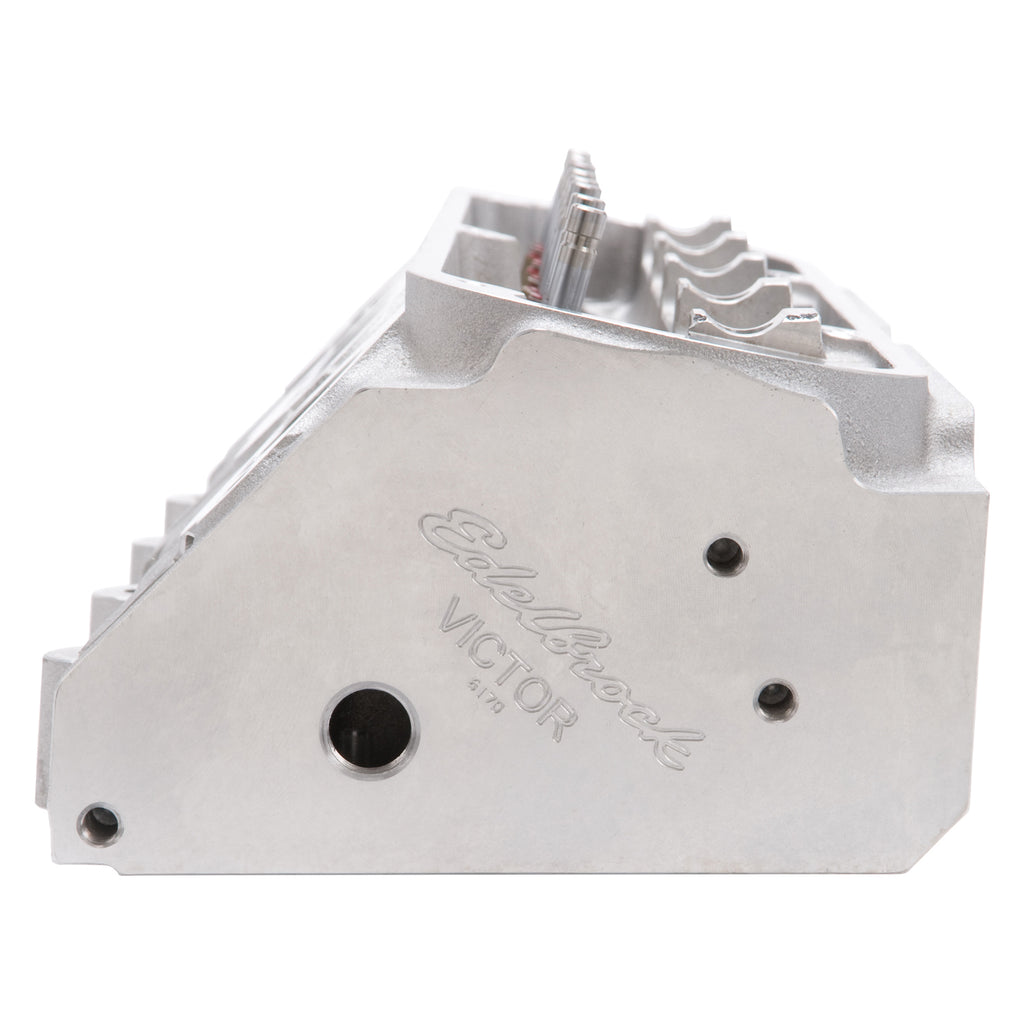

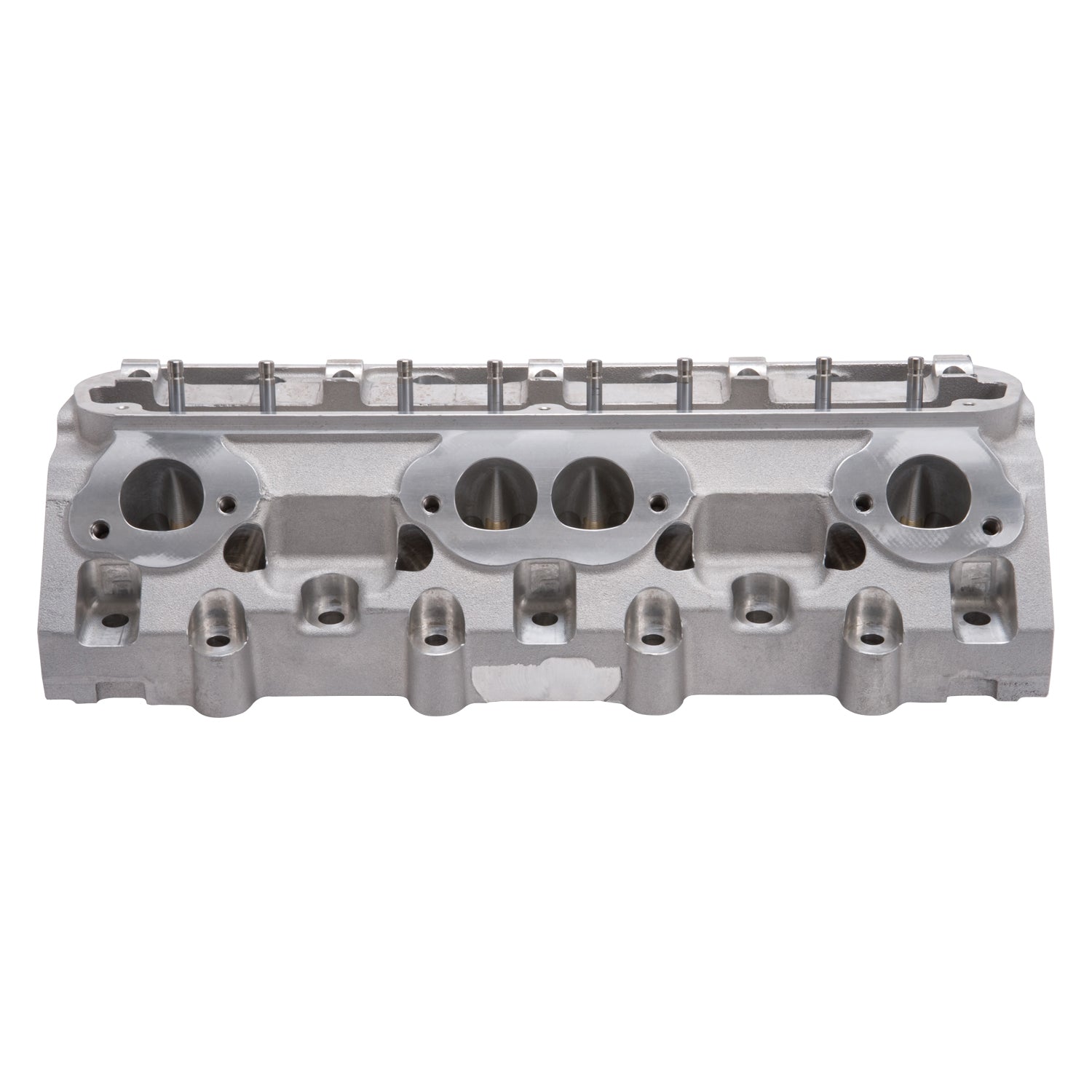

The Edelbrock #61719 Victor Series cylinder heads are for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. These cylinder heads are an in-line valve design incorporating a 16 Deg valve angle (stock is 18 Deg ) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF |
Engine Cylinder Head |
| Description_LAB |
Victor Small-Block Chrysler Cylinder Head W/ Valves |
| Description_MKT |
The Edelbrock #61719 Victor Series cylinder heads are for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. These cylinder heads are an in-line valve design incorporating a 16 Deg valve angle (stock is 18 Deg ) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available |
| Description_MKT |

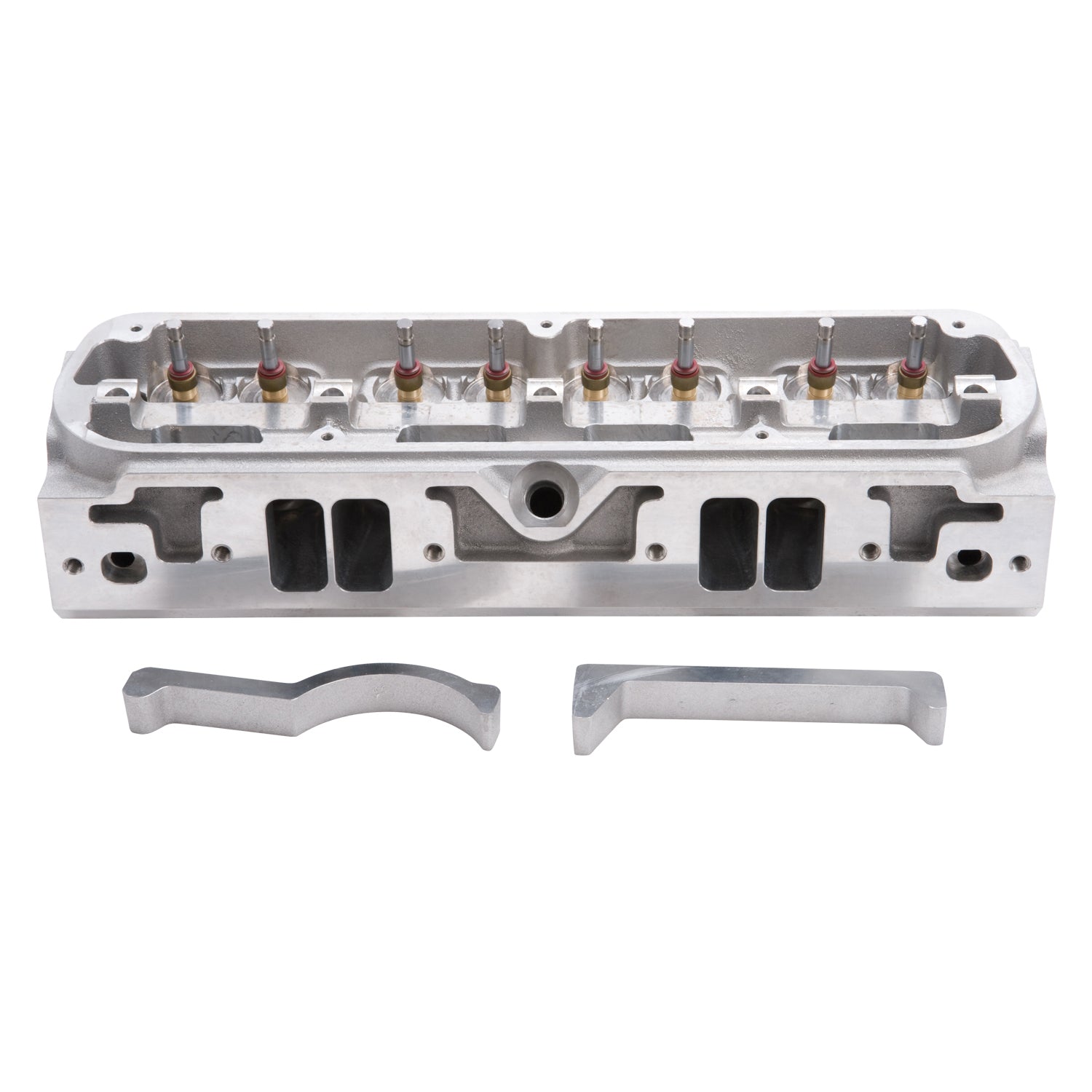

bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided. |
| Description_EXT |
Edelbrock part #61719 Victor Series Bare cylinder heads with valves are for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. |
| Description_INV |
Edelbrock SB Chrysler Cylinder Head |
| Description_TRA |
Bare with Valves |
| Description_TRA |
These heads are designed to accommodate stock Big Block Mopar Wedge Rocker arm assemblies (.150" minimum intake offset). |
| Guide Plates Included |
No |
| CNC Ported |
No |
| Material |
Aluminum |
| Intake Runner Volume |
225.0 |
| Grade Type |
Performance |
| Intake Valve Diameter |
2.150 |
| Valve Stem Diameter |
0.341 |
| Deck Height |
9.600 |
| Combustion Chamber Volume |
60.0 |
| Exhaust Valve Diameter |
1.600 |
| Push Rod Diameter |
0.312 |
| Head Casting Number |
6170F |
| Deck Thickness |
0.562 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Angle |
16 |
| Length |
8.0000 |
| Width |
10.0000 |
| Height |
25.0000 |
| Weight |
50.0000 |
