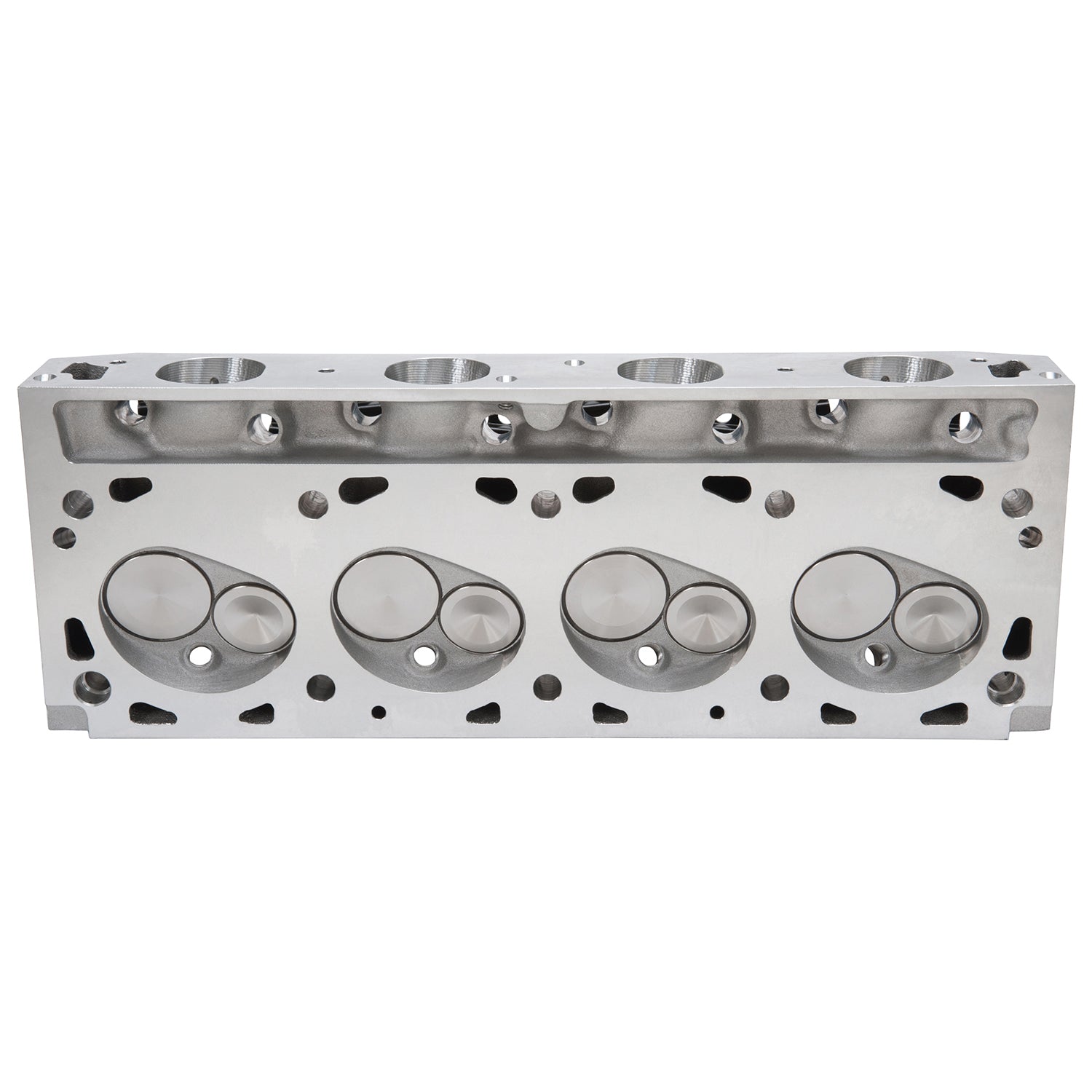

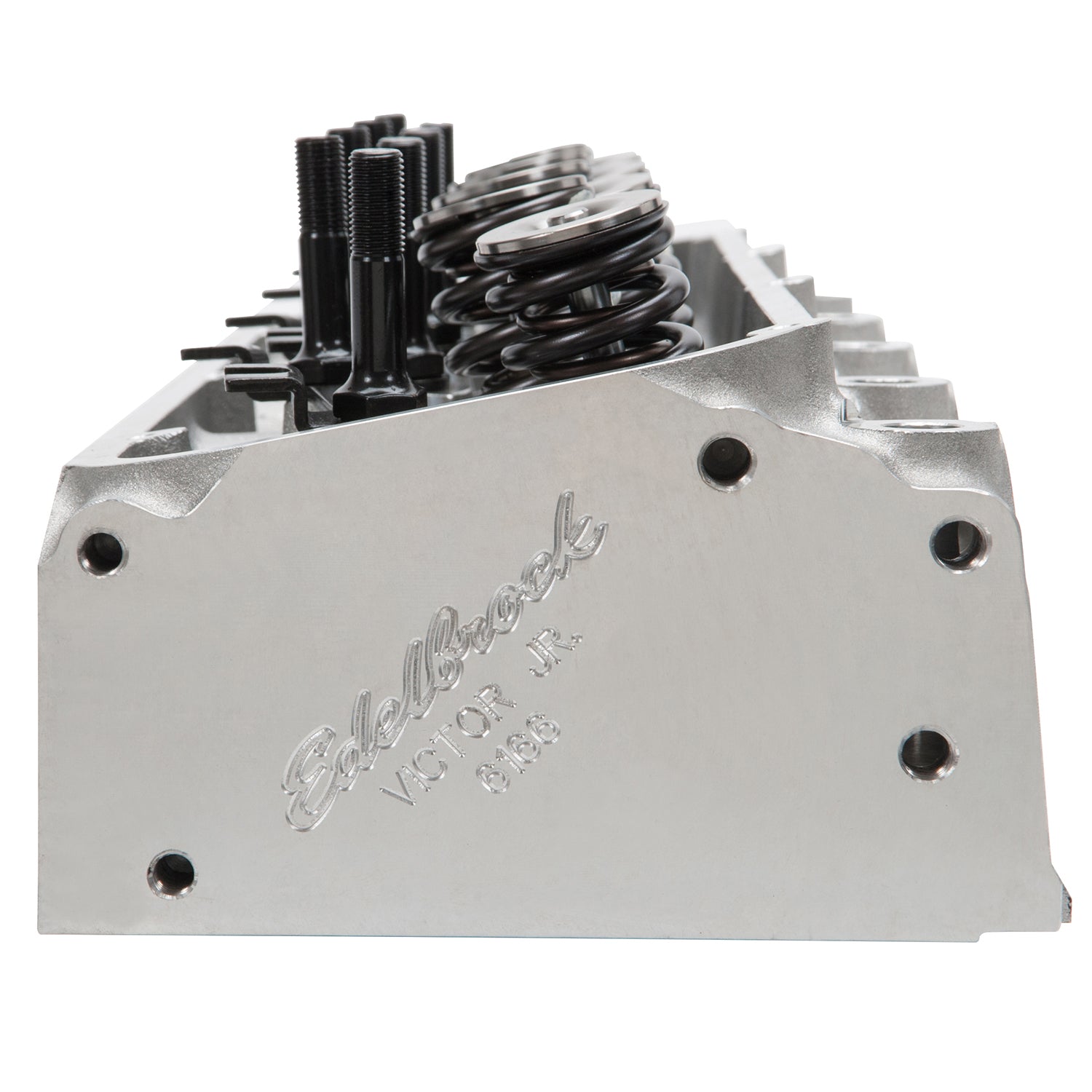

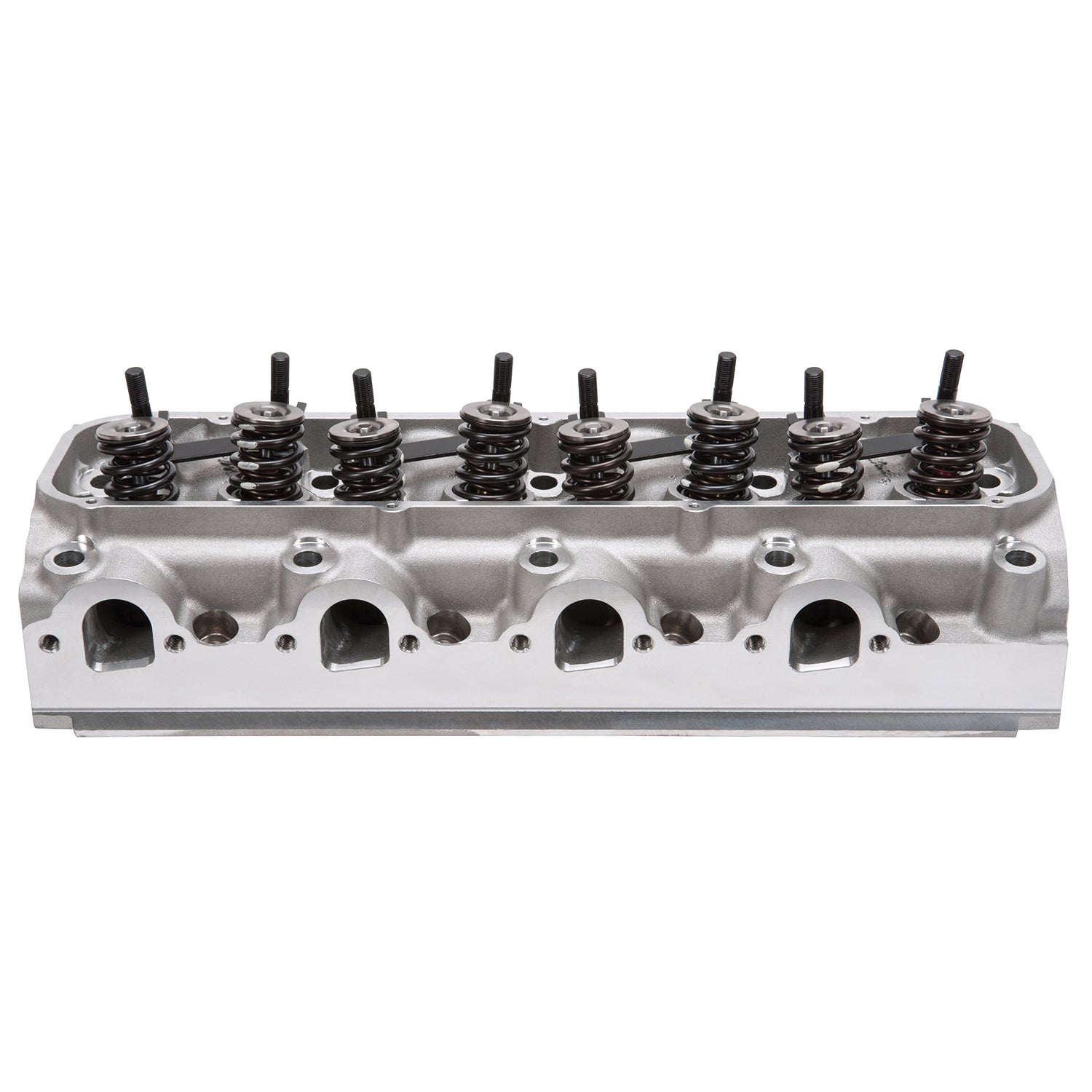

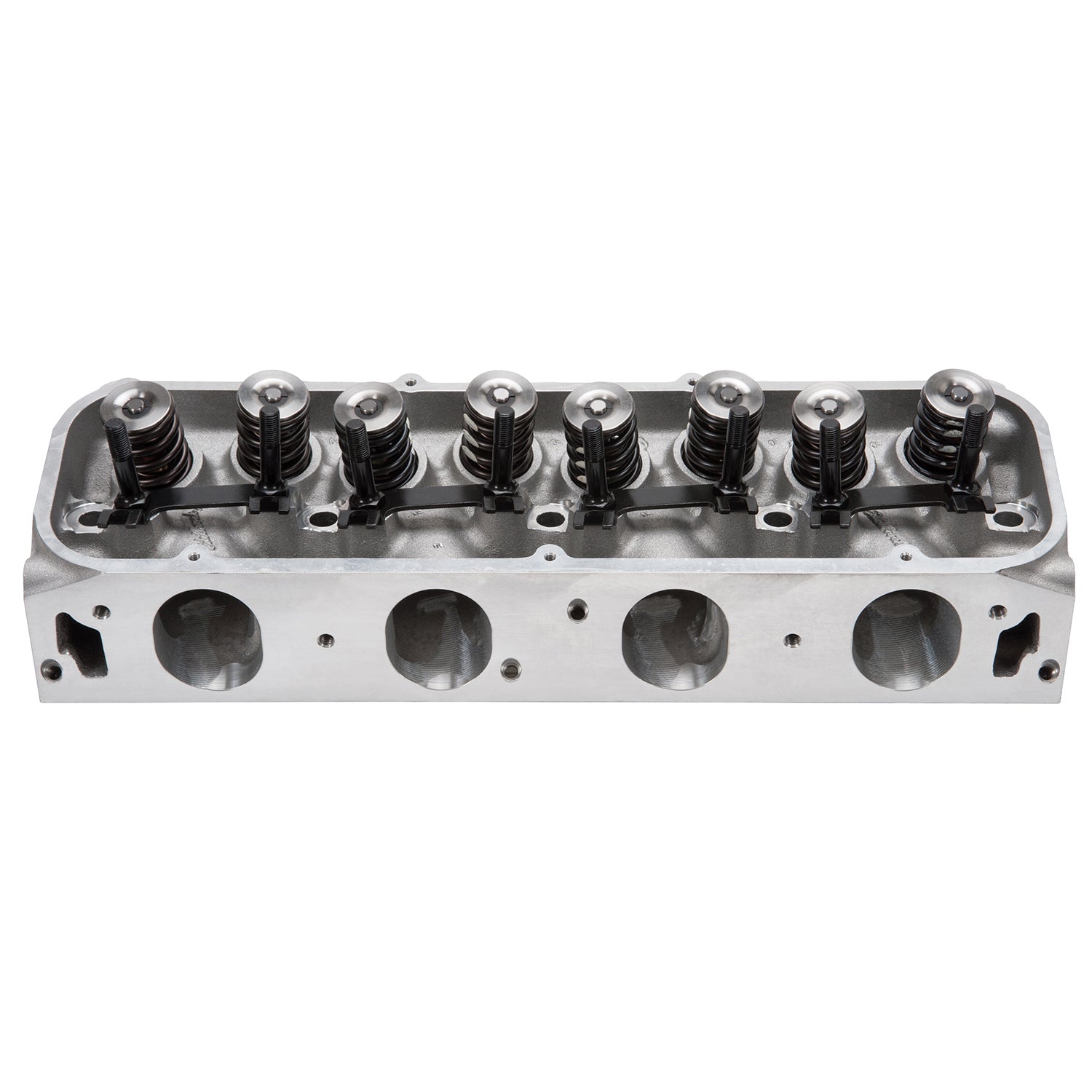

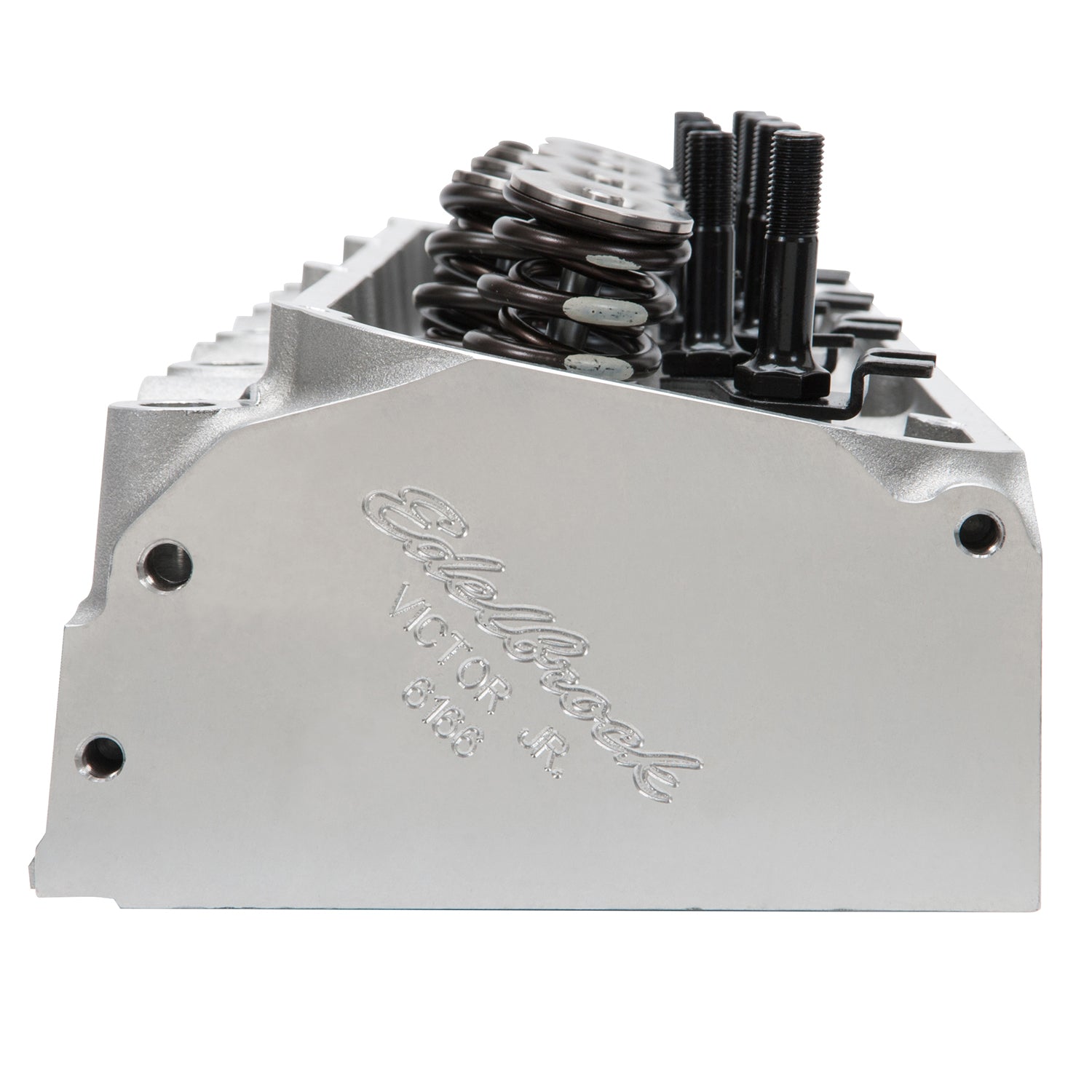

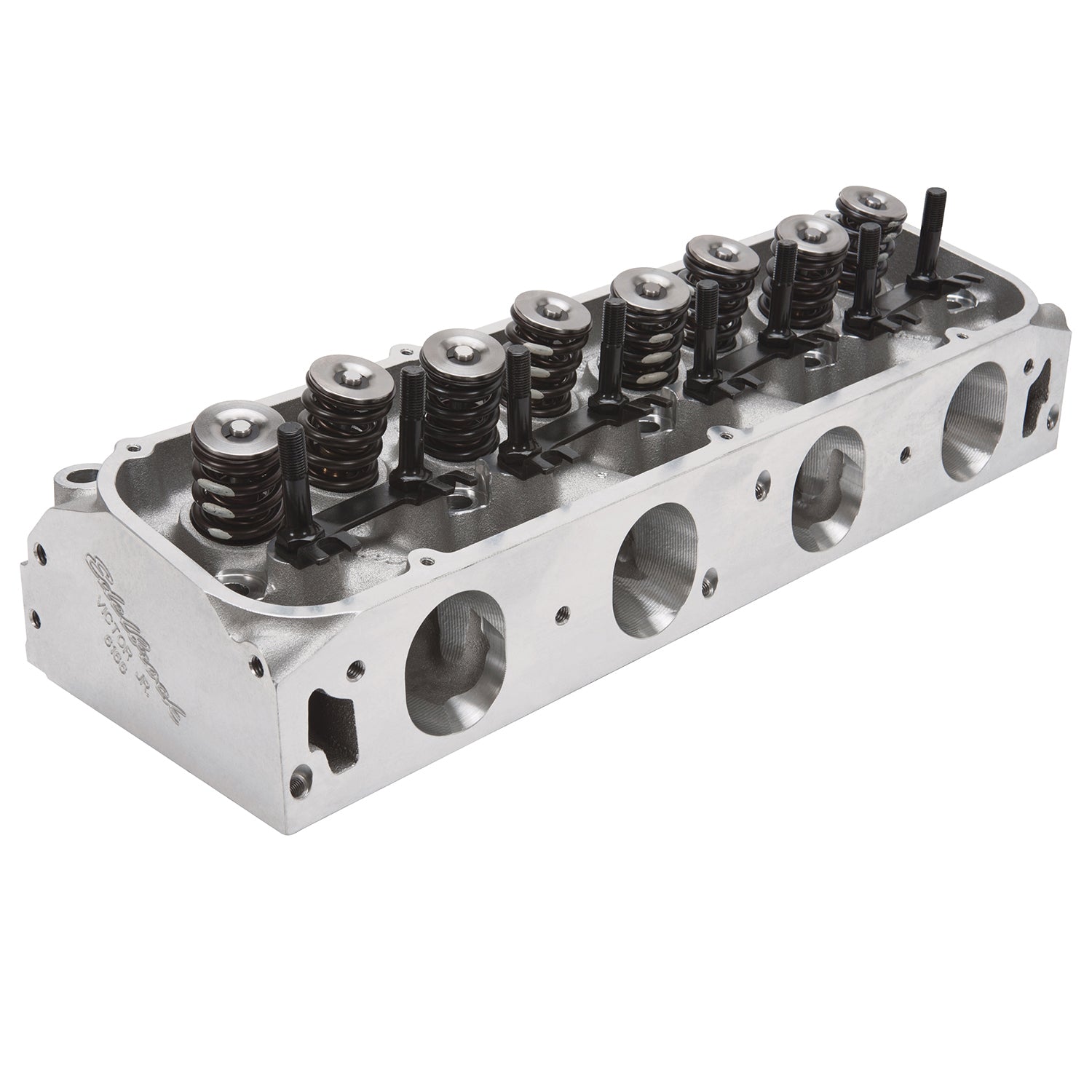

The Edelbrock 61669 Ford 460 CJ Victor Jr. Series cylinder heads offer high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 460 CJ - 310cc FEATURES: Designed for 1968-87 429/460 Fords and the SVO 514 engine Machined profile Cobra Jet-style intake port entries Victor Jr. heads #61669 are complete with titanium retainers and high-quality valve springs suitable for use with solid roller camshafts
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Ford:Big-Block:429 (7.0L )/460 (7.5L) |
| Description_DEF |
Engine Cylinder Head |
| Description_INV |
Edelbrock BB Ford Cylinder Head |
| Description_EXT |
Edelbrock part #61669 Victor Jr. 460 CJ cylinder heads are designed for 1968-87 429/460 Fords and the SVO 514, these 460 CJ heads feature 75cc combustion chambers and machined profile Cobra Jet style intake port entries. |
| Description_MKT |
The Edelbrock 61669 Ford 460 CJ Victor Jr. Series cylinder heads offer high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 460 CJ - 310cc FEATURES: Designed for 1968-87 429/460 Fords and the SVO 514 engine Machined profile Cobra Jet-style intake port entries Victor Jr. heads #61669 are complete with titanium retainers and high-quality valve springs suitable for use with solid roller camshafts |
| Description_LAB |
RPM Big-Block Ford 460 Cylinder Head 460 CJ Hydraulic Flat Tappet Cam |
| Description_TRA |
Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 3/8" (width of slot in guide plate). |
| Deck Thickness |
0.625 |
| Rocker Arm Stud Diameter |
0.437 |
| Valve Stem Diameter |
0.341 |
| Material |
Aluminum |
| Exhaust Valve Diameter |
1.760 |
| CNC Ported |
No |
| Push Rod Diameter |
0.375 |
| Grade Type |
Performance |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Deck Height |
10.322 |
| Intake Runner Volume |
310.0 |
| Intake Valve Diameter |
2.190 |
| Combustion Chamber Volume |
75.0 |
| Guide Plates Included |
Yes |
| Valve Spring Maximum Lift |
0.730 |
| Valve Spring Diameter |
1.580 |
| Head Casting Number |
31-6067 |
| Length |
9.0000 |
| Width |
11.0000 |
| Height |
26.0000 |
| Weight |
40.0000 |
