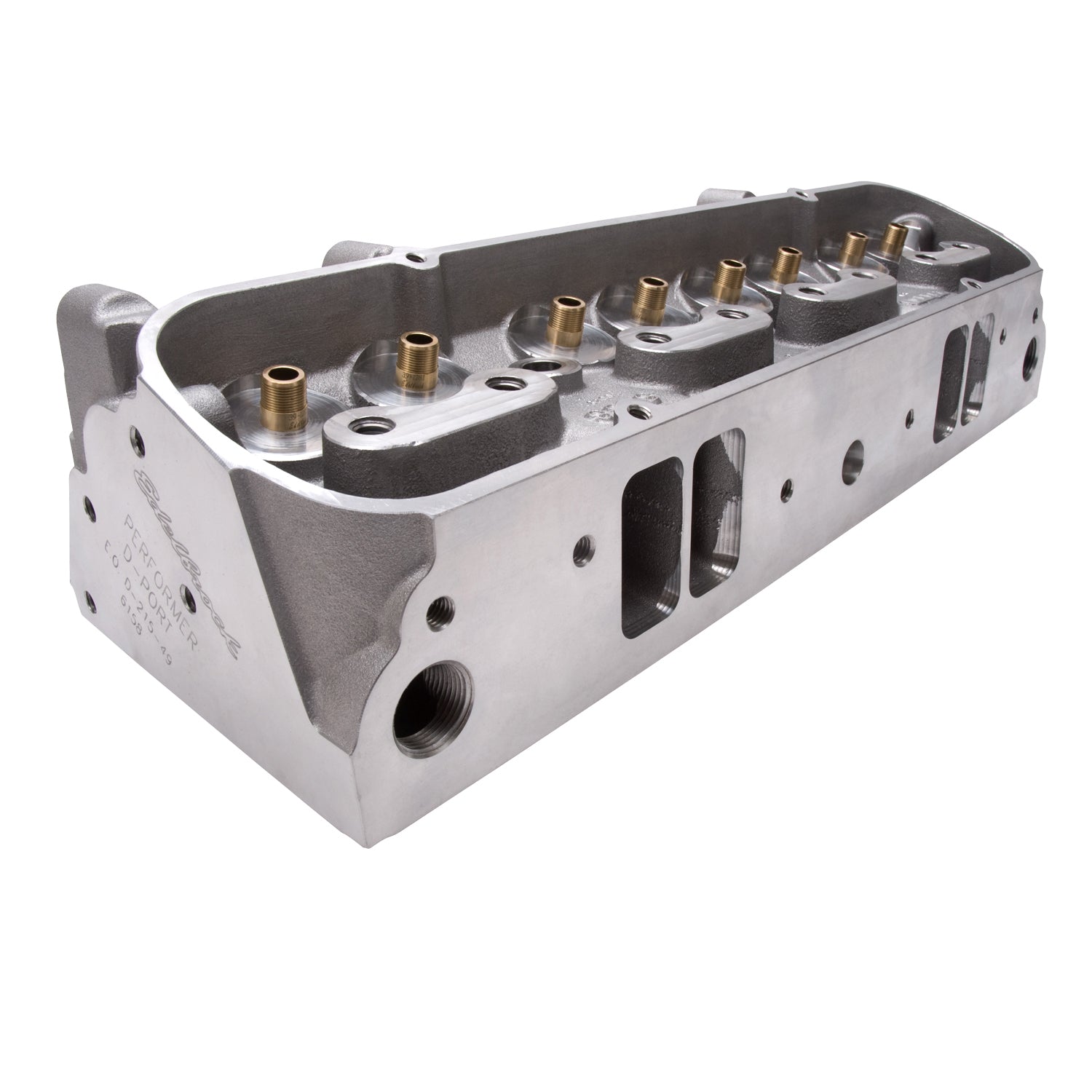

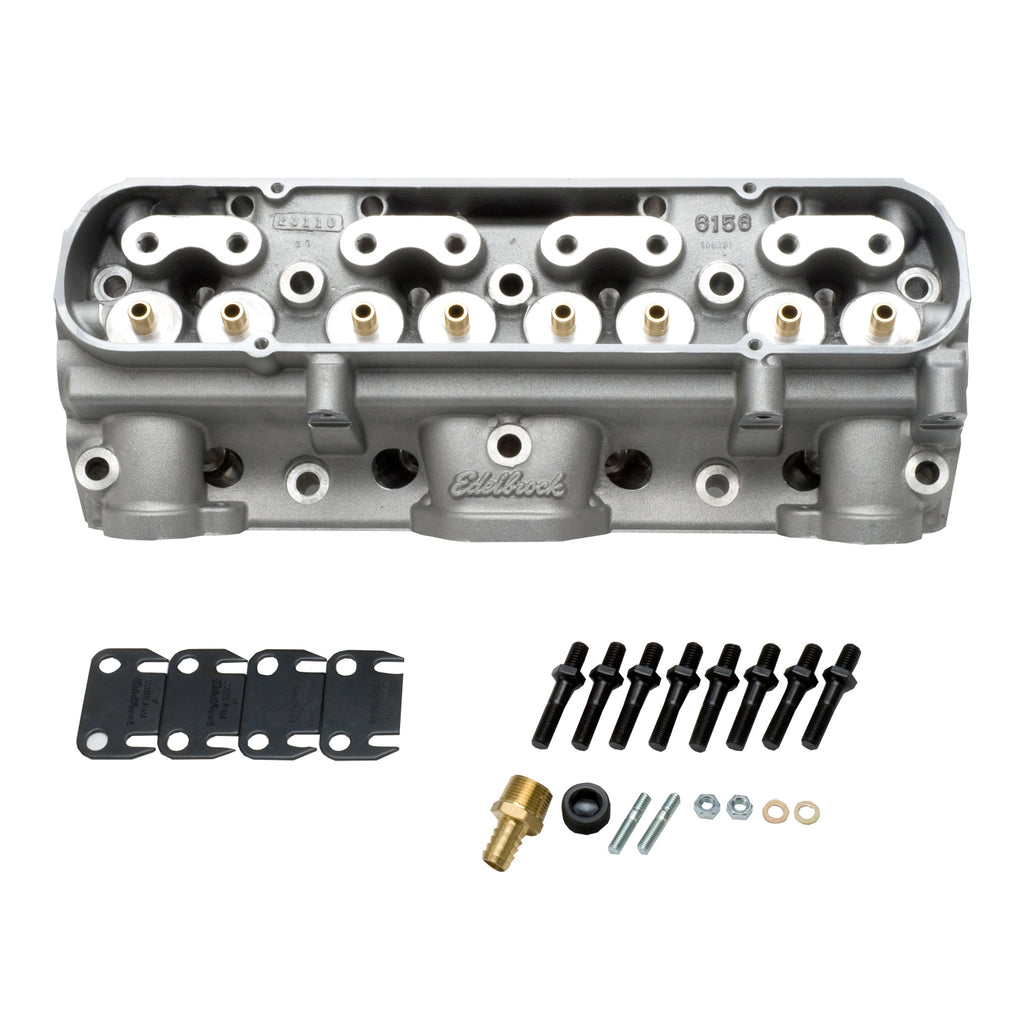

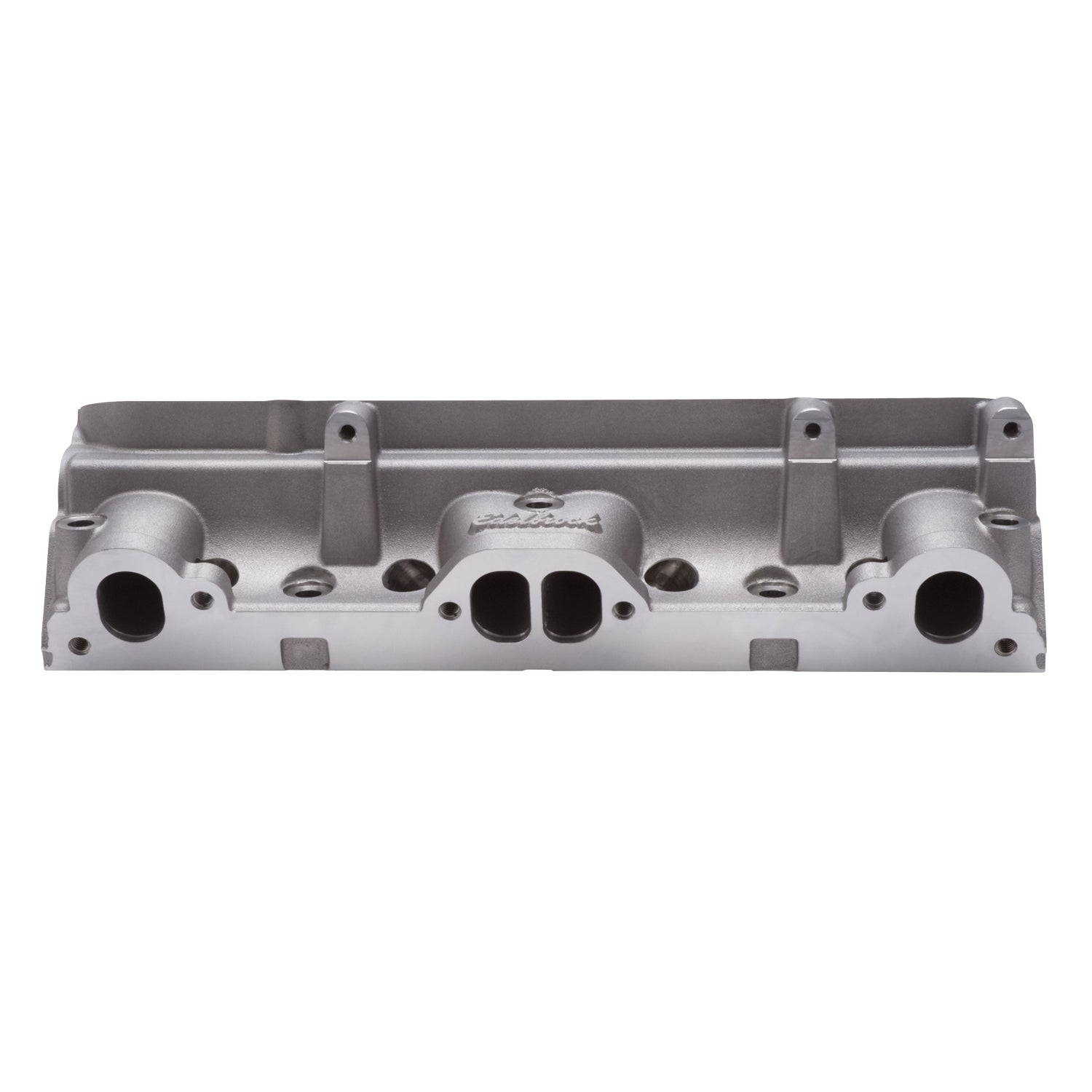

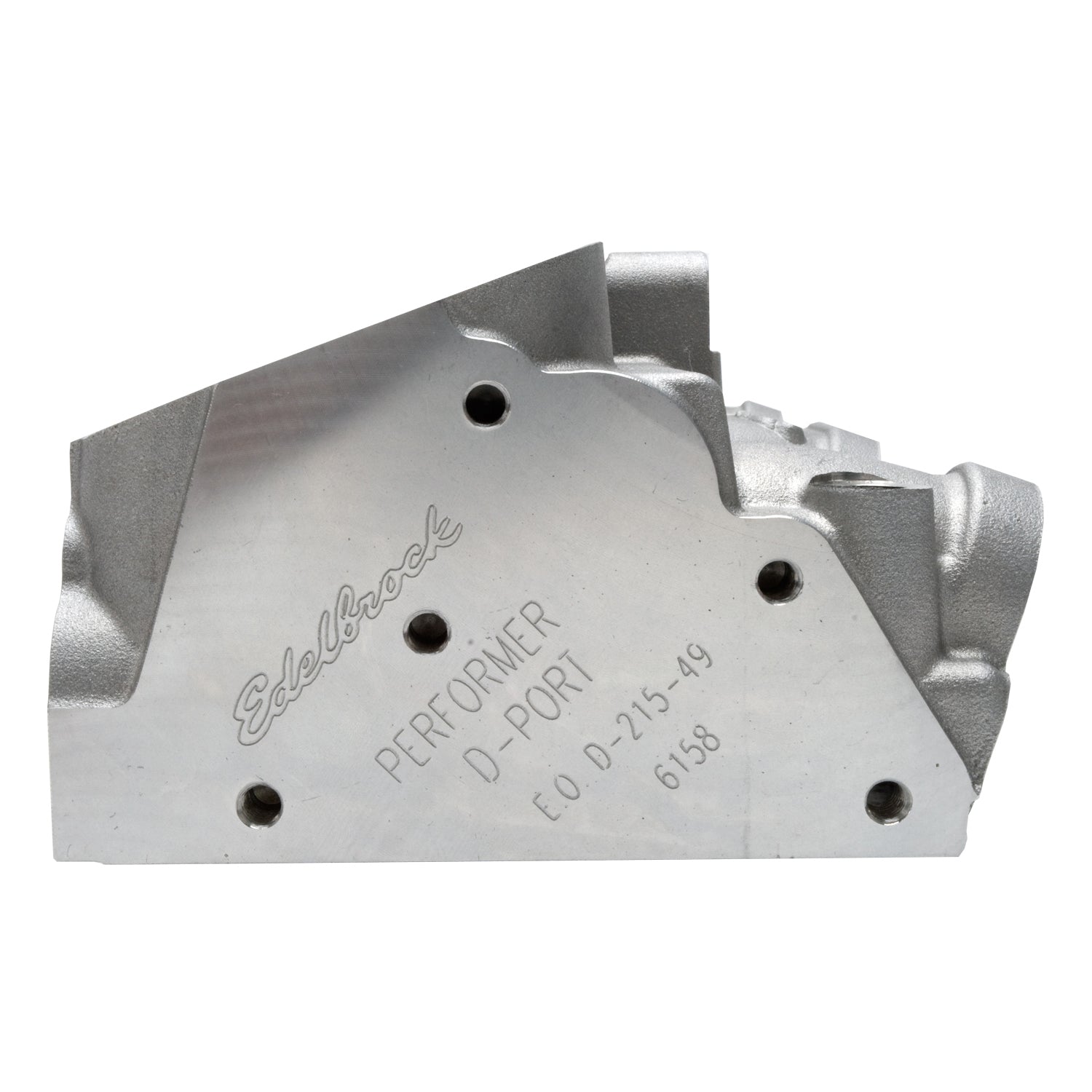

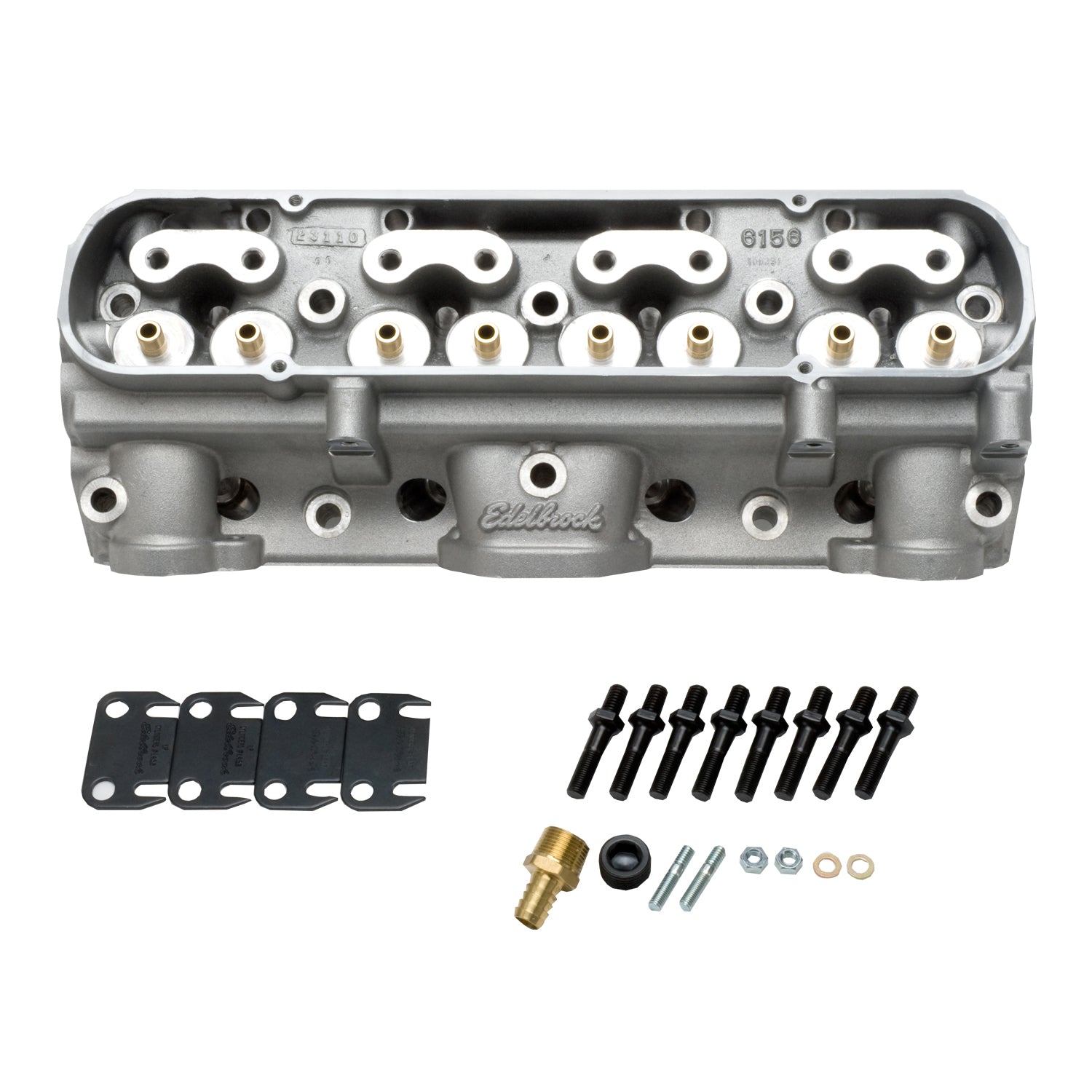

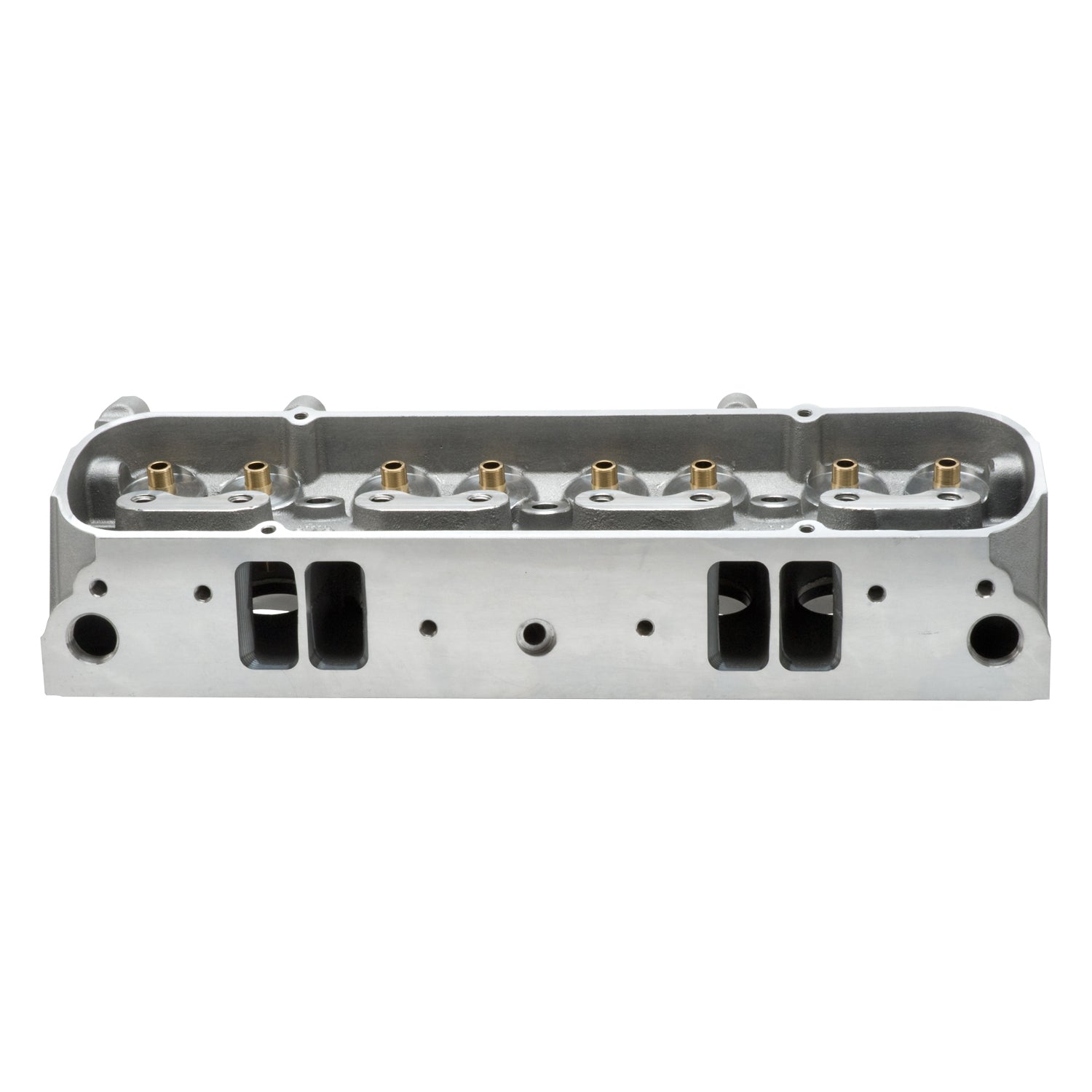

The Edelbrock #61589 Performer Pontiac Bare Cylinder Heads utilize a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. The spark plug has been relocated closer to the exhaust valve for improved performance. These heads are cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance.
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4) |
| Description_DEF |
Engine Cylinder Head |
| Description_MKT |
The Edelbrock #61589 Performer Pontiac Bare Cylinder Heads utilize a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. They feature optimized oil return passages for increased oil flow. The spark plug has been relocated closer to the exhaust valve for improved performance. These heads are cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete cylinder head includes guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance. |
| Description_EXT |
Edelbrock part #61585 Performer Pontiac D-Port Bare Cylinder Heads are designed for 1962-79 389, 400, 421, 428 and 455 c.i.d. V8 Pontiac engines with a 4.060" or larger bore. |
| Description_INV |
Edelbrock Pontiac Cylinder Head |
| Description_LAB |
RPM CNC Pontiac D-Port Cylinder Heads 72cc Bare |
| Description_TRA |
Bare heads will have valve guides & seats installed, but will require final sizing & a valve job to match the valves you will be using. |
| Description_TRA |

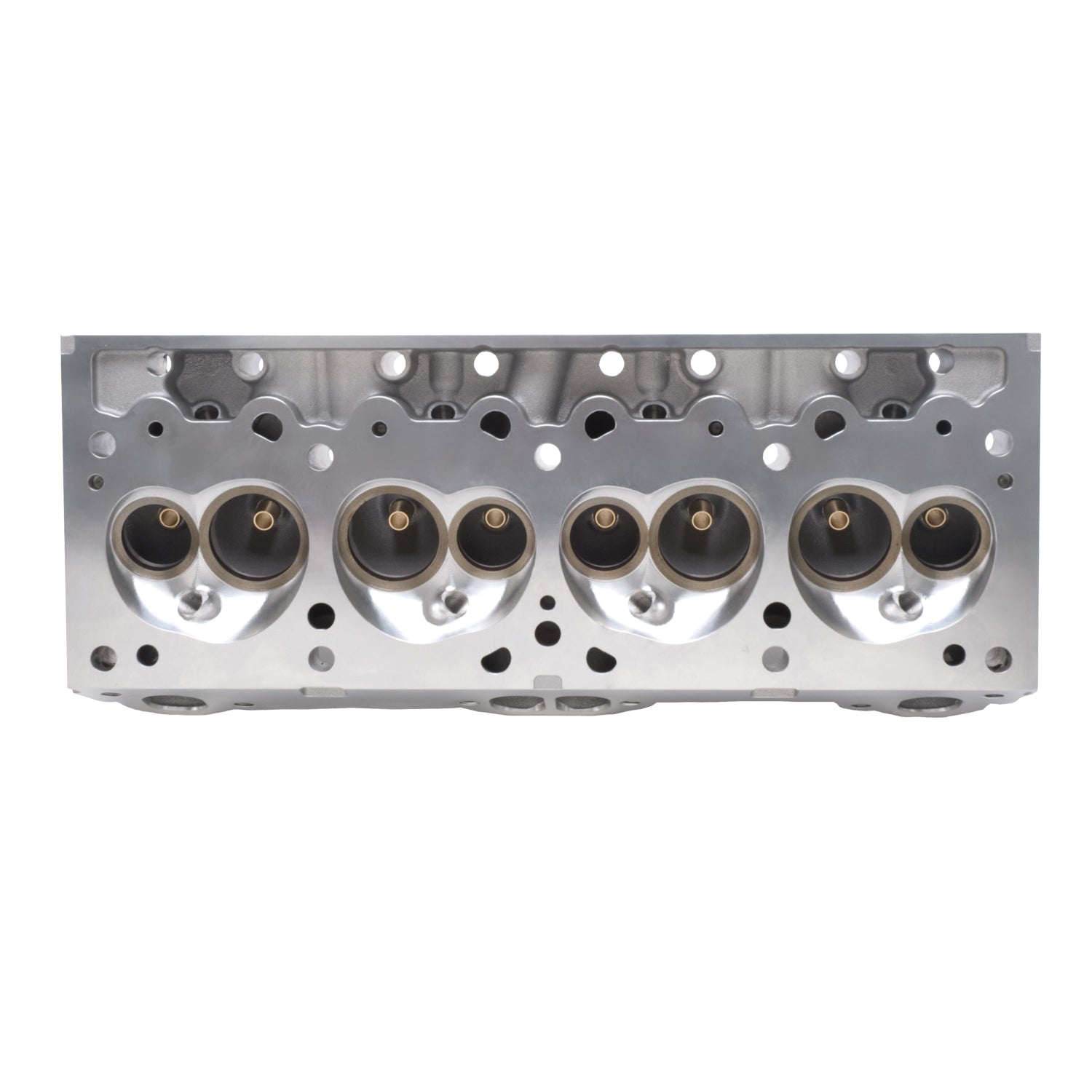

Combustion Chamber: 72cc |
| Description_TRA |
350 c.i.d. engines may require notching the block for valve clearance. |
| Description_TRA |
Three head bolt bosses are raised higher than the standard D-port heights and will require head bolt kit #8561 to install these heads. |
| Description_TRA |
Deck thickness: 5/8" |
| Description_TRA |
Rocker stud diameter: 7/16" |
| Description_TRA |
Pushrod diameter: 5/16" (width of slot in guide plate). |
| Head Casting Number |
31-6156 |
| Deck Height |
10.250 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Combustion Chamber Volume |
72.0 |
| CNC Ported |
No |
| Push Rod Diameter |
0.312 |
| Guide Plates Included |
Yes |
| Grade Type |
Performance |
| Material |
Aluminum |
| Valve Angle |
14 |
| Guide Plate Material |
Hardened Steel |
| Intake Runner Volume |
204.0 |
| Deck Thickness |
0.625 |
| Length |
9.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
30.0000 |
