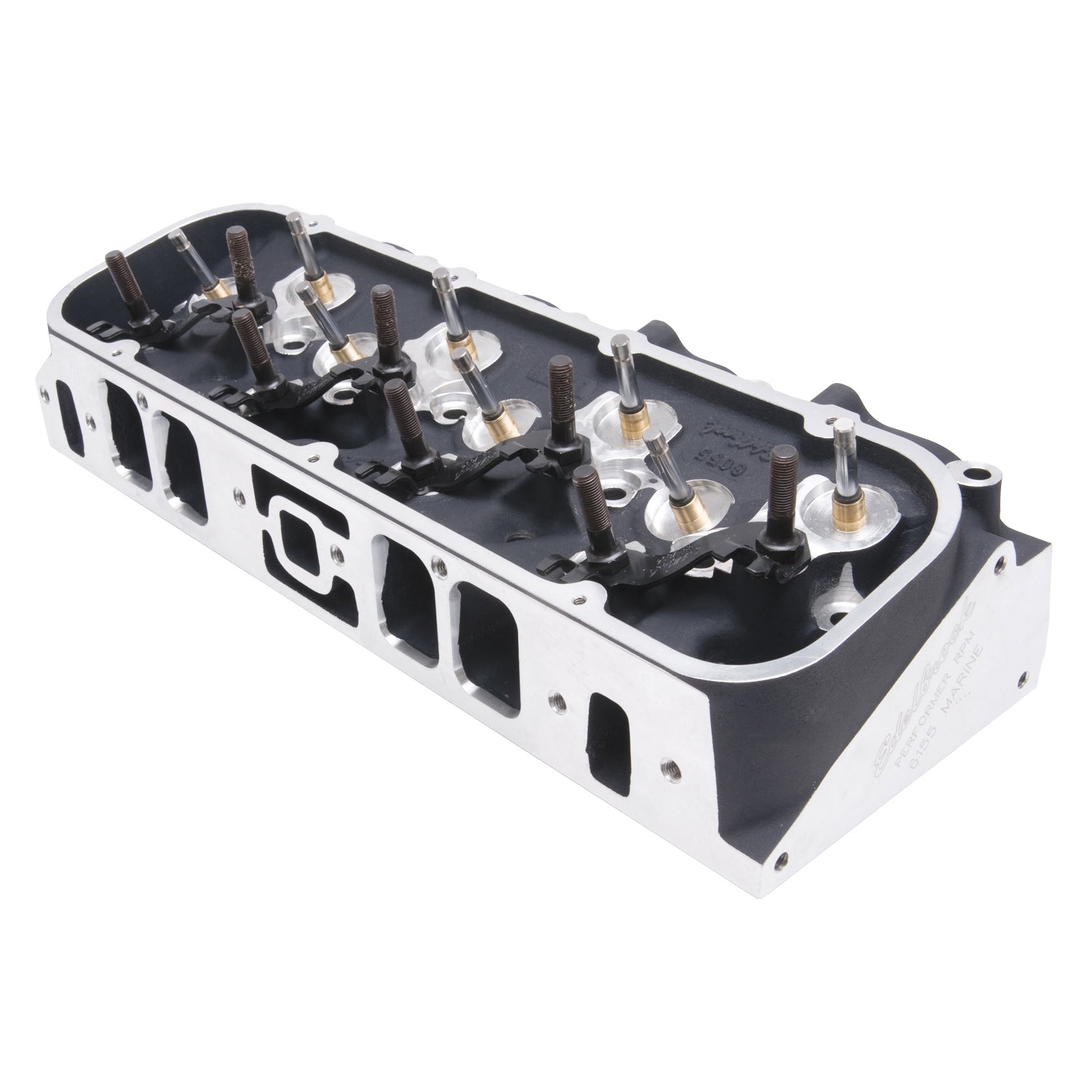

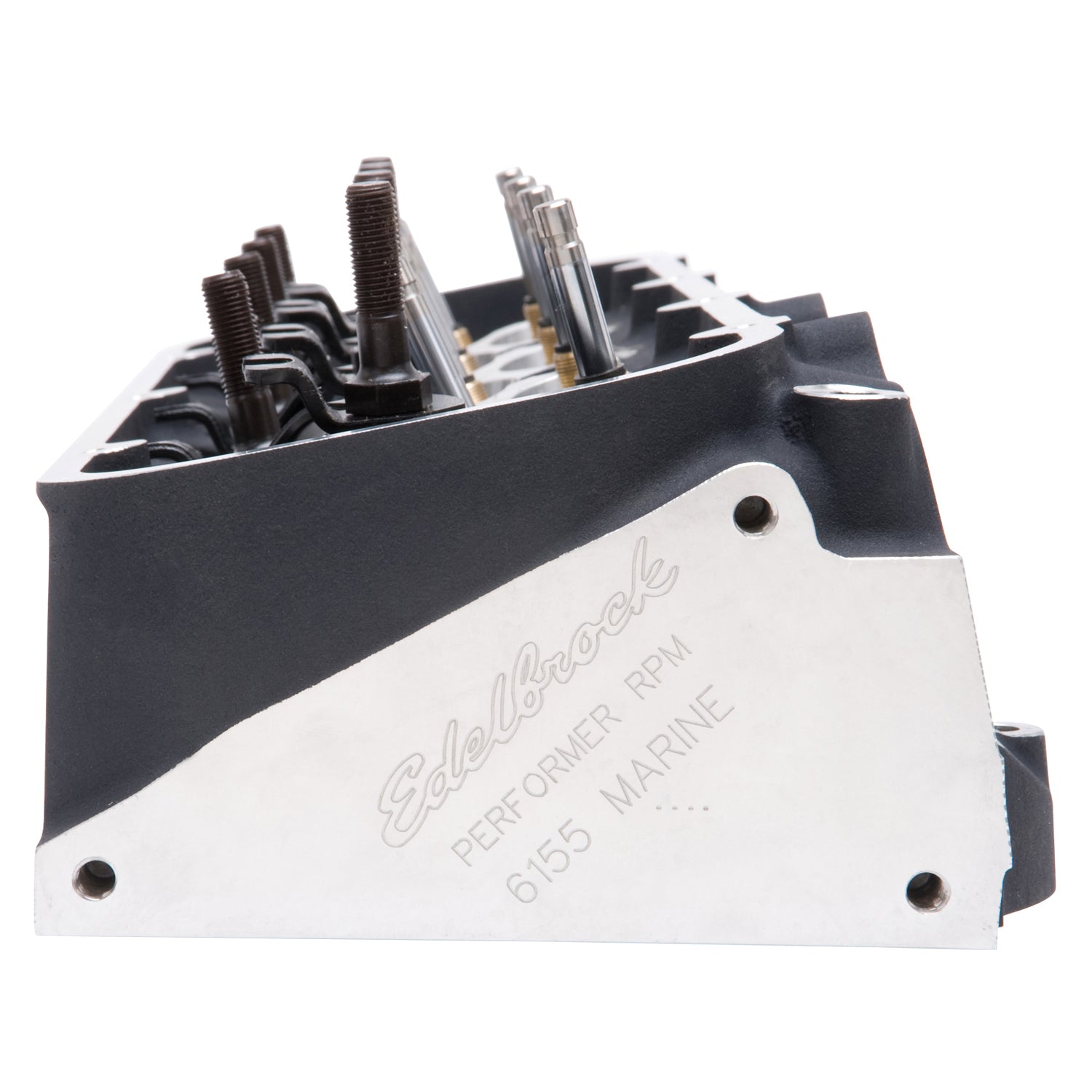

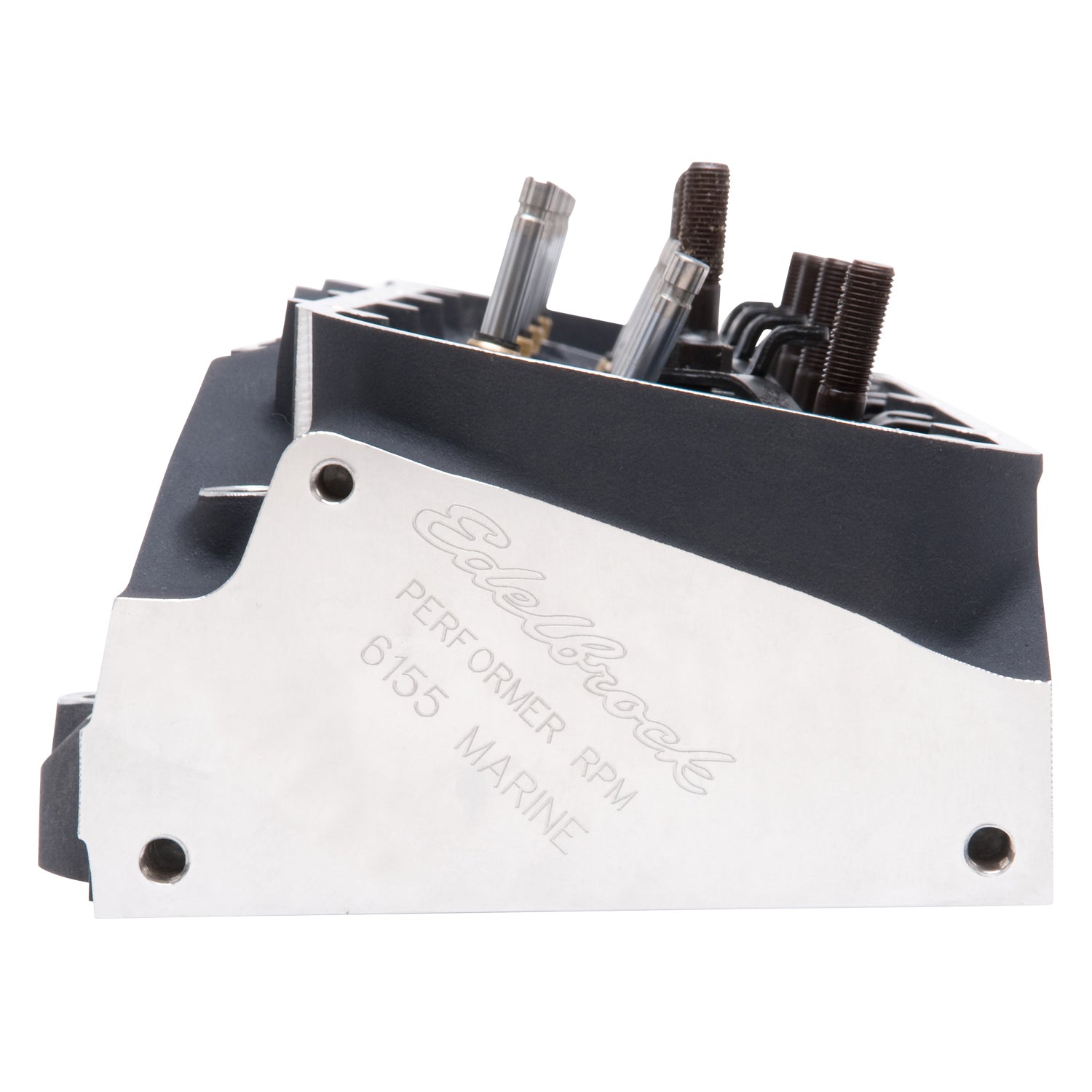

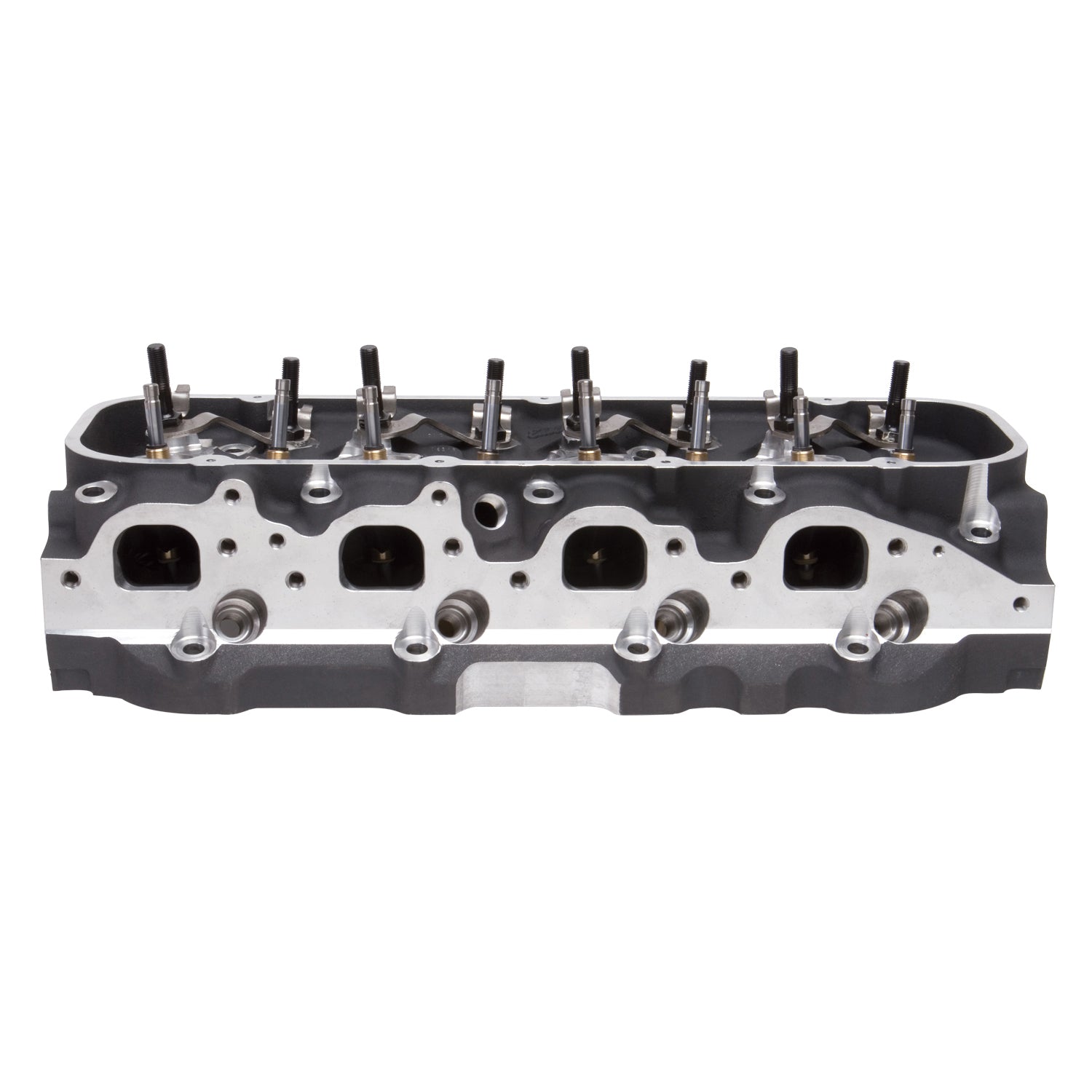

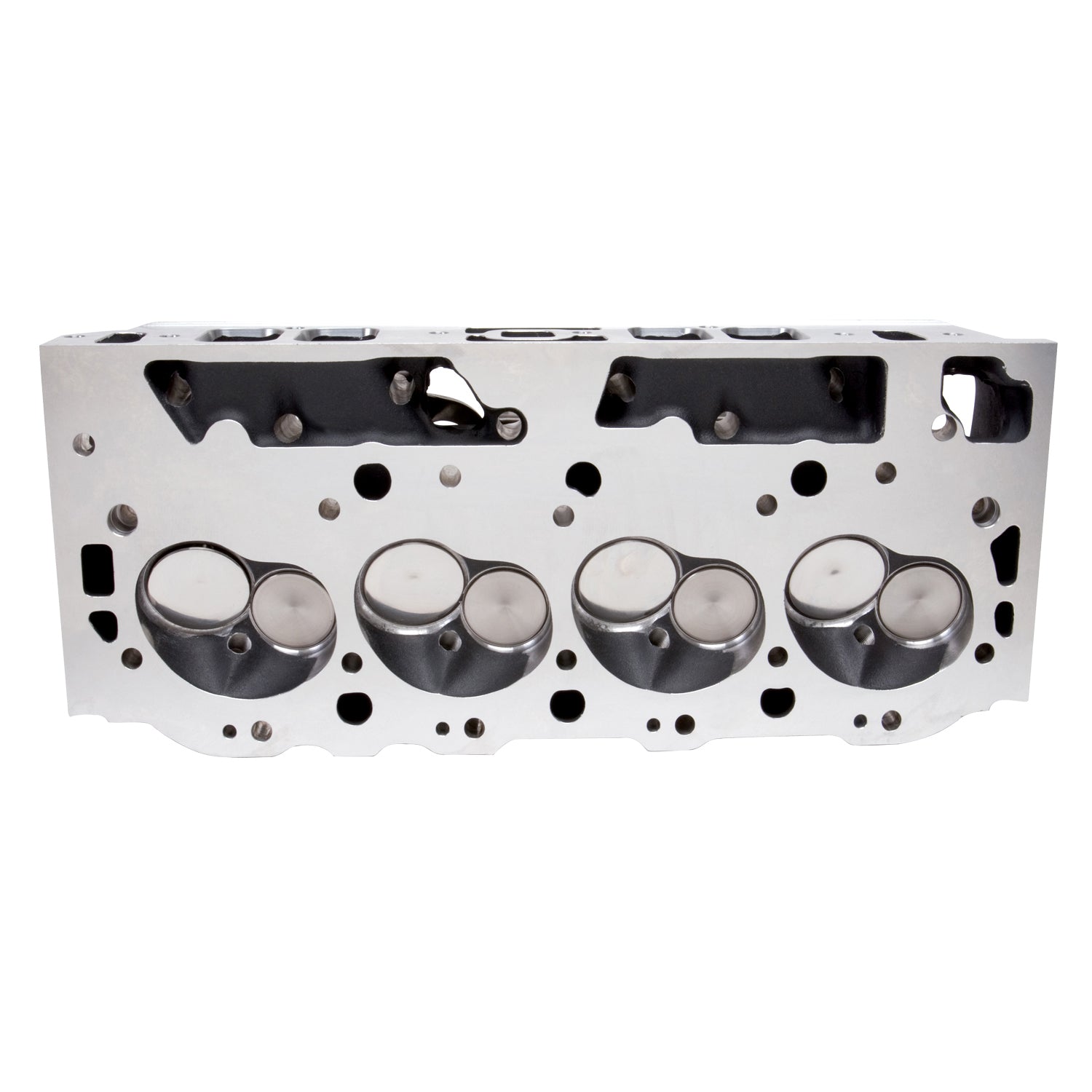

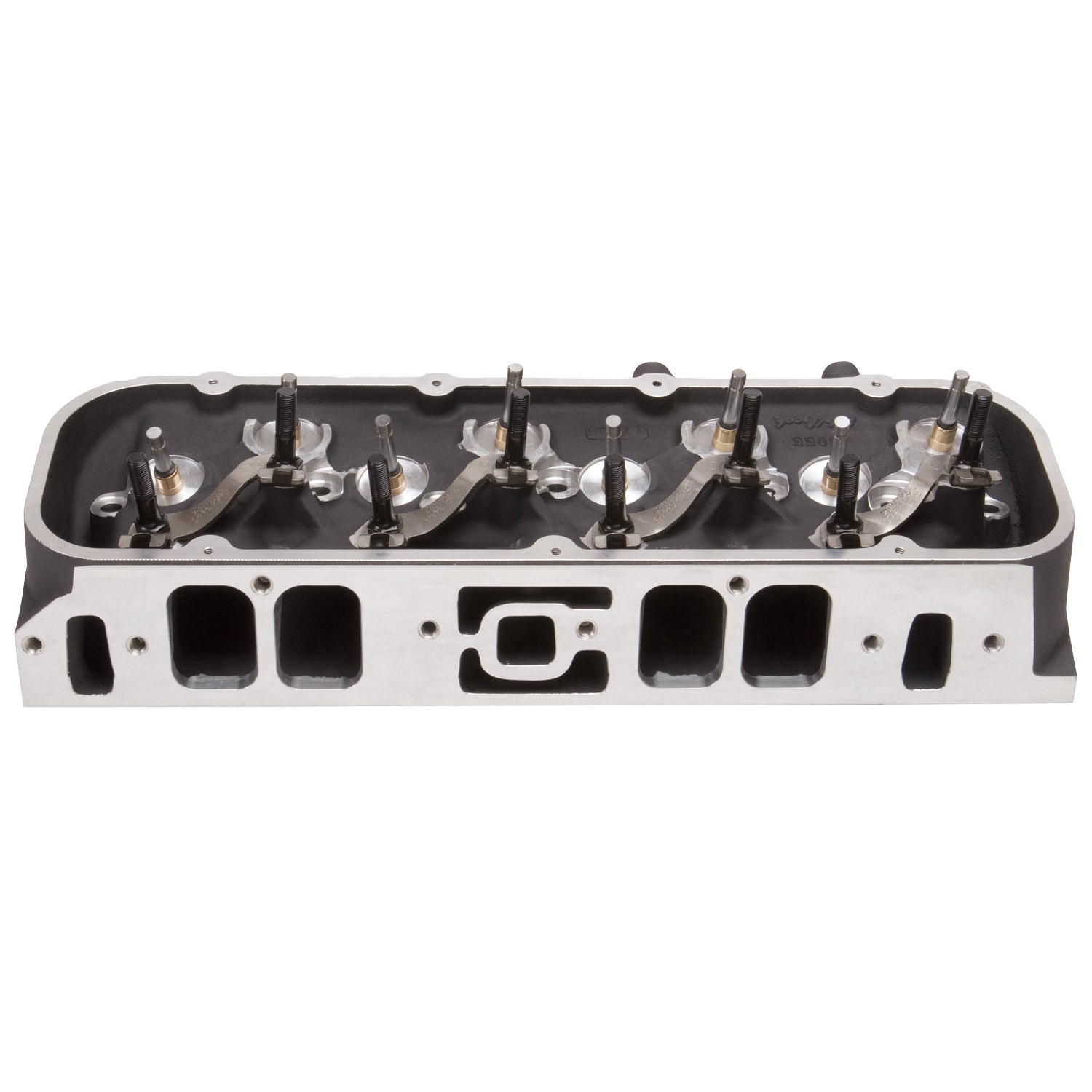

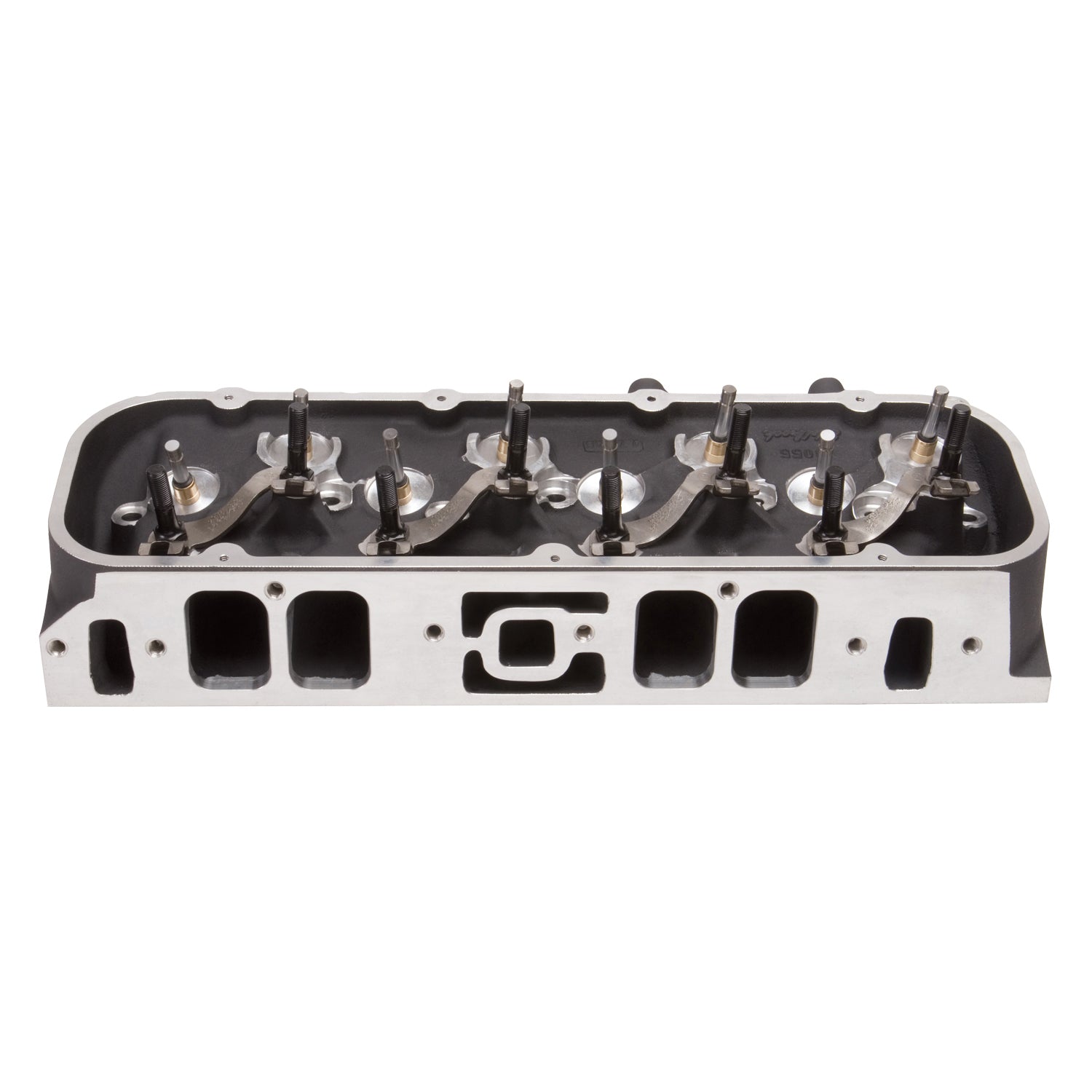

The Edelbrock #61559 Performer RPM Marine-Duty cylinder head is designed for use with Rectangular Port Big-Block Chevy Marine applications. The Edelbrock #61559 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF |
Engine Cylinder Head |
| Description_INV |
Edelbrock BBC Cylinder Head |
| Description_EXT |
Edelbrock part #61559 Performer RPM Marine-Duty cylinder heads are designed for use with Rectangular Port Big-Block Chevy Marine applications. |
| Description_MKT |
The Edelbrock #61559 Performer RPM Marine-Duty cylinder head is designed for use with Rectangular Port Big-Block Chevy Marine applications. The Edelbrock #61559 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_LAB |
RPM Marine Big-Block Chevy Cylinder Head Hydraulic Flat Tappet Cam |
| Description_TRA |
Heavy-duty, 1.89" Inconel exhaust valves provide added durability for marine applications |
| Description_TRA |
Hard anodized black to protect the aluminum cylinder heads in the harsh marine environment |
| Description_TRA |
Sold with valves only to allow for valve spring choices |
| Description_TRA |
Match with an Edelbrock Performer RPM manifold, Performer Series 750 cfm marine carb and Performer RPM cam for proven performance |
| Description_TRA |
Smaller-than-stock 11/32" valve stems promote excellent flow and lighter valve weight |
| Material |
Aluminum |
| Guide Material |
Manganese Bronze |
| Grade Type |
Performance |
| Quantity |
Sold Individually |
| Intake Runner Volume |
315 |
| Guide Plate Material |
Hardened Steel |
| Family |
Performer RPM |
| Valve Angle |
26 |
| Exhaust Runner Volume |
110 |
| Push Rod Diameter |
(Suggested) 0.375 |
| Guide Plates Included |
Yes |
| Seat Angle |
Exhaust 45 deg/Intake 45 |
| Head Casting Number |
N/A |
| Valve Included |
Yes |
| CNC Ported |
Yes |
| Horsepower |
500-600 |
| Exhaust Valve Diameter |
1.89 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| EGR Port |
No |
| Seat Material |
Ductile Iron |
| Retainer Included |
No |
| Deck Thickness |
0.5625 |
| Series |
Performer RPM |
| Valve Stem Diameter |
0.3438 |
| Flange Type |
Rectangle Intake |
| Valve Springs Included |
No |
| Combustion Chamber Volume |
118 |
| Construction Type |
Bare With Valves |
| Exhaust Port Location |
Standard |
| Intake Valve Diameter |
2.25 |
| Length |
9.0000 |
| Width |
11.0000 |
| Height |
26.0000 |
| Weight |
40.0000 |
