The Edelbrock #61519 Performer RPM CNC Cylinder Head has the same specifications as our popular Performer RPM cylinder head for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance. Performer RPM CNC cylinder head is available in two chamber sizes. Performer RPM CNC cylinder head with 72cc chambers are best for higher compression engines. The Edelbrock #61519 Performer RPM CNC cylinder head is patterned after the same port flange configuration as the 1969-1970 Ram-Air IV Pontiac Cylinder Head.
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4) |
| Description_DEF |
Engine Cylinder Head |
| Description_MKT |
The Edelbrock #61519 Performer RPM CNC Cylinder Head has the same specifications as our popular Performer RPM cylinder head for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance. Performer RPM CNC cylinder head is available in two chamber sizes. Performer RPM CNC cylinder head with 72cc chambers are best for higher compression engines. The Edelbrock #61519 Performer RPM CNC cylinder head is patterned after the same port flange configuration as the 1969-1970 Ram-Air IV Pontiac Cylinder Head. |
| Description_EXT |
Edelbrock part #61519 Performer RPM CNC Cylinder Heads have the same specifications as our popular Performer RPM cylinder heads for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber. |
| Description_INV |
Edelbrock Pontiac Cylinder Head |
| Description_LAB |
RPM CNC Pontiac Cylinder Head 72cc Hydraulic Flat Tappet Camshaft |
| Description_TRA |
EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS |
| Description_TRA |

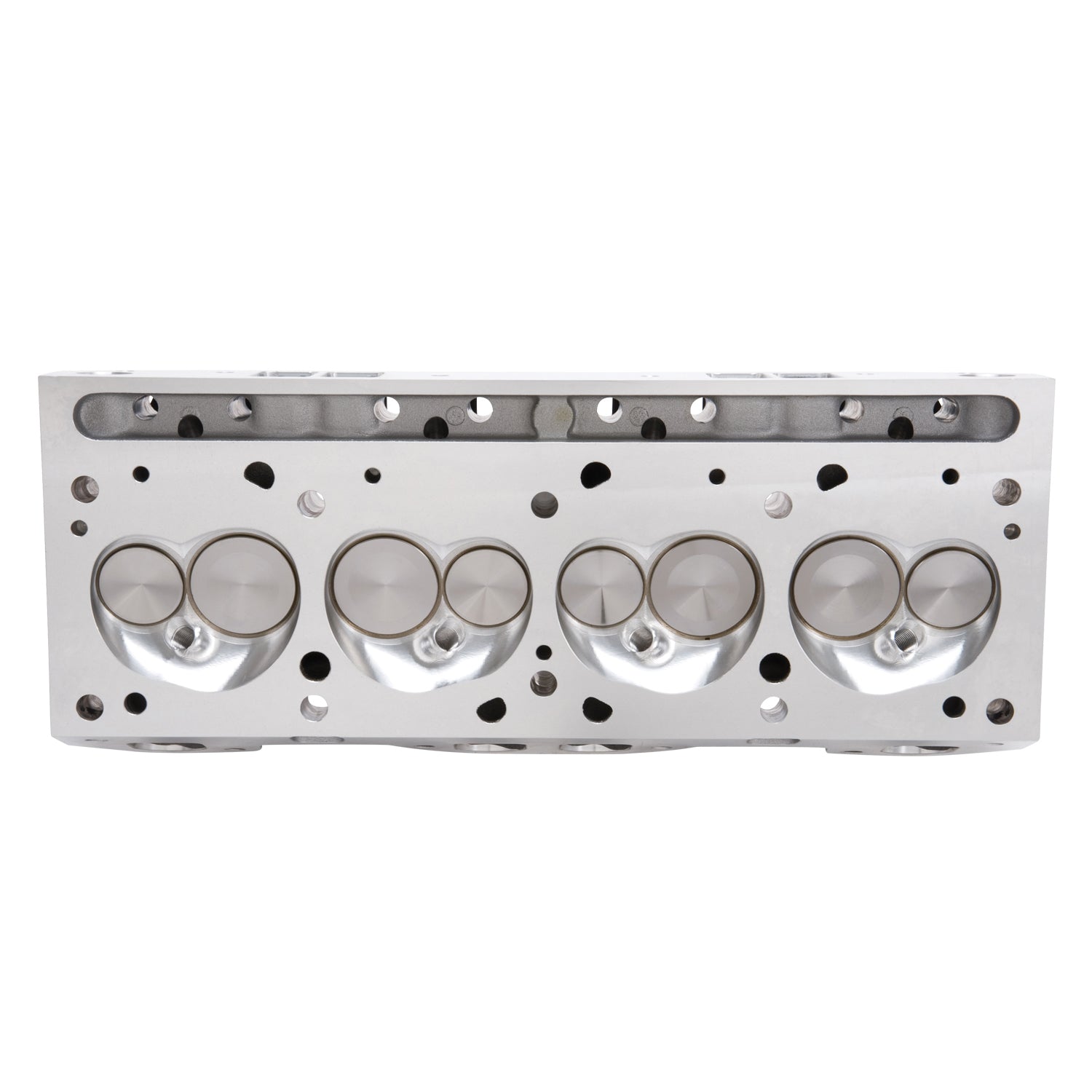

Features CNC machined combustion chamber for a consistent and precise chamber for improved flow performance and spark plug location |
| Description_TRA |
These heads require Ram Air IV (round port) style exhaust manifolds or headers |
| Description_TRA |
Edelbrock head bolt kit #8549 |
| Description_TRA |
Match with Edelbrock complete head gasket set #7382. |
| Description_TRA |
Deck thickness: 5/8" |
| Description_TRA |
Rocker stud diameter: 7/16" |
| Description_TRA |
Pushrod diameter: 5/16" (width of slot in guide plate). |
| Deck Thickness |
0.625 |
| Guide Plate Material |
Hardened Steel |
| Camshaft Type |
Flat Tappet |
| Push Rod Diameter |
(Suggested) 0.3125 |
| Exhaust Runner Volume |
175 |
| Valve Springs Included |
Yes |
| Exhaust Valve Diameter |
1.66 |
| Guide Material |
Manganese Bronze |
| Intake Valve Diameter |
2.11 |
| Seat Material |
Ductile Iron |
| Retainer Included |
Yes |
| Horsepower |
450-600 |
| Valve Angle |
14 |
| Grade Type |
Performance |
| Series |
Performer RPM |
| Valve Stem Diameter |
0.3438 |
| Family |
Performer RPM |
| CNC Ported |
Yes |
| Valve Included |
Yes |
| EGR Port |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Head Casting Number |
N/A |
| Seat Angle |
Exhaust 45 deg/Intake 45 |
| Guide Plates Included |
Yes |
| Rocker Arm Stud Diameter |
0.4375 |
| Combustion Chamber Volume |
72 |
| Construction Type |
Complete |
| Valve Spring Maximum Lift |
0.575 |
| Valve Spring Diameter |
1.46 |
| Quantity |
Sold Individually |
| Intake Runner Volume |
215 |
| Material |
Aluminum |
| Exhaust Port Location |
Standard |
| Length |
9.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
36.0000 |
