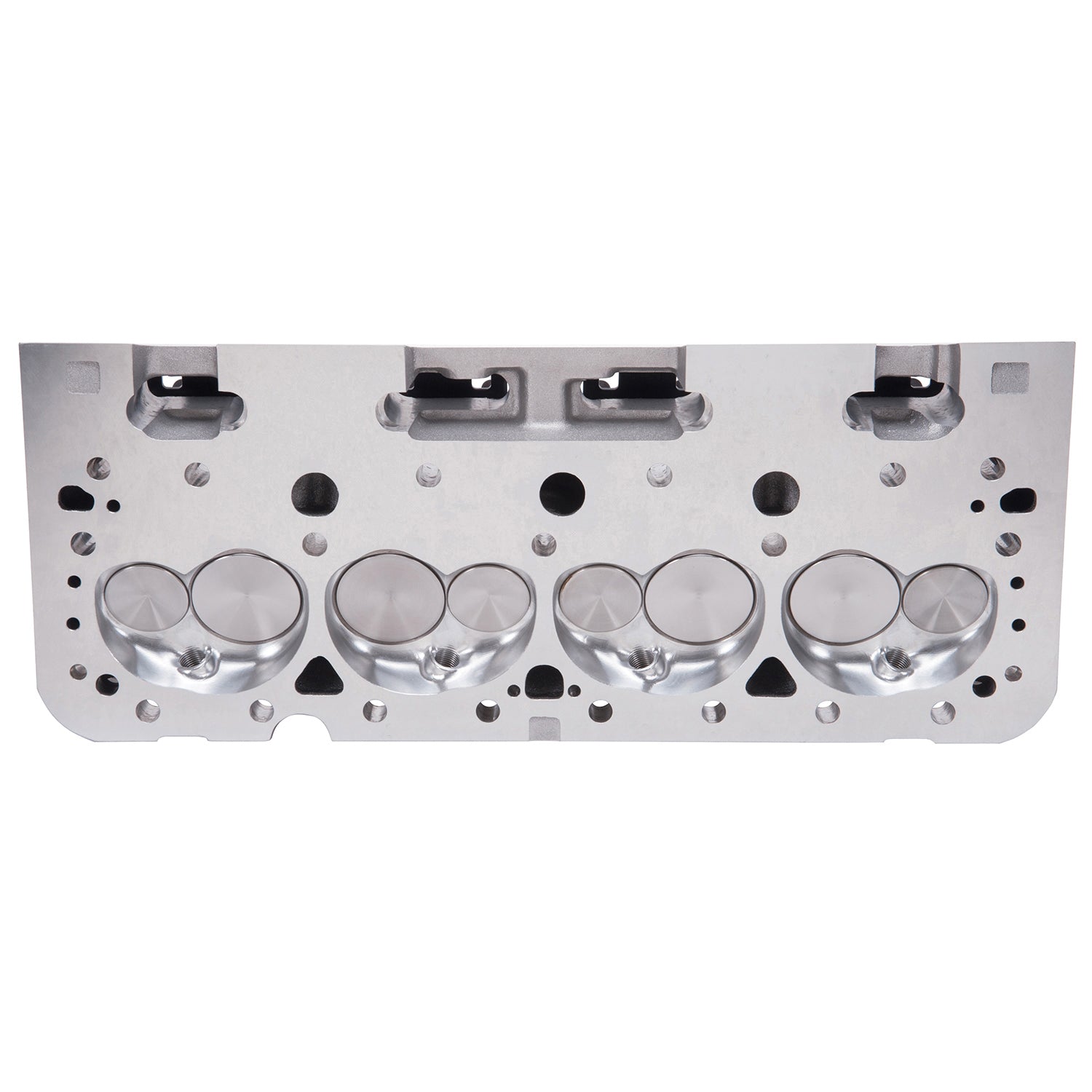

Edelbrock part #61259 Victor Jr. 23deg 220 cylinder head is designed for small-block Chevy Its 64cc combustion chamber yields around 10:1 compression ratio in a typical flat-top application and about 12.5:1 when used with some of the most common 12cc dome pistons. One of the key features of the Victor Jr. 23deg 220 cylinder head is the CNC machined chambers and bowls, which result in consistency and improved performance. They also feature angled spark plug holes and maintain the stock 23deg valve angle as well as the intake flange bolt pattern for use with 1986 and earlier intake manifolds. All of this allows this cylinder head to deliver 530-580 hp potential right-out-of-the-box, making them ideal for a budget minded engine build desiring a high quality cylinder head that still uses a stud and guide plate rocker system. Cylinder Head Specifications: - Exhaust port location: Raised .300" - Spark plug fitment: 14mm x .750 reach, gasket seat
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Cylinder Head |
| Description_EXT |
The Edelbrock #61259 Victor Jr. 220cc cylinder head is designed for 1955-86 SB Chevy applications. The #61249 Victor Jr. is perfect larger cubic inch small blocks and vehicles where maximum power is needed. |
| Description_INV |
Edelbrock SBC Victor Jr Cylinder Head |
| Description_MKT |
Edelbrock part #61259 Victor Jr. 23deg 220 cylinder head is designed for small-block Chevy Its 64cc combustion chamber yields around 10:1 compression ratio in a typical flat-top application and about 12.5:1 when used with some of the most common 12cc dome pistons. One of the key features of the Victor Jr. 23deg 220 cylinder head is the CNC machined chambers and bowls, which result in consistency and improved performance. They also feature angled spark plug holes and maintain the stock 23deg valve angle as well as the intake flange bolt pattern for use with 1986 and earlier intake manifolds. All of this allows this cylinder head to deliver 530-580 hp potential right-out-of-the-box, making them ideal for a budget minded engine build desiring a high quality cylinder head that still uses a stud and guide plate rocker system. Cylinder Head Specifications: - Exhaust port location: Raised .300" - Spark plug fitment: 14mm x .750 reach, gasket seat |
| Description_LAB |
Victor Jr. 23 Deg Cylinder Head for S/B Chevy Mechanical Roller Cam (220cc) |
| Description_TRA |
Match with Edelbrock head gasket sets or use Fel-Pro intake gasket #1206 and Fel-Pro exhaust gasket #1405. Requires hardened pushrods. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application. |
| Horsepower |
450-600 |
| Intake Runner Volume |
220 |
| Push Rod Diameter |
(Suggested) 0.6875 |
| Combustion Chamber Volume |
64 |
| Valve Spring Maximum Lift |
0.700 |
| Exhaust Port Location |
+.300 |
| EGR Port |
No |
| CNC Ported |
Yes |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Spring Diameter |
1.55 |
| Material |
Aluminum |
| Head Casting Number |
N/A |
| Retainer Included |
Yes |
| Series |
Victor Jr. |
| Grade Type |
Performance |
| Valve Included |
Yes |
| Valve Stem Diameter |
0.3125 |
| Valve Springs Included |
Yes |
| Guide Plates Included |
Yes |
| Seat Angle |
Exhaust 45 deg/Intake 45 |
| Exhaust Runner Volume |
85 |
| Valve Angle |
23 |
| Deck Thickness |
0.6875 |
| Rocker Arm Stud Diameter |
0.4375 |
| Intake Valve Diameter |
2.10 |
| Quantity |
Sold Individually |
| Construction Type |
Complete |
| Seat Material |
Ductile Iron |
| Family |
Victor Jr. |
| Guide Plate Material |
Hardened Steel |
| Exhaust Valve Diameter |
1.60 |
| Camshaft Type |
Mechanical Roller |
| Rotor Center Bore Inside Diameter |
angled |
| Guide Material |
Manganese Bronze |
| Length |
5.0000 |
| Width |
8.0000 |
| Height |
19.0000 |
| Weight |
32.0000 |
