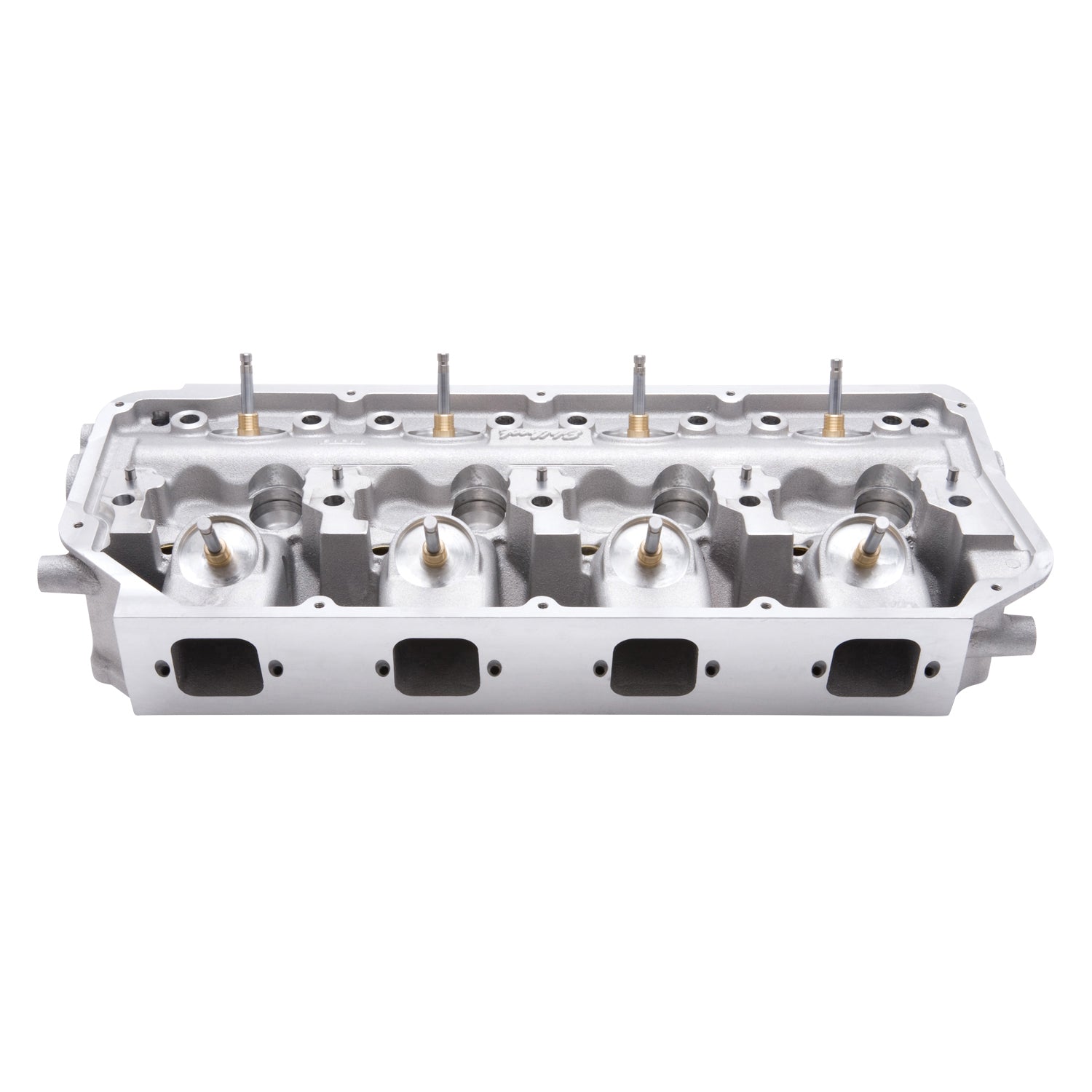

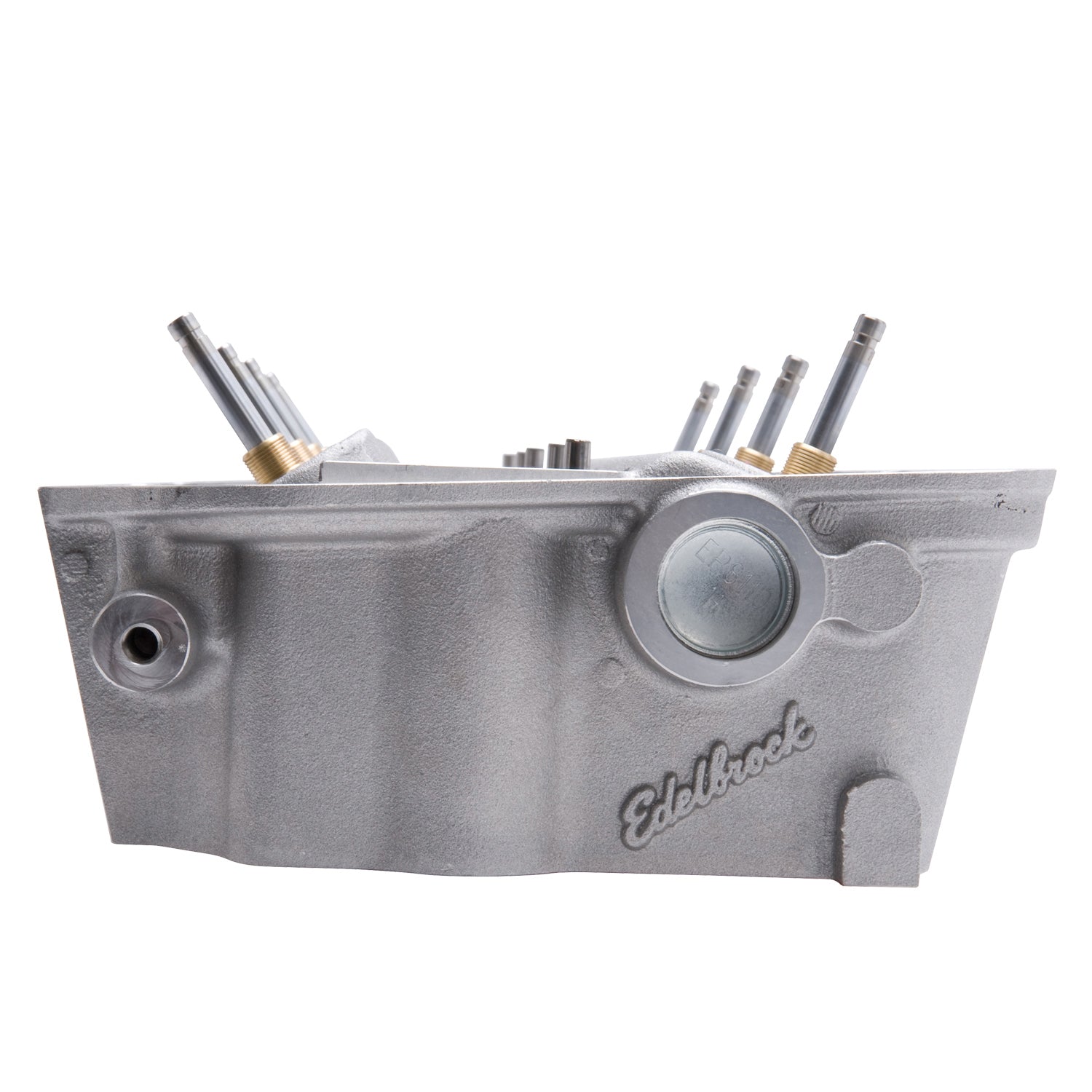

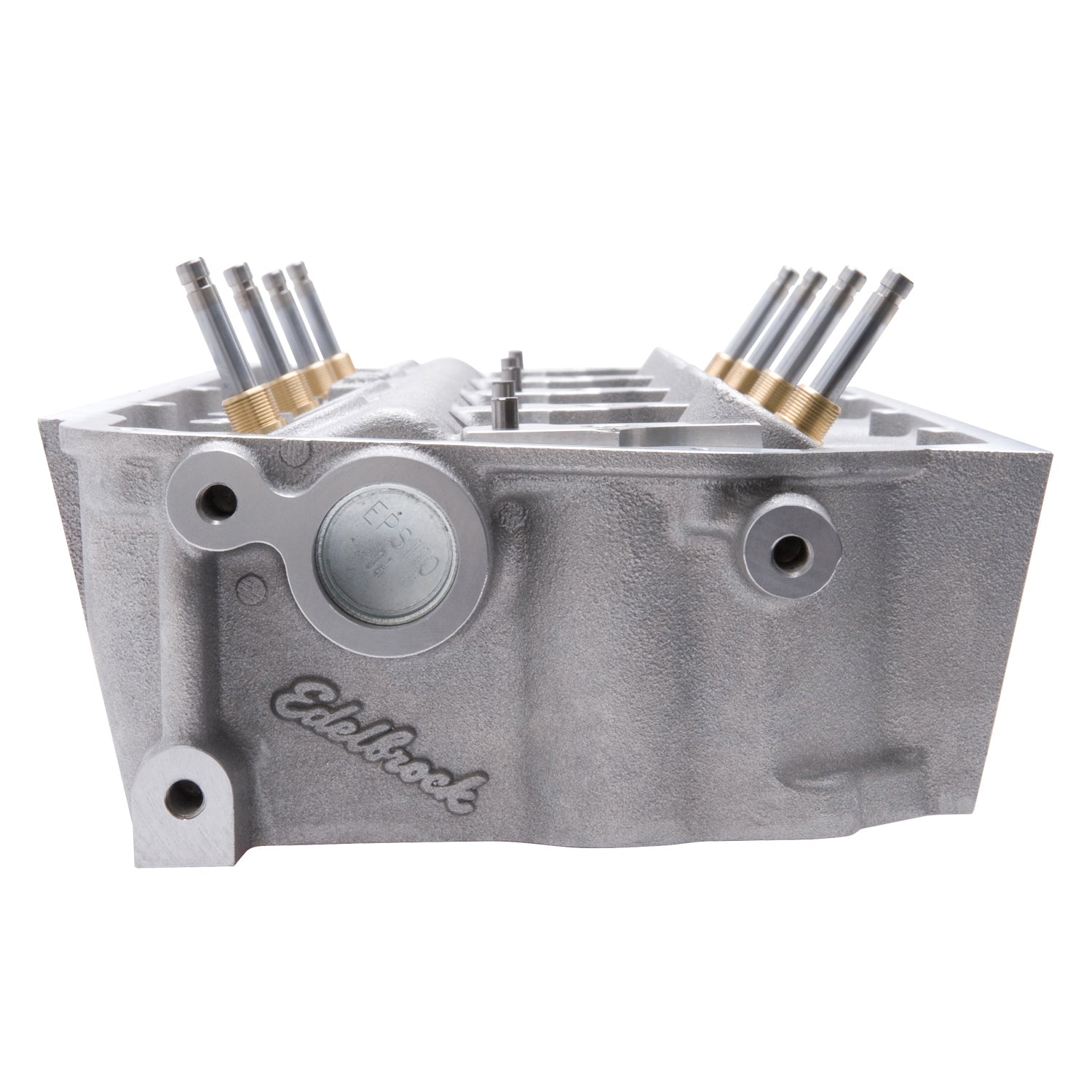

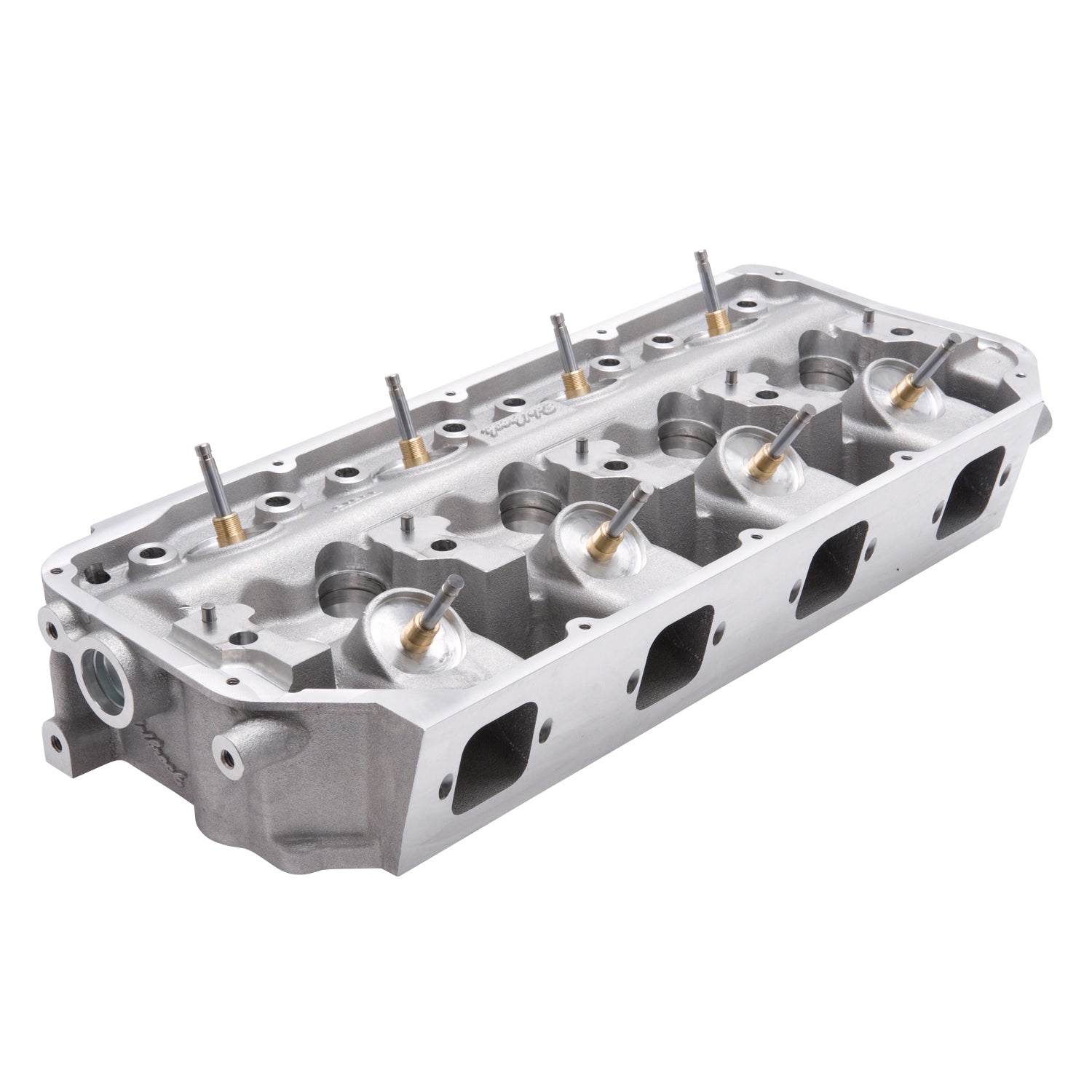

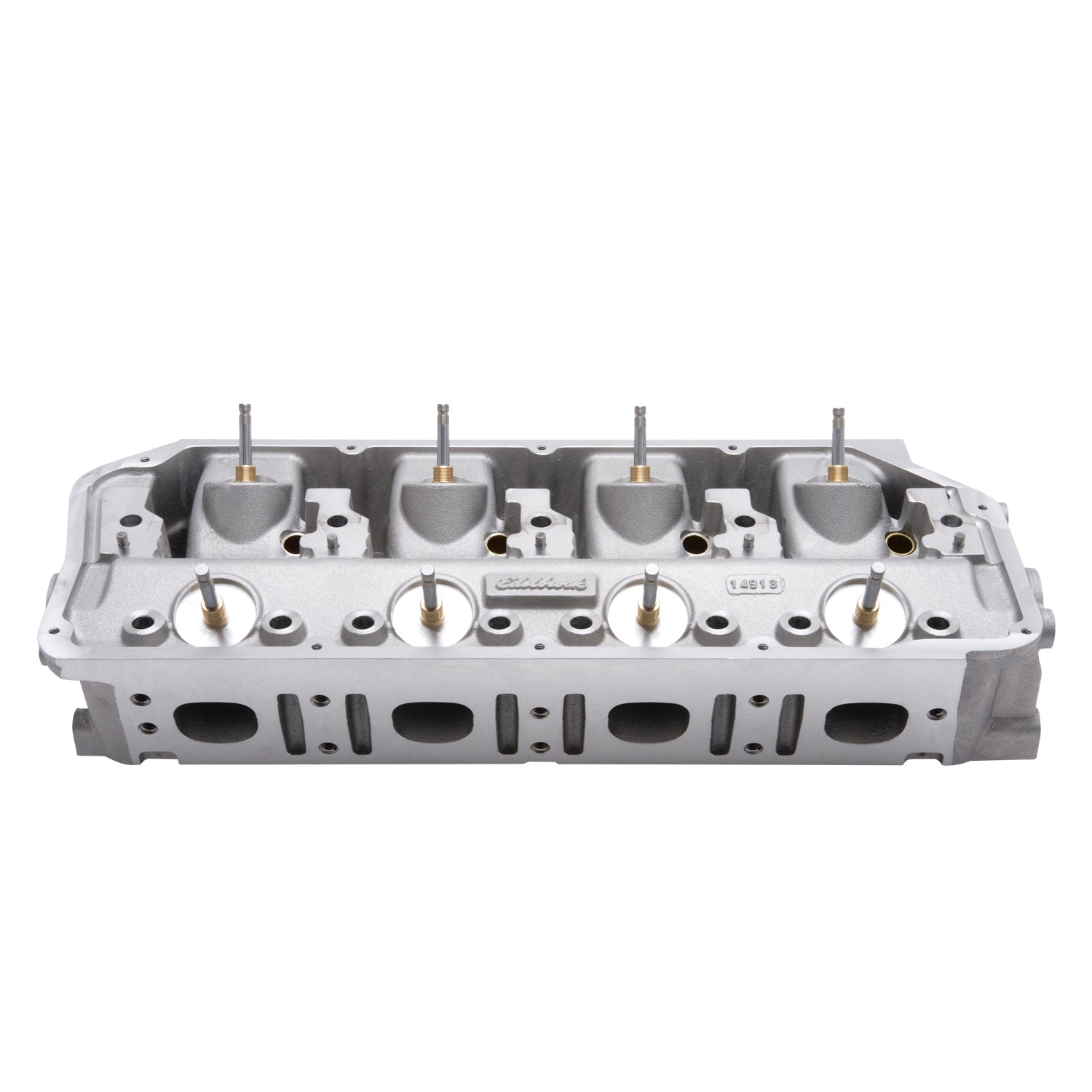

Our new Edelbrock #61189 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Chrysler:Big-Block Gen II HEMI:426 (7.0L) |
| Description_DEF |
Engine Cylinder Head |
| Description_EXT |
Our new Edelbrock #61189 Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI engines. Fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. |
| Description_MKT |
Our new Edelbrock #61189 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion. |
| Description_LAB |
Victor Jr Gen II HEMI Chrysler Cylinder Head CNC W/ Valves |
| Description_INV |
Edelbrock HEMI GEN II Cylinder Head |
| Description_TRA |
Victor Jr. CNC cylinder heads #61189 are shipped with reamed and machined valve stem guides, as well as a valve job to match the included intake and exhaust valves (valves not installed). Customer must supply their own valve springs, retainers, valve stem seals and valve locks. |
| Description_TRA |
Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Exhaust Port Location |
Standard |
| Head Casting Number |
N/A |
| Exhaust Runner Volume |
105 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included |
No |
| Exhaust Valve Diameter |
1.94 |
| Intake Valve Diameter |
2.320 |
| Seat Angle |
Exhaust 45 deg/Intake 45 |
| Combustion Chamber Volume |
170 |
| Valve Springs Included |
No |
| Guide Material |
Manganese Bronze |
| Seat Material |
Ductile Iron |
| Intake Runner Volume |
245 |
| Valve Included |
Yes |
| Valve Angle |
Exhaust (Tipped) 1.5-21.5 deg/Intake Stock |
| Material |
Aluminum |
| Guide Plates Included |
No |
| CNC Ported |
Yes |
| Series |
Victor Jr. |
| Deck Thickness |
0.625 |
| Grade Type |
Performance |
| Quantity |
Sold Individually |
| Valve Stem Diameter |
0.3125 |
| Family |
Victor Jr. |
| EGR Port |
No |
| Construction Type |
Bare With Valves |
| Length |
9.0000 |
| Width |
11.0000 |
| Height |
26.0000 |
| Weight |
32.0000 |
