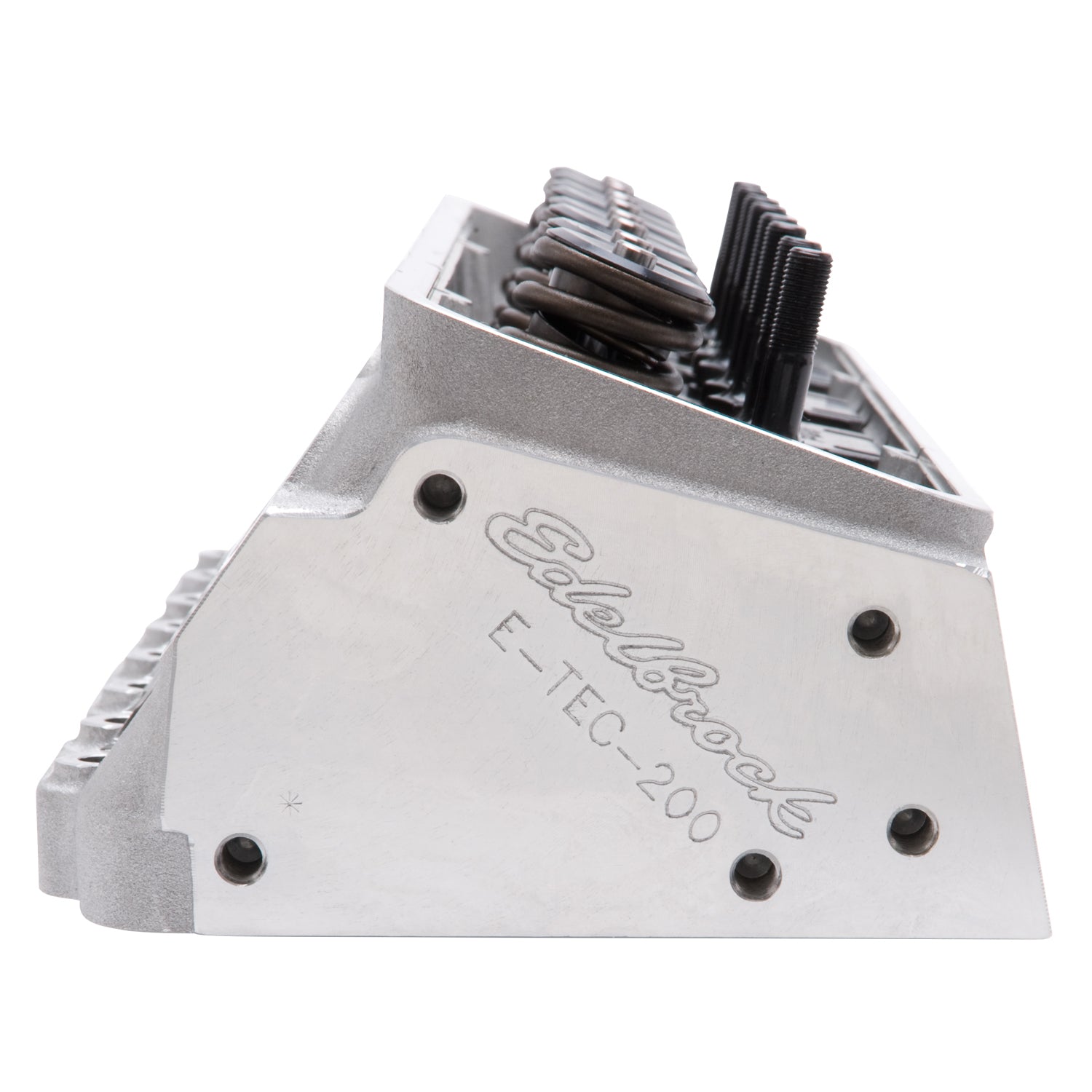

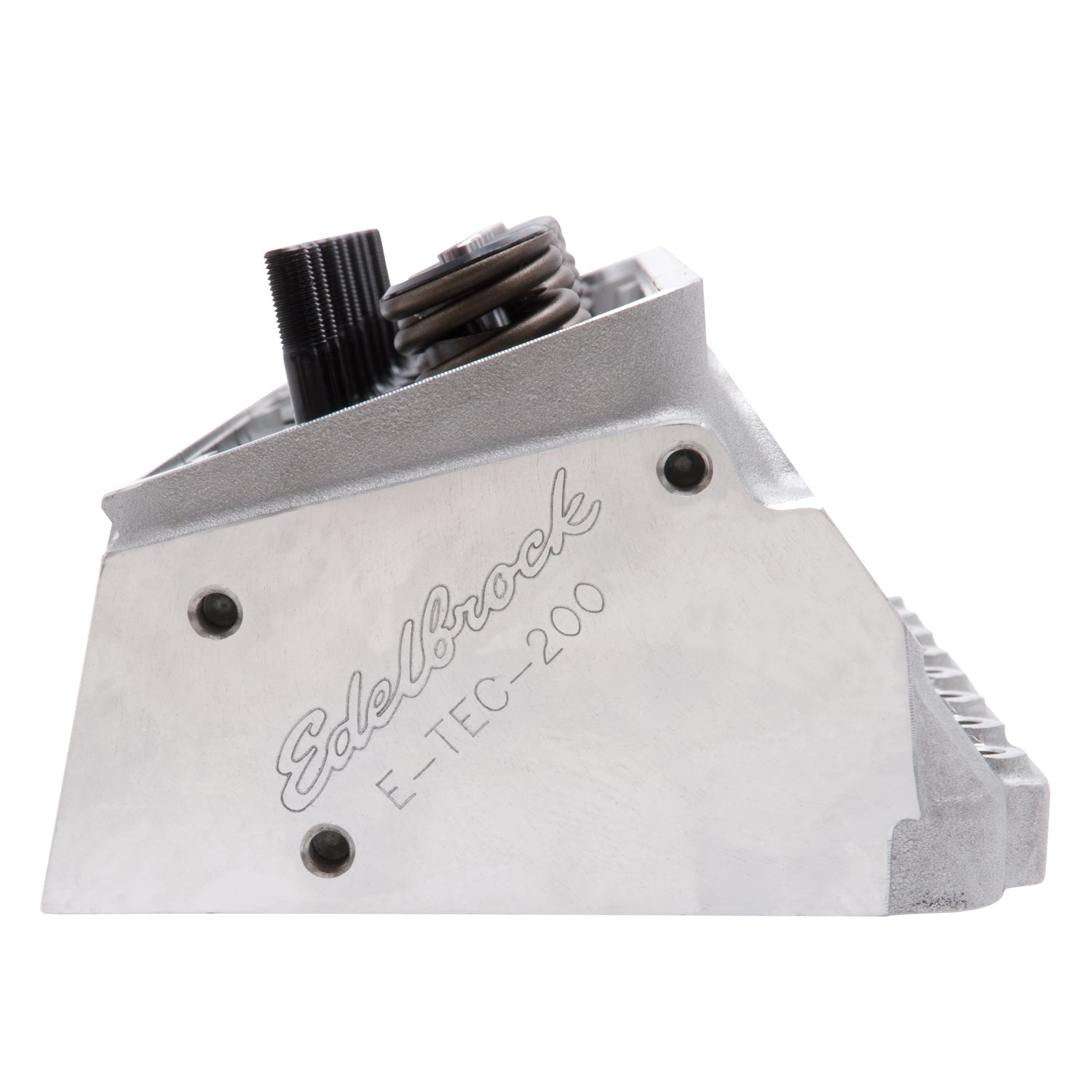

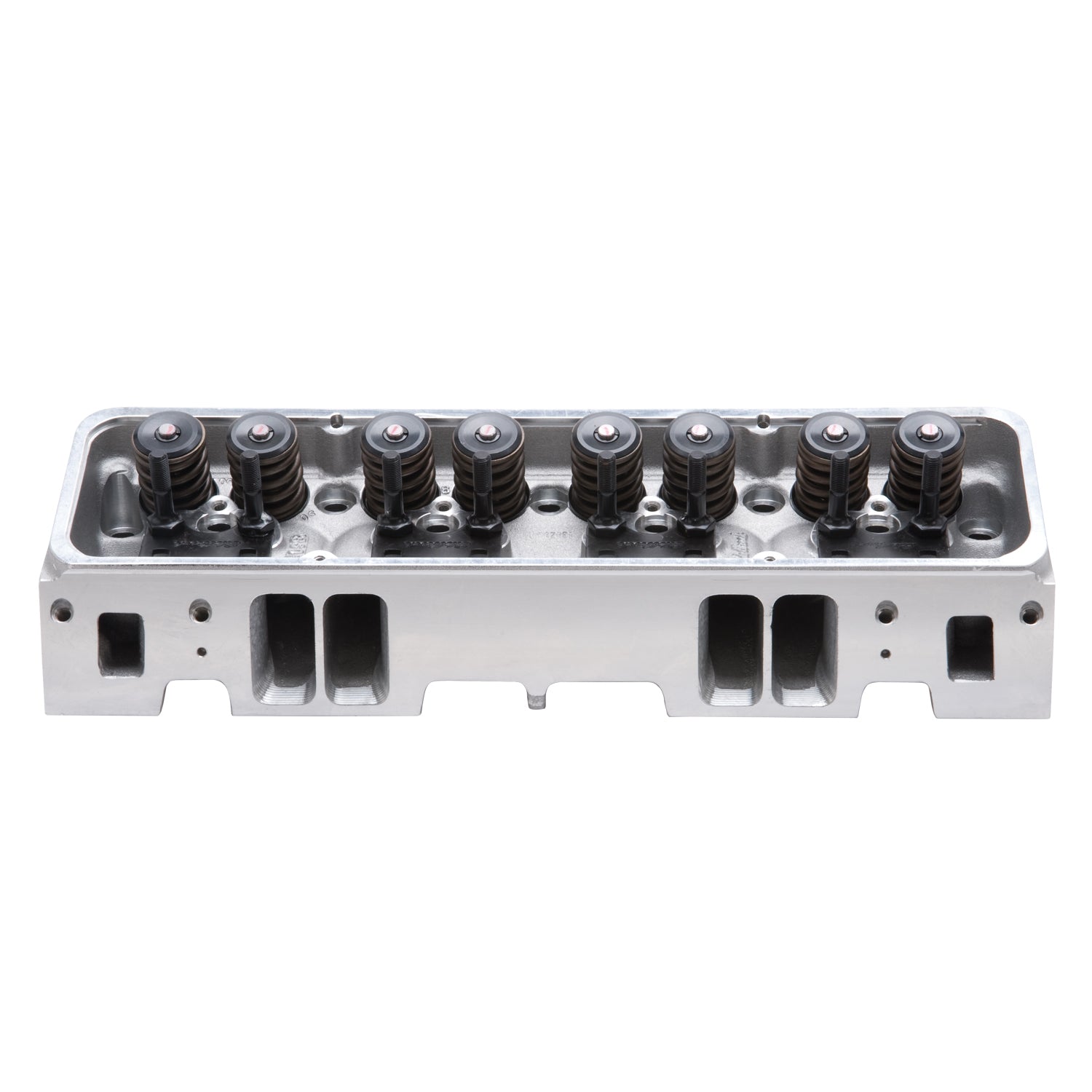

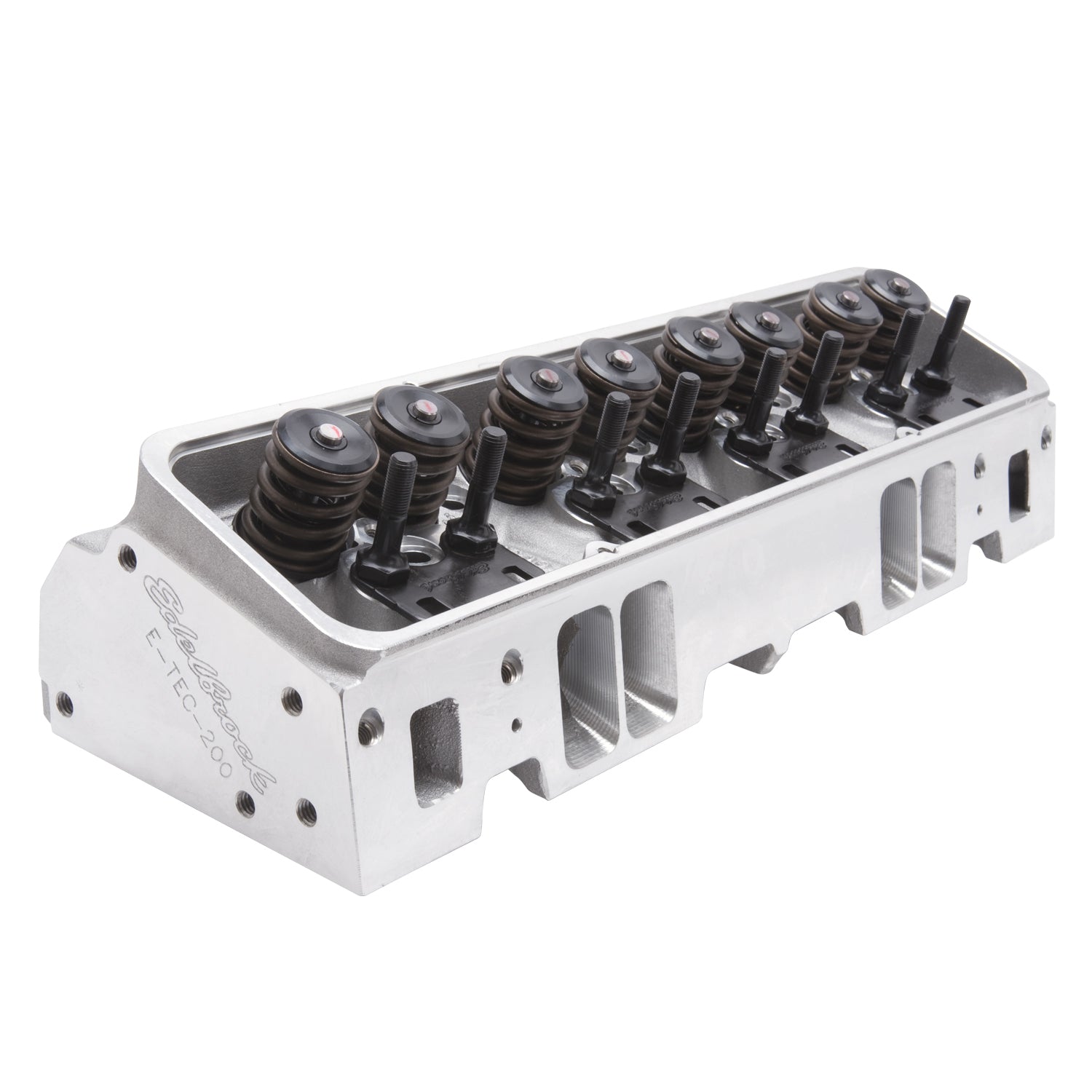

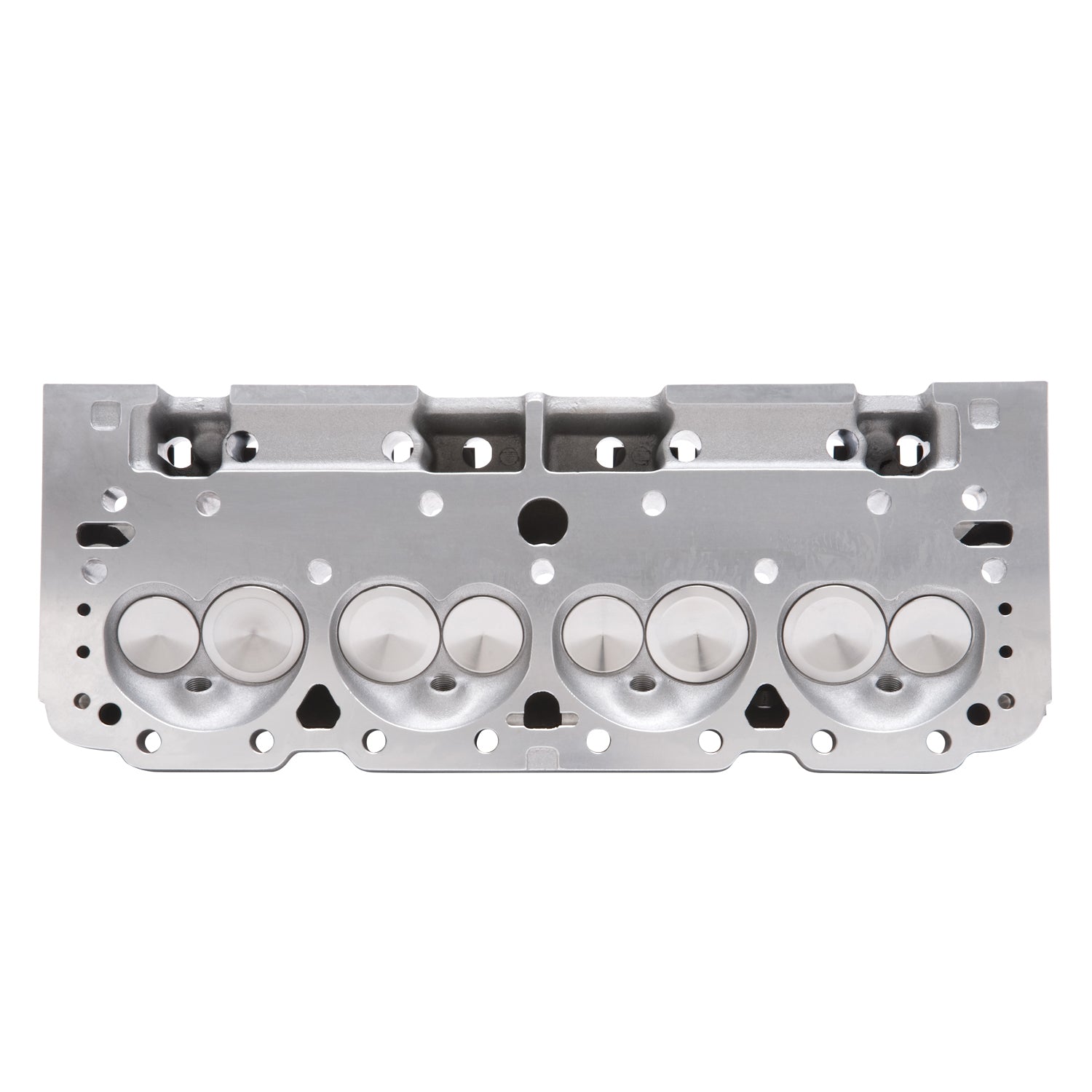

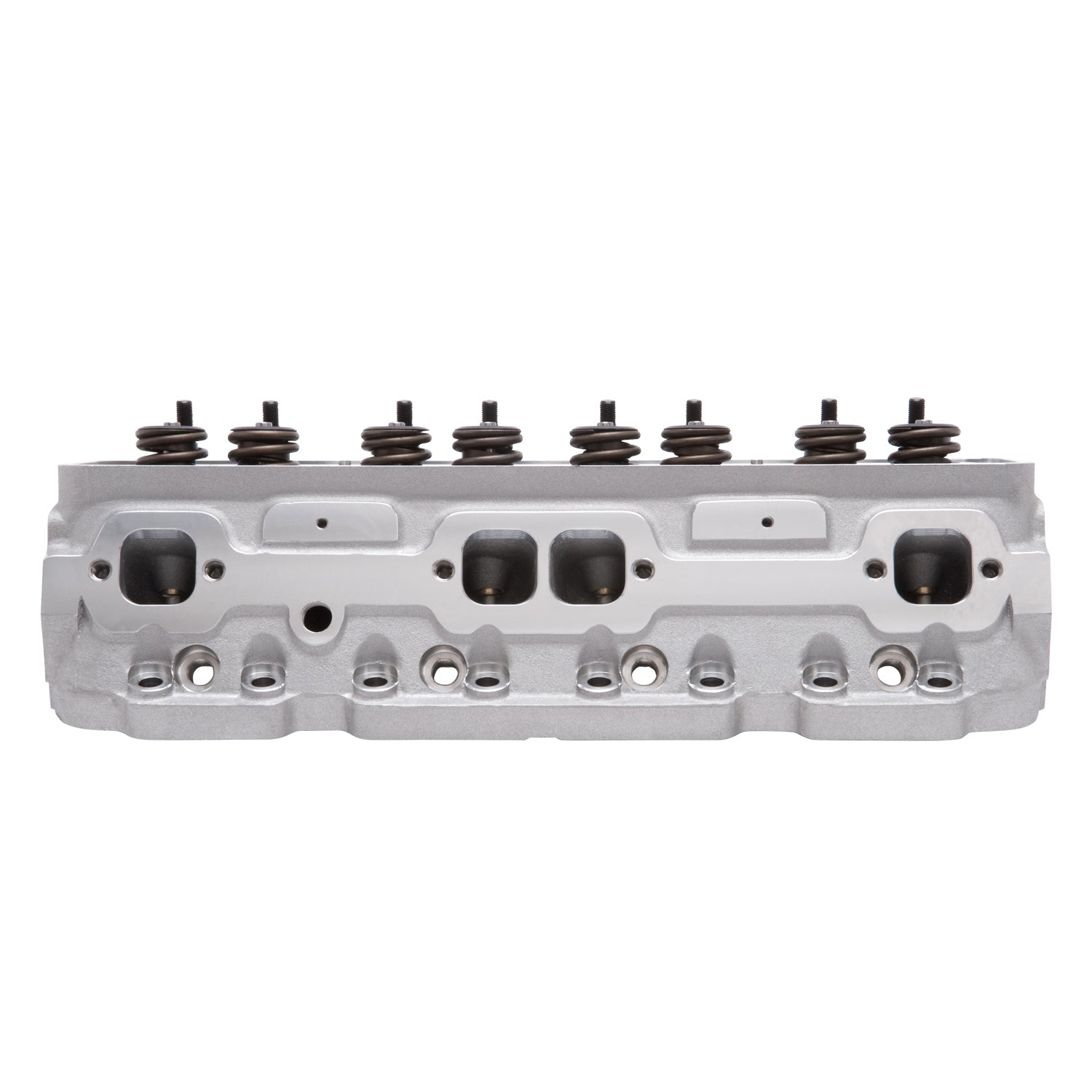

The Edelbrock #60985 E-Tec cylinder head is replacements for 302, 327, 350 & 400 c.i.d. S/B Chevy engines with "Vortec-style" manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder, promoting a more efficient combustion resulting in more power. This head includes an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than a cast iron Vortec head, great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec cylinder head is dual-drilled and will accept 1987-95 center bolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds.
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Cylinder Head |
| Description_EXT |
The Edelbrock #60985 E-Tec Cylinder Heads are replacements for 302, 327, 350 & 400 SB Chevy engines with Vortec-style manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. |
| Description_INV |
Edelbrock SBC Cylinder Head |
| Description_MKT |
The Edelbrock #60985 E-Tec cylinder head is replacements for 302, 327, 350 & 400 c.i.d. S/B Chevy engines with "Vortec-style" manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder, promoting a more efficient combustion resulting in more power. This head includes an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than a cast iron Vortec head, great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec cylinder head is dual-drilled and will accept 1987-95 center bolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds. |
| Description_LAB |
E-Tec-200 Small-Block Chevy Cylinder Head Hydraulic Roller Cam |
| Description_TRA |
EQUIPPED WITH SPRINGS FOR USE IN MECHANICAL FLAT TAPPET AND HYDRAULIC ROLLER CAMSHAFT APPLICATIONS |
| Description_TRA |
Match with Edelbrock head gasket sets. |
| Description_TRA |
Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA |
To use stock rockers on small-block Chevy heads, .100" longer than stock pushrods are required. Edelbrock pushrods #9629 are recommended. |
| Description_TRA |
Use Head Bolt Kits for easy installation. S/B Chevy heads may not be used on engines with less than 4" bore (262, 265, 283, 305, 307 c.i.d.) except with cams having less than .450" valve lift. |
| Exhaust Port Location |
Standard |
| Valve Included |
Yes |
| Head Casting Number |
N/A |
| Seat Angle |
Exhaust 45 deg/Intake 45 |
| Quantity |
Sold Individually |
| Valve Angle |
23 |
| Horsepower |
350-500 |
| Valve Spring Diameter |
1.46 |
| Valve Springs Included |
Yes |
| Retainer Included |
Yes |
| Seat Material |
Ductile Iron |
| CNC Ported |
No |
| Construction Type |
Complete |
| Rocker Arm Stud Diameter |
0.375 |
| Intake Valve Diameter |
2.02 |
| Push Rod Diameter |
(Suggested) 0.625 |
| Material |
Aluminum |
| Valve Spring Maximum Lift |
0.575 |
| Series |
E-Tec |
| Combustion Chamber Volume |
64 |
| Guide Plates Included |
Yes |
| Family |
E-Tec |
| Grade Type |
Performance |
| EGR Port |
No |
| Camshaft Type |
Hydraulic Roller |
| Guide Plate Material |
Hardened Steel |
| Deck Thickness |
0.625 |
| Valve Stem Diameter |
0.3438 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Guide Material |
Manganese Bronze |
| Exhaust Valve Diameter |
1.60 |
| Intake Runner Volume |
200 |
| Exhaust Runner Volume |
80 |
| Rotor Center Bore Inside Diameter |
Straight |
| Length |
7.0000 |
| Width |
10.0000 |
| Height |
22.0000 |
| Weight |
32.0000 |
