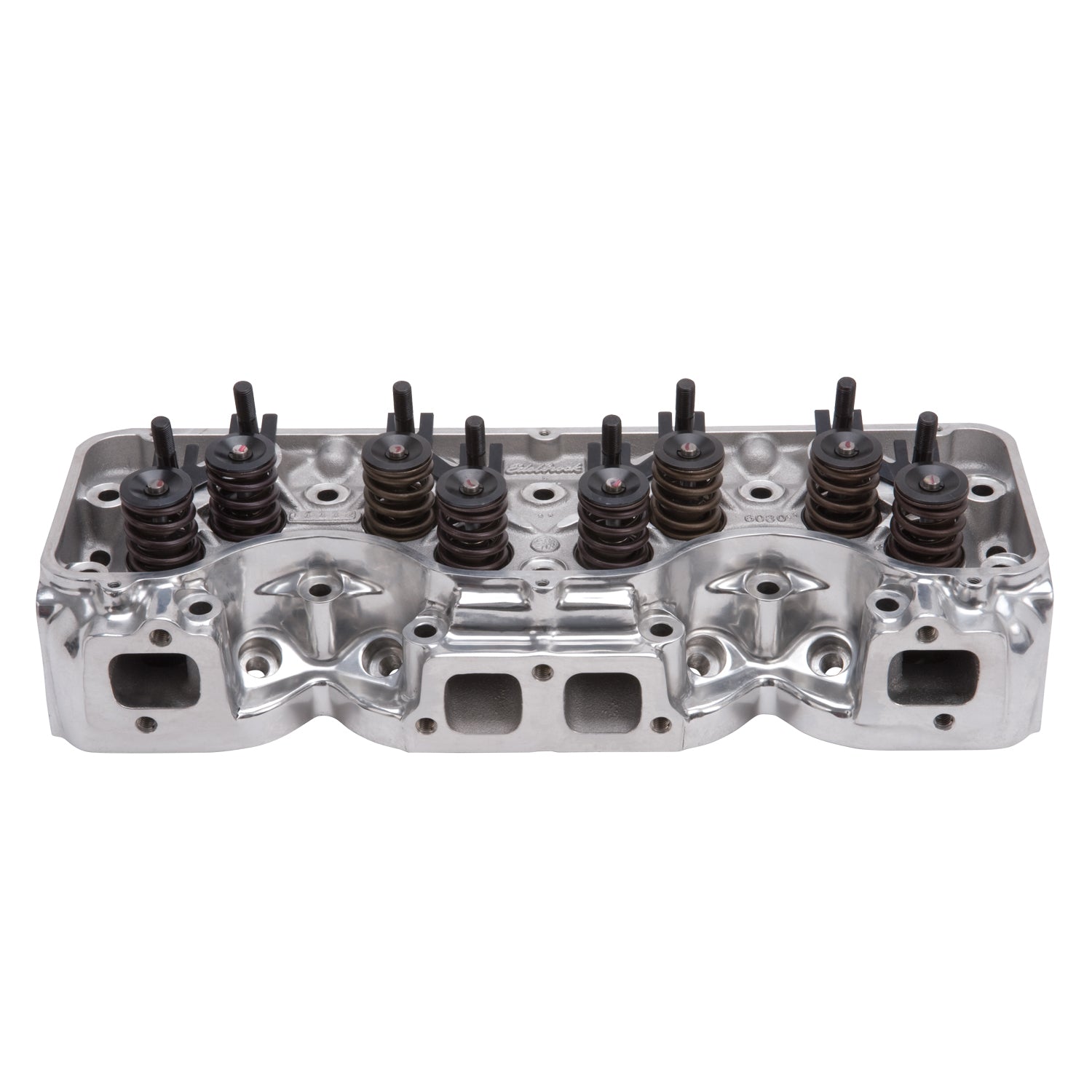

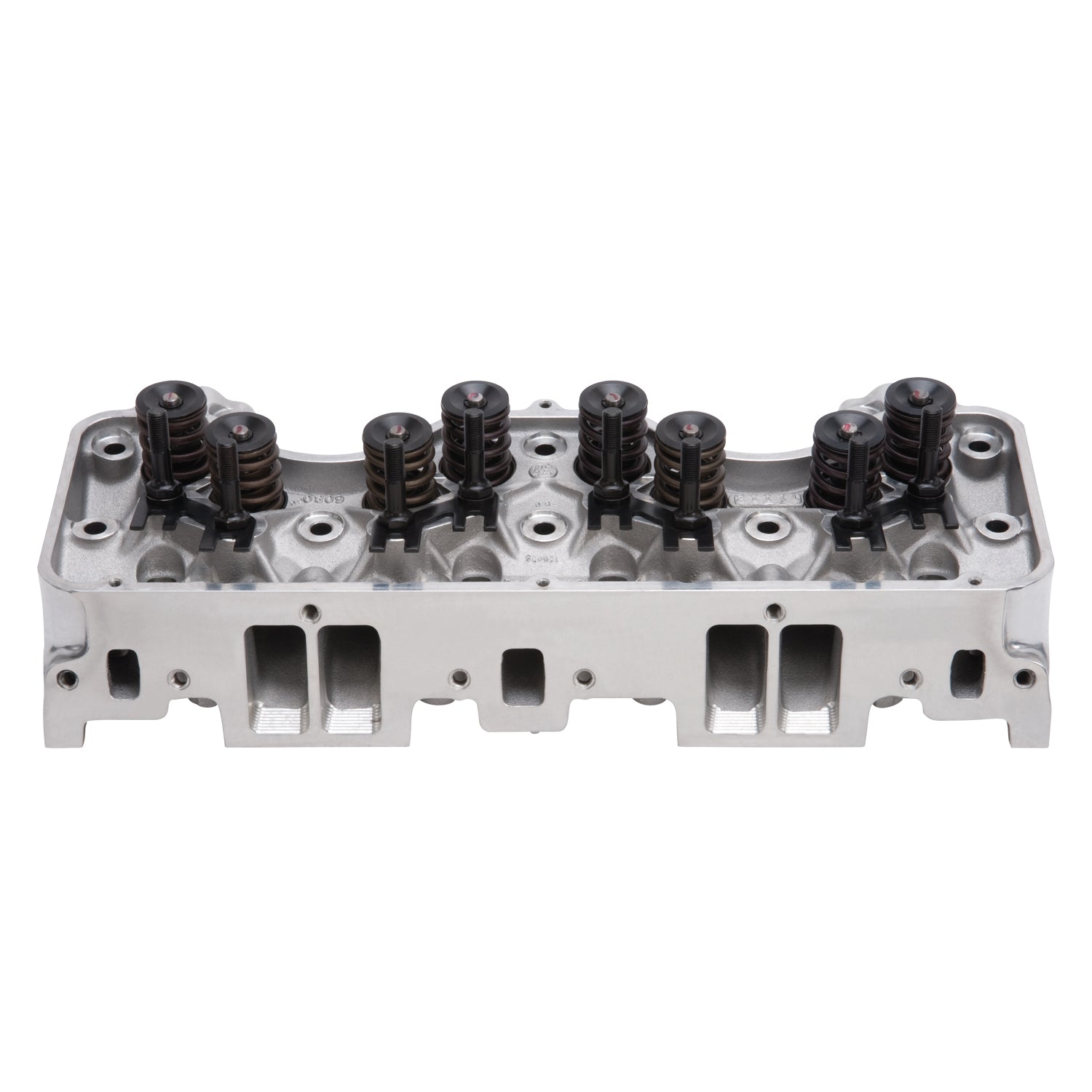

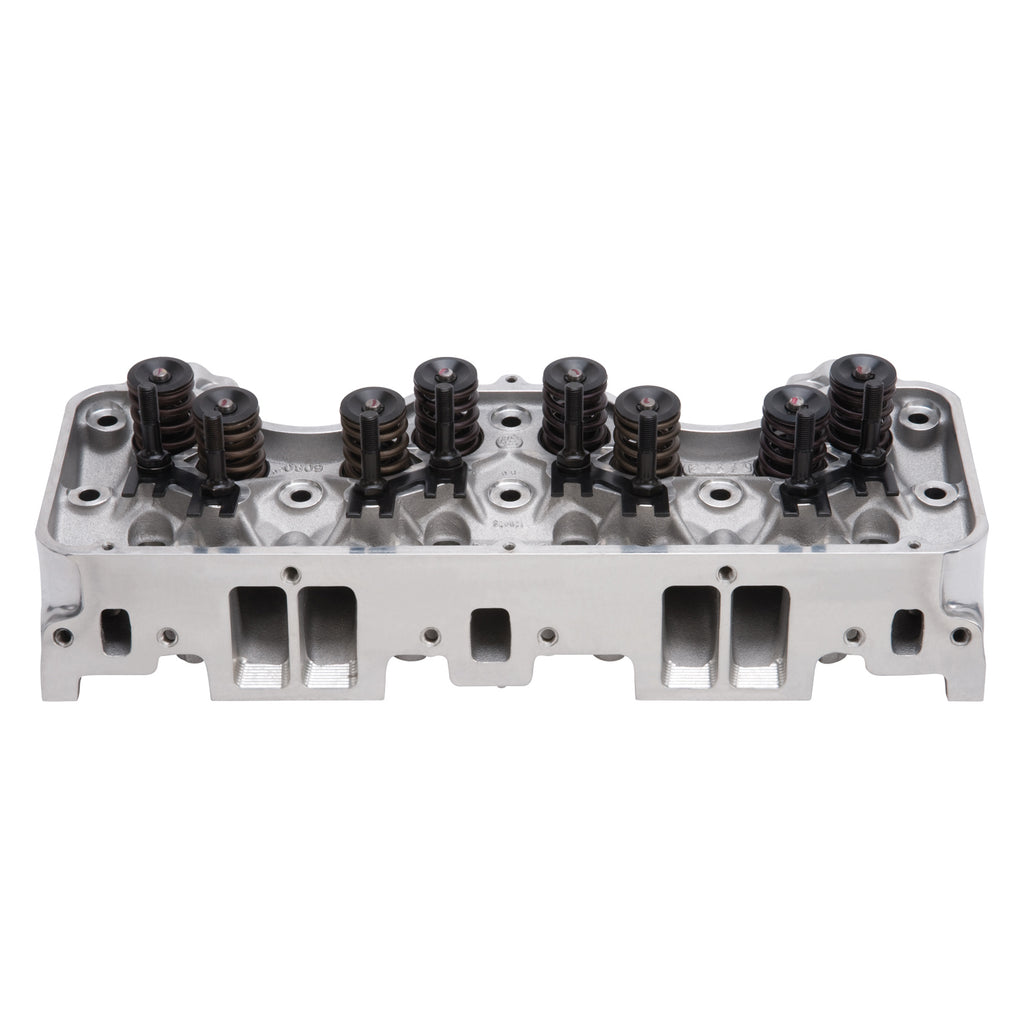

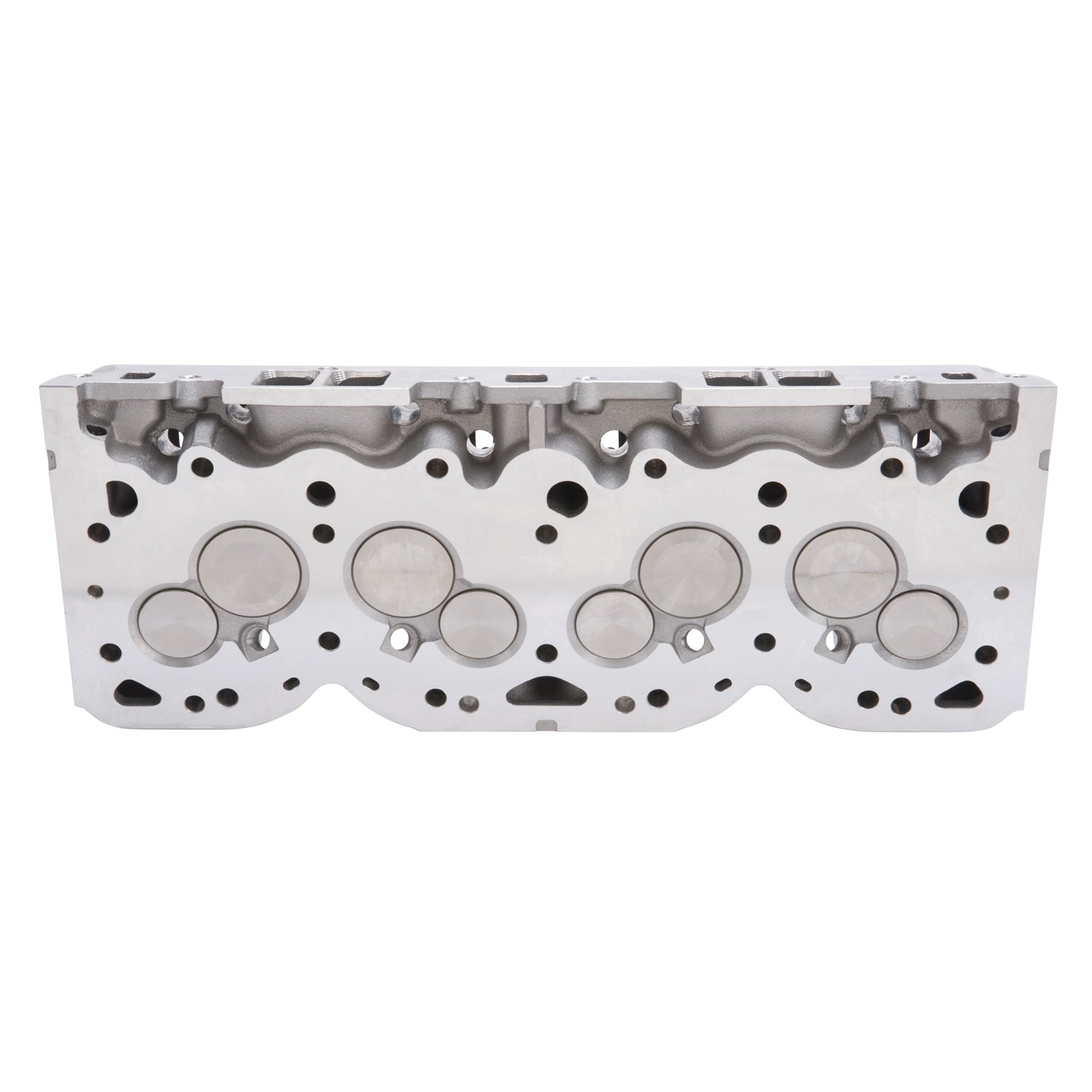

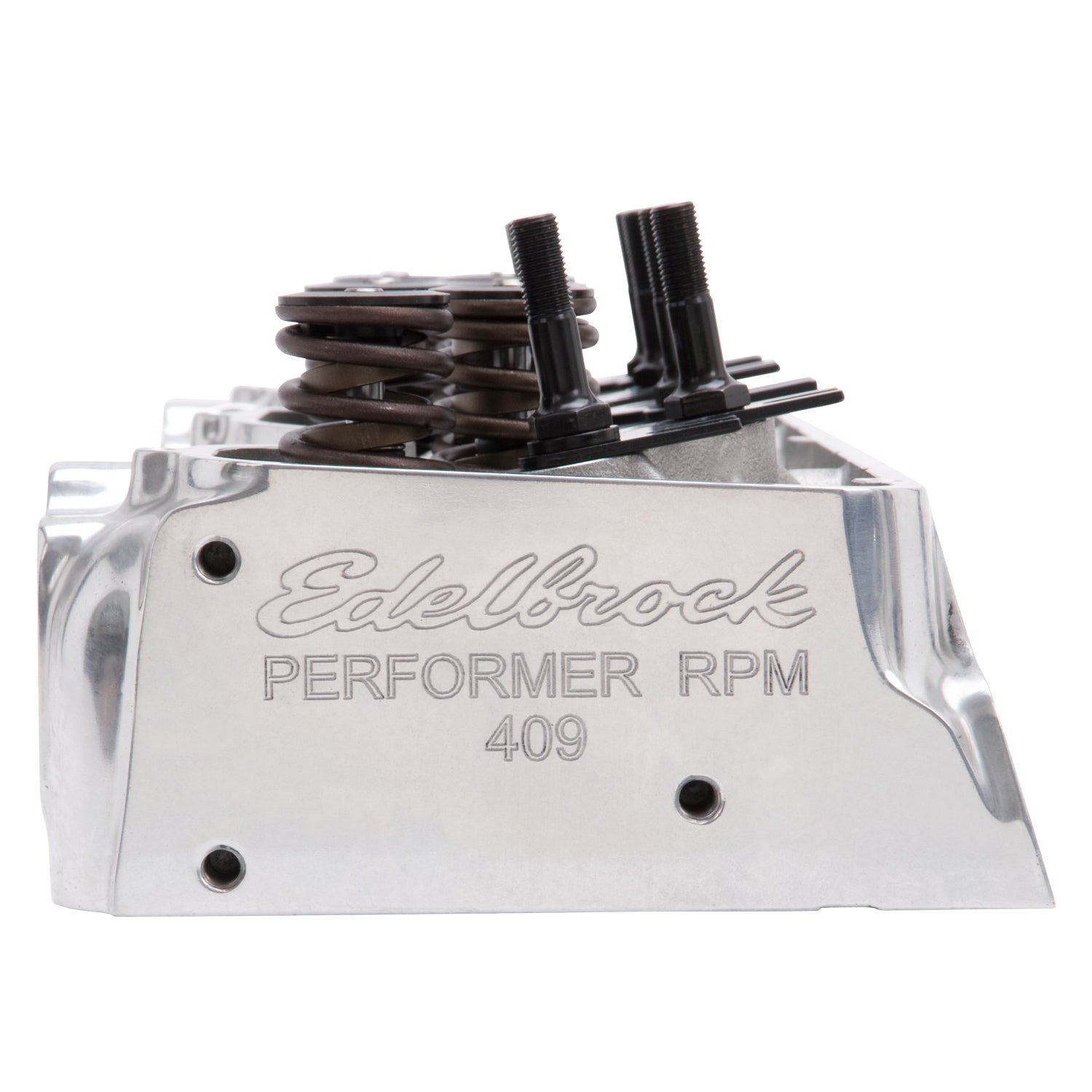

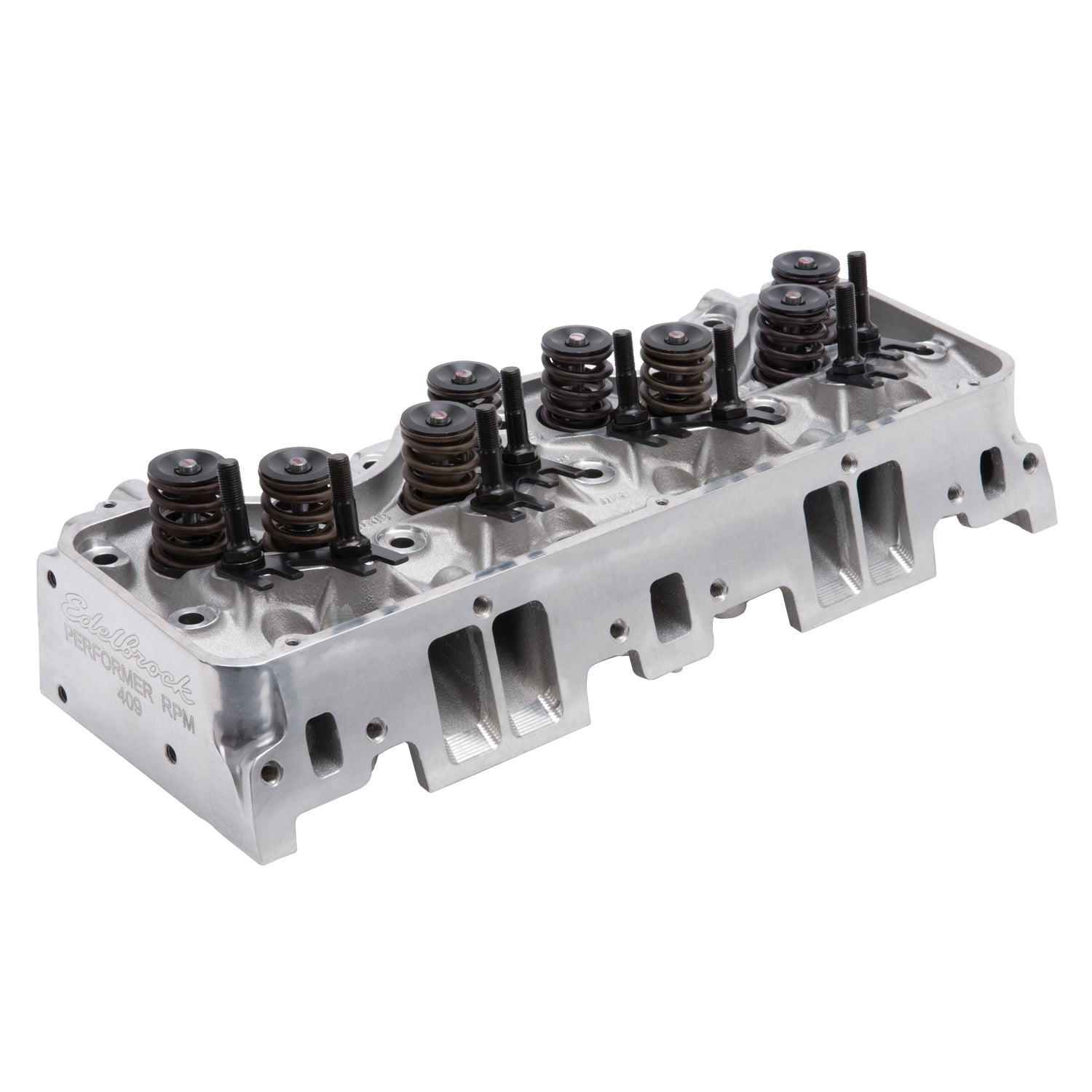

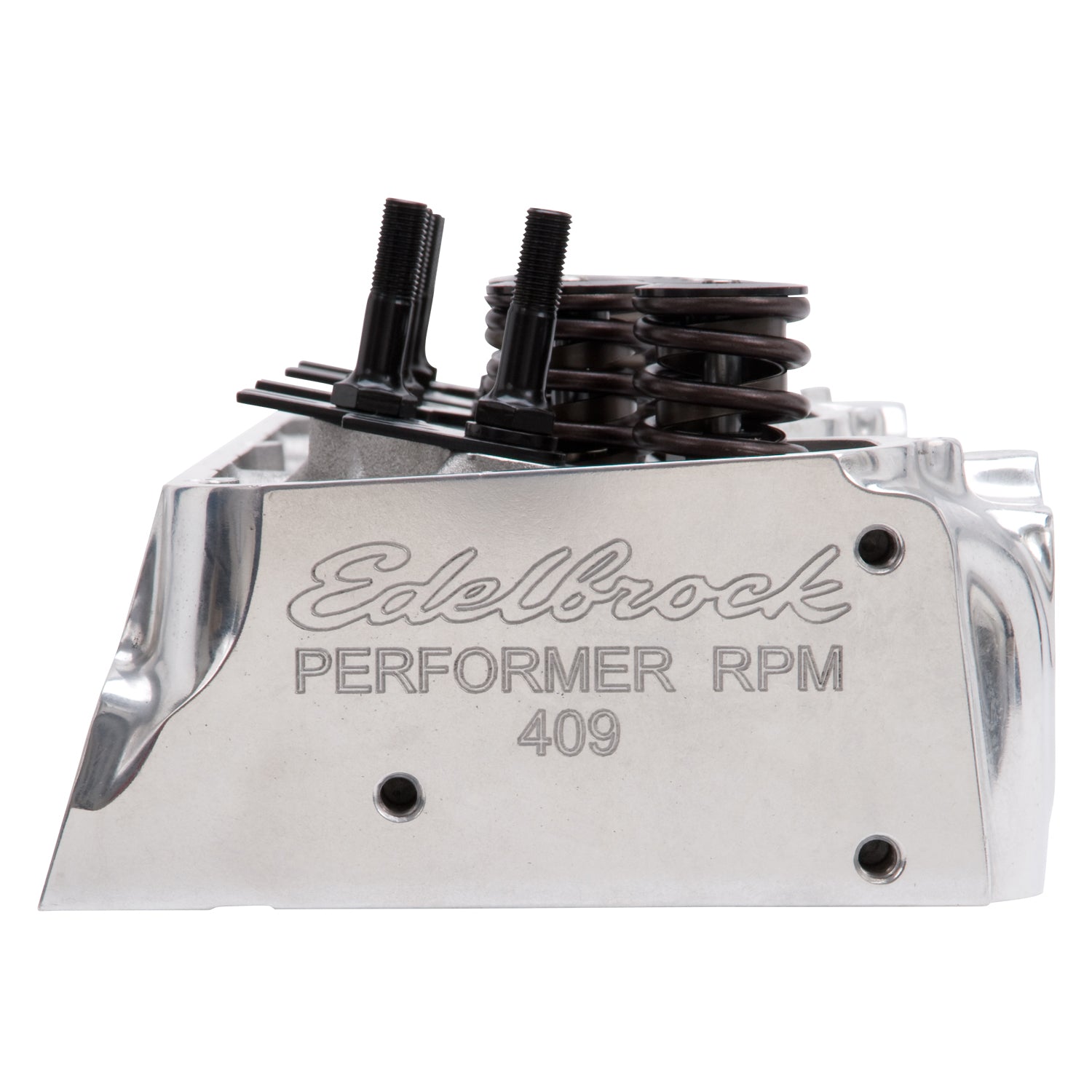

The Edelbrock #608119 Performer RPM cylinder heads are designed for 1958-1965 Chevrolet "W" Series 348/409 big-block applications. The Edelbrock #608119 Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Chevrolet:W Big-Block:348 (5.7L)/409 (6.7L) |
| Description_DEF |
Engine Cylinder Head |
| Description_EXT |
Edelbrock #608119 Performer RPM Cylinder Head for 1958-65 BBC 348/409 "W"-Series Engines. Complete with Valve Springs for Hydraulic Flat Tappet Cam, Polished (348 "W" Engines Must Use Edelbrock #5409 or Stock Large-Port 409 Intake Manifold) |
| Description_INV |
Edelbrock W-Series Cylinder Head |
| Description_MKT |
The Edelbrock #608119 Performer RPM cylinder heads are designed for 1958-1965 Chevrolet "W" Series 348/409 big-block applications. The Edelbrock #608119 Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_LAB |
RPM 348/409 Chevy Cylinder Head Hydraulic Flat Tappet Cam Polished |
| Description_TRA |
EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS |
| Description_TRA |
Original port locations and valve angles for bolt-on convenience |
| Description_TRA |
CNC port matched 220cc intake and 115cc exhaust ports for optimum flow and power |
| Description_TRA |
Improved port design for more performance |
| Description_TRA |
Hardened spring cups, screw-in rocker studs and hardened guide plates |
| Description_TRA |
1958 348 c.i.d. applications will require modifications to cylinder head (contact Edelbrock tech department for detailed information) |
| Description_TRA |
Use Edelbrock head gasket sets. |
| Description_TRA |
May be used on 348 engines with valve lifts up to .550" only. |
| Description_TRA |
Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA |
These heads will only fit 1958-65 348 c.i.d. "W" engines if an Edelbrock #5409, #7159 or stock large port 409 c.i.d. manifold is used. |
| Description_TRA |
Proper cylinder wall notching must be checked to ensure exhaust valve to cylinder clearance. |
| Description_TRA |
Deck thickness: 9/16" |
| Description_TRA |
Rocker stud diameter: 7/16" |
| Description_TRA |
Pushrod diameter: 3/8" (width of slot in guide plate). |
| Valve Spring Maximum Lift |
0.600 |
| Valve Stem Diameter |
0.341 |
| Grade Type |
Performance |
| Rocker Arm Stud Diameter |
0.437 |
| Deck Thickness |
0.562 |
| Intake Runner Volume |
220.0 |
| Exhaust Valve Diameter |
1.720 |
| Material |
Aluminum |
| Valve Spring Diameter |
1.550 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Guide Plates Included |
Yes |
| Guide Plate Material |
Hardened Steel |
| Push Rod Diameter |
0.375 |
| Deck Height |
9.69 |
| Intake Valve Diameter |
2.190 |
| Combustion Chamber Volume |
16.0 |
| CNC Ported |
No |
| Head Casting Number |
31-6080 |
| Length |
9.0000 |
| Width |
36.0000 |
| Height |
26.0000 |
| Weight |
36.0000 |
