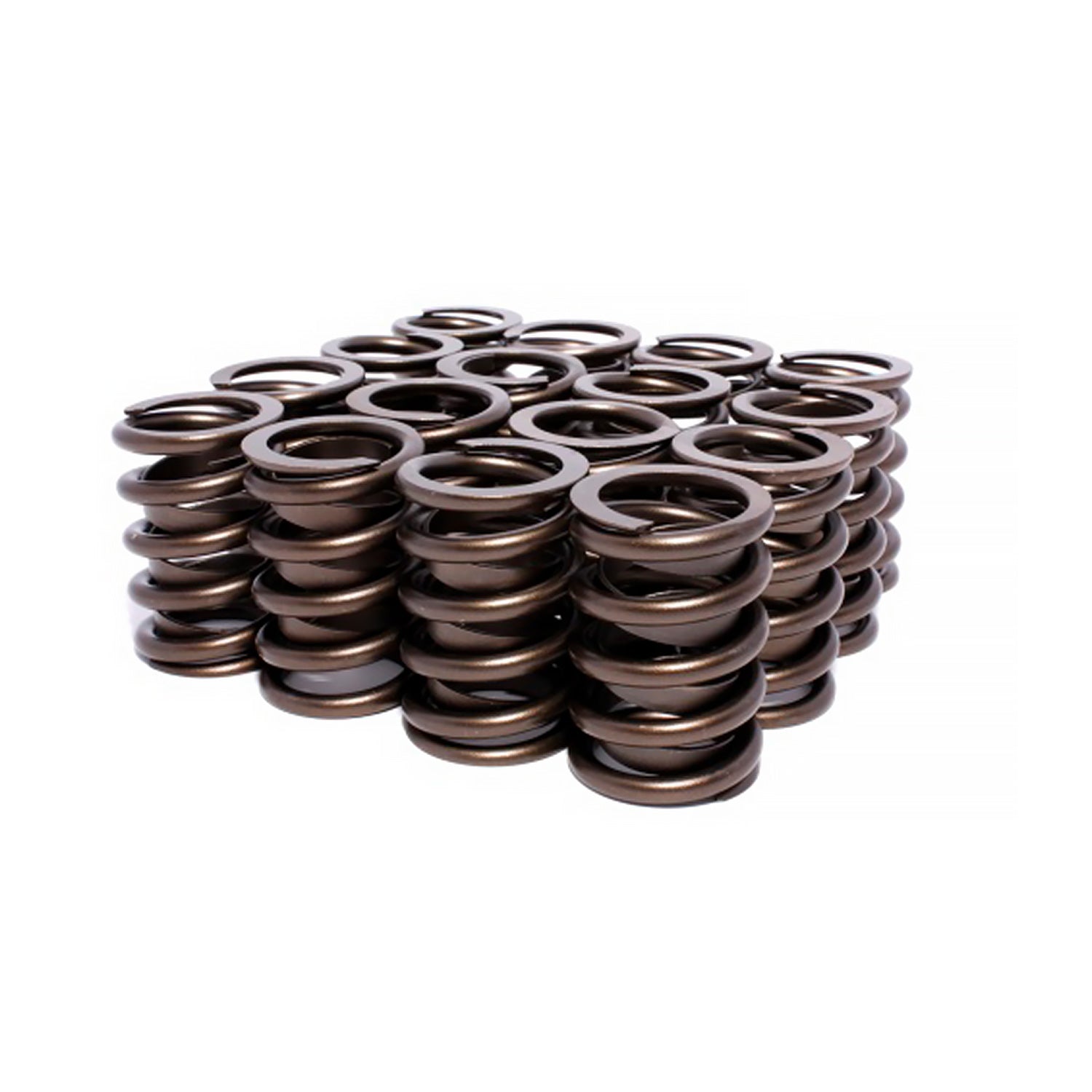

The Edelbrock #5862 Sure Seat Valve Spring for Big-Block Chevy 396-402-427-454 V8 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.
Specifications:
| Description_ABR |
Valve Sprng |
| Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF |
Engine Valve Spring Kit |
| Description_EXT |
The Edelbrock #5862 Sure Seat Valve Spring for Big-Block Chevy 396-402-427-454 V8 O.E Cast iron cylinder heads are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. |
| Description_LAB |
Sure Seat Valve Springs for Big-Block Chevy 396-402-427-454 V8 |
| Description_MKT |
The Edelbrock #5862 Sure Seat Valve Spring for Big-Block Chevy 396-402-427-454 V8 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. |
| Description_INV |
Edelbrock Sure Seat Valve Springs |
| Description_TRA |
Non-Rotator springs |
| Description_TRA |
Recommended Edelbrock Cam: #2162 |
| Camshaft Type |
Hydraulic Flat Tappet |
| Installed Height |
1.880 |
| Springs Per Valve |
Single |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Installed Pressure |
90 |
| Spring Type |
Cylindrical |
| Outside Diameter |
1.500 |
| Open Pressure |
220 |
| Coil Bind Height |
1.340 |
| Material |
Chromium Silicon |
| Spring Open Height |
0.420 |
| Damper Spring Included |
Yes |
| Inside Diameter |
1.082 |
| Quantity |
Set of 16 |
| Length |
2.0000 |
| Width |
3.0000 |
| Height |
12.0000 |
| Weight |
5.0000 |
