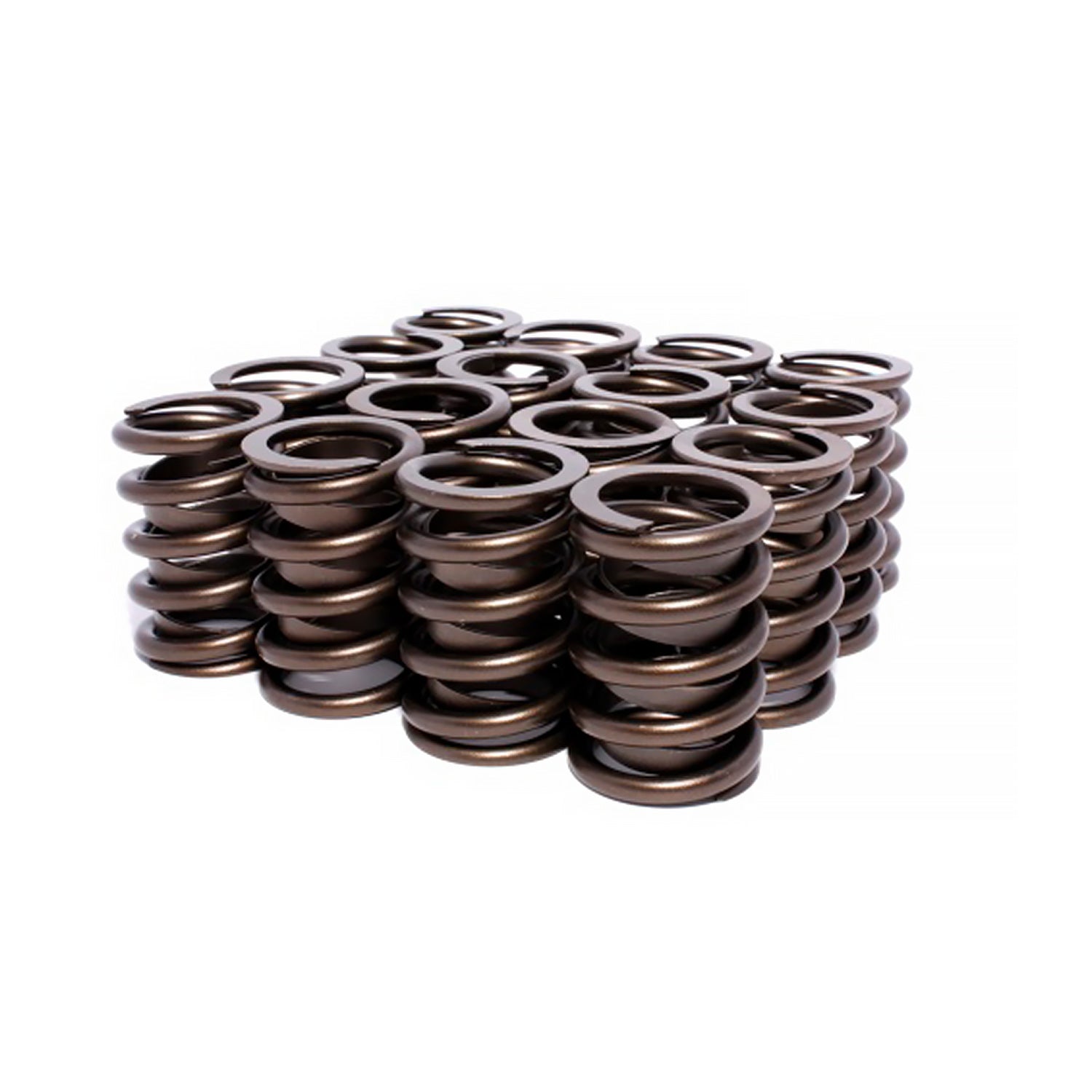

The Edelbrock #5806 Sure Seat Valve Spring for Ford 390-428 FE V8 1961-1976 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.
Specifications:
| Description_ABR |
Valve Sprng |
| Description_ASM |
Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L) |
| Description_DEF |
Engine Valve Spring Kit |
| Description_INV |
Edelbrock Sure Seat Valve Springs |
| Description_EXT |
The Edelbrock #5806 Sure Seat Valve Spring for Ford 390-428 FE V8 1961-1976 O.E Cast iron cylinder heads are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. |
| Description_LAB |
Sure Seat Valve Springs for Ford 390-428 FE V8 1961-1976 |
| Description_MKT |
The Edelbrock #5806 Sure Seat Valve Spring for Ford 390-428 FE V8 1961-1976 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. |
| Description_TRA |
Non-Rotator springs |
| Description_TRA |
Recommended Edelbrock Cam: #2106 |
| Quantity |
Set of 16 |
| Inside Diameter |
1.062 |
| Outside Diameter |
1.458 |
| Damper Spring Included |
Yes |
| Open Pressure |
220 |
| Material |
Chromium Silicon |
| Camshaft Type |
Hydraulic Flat Tappet |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Coil Bind Height |
1.320 |
| Installed Pressure |
90 |
| Installed Height |
1.820 |
| Spring Open Height |
0.440 |
| Springs Per Valve |
Single |
| Spring Type |
Cylindrical |
| Length |
2.0000 |
| Width |
3.0000 |
| Height |
12.0000 |
| Weight |
4.0000 |
