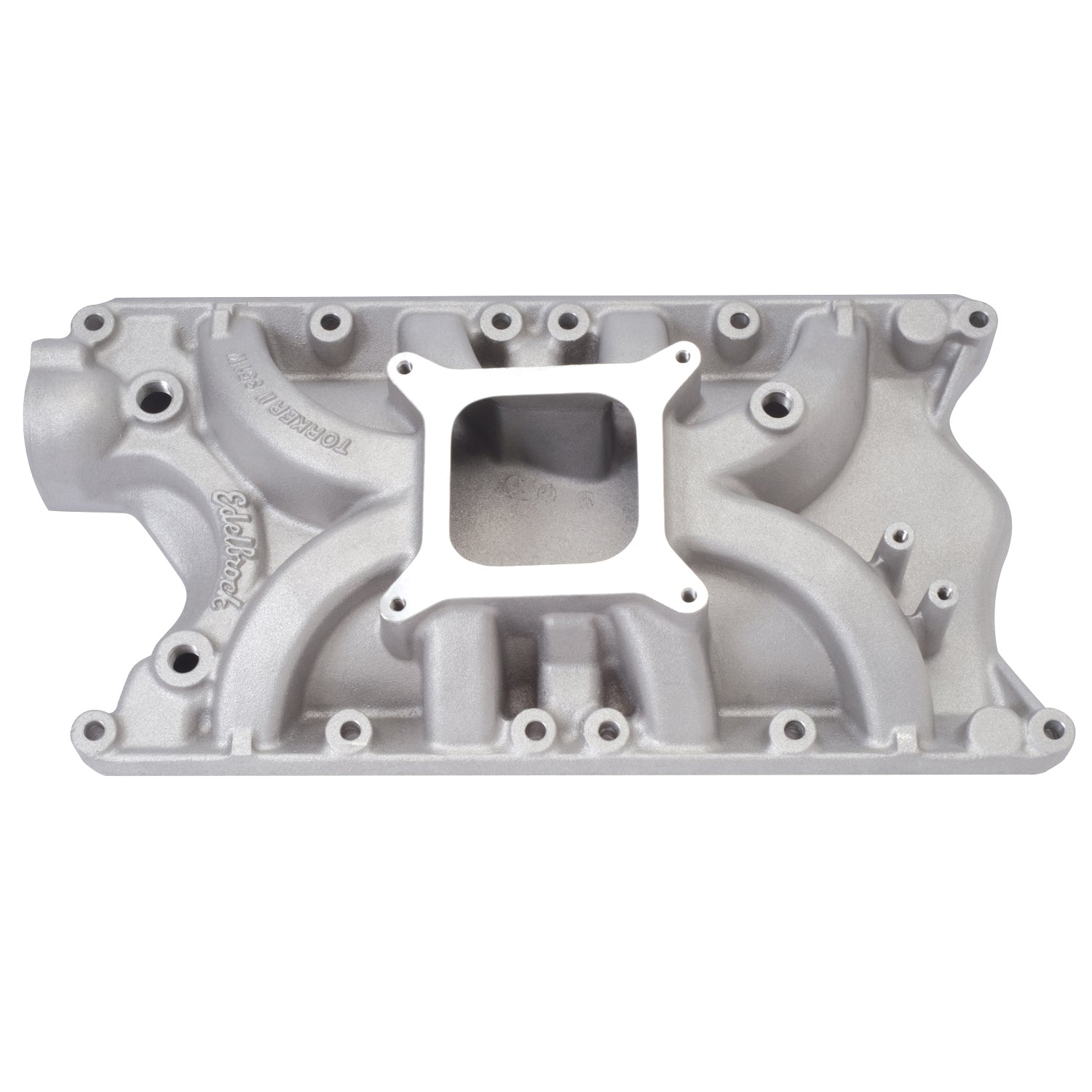

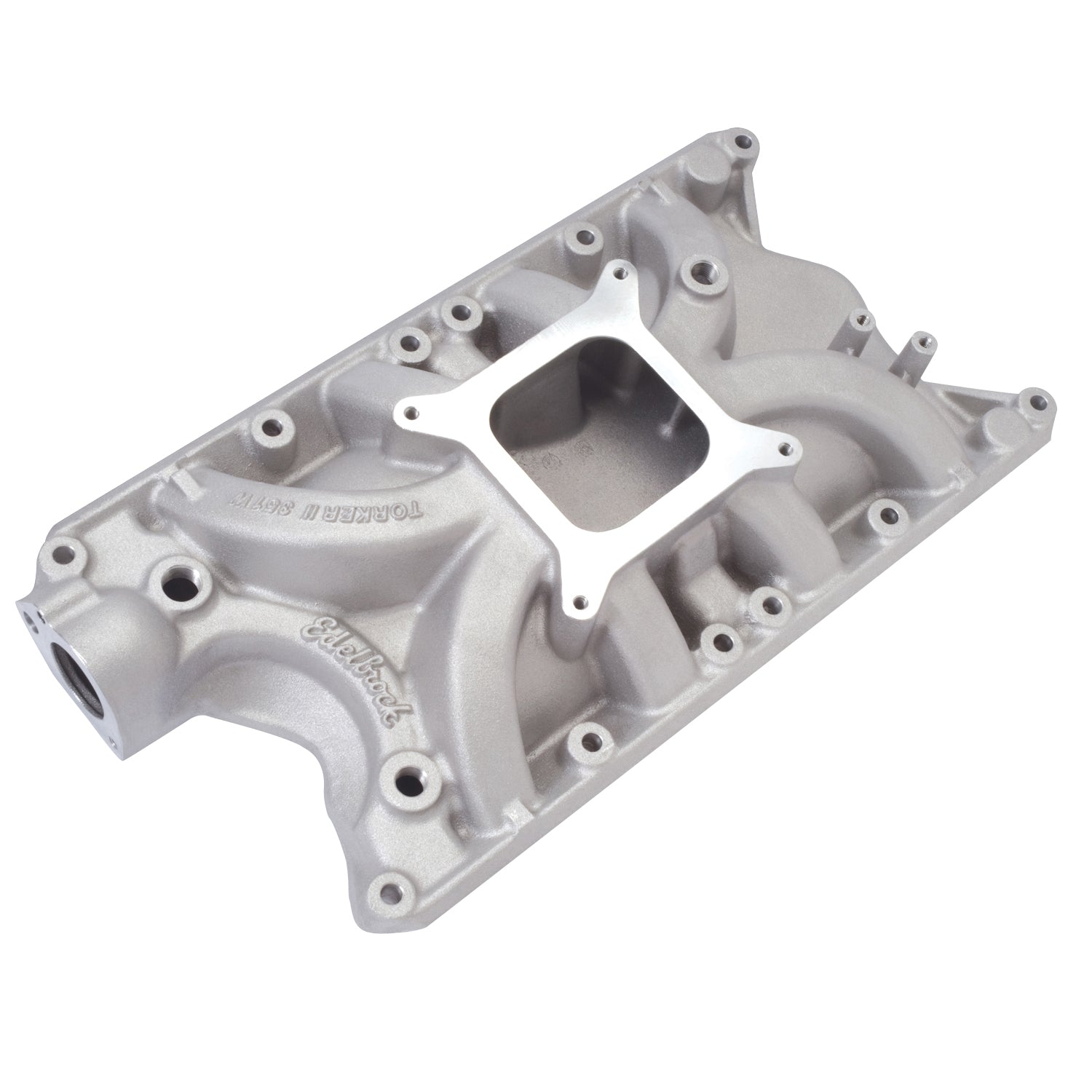

Edelbrock part #5081 Torker II 351W intake manifold is designed for 1969 and later 351 Windsor Ford V8 high-performance engines with Edelbrock heads, OEM 12- or 16-bolt heads or equivalent. Will not fit "Boss 351" Cleveland. Manifold not equipped with EGR. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000, for more info call (865) 966-2269 or go to www.lokar.com.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Small-Block Windsor:351 (5.8L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Torker II Intake Manifold for 351W Ford Small Block Windsor engines |
| Description_INV |
Torker 2 351W Ford Intake Manifold |
| Description_MKT |
Edelbrock part #5081 Torker II 351W intake manifold is designed for 1969 and later 351 Windsor Ford V8 high-performance engines with Edelbrock heads, OEM 12- or 16-bolt heads or equivalent. Will not fit "Boss 351" Cleveland. Manifold not equipped with EGR. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000, for more info call (865) 966-2269 or go to www.lokar.com. |
| Description_LAB |
Torker II Small Block Ford 351W Intake Manifold |
| Description_TRA |
Use 12-bolt intake gasket set Edelbrock #7220 recommended |
| Description_TRA |
For van installations use OEM Ford "van" intake gasket set |
| Description_TRA |
will fit early 16-bolt head with Ford 16-bolt intake gasket set. |
| Description_TRA |
1" open carburetor spacer, Edelbrock #8710 is recommended when hood clearance permits. |
| Description_TRA |
Manifold height: A-3.55", B-4.75", same as stock |
| Description_TRA |
Carb pad height: 4.15" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm. For automatic transmissions use #1483 and #1491 or #1844 |
| Description_TRA |
Port exit dimensions: 1.02" x 1.82" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Gasket Or Seal Included |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Color |
Satin |
| Rear Maximum Height |
4.750 |
| CNC Ported |
No |
| Vehicle Model |
Ford |
| EGR Port |
No |
| Center Maximum Height |
4.150 |
| Front Maximum Height |
3.550 |
| Basic Operating RPM Range |
2500-6500 |
| Single Or Dual Plane Type |
Single |
| Material |
Aluminum |
| Series |
Torker/Torker II |
| Flange Type |
4150 |
| Grade Type |
Performance |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
17.0000 |
