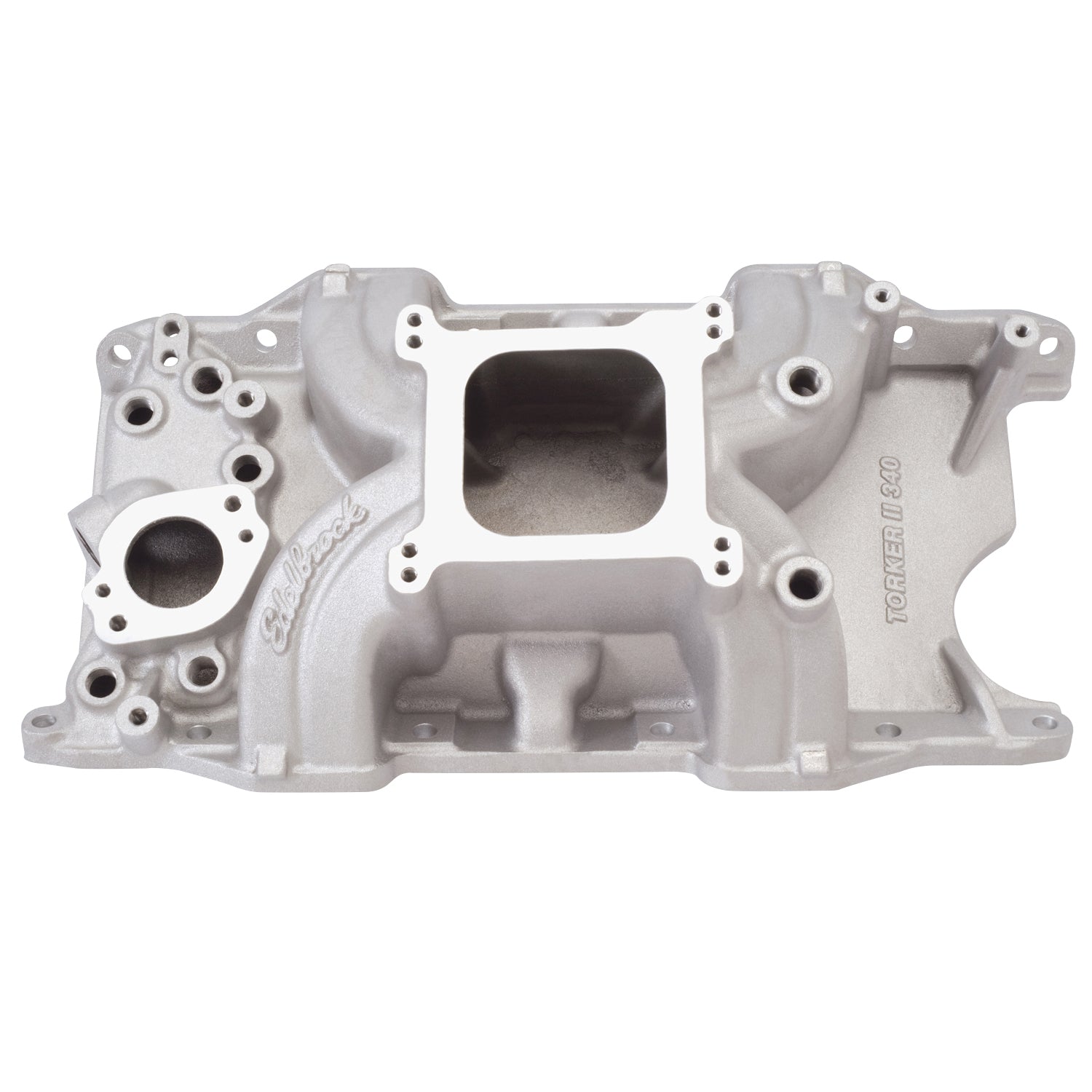

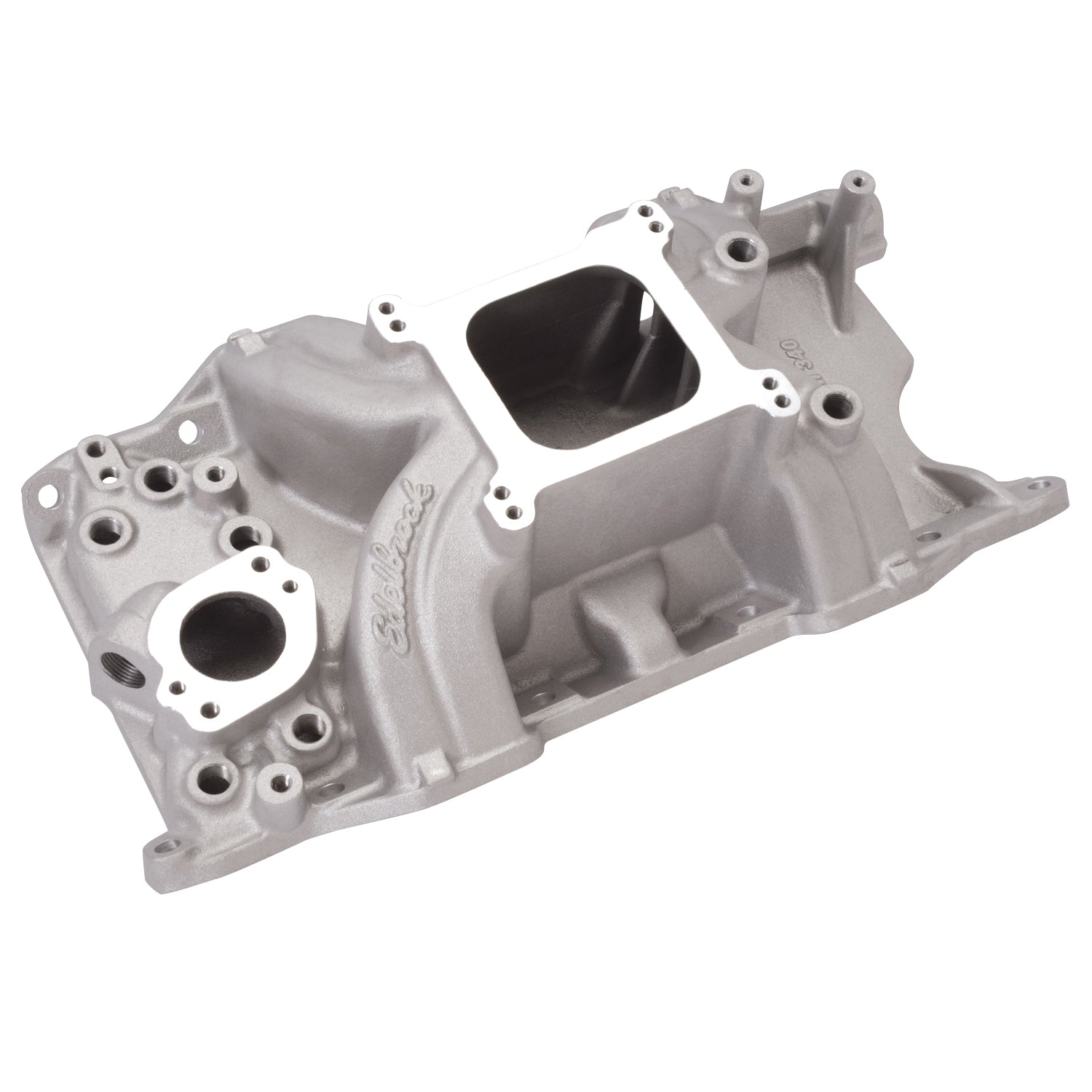

Edelbrock part #5076 Torker II intake manifold is designed for high Performance's street 340-360 c.i.d. Chrysler V8's. Manifold not equipped with EGR. Can be used on 318 c.i.d. if 340-360 c.i.d. cylinder heads are used. Will not fit 1992 and later Magnum engines. Not for heavy vehicles (trucks, vans etc.)
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chrysler:Small-Block:318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF |
Engine Intake Manifold |
| Description_INV |
Torker 2 Chrysler 360 Intake Manifold |
| Description_EXT |
Edelbrock Torker II Intake Manifold for 318-360 Chrysler Small Block LA engines |
| Description_LAB |
Torker II 340/360 Small Block Chrysler Intake Manifold |
| Description_MKT |
Edelbrock part #5076 Torker II intake manifold is designed for high Performance's street 340-360 c.i.d. Chrysler V8's. Manifold not equipped with EGR. Can be used on 318 c.i.d. if 340-360 c.i.d. cylinder heads are used. Will not fit 1992 and later Magnum engines. Not for heavy vehicles (trucks, vans etc.) |
| Description_MKT |
use Performer #2176 intake manifold. |
| Description_TRA |
Recommended intake gasket: Edelbrock #7276, Fel-Pro #1213, Chrysler #4397642 (or equivalent) |
| Description_TRA |
Manifold height: A-5.25", B-6.19" |
| Description_TRA |
Carb pad height: 5.72" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 600-800cfm. Use #1481 or #1843 throttle/transmission lever kit. |
| Description_TRA |
Port exit dimensions: 1.00" x 2.17" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| CNC Ported |
No |
| Vehicle Model |
Chrysler |
| Front Maximum Height |
5.250 |
| EGR Port |
No |
| Flange Type |
4150 |
| Material |
Aluminum |
| Color |
Satin |
| Rear Maximum Height |
5.720 |
| Grade Type |
Performance |
| Basic Operating RPM Range |
2500-6500 |
| Gasket Or Seal Included |
No |
| Series |
Torker/Torker II |
| Single Or Dual Plane Type |
Single |
| Center Maximum Height |
5.720 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
20.0000 |
