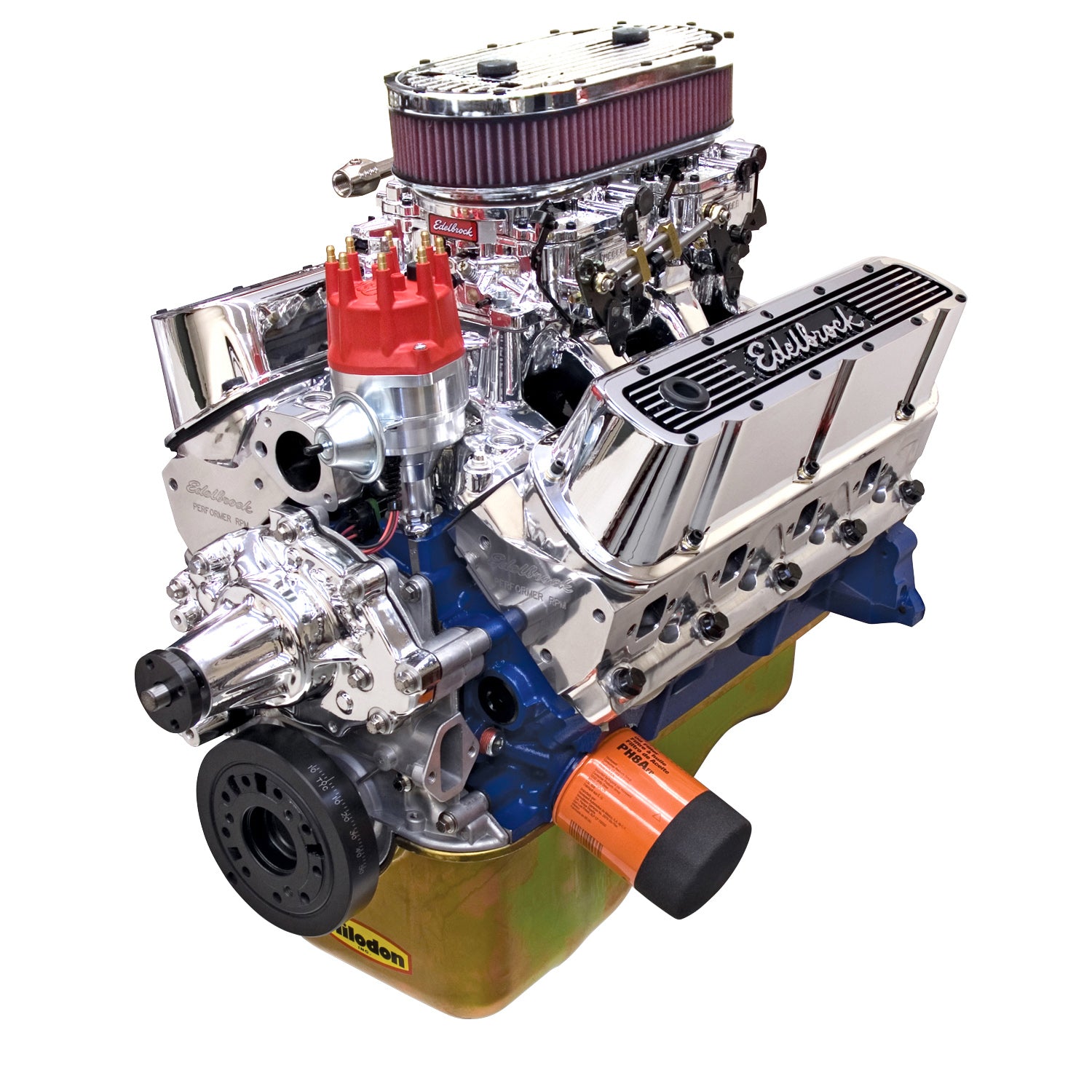

Edelbrock part #45464 Performer RPM Dual-Quad small-block Ford 347 crate engine offers the best of quality and performance with 438 HP & 413 ft/lbs. of torque right out of the crate. This 347 engine combines a Dart cast iron 4 bolt main block and a forged Scat rotating assembly which is then paired with our proven Edelbrock Power Package parts. This engine includes a Milodon oil pan and pickup designed for use with 1973 and earlier applications that require a front sump to clear the crossmember and/or suspension. Engine Specifications: - Finish: EnduraShine - Displacement: 347 c.i.d. (4.030" bore x 3.400" stroke) - Horsepower: 438 hp - Torque: 413 ft-lbs. - Compression: 9.5:1 - Block: Small-block (8.2" deck height) - Crankshaft: Forged Steel - Pistons: Forged - Camshaft: Rollin' Thunder Hydraulic Roller #2281 - Rocker Arms: 1.6:1 Roller #77780 - Manifold: RPM Air-Gap Dual-Quad #75354 - Cylinder Heads: Performer RPM #602515 - Carburetor: Thunder Series AVS - Water Pump: Victor series aluminum #88414 - Distributor: Included - Valve Covers: Elite II - Warranty: 2-year / Unlimited mileage
Specifications:
| Description_ABR |
CRATE ENGINE |
| Description_ASM |
Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L) |
| Description_DEF |
Engine Complete Assembly |
| Description_INV |
Performer RPM 347 Ford crate engine |
| Description_EXT |
Edelbrock part #45464 Performer RPM 347 small-block Ford crate engine front sump oil pan 438hp and 413ft-lbs |
| Description_LAB |
Performer RPM 347 Ford Crate Engine |
| Description_TRA |
Ships with no oil inside crate. |
| Description_TRA |
Your engine is supplied with Edelbrock Break-In Oil in the crate. Before starting engine, you will need to prime the oil system. Do not turn engine over with starter motor for priming. |
| Description_TRA |
Front sump engines should install an OEM dipstick (Ford #M-6750-A302) in the passenger side of the timing cover. |
| Description_TRA |
Any dipstick holes that are not used must be plugged. The threaded provision on the Milodon oil pan will require a 5/8"-18 plug. Remove any paint from the engine mount bosses, cylinder block to clutch housing or transmission mounting surface, and the crankshaft flange before installing engine. |
| Description_MKT |
Edelbrock part #45464 Performer RPM Dual-Quad small-block Ford 347 crate engine offers the best of quality and performance with 438 HP & 413 ft/lbs. of torque right out of the crate. This 347 engine combines a Dart cast iron 4 bolt main block and a forged Scat rotating assembly which is then paired with our proven Edelbrock Power Package parts. This engine includes a Milodon oil pan and pickup designed for use with 1973 and earlier applications that require a front sump to clear the crossmember and/or suspension. Engine Specifications: - Finish: EnduraShine - Displacement: 347 c.i.d. (4.030" bore x 3.400" stroke) - Horsepower: 438 hp - Torque: 413 ft-lbs. - Compression: 9.5:1 - Block: Small-block (8.2" deck height) - Crankshaft: Forged Steel - Pistons: Forged - Camshaft: Rollin' Thunder Hydraulic Roller #2281 - Rocker Arms: 1.6:1 Roller #77780 - Manifold: RPM Air-Gap Dual-Quad #75354 - Cylinder Heads: Performer RPM #602515 - Carburetor: Thunder Series AVS - Water Pump: Victor series aluminum #88414 - Distributor: Included - Valve Covers: Elite II - Warranty: 2-year / Unlimited mileage |
| Construction Type |
Assembled |
| Grade Type |
Performance |
| Carburetor Choke Type |
Electric Or Manual |
| Distributor Included |
Yes |
| Plug Wire and Boot Included |
No |
| Carburetor Type |
Thunder AVS2 500 CFM, EnduraShine |
| Type |
Small-Block Ford |
| Valve Cover Included |
Yes |
| Valve Cover Material |
Cast Aluminum |
| Wire Harness Included |
No |
| Valve Cover Type |
Elite II, Tall Profile, Polished |
| Oil Filter Included |
Yes |
| Water Pump Included |
Yes |
| Piston Type |
Forged Aluminum |
| Torque |
417 |
| Manifold Material |
Aluminum |
| Compression Ratio |
9.5:1 |
| Cylinder Head Material |
Aluminum |
| Engine Block Material |
Cast Iron |
| Camshaft Type |
Rollin' Thunder, Hydraulic Roller |
| Cylinder Head Type |
Performer RPM |
| Harmonic Balancer Included |
Yes |
| Displacement |
347 |
| Flywheel Included |
No |
| Hardware Included |
Yes |
| Rear Main Seal Type |
1-Piece |
| Spark Plugs Included |
No |
| Air Cleaner Type |
Elite II |
| Universal Or Specific Fit |
Specific Fit |
| Quantity |
Sold Individually |
| Main Bearing Cap Bolt Quantity |
4-Bolt |
| Horsepower |
449 |
| RGL |
WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Throttle Body Included |
No |
| Oil Pan Included |
Yes, Front Sump |
| Rocker Arm Type |
Roller |
| Timing Cover Included |
Yes |
| Rocker Arm Ratio |
1.6:1 |
| Intake Manifold Type |
Performer RPM Air-Gap, Dual-Quad/Multi-Carb 4150, EnduraShine |
| Crankshaft Material |
Forged Steel |
| Length |
31.0000 |
| Width |
27.0000 |
| Height |
40.0000 |
| Weight |
430.0000 |
