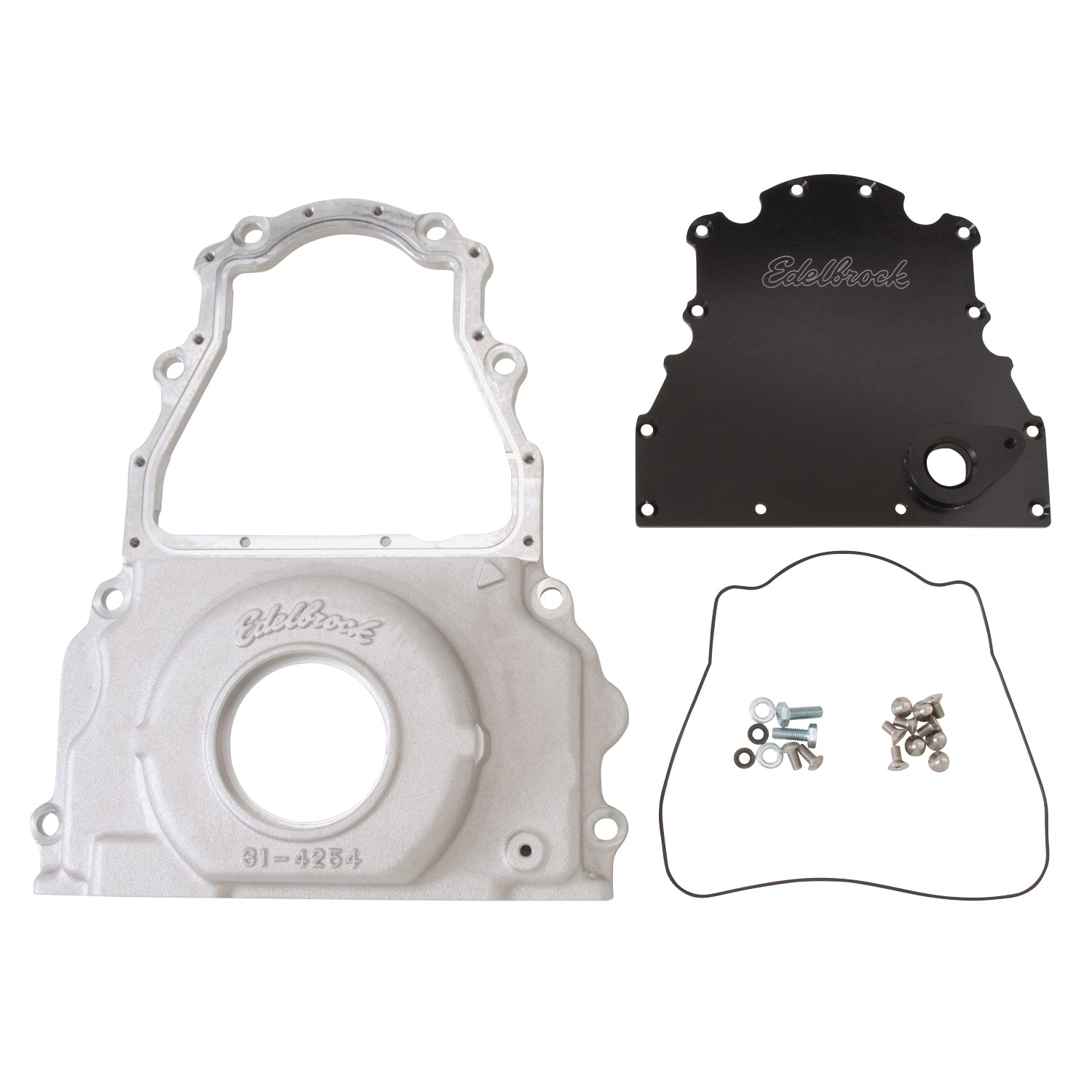

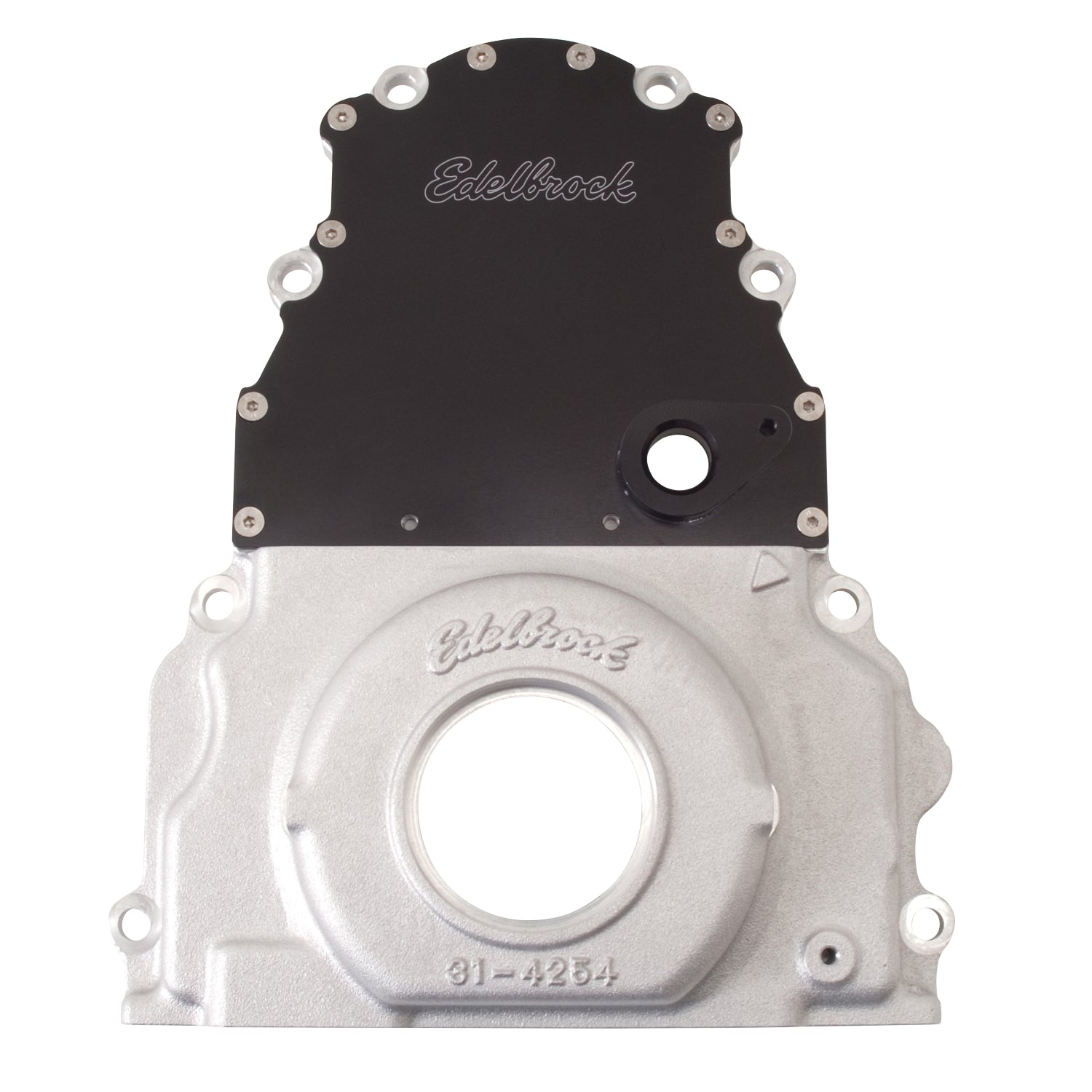

Edelbrock part #4255 With Front Mounted Cam Sensor w/hole (LS2 and Later Model Trucks) These two-piece aluminum timing covers for GM Gen III & IV LS Series allow quick camshaft removal and installation without the need to remove the damper pulley or steering components. The cam can be installed and removed through a window in the front of the cover which is sealed with a plate and O-ring for superior leak prevention. Not for use with a double roller timing chains.
Specifications:
| Description_ABR |
LS2 Cvr |
| Description_ASM |
Chevrolet:Small-Block LC9:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block LH8:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block LMG:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV L99:376 (6.2L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV LMF:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV LS2:364 (6.0L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV LS3:376 (6.2L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV LY5:325 (5.3L) |
| Description_DEF |
Engine Timing Cover |
| Description_EXT |
Edelbrock part #4255 With Front Mounted Cam Sensor w/hole (LS2 and Later Model Trucks) These two-piece aluminum timing covers for GM Gen III & IV LS Series allow quick camshaft removal |
| Description_INV |
Edelbrock LS2 Gen IV Timing Cover |
| Description_LAB |
Timing Cover 2004-07 GM LS2 Two Piece |
| Description_TRA |
Timing Cover #4254 is not compatible with Chevrolet Gen IV engines, which include LS2, LS4, LS7 and others |
| Description_TRA |
Remove the front cover and gasket. Edelbrock recommends installing a new front crank seal as it will difficult to remove your stock seal without damaging it. At this time, you should inspect the oil pan gasket for damage |
| Description_TRA |
Remove the oil pan and replace the gasket if necessary (See service manual) |
| Description_MKT |
Edelbrock part #4255 With Front Mounted Cam Sensor w/hole (LS2 and Later Model Trucks) These two-piece aluminum timing covers for GM Gen III & IV LS Series allow quick camshaft removal and installation without the need to remove the damper pulley or steering components. The cam can be installed and removed through a window in the front of the cover which is sealed with a plate and O-ring for superior leak prevention. Not for use with a double roller timing chains. |
| Gasket Or Seal Included |
Yes |
| Finish |
Aluminum |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Color |
Aluminum |
| Mounting Hole Quantity |
8 |
| Material |
Aluminum |
| Length |
2.0000 |
| Width |
11.0000 |
| Height |
14.0000 |
| Weight |
3.0000 |
