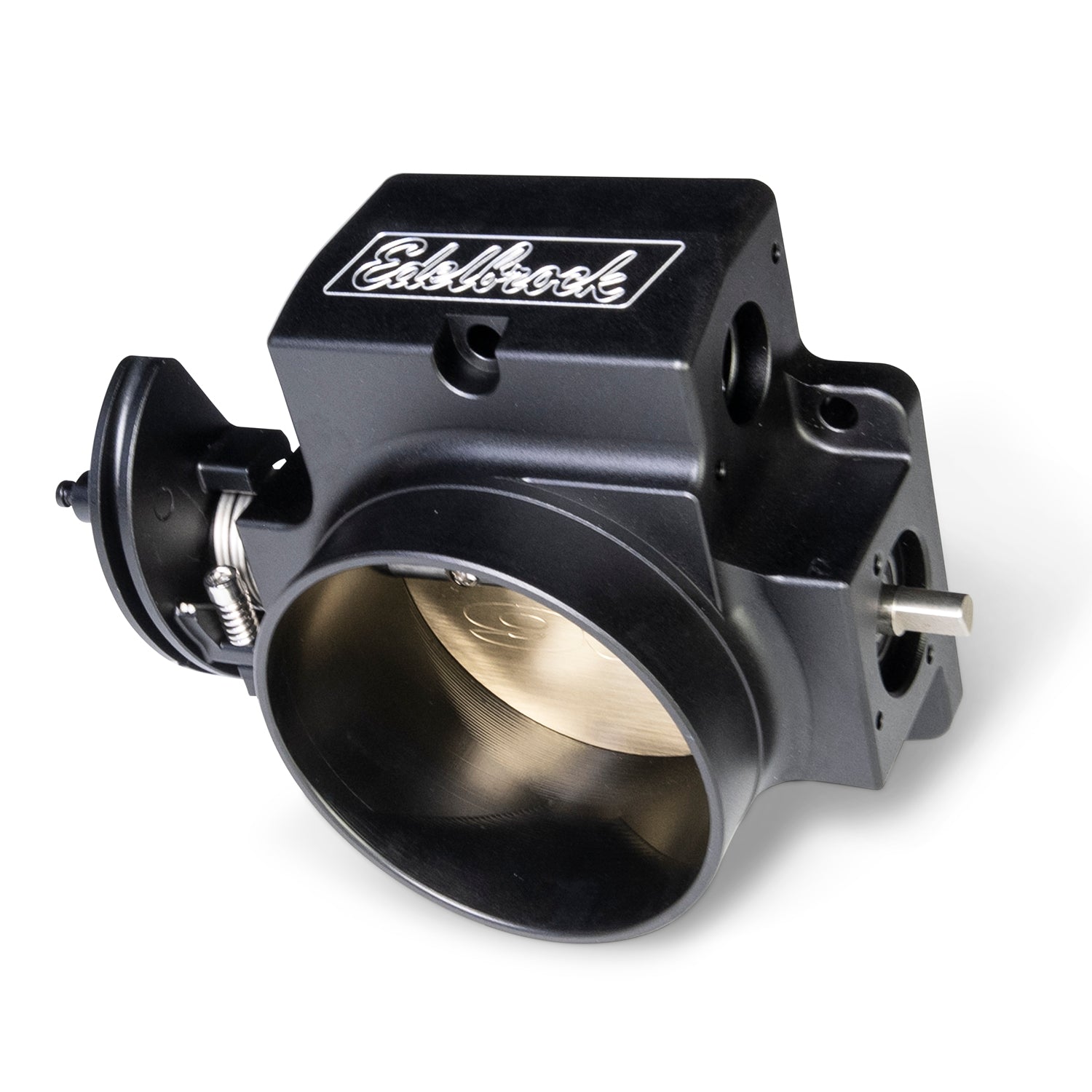

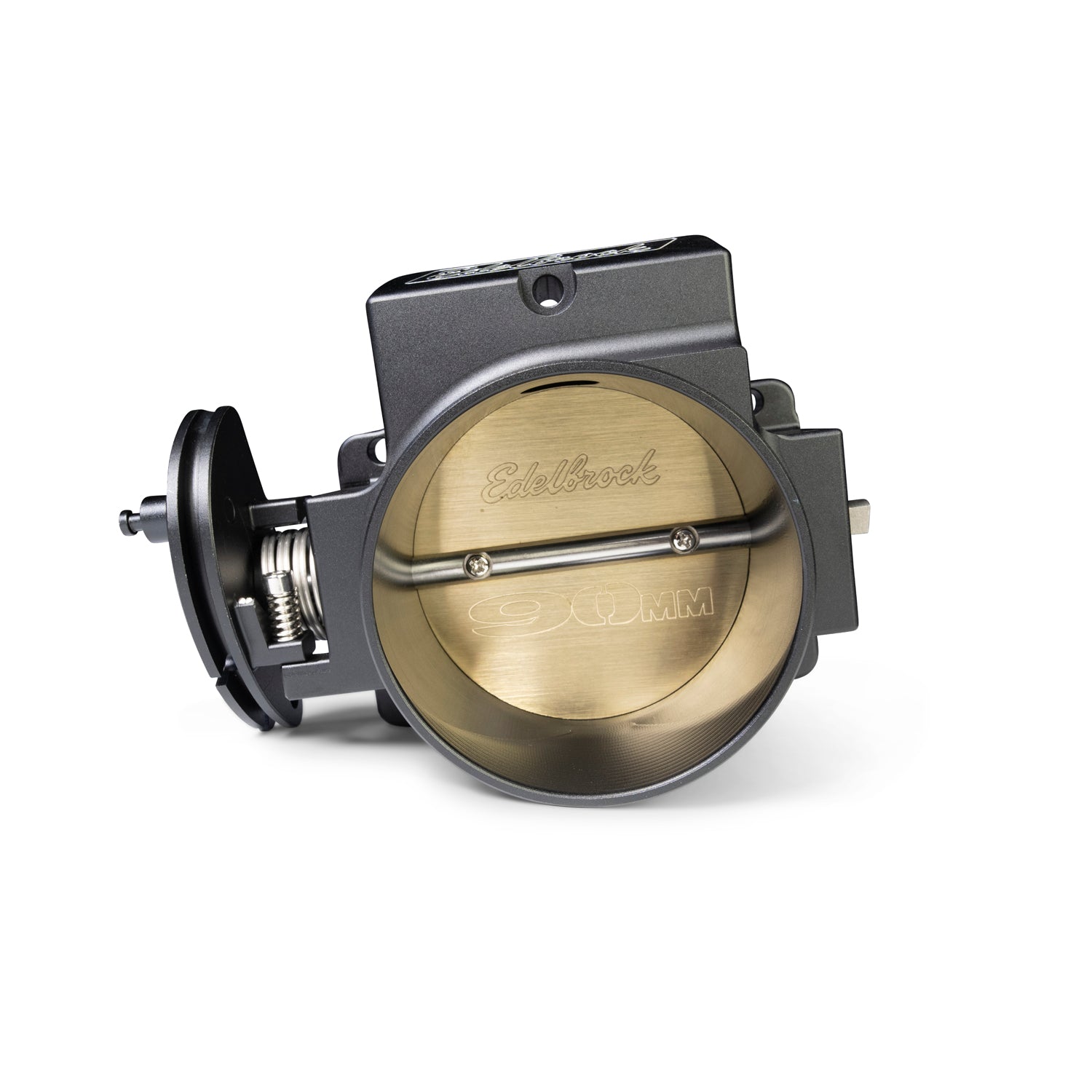

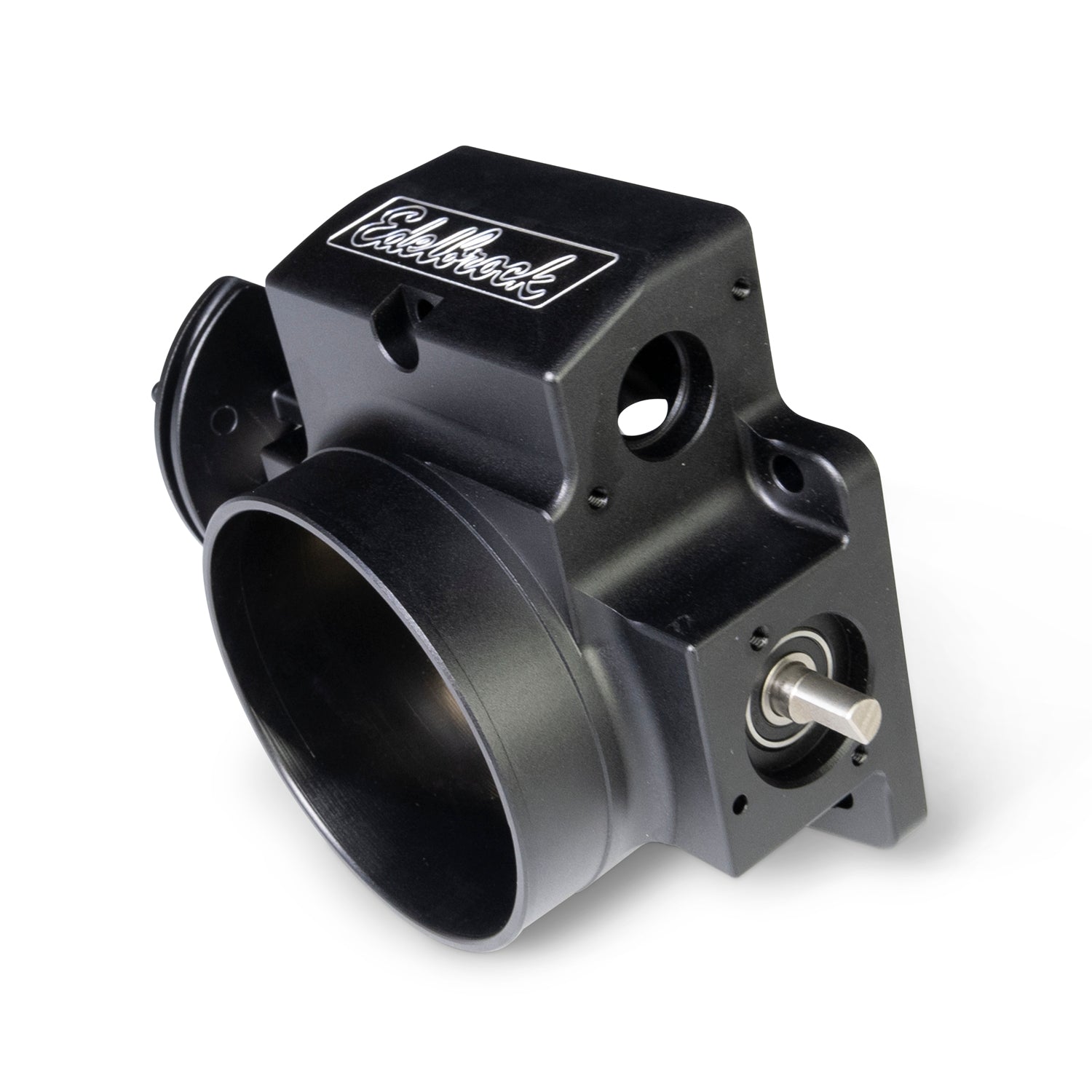

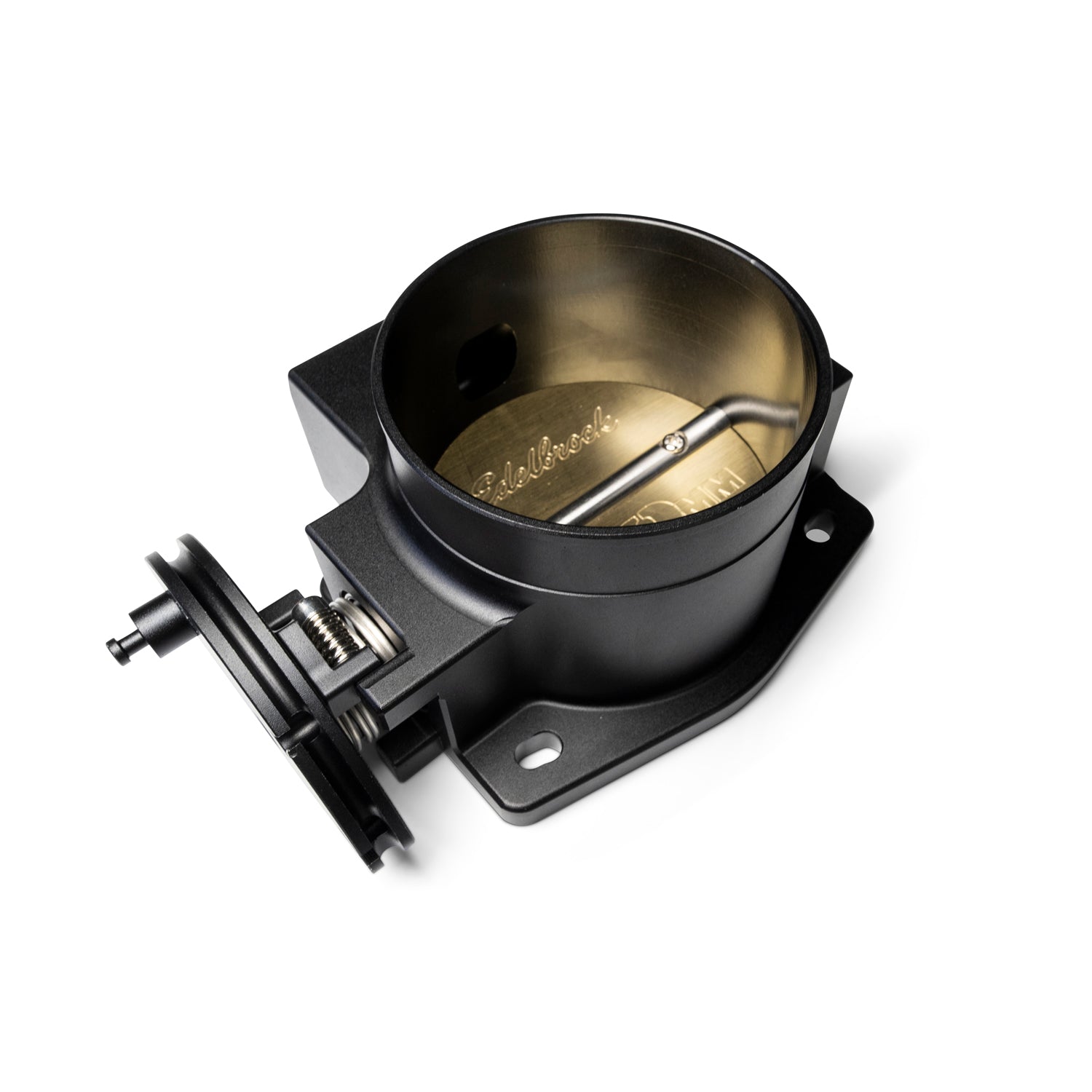

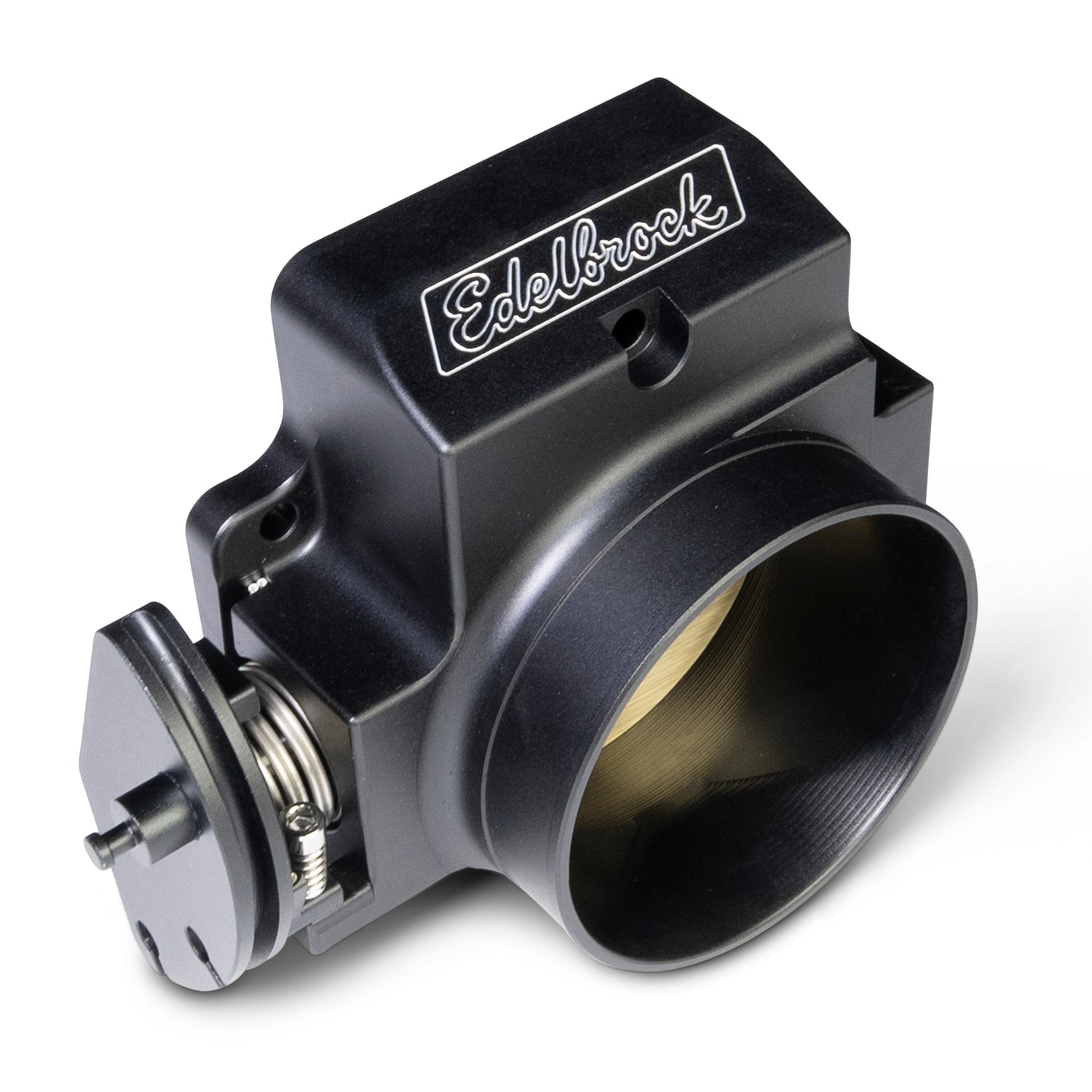

Constructed from billet aluminum, the new Edelbrock 90mm Victor Series Pro-Flo XT (TM) Throttle Body, complete with TPS and IAC, maximizes performance upgrades on all Pro-Flo XT, EFI Victor Elbow, and Gen III and Gen IV engines with cable-driven throttle bodies. With bolt patterns for both LS generations, these enlarged single-bore throttle bodies feature a progressive throttle linkage and parabolic bore design for increased power and enhanced low-speed drivability. A thicker throttle blade eliminates deflection for boosted applications, while a beefed-up linkage and dual-spring mechanism ensure safety and total throttle control. Available in either black (#39703) or satin (#3970) finishes to look great in any engine bay!
Specifications:
| Description_ABR |
Throttle Bdy |
| Description_ASM |
Edelbrock XT Manifolds, Factory Chevrolet Manifolds, Fabricated Manifolds or any Plenum Intakes or Elbows implementing a LS1 or LS2 style mounting flange requiring a cable actuated Throttle Body. |
| Description_DEF |
Fuel Injection Throttle Body |
| Description_DES |
Edelbrock Victor LS Series 90mm Throttle Body, Black |
| Description_EXT |
Edelbrock Victor LS Series 90mm Throttle Body #39703 for cable-driven Gen III/IV LS is constructed of billet aluminum with black finish. Enlarged single-bore body with progressive linkage, thicker blade, dual springs, includes TPS and IAC. |
| Description_INV |
90mm Fuel Injection Throttle Body Black |
| Description_FAB |
Cable driven. Enlarged bore and progressive throttle linkage allowing for increased airflow and enhanced low-speed drivability. |
| Description_FAB |
Features a double return spring providing solid throttle control and safe functionality. High quality CNC Billet Aluminum construction |
| Description_FAB |

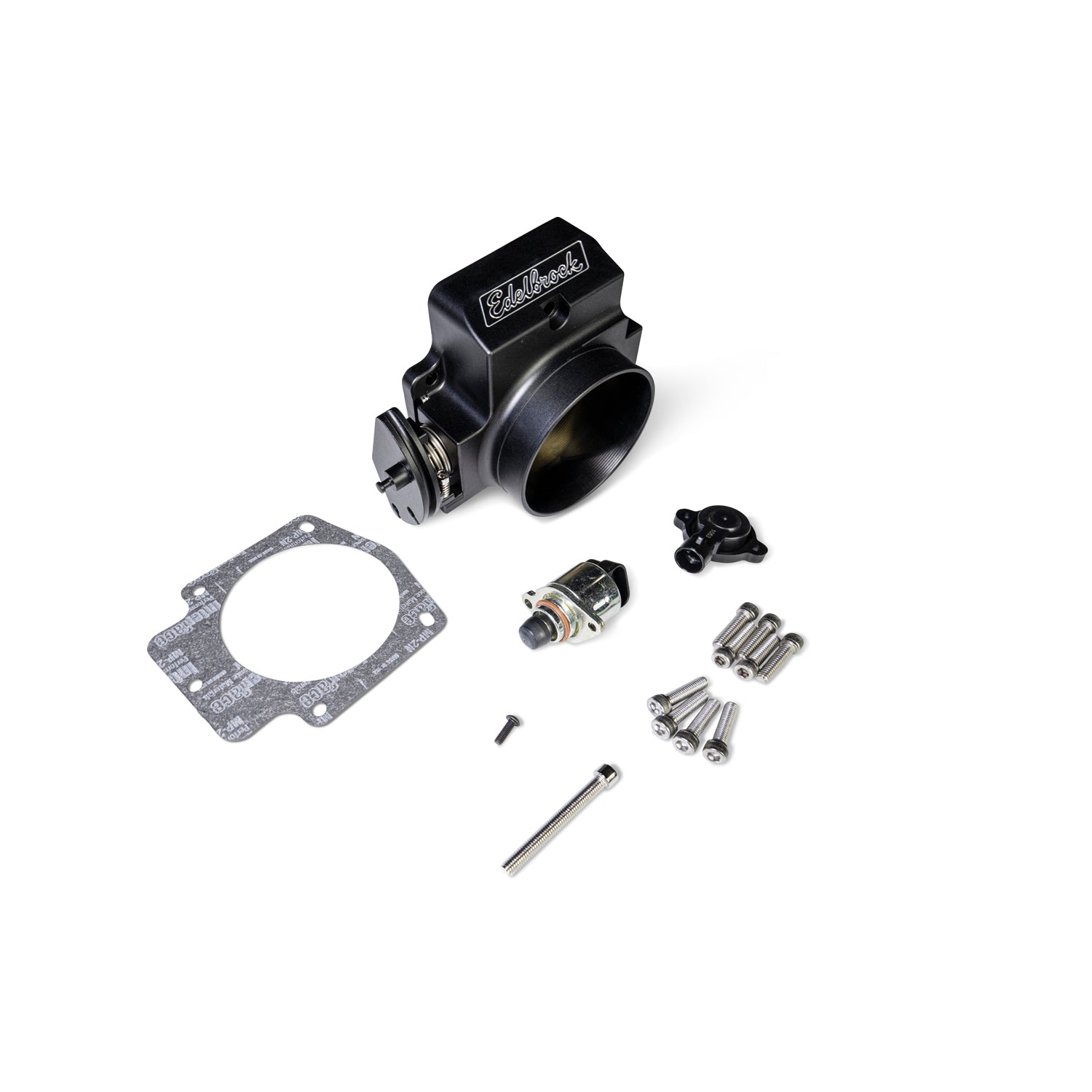

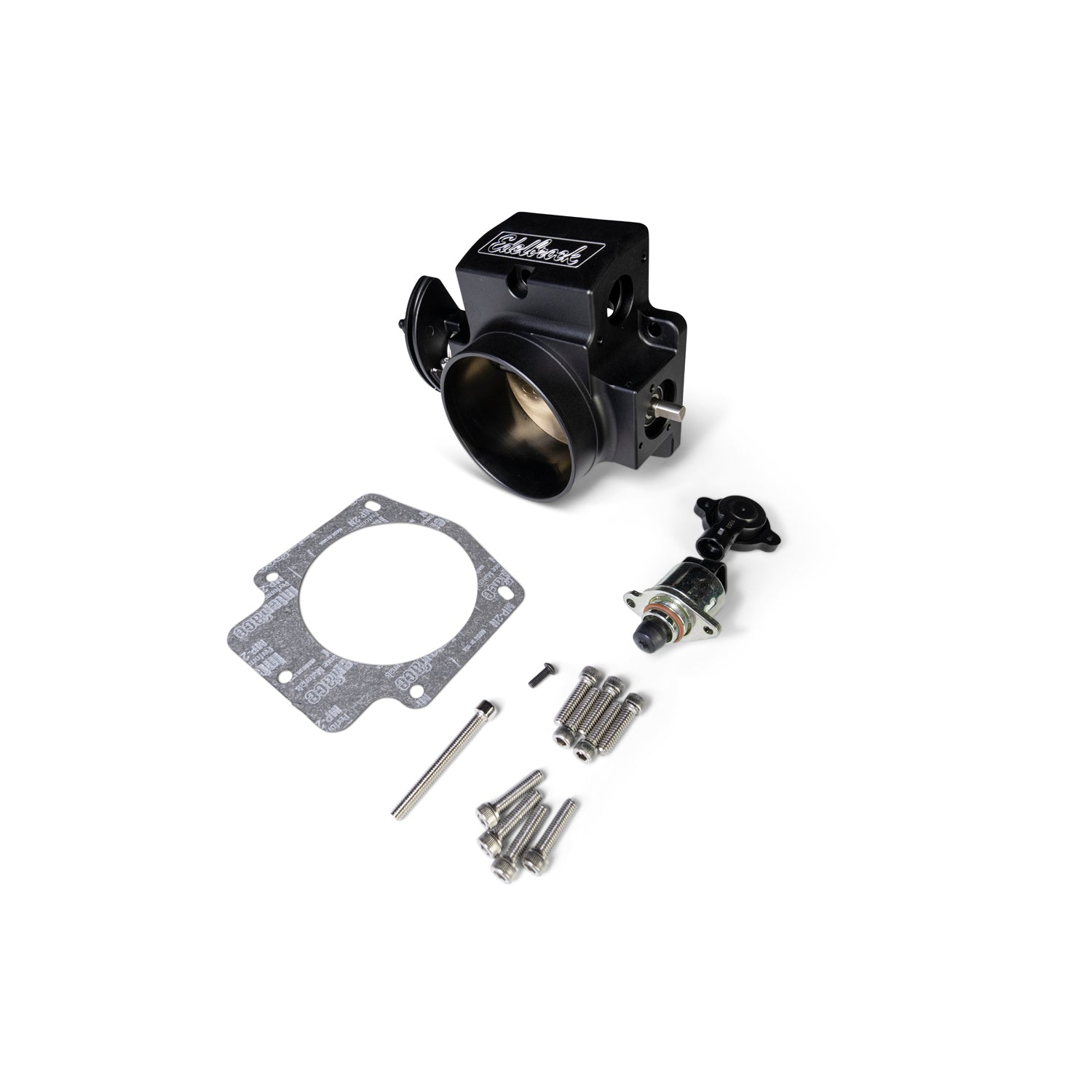

Includes GM Factory Throttle Position Sensor, Inlet Air Control Valve and Throttle Body Mounting Hardware and Gasket |
| Description_LAB |
Edelbrock Victor LS Series 90mm Throttle Body, Black |
| Description_MKT |
Constructed from billet aluminum, the new Edelbrock 90mm Victor Series Pro-Flo XT (TM) Throttle Body, complete with TPS and IAC, maximizes performance upgrades on all Pro-Flo XT, EFI Victor Elbow, and Gen III and Gen IV engines with cable-driven throttle bodies. With bolt patterns for both LS generations, these enlarged single-bore throttle bodies feature a progressive throttle linkage and parabolic bore design for increased power and enhanced low-speed drivability. A thicker throttle blade eliminates deflection for boosted applications, while a beefed-up linkage and dual-spring mechanism ensure safety and total throttle control. Available in either black (#39703) or satin (#3970) finishes to look great in any engine bay! |
| Description_SHP |
None |
| Description_TRA |
90mm inlet bore. 3.75 inch Air Filter Hose Diameter. |
| Airflow Rate |
1000cfm |
| Bore Diameter |
90mm |
| Hardware Included |
Yes |
| Venturi Quantity |
Single |
| Throttle Body Actuation |
Cable |
| Length |
3.0000 |
| Width |
6.0000 |
| Height |
8.0000 |
| Weight |
3.0000 |
