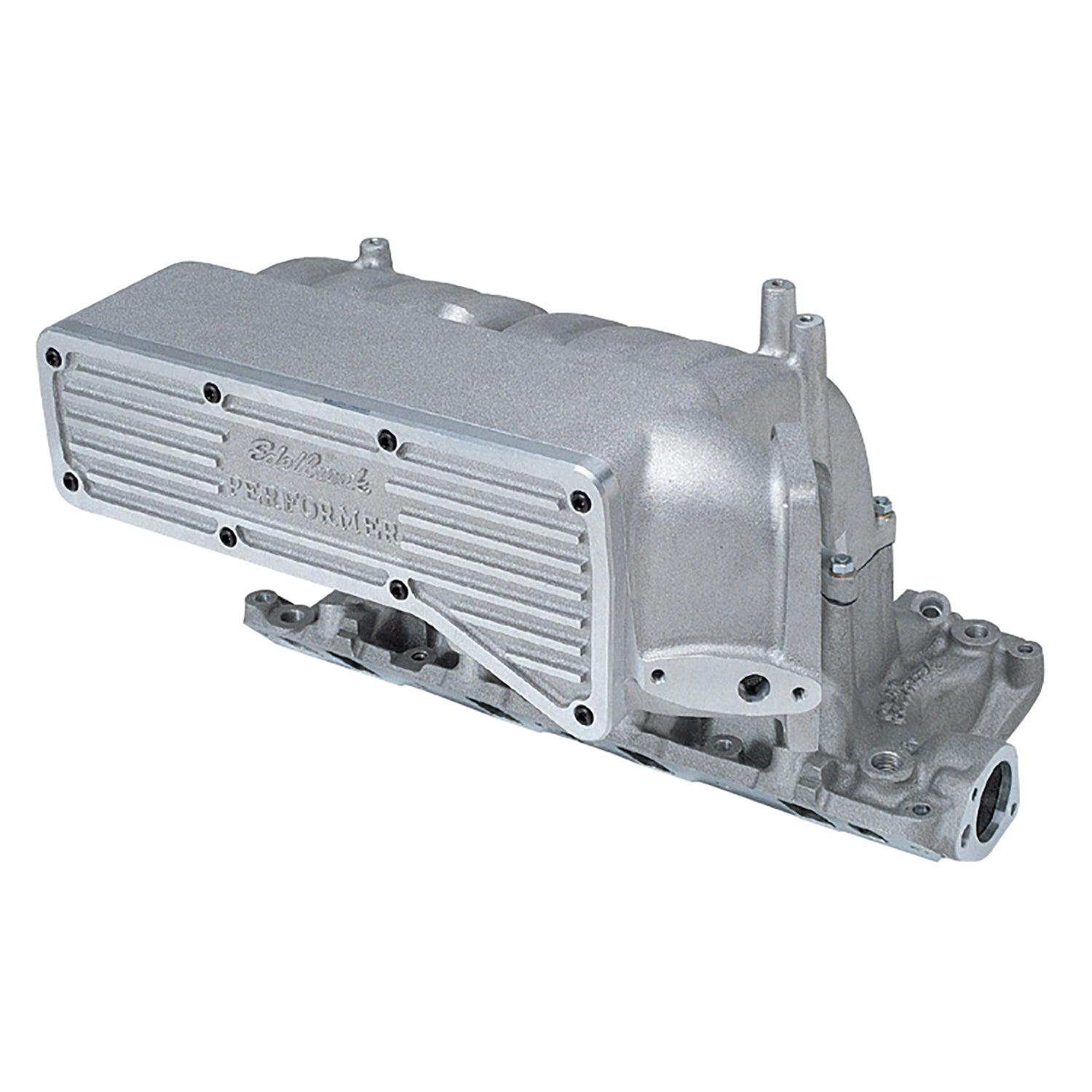

Edelbrock part #3841 Performer Truck 5.0 EFI intake manifold fits 1987-96 Ford 5.0L EFI V8 truck engines. The modular design incorporates the latest air flow technology for maximum torque gains in the mid-range where trucks need it most. The upper and plenum cover are powder-coated light titanium gray. The base is satin aluminum and not powder-coated. Features include: broad power range from idle to 5500 rpm
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Small-Block Windsor:302 (5.0L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Performer Truck 5.0L Intake Manifold for Ford 5.0 Small-Block V8 |
| Description_MKT |
Edelbrock part #3841 Performer Truck 5.0 EFI intake manifold fits 1987-96 Ford 5.0L EFI V8 truck engines. The modular design incorporates the latest air flow technology for maximum torque gains in the mid-range where trucks need it most. The upper and plenum cover are powder-coated light titanium gray. The base is satin aluminum and not powder-coated. Features include: broad power range from idle to 5500 rpm |
| Description_MKT |
removable plenum cover that allows access to runners for modification |
| Description_MKT |
base manifold is CNC port matched to upper manifold for maximum performance. This manifold accepts all stock hardware. Use with stock or stock replacement twin throttle body. |
| Description_INV |
Performer 5.0L Ford Truck Intake Manfld |
| Description_LAB |
Performer Truck 5.0L Intake Manifold Small-Block Ford |
| Description_TRA |
Recommended intake gasket: Edelbrock #7220 |
| Description_TRA |
Port exit dimensions: 1.02" x 1.85" |
| Description_TRA |
Overall height: 13.25" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| EGR Port |
Yes |
| Finish |
Satin |
| Flange Type |
Throttle Body |
| Vehicle Model |
Ford |
| CNC Ported |
No |
| Front Maximum Height |
13.250 |
| Series |
Performer |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Single |
| Gasket Or Seal Included |
No |
| Rear Maximum Height |
13.250 |
| Basic Operating RPM Range |
Idle-5500 |
| Material |
Aluminum |
| Center Maximum Height |
13.250 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
53.0000 |
