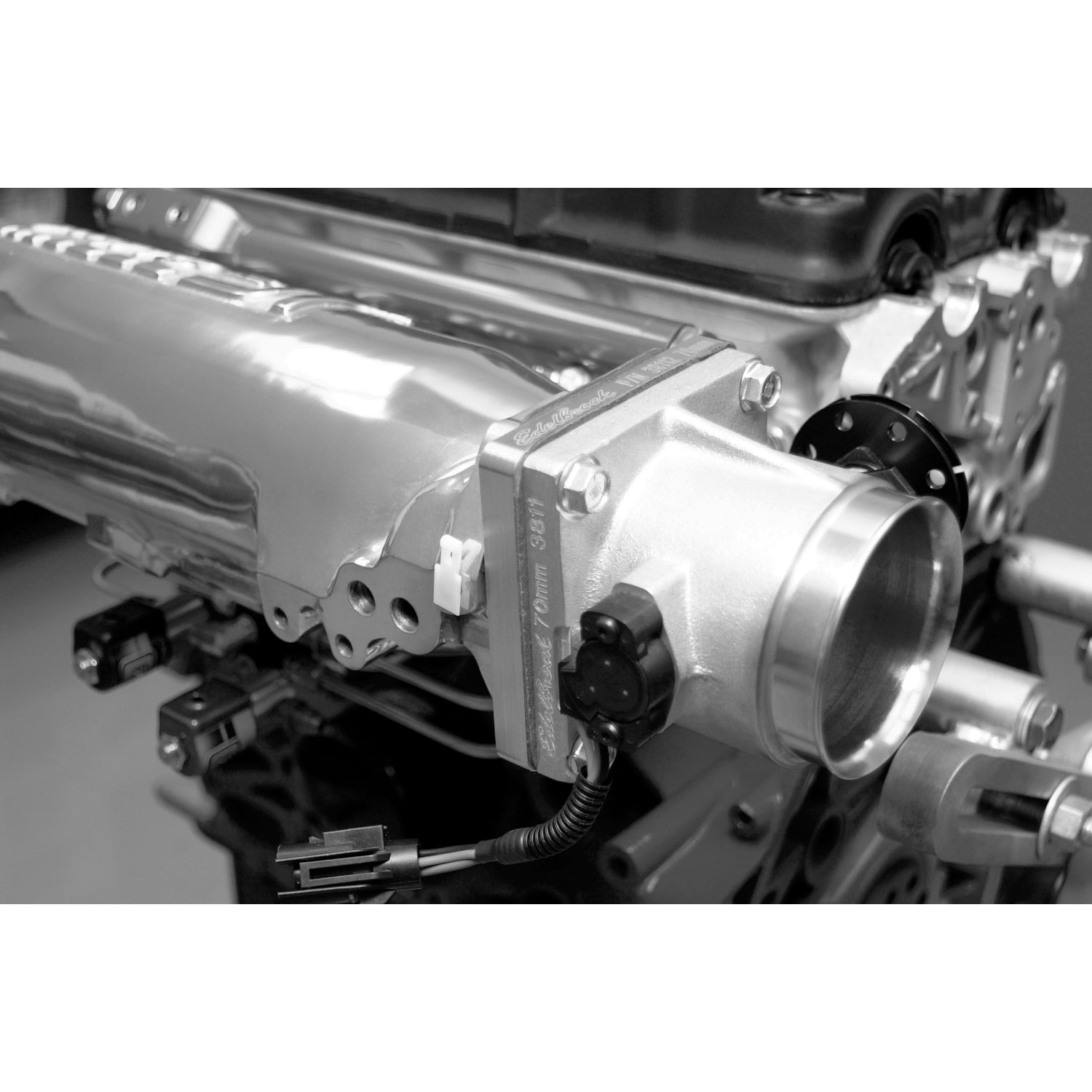

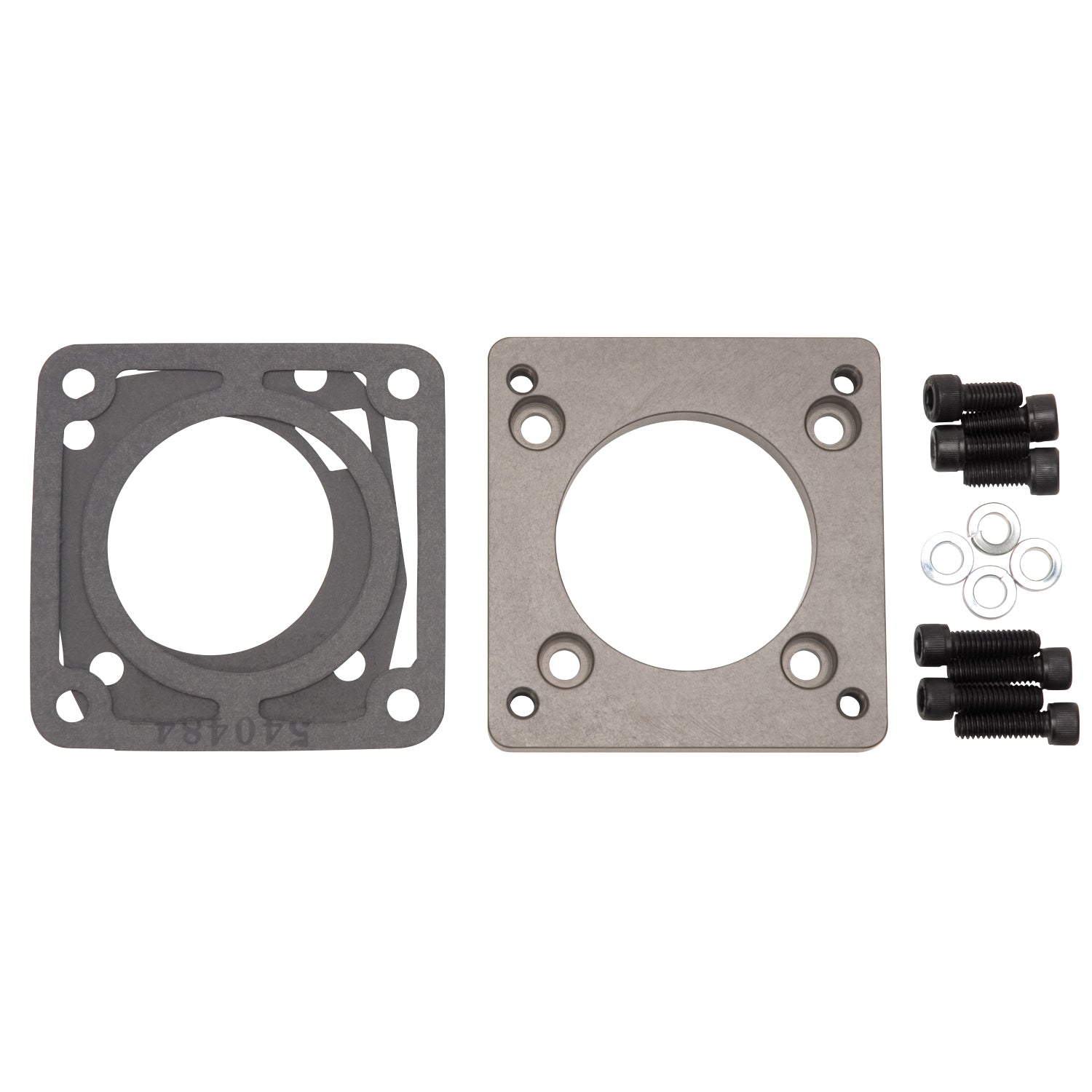

The Edelbrock 38112 is an adapter plate that allows the use of our Victor 70mm Race Throttle Body on Honda and Acura applications. This plate features dual bolt-hole patterns for Ford 5.0L to Honda-Acura conversion. Intake port matching will be required.
Specifications:
Description_ABR |
Adapter |
Description_DEF |
Fuel Injection Throttle Body Adapter |
Description_EXT |
The Edelbrock 38112 is an adapter plate that allows the use of our Victor 70mm Race Throttle Body on Honda and Acura applications. |
Description_INV |
Throttle Body Adapter 70mm |
Description_MKT |
The Edelbrock 38112 is an adapter plate that allows the use of our Victor 70mm Race Throttle Body on Honda and Acura applications. This plate features dual bolt-hole patterns for Ford 5.0L to Honda-Acura conversion. Intake port matching will be required. |
Description_LAB |
70mm Honda Adapter Plate for Victor 70mm Race Throttle Body |
Main Port Outside Diameter |
70.0 |
Gasket Or Seal Included |
Yes |
Mount Hole Inside Diameter |
0.328 |
Main Port Inside Diameter |
70.0 |
RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
Thickness |
0.5 |
Mounting Hole Quantity |
8 |
Finish |
Gray |
Port Quantity |
1 |
Material |
Aluminum |
Length |
2.0000 |
Width |
6.0000 |
Height |
7.0000 |
Weight |
1.0000 |
