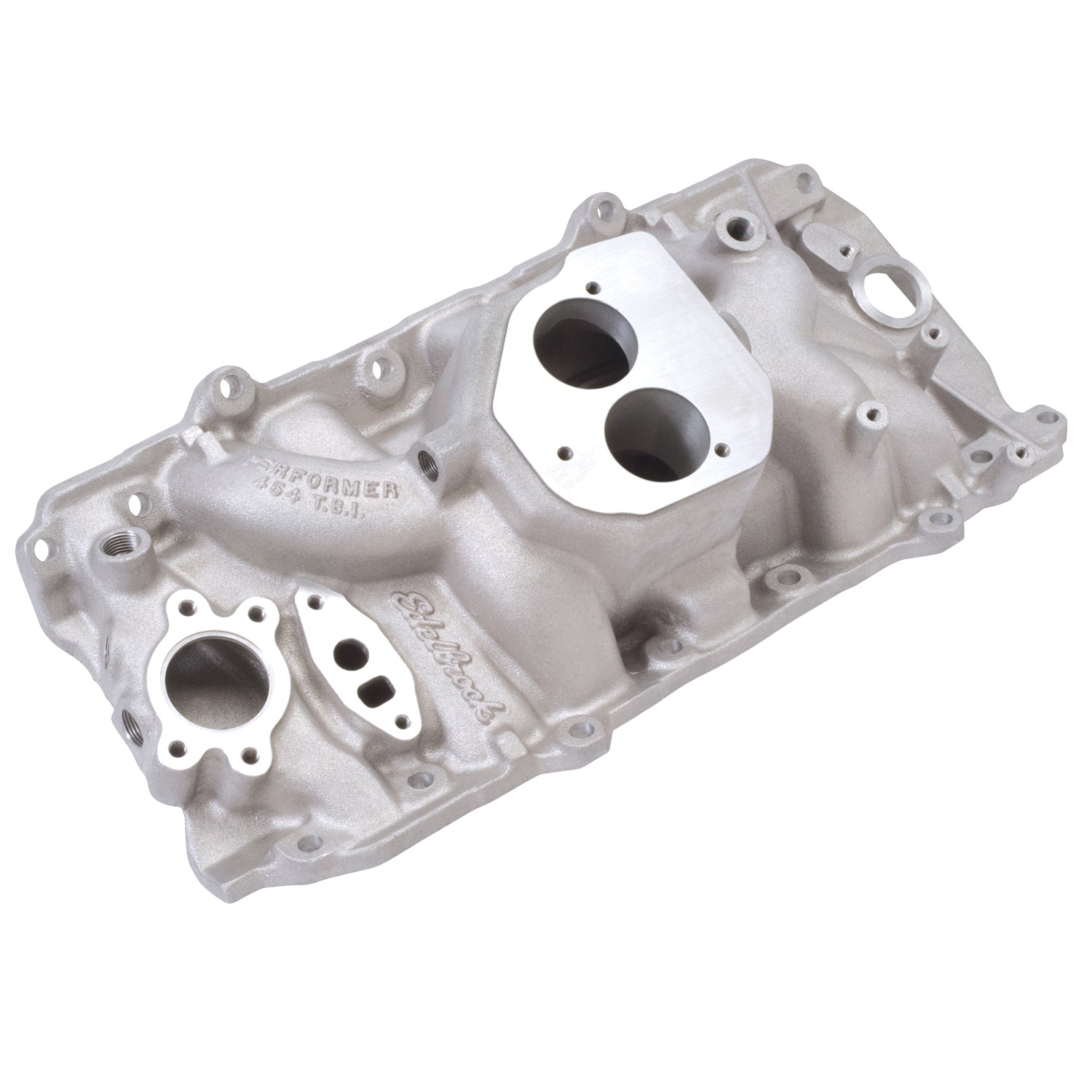

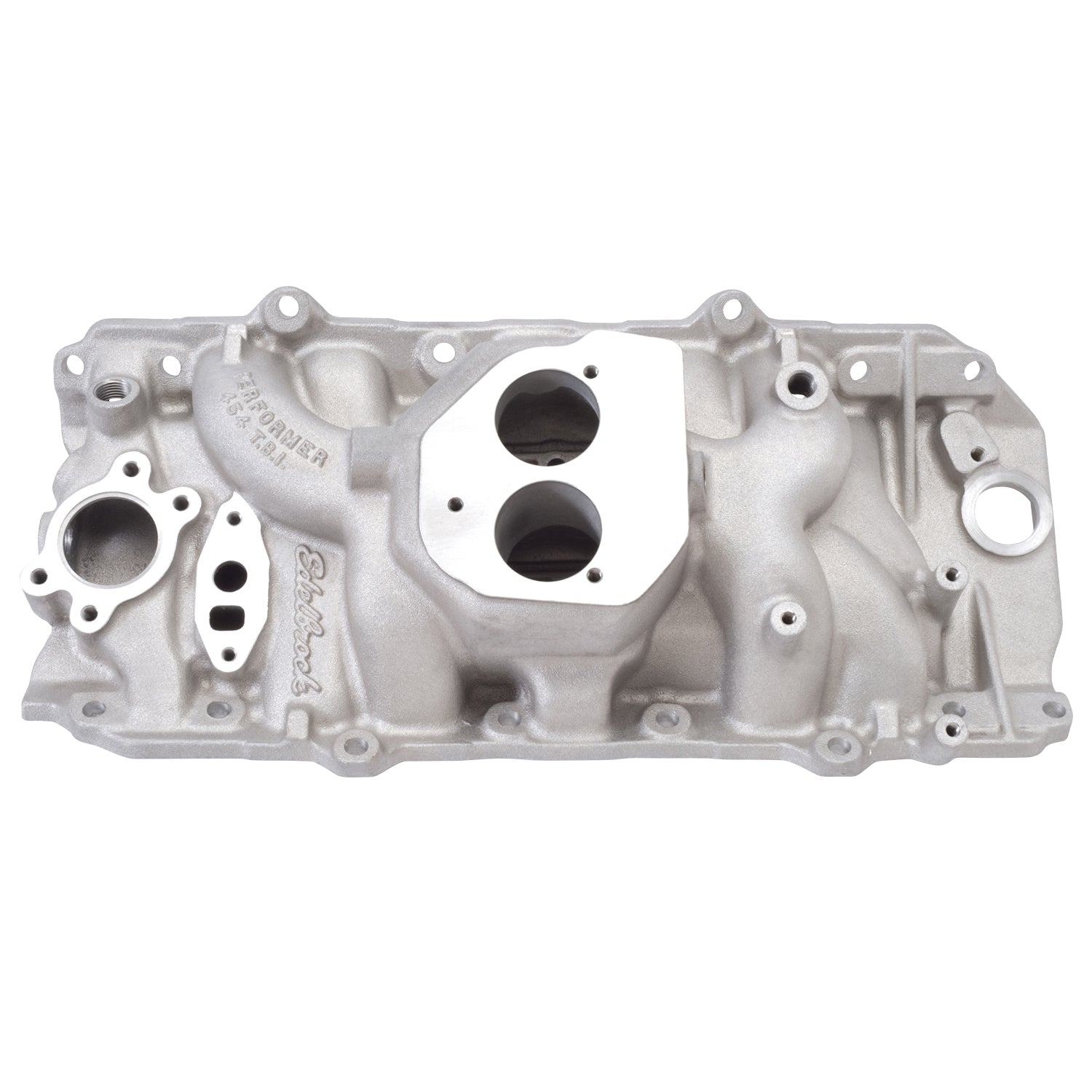

Edelbrock part #3764 Performer 454 T.B.I. intake manifold is designed for street 454 c.i.d. Chevy V8's. Add our Performer High-Compression heads #60499 for even greater power gains. Features EGR in stock location. Manifolds will not fit 1991-95 vehicles.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Big-Block Gen V:454 (7.4L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Performer 454 T.B.I. Intake Manifold For Chevrolet 454 Big-Block V8 |
| Description_MKT |
Edelbrock part #3764 Performer 454 T.B.I. intake manifold is designed for street 454 c.i.d. Chevy V8's. Add our Performer High-Compression heads #60499 for even greater power gains. Features EGR in stock location. Manifolds will not fit 1991-95 vehicles. |
| Description_LAB |
Performer 454 T.B.I. Intake Manifold Big-Block Chevy |
| Description_INV |
Performer BBC TBI Intake Manifold |
| Description_TRA |
Use stock Throttle Body Injection unit |
| Description_TRA |
Recommended intake gasket: GM #10181398. |
| Description_TRA |
Manifold height: A-4.30", B-6.45" same as stock |
| Description_TRA |
Carb pad height: 5.37" |
| Description_TRA |
Port exit dimensions: 1.41"w x 1.59"t |
| Description_TRA |
1987-90 Chevy 454 trucks require Edelbrock GM T.B.I. throttle bracket #8019 |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| CNC Ported |
No |
| Rear Maximum Height |
6.450 |
| Finish |
Satin |
| Series |
Performer |
| EGR Port |
Yes - For 1987-90 |
| Grade Type |
Performance |
| Flange Type |
Factory T.B.I. |
| Single Or Dual Plane Type |
Dual |
| Gasket Or Seal Included |
No |
| Vehicle Model |
Chevrolet |
| Material |
Aluminum |
| Basic Operating RPM Range |
Idle-5500 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Front Maximum Height |
4.300 |
| Center Maximum Height |
5.370 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
24.0000 |
