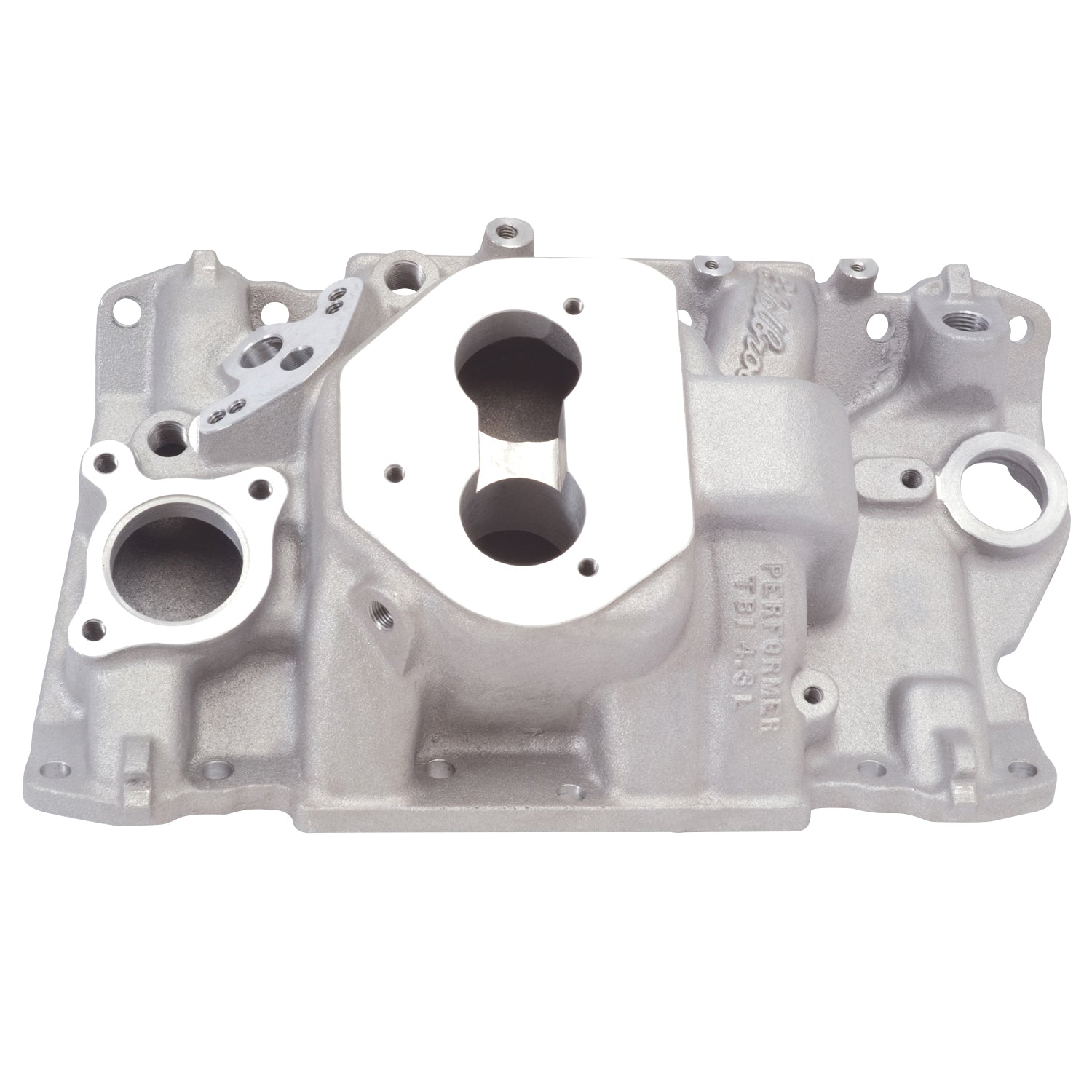

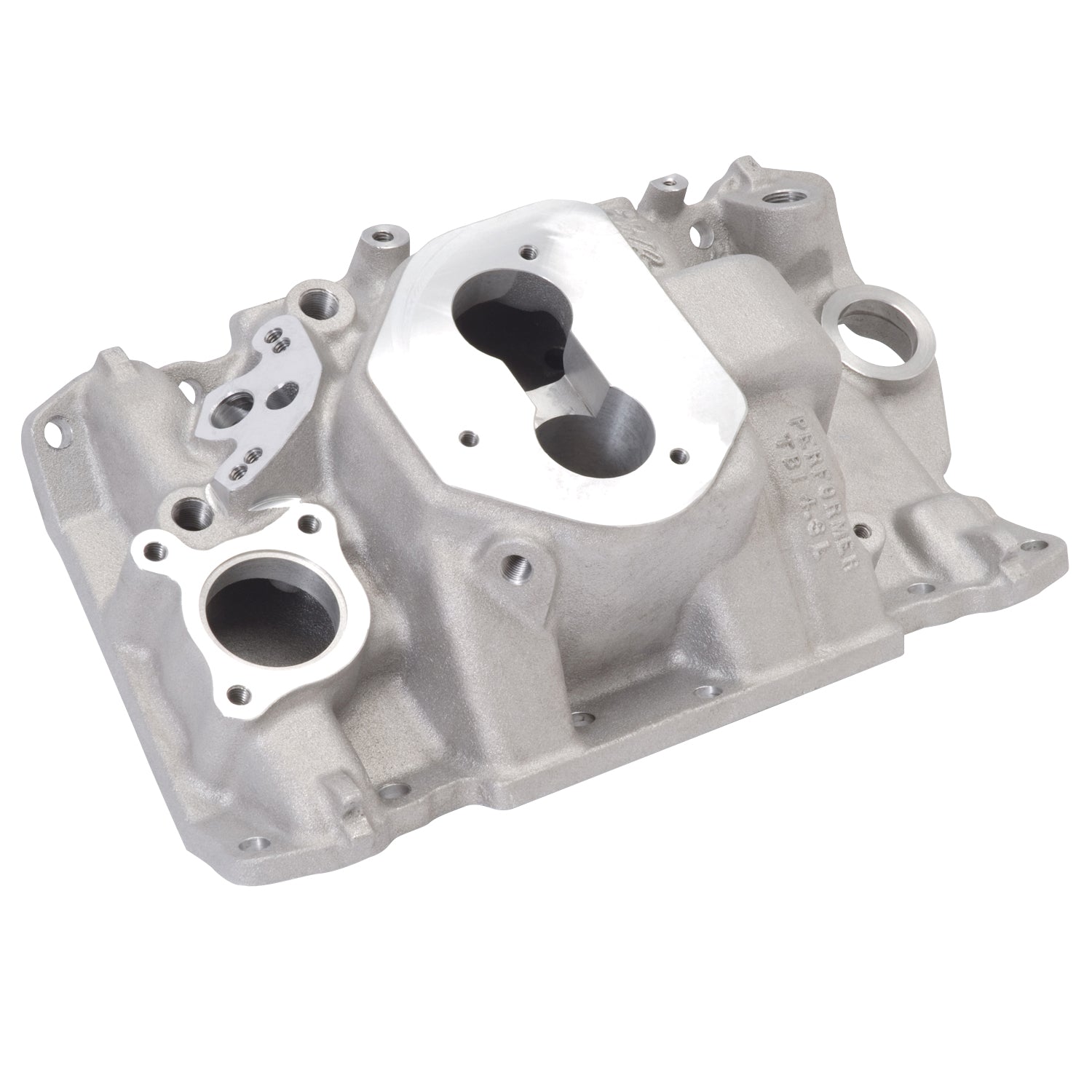

Edelbrock part #3713 Performer 4.3L T.B.I V6 intake manifold is designed for street 1987-94 Chevrolet 4.3L V6 with factory Throttle Body Injection. The Performer 4.3L intake manifold provides outstanding throttle response and torque increases from idle to 5500 rpm. Accepts all factory accessories/hardware. Throttle body unit remains in stock location. Not for 1994 and later engines equipped with flash memory computer. Flash memory ECM is located underhood. A computer chip is available at no charge. Return postage paid card comes with the manifold to receive the chip.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Small-Block 90 Deg V6:262 (4.3L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Performer 4.3L T.B.I. V6 Intake manifold for 1987-1994 Chevrolet 4.3L V-6 with factory Throttle Body Injection. |
| Description_INV |
Performer TBI V6 4.3 Chevy Intake |
| Description_MKT |
Edelbrock part #3713 Performer 4.3L T.B.I V6 intake manifold is designed for street 1987-94 Chevrolet 4.3L V6 with factory Throttle Body Injection. The Performer 4.3L intake manifold provides outstanding throttle response and torque increases from idle to 5500 rpm. Accepts all factory accessories/hardware. Throttle body unit remains in stock location. Not for 1994 and later engines equipped with flash memory computer. Flash memory ECM is located underhood. A computer chip is available at no charge. Return postage paid card comes with the manifold to receive the chip. |
| Description_LAB |
Performer Small-Block Chevy 4.3L T.B.I. V6 Intake Manifold |
| Description_TRA |
Use stock Throttle Body Injection unit. |
| Description_TRA |
Recommended intake gasket: GM #12510908 |
| Description_TRA |
Manifold height: A-3.93", B-5.15" |
| Description_TRA |
Carb pad height: 4.54" |
| Description_TRA |
Port exit dimensions: 1.10" x 1.92" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Single Or Dual Plane Type |
Dual |
| Center Maximum Height |
4.540 |
| Basic Operating RPM Range |
Idle-5500 |
| Front Maximum Height |
3.930 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| CNC Ported |
No |
| Series |
Performer |
| Gasket Or Seal Included |
No |
| Vehicle Model |
Chevrolet |
| Material |
Aluminum |
| Grade Type |
Performance |
| Flange Type |
Factory T.B.I. |
| Rear Maximum Height |
5.150 |
| EGR Port |
Yes |
| Finish |
Satin |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
17.0000 |
