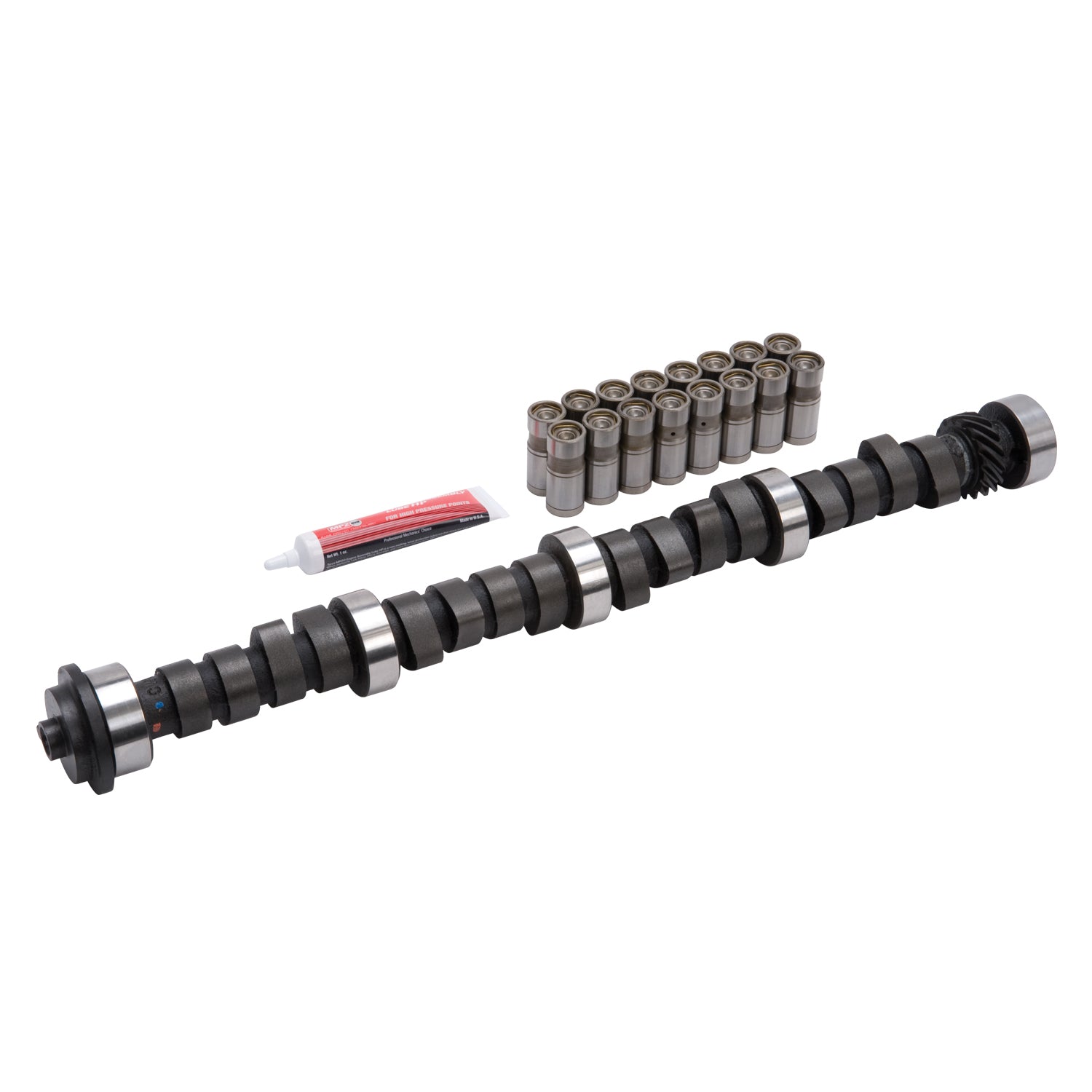

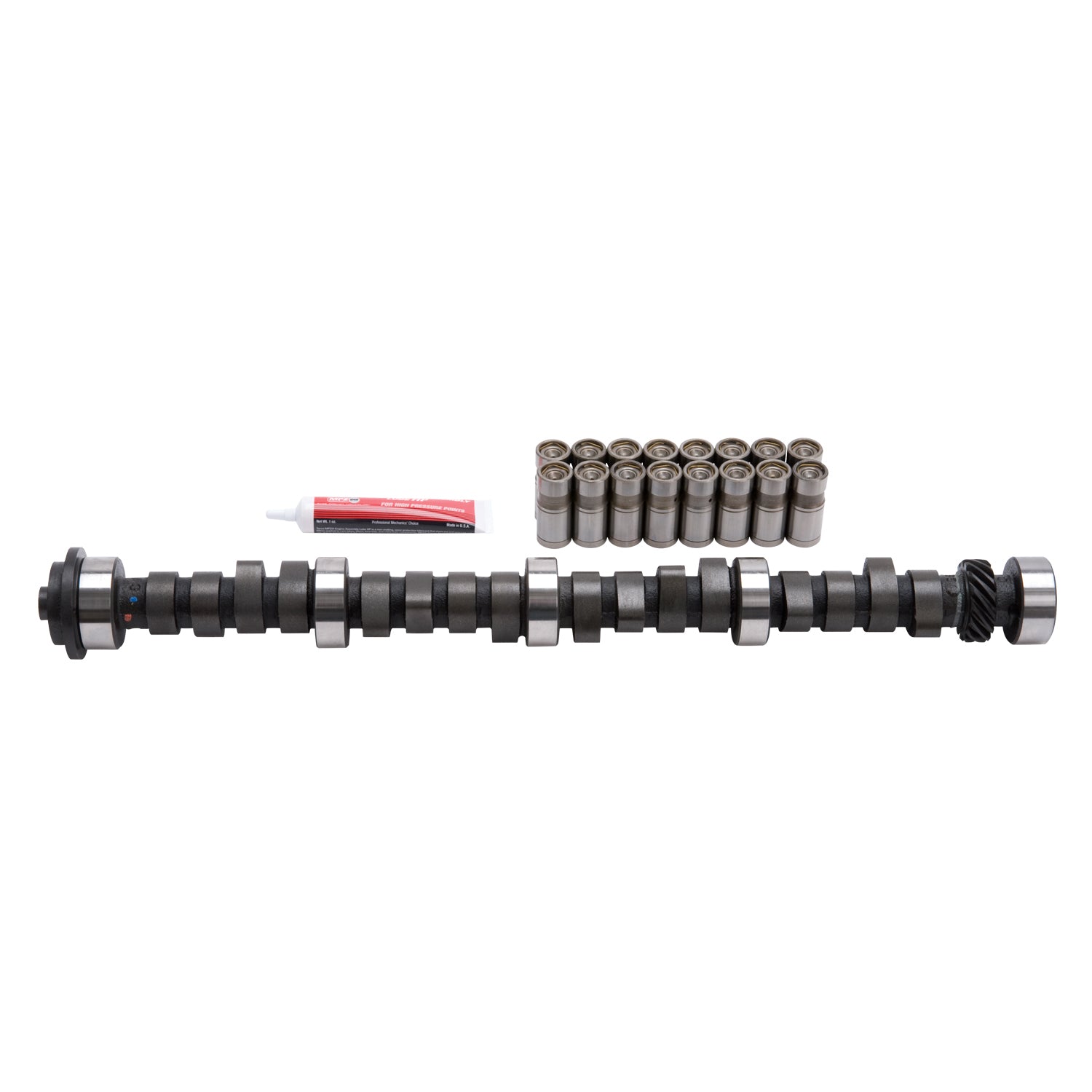

Edelbrock part #3712 Performer-Plus camshaft is designed for small-block Oldsmobile 350-403 V-8 applications. This Edelbrock cam kit produced 330 ft-lbs. of torque when used with #3711 intake and stock iron cylinder heads on a 350 engine. The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions. Camshaft Specifications: - Duration @ .050 Intake: 204 degrees - Duration @ .050 Exhaust: 214 degrees - Lift @ Valve Intake: .449" - Lift @ Valve Exhaust: .473" - Lobe Separation: 114 Degrees - Intake Centerline: 106 Degrees - Idle Vacuum @ 1000 RPM's: 16"
Specifications:
Description_ABR |
Cam Lift kit |
Description_ASM |
Oldsmobile:Small-Block:350 (5.7L)/403 (6.6L) |
Description_DEF |
Engine Camshaft and Lifter Kit |
Description_INV |
Edelbrock Performer-Plus Camshaft Kit |
Description_EXT |
Edelbrock part #3712 Performer-Plus camshaft is designed for small-block Oldsmobile 350-403 V-8 applications. This Edelbrock cam kit produced 330 ft-lbs. of torque when used with #3711 intake and stock iron cylinder heads on a 350 engine. |
Description_LAB |
Performer-Plus Camshaft Kit for Small-Block Oldsmobile 350-403 V8 |
Description_MKT |
Edelbrock part #3712 Performer-Plus camshaft is designed for small-block Oldsmobile 350-403 V-8 applications. This Edelbrock cam kit produced 330 ft-lbs. of torque when used with #3711 intake and stock iron cylinder heads on a 350 engine. The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions. Camshaft Specifications: - Duration @ .050 Intake: 204 degrees - Duration @ .050 Exhaust: 214 degrees - Lift @ Valve Intake: .449" - Lift @ Valve Exhaust: .473" - Lobe Separation: 114 Degrees - Intake Centerline: 106 Degrees - Idle Vacuum @ 1000 RPM's: 16" |
Description_TRA |
Recommended Valve Springs for OEM heads: Edelbrock part #5812 |
Description_TRA |
May require longer than stock pushrods. |
Description_TRA |
Will not fit 1966 & earlier. |
Description_TRA |
In order for this Performer-Plus cam and lifter kit to be covered under ANY WARRANTY you must use either the correct Edelbrock Sure Seat valve springs or the stock original equipment valve springs. |
Description_TRA |
Oil/additive must contain Zinc designed for use with flat tappet camshafts. |
Description_TRA |
Coat cam lobes and bottoms of each lifter with MoS2 lube (supplied) to prevent cam lobe and lifter wear from occurring during initial start-up. |
Description_TRA |
Do not allow the engine to run under 2000 rpm for the first 1/2 hour. Slow idle speeds may result in severe cam and lifter wear. Start the engine and bring to break-in rpm. |
Grade Type |
Performance |
Exhaust Valve Lift |
0.472 |
Intake Valve Lift |
0.448 |
Lifter Type |
Hydraulic |
Advertised Intake Duration |
280 |
Advertised Exhaust Duration |
290 |
Lobe Separation |
114 |
RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
Exhaust Duration at .050 inch Lift |
204 |
Computer Controlled Compatible |
No |
Intake Duration .050 Inch Lift |
204 |
Lifter Materials |
Hardened Steel |
Cam Type |
Cast |
Length |
4.0000 |
Width |
8.0000 |
Height |
27.0000 |
Weight |
15.0000 |
