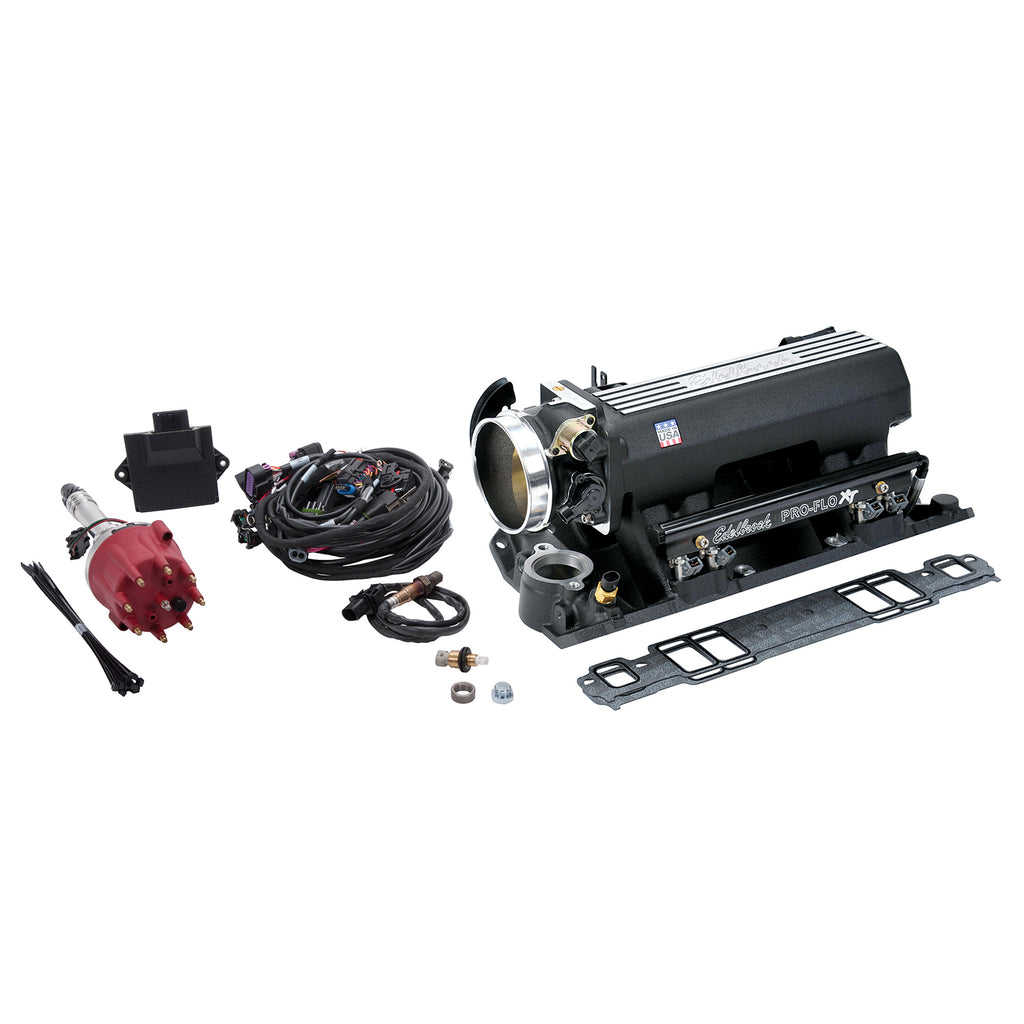

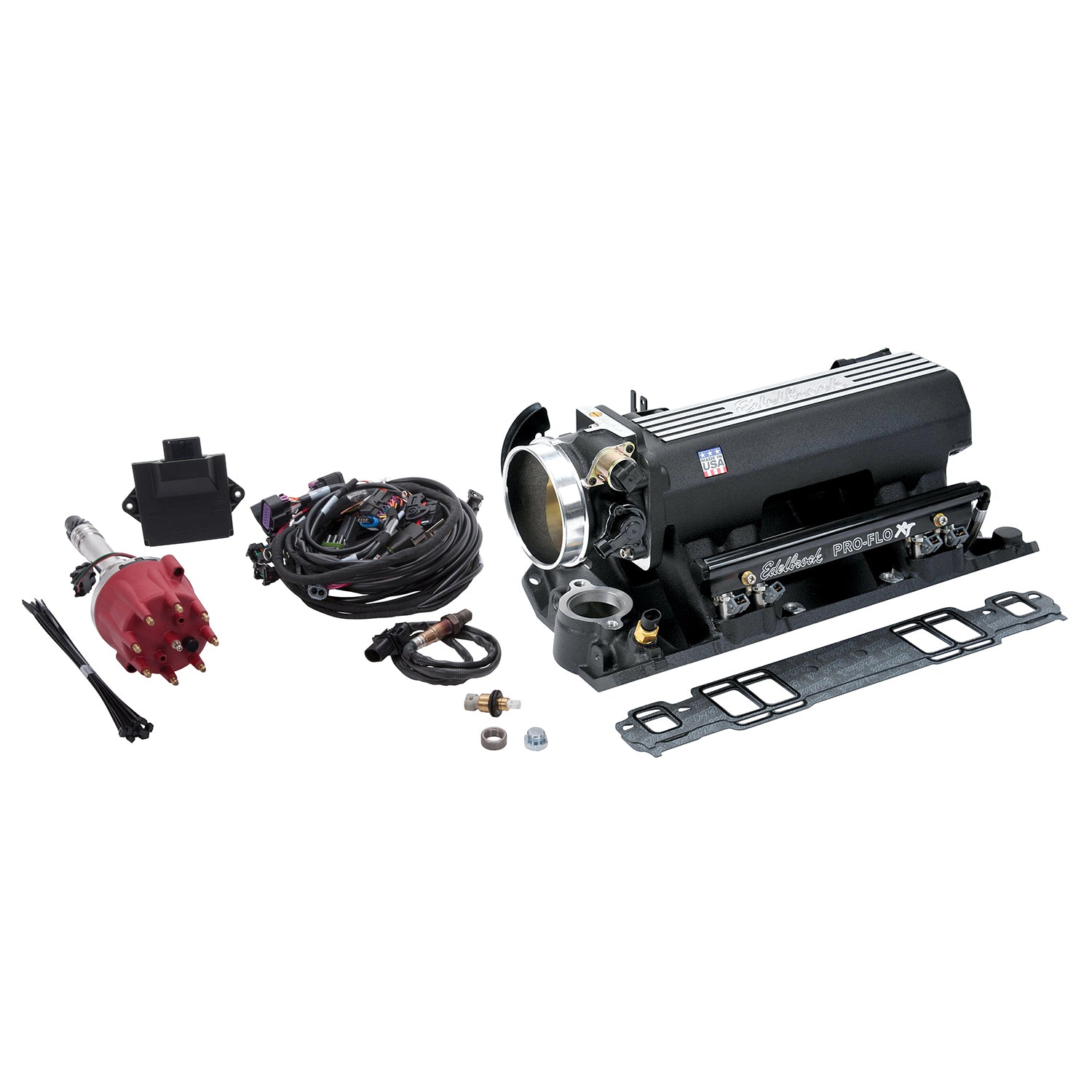

The Edelbrock Pro-Flo 4 XT Sequential Port EFI Kit #35793 for 1986 & Earlier Small-Block Chevy engines has the latest in technology and features. The EFI system comes complete with a black finish Pro-Flo XT intake manifold and 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections for a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and is half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get maximum performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals and performance. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.
Specifications:
| Description_ABR |
EFI System |
| Description_ASM |
Chevrolet:Small-Block Gen I:283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Fuel Injection System |
| Description_EXT |
Edelbrock Pro-Flo 4 XT Sequential Port EFI System for 1986 & Earlier Small-Block Chevy engines. The system comes complete with a black finish Pro-Flo XT intake manifold and 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. |
| Description_INV |
Edelbrock Pro-Flo 4 XT EFI System SBC |
| Description_MKT |
The Edelbrock Pro-Flo 4 XT Sequential Port EFI Kit #35793 for 1986 & Earlier Small-Block Chevy engines has the latest in technology and features. The EFI system comes complete with a black finish Pro-Flo XT intake manifold and 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections for a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and is half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get maximum performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals and performance. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet. |
| Description_LAB |
Pro-Flo 4 EFI XT-Style Kit #35793 For 1986 & Earlier Chevy Small-Block |
| Description_TRA |
This kit will require a high pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately. For the heights of all Edelbrock manifolds please visit the Manifold Reference Dimensions page. |
| System Type |
XT-Style Kit |
| Wiring Harness Included |
Yes |
| Throttle Body Type |
Single Blade |
| Fuel Injector Type |
29 lb/hr |
| Gasket Or Seal Included |
Yes |
| Finish |
Black |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Flange Type |
XT-Style |
| Maximum Horsepower |
450 |
| Distributor Cap Included |
Yes |
| Manifold Height |
A-9.2 in, B-8.4 in, C-16.9 in, D-2.1 in, E-0 Degrees |
| Fuel Pressure Port |
1/8-27 NPT |
| Bore Diameter |
90 |
| Quantity |
Kit |
| Wire Harness Included |
Yes |
| Length |
10.0000 |
| Width |
25.0000 |
| Height |
30.0000 |
| Weight |
44.0000 |
