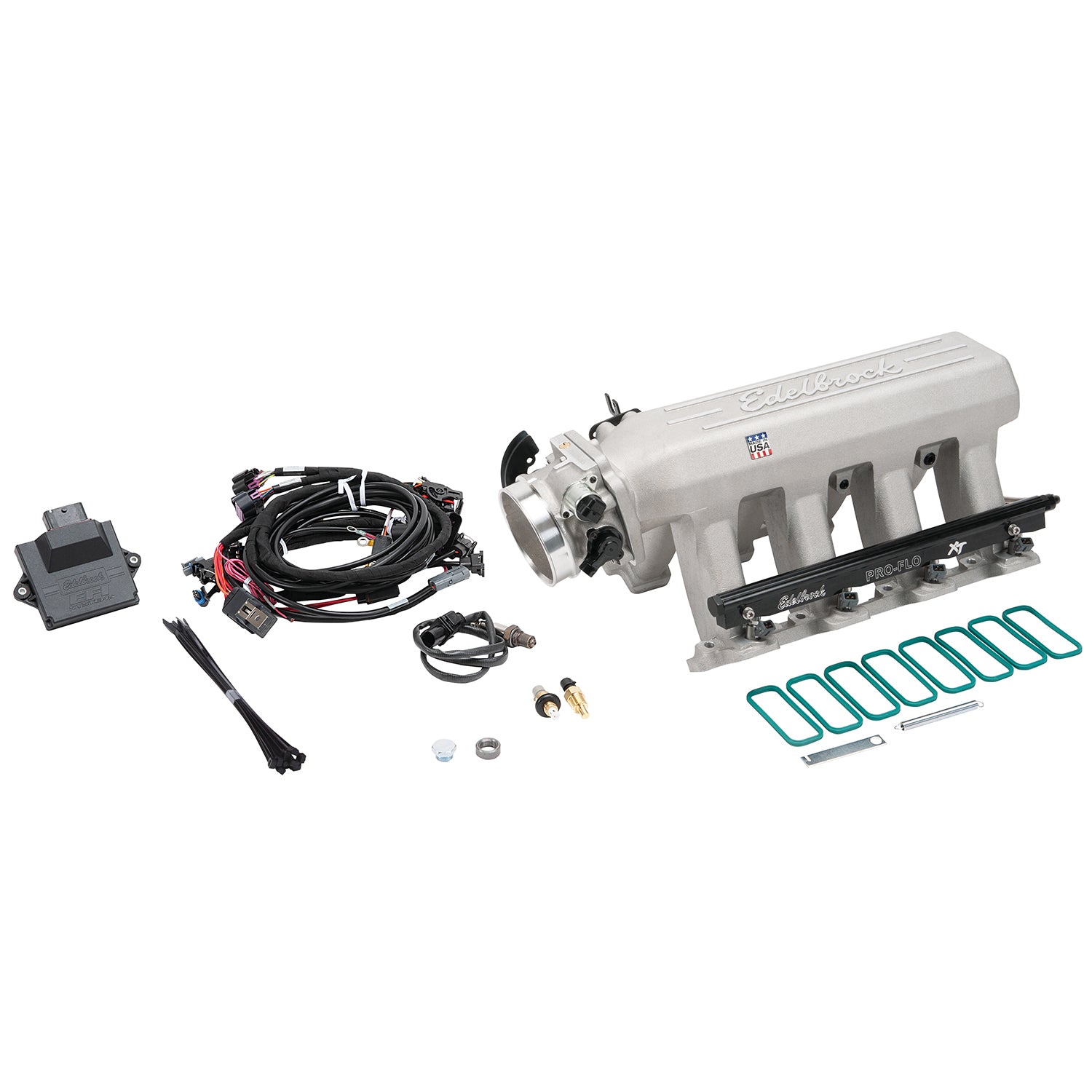

The Edelbrock Pro-Flo 4 XT EFI System #35730 for Chevrolet LS GEN III/IV engines is equipped with the latest technology and features. The EFI system comes complete with a Pro-Flo XT cathedral port black finish intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance of your engine. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals and performance. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.
Specifications:
| Description_ABR |
EFI System |
| Description_ASM |
Chevrolet:Small-Block LC9:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block LH8:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block LMF:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block LMG:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block LY5:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block Gen III LM7:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block Gen III LR4:293 (4.8L) |
| Description_ASM |
Chevrolet:Small-Block Gen III LS1:346 (5.7L) |
| Description_ASM |
Chevrolet:Small-Block Gen III LS2:364 (6.0L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV LMF:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV LY5:325 (5.3L) |
| Description_DEF |
Fuel Injection System |
| Description_INV |
Edel Pro-Flo 4 XT EFI Sys LS Gen III/IV |
| Description_EXT |
Edelbrock Pro-Flo 4 XT EFI System for Chevrolet LS GEN III/IV engines. The system comes with a Pro-Flo XT cathedral port black finish intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. |
| Description_MKT |
The Edelbrock Pro-Flo 4 XT EFI System #35730 for Chevrolet LS GEN III/IV engines is equipped with the latest technology and features. The EFI system comes complete with a Pro-Flo XT cathedral port black finish intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance of your engine. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals and performance. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet. |
| Description_LAB |
Pro-Flo 4 EFI XT-Style Kit #35730 For Chevrolet LS Gen III/IV |
| Description_TRA |
This kit will require a high pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately. LS kits will require a coil harness which is sold separately. 24(x) reluctor applications will require #37-1633 and 58(x) reluctor applications will require #37-1632. For the heights of all Edelbrock manifolds please visit the Manifold Reference Dimensions page. |
| Maximum Horsepower |
550 |
| Bore Diameter |
90 |
| Throttle Body Type |
Single Blade |
| Distributor Cap Included |
Yes |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| System Type |
XT-Style Kit |
| Wiring Harness Included |
Yes |
| Gasket Or Seal Included |
Yes |
| Fuel Injector Type |
35 lb/hr |
| Quantity |
Kit |
| Wire Harness Included |
Yes |
| Manifold Height |
A-10.2 in, B-10.0 in, C-16.9 in, D-3.2 in, E-15 Degrees |
| Flange Type |
XT-Style |
| Finish |
Satin |
| Fuel Pressure Port |
1/8-27 NPT |
| Length |
10.0000 |
| Width |
25.0000 |
| Height |
30.0000 |
| Weight |
42.0000 |
