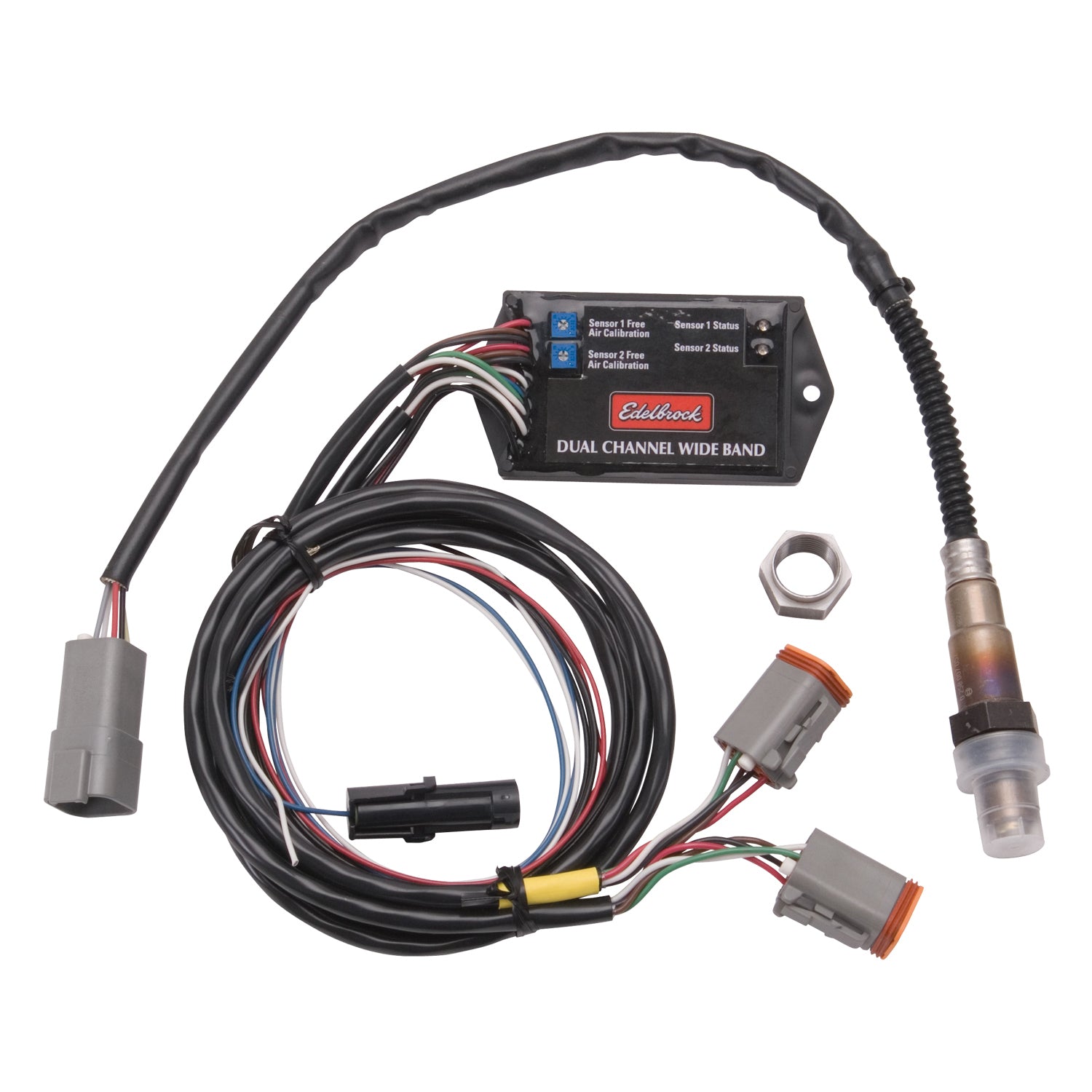

Edelbrock #3532 Wide Band Air-Fuel Ratio Monitor is designed for use with any aftermarket EFI kits as well as Data Logging system. The kit comes complete with a water proof enclosure and a wide band oxygen sensor. Features two independent 0-5V analog outputs that are linearly scaled with 0V=10.0 AFR and 5V=20.0 AFR. Includes interface unit, sensor, weld-in bungs and all necessary wiring. Does not have internal data logging capability and only includes a single oxygen sensor.
Specifications:
| Description_ABR |
AFR Monitor |
| Description_DEF |
Air / Fuel Ratio Gauge |
| Description_EXT |
Edelbrock Wide Band Air-Fuel Ratio Monitor. For use with all aftermarket data logger and EFI kits. |
| Description_INV |
Air-Fuel Ratio Monitor Wide Band |
| Description_MKT |
Edelbrock #3532 Wide Band Air-Fuel Ratio Monitor is designed for use with any aftermarket EFI kits as well as Data Logging system. The kit comes complete with a water proof enclosure and a wide band oxygen sensor. Features two independent 0-5V analog outputs that are linearly scaled with 0V=10.0 AFR and 5V=20.0 AFR. Includes interface unit, sensor, weld-in bungs and all necessary wiring. Does not have internal data logging capability and only includes a single oxygen sensor. |
| Description_LAB |
Wide Band Air/Fuel Ratio Interface for Pro-Flo 2, XT, XT-R EFI Systems-1 |
| Description_TRA |
Allows improved Closed Loop control of the current Pro-Flo EFI systems |
| Description_TRA |
Suitable for automotive, motorcycle, and other 4-Stroke engine applications |
| Description_TRA |
Highly accurate with less than +/- 0.10 AFR error over 10.3 - 19.5 AFR range |
| Description_TRA |
Easy free-air calibration procedure corrects for sensor aging effects |
| Description_TRA |
0-5V analog AFR output for interface to EFI, Data or Dyno instrumentation |
| Description_TRA |
Wide supply voltage range from 11-18V allows operation from battery on small engines or race vehicles with out an alternator |
| Description_TRA |
Current draw is approx. 1 amp |
| Body Color |
Black |
| Face Shape |
Square |
| Grade Type |
Performance |
| Face Color |
Black |
| Mounting Hardware Included |
No |
| Illuminated |
Yes |
| Type |
Wide Band |
| Wiring Harness Length |
7.0 |
| Wire Gauge Measurement |
18 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Universal Or Specific Fit |
Universal |
| Length |
3.0000 |
| Width |
10.0000 |
| Height |
11.0000 |
| Weight |
1.0000 |
