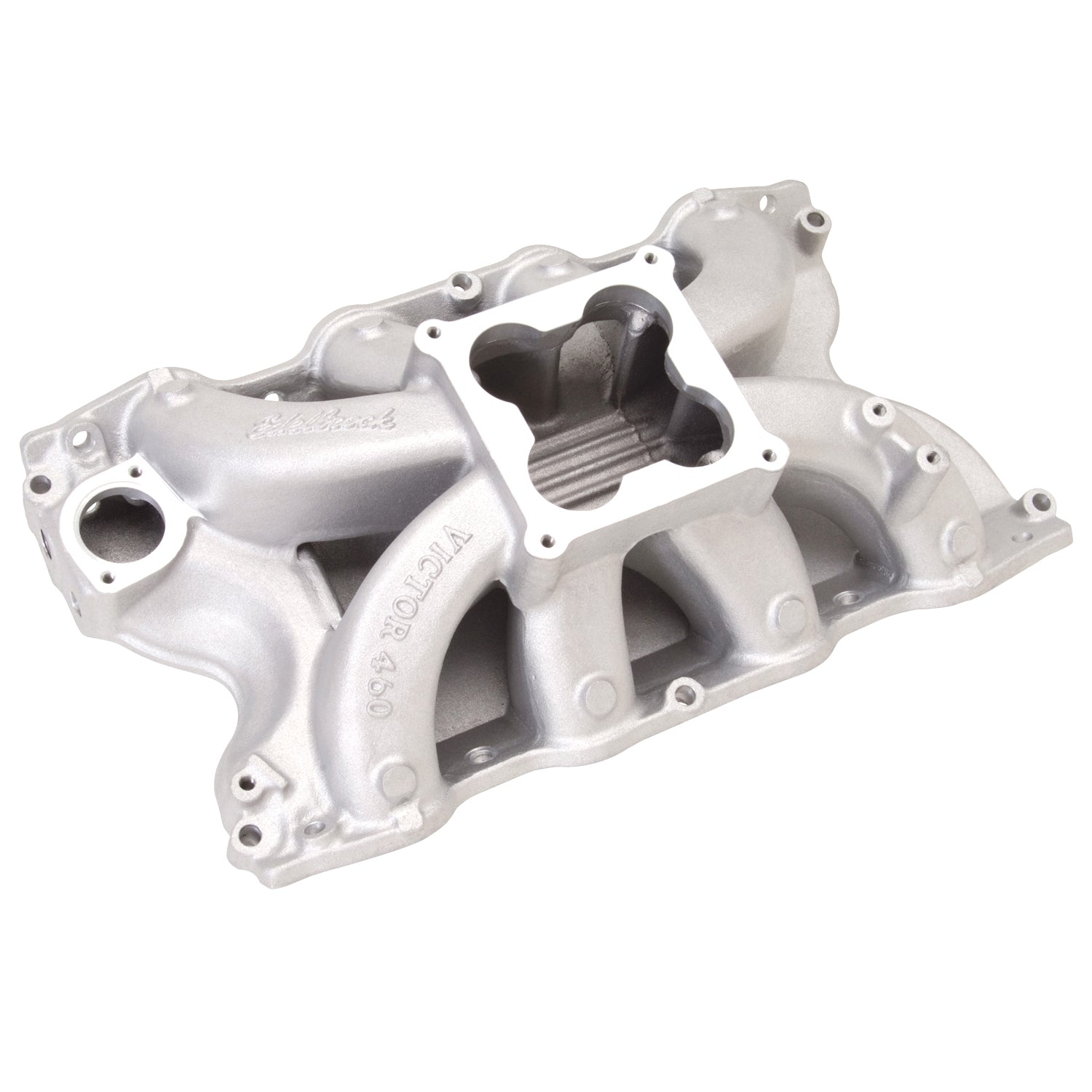

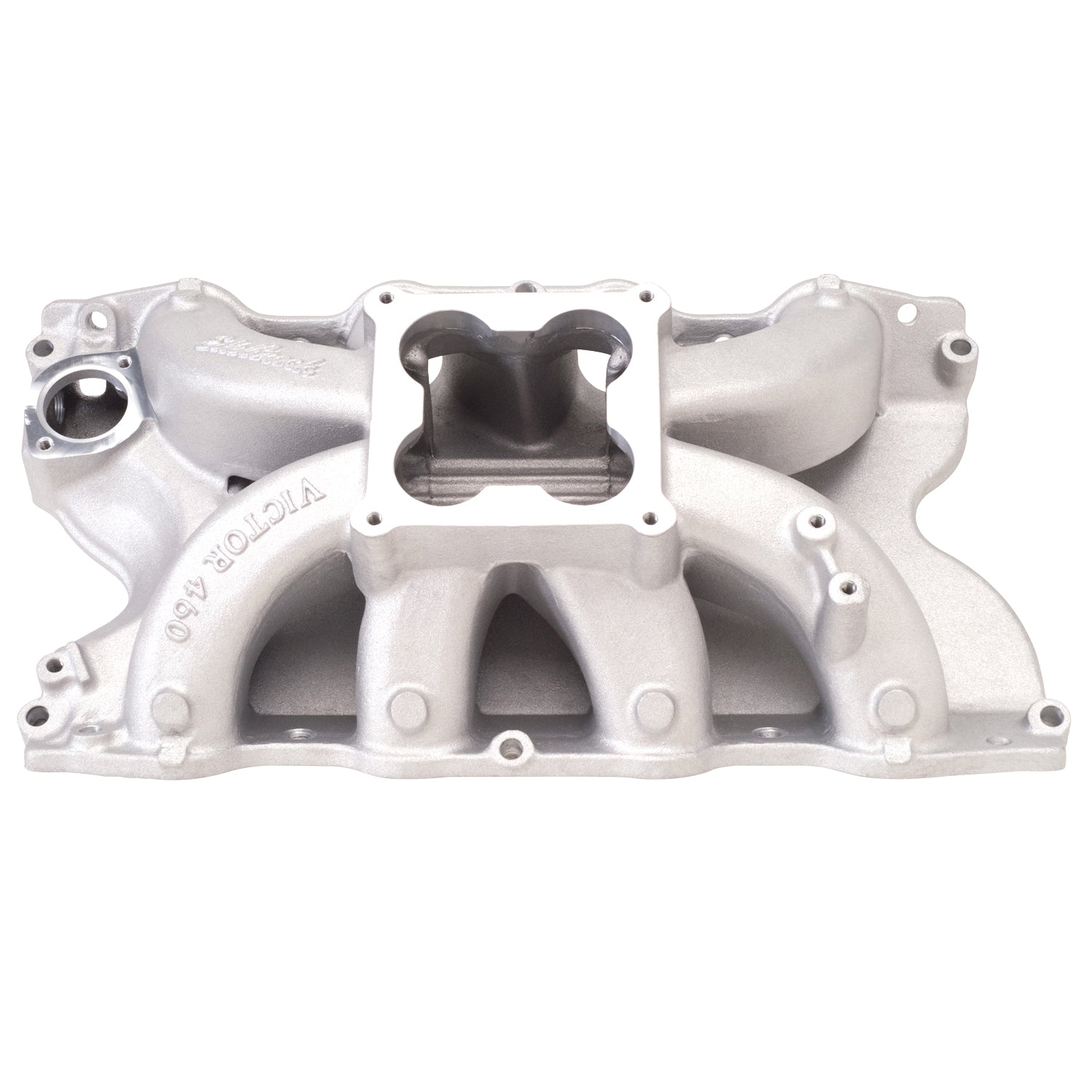

Edelbrock part #2965 Victor 460 intake manifold is designed for Ford 429/460 competition engines using Cobra-Jet cast iron, SVO Cobra-Jet aluminum (M-6049-A429), or the Edelbrock 460 CJ aluminum heads. This intake manifold is ideal for drag racing (Super Stock, Super Gas, Super Comp, Brackets, etc.), marine or any application requiring maximum power up to 8000 rpm. Standard 429/460 cast iron heads will require port matching of the head to fit manifold. Our 1" Cloverleaf Spacer #8718 provides maximum performance with #2965 where hood clearance is not a problem. Port exit size at head is 1.88" x 2.16" with enough extra material to open it up to the cast iron Cobra-Jet heads. Will not fit 1988 and later models.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Big-Block:429 (7.0L )/460 (7.5L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Victor 460 Intake Manifold for 4500 Series Carburetors for Ford 429/460 Big-Block V8 |
| Description_INV |
Victor 460 Dominator Flange Intake |
| Description_LAB |
Victor Ford 460 Intake Manifold for 4500 Series Carburetors |
| Description_MKT |
Edelbrock part #2965 Victor 460 intake manifold is designed for Ford 429/460 competition engines using Cobra-Jet cast iron, SVO Cobra-Jet aluminum (M-6049-A429), or the Edelbrock 460 CJ aluminum heads. This intake manifold is ideal for drag racing (Super Stock, Super Gas, Super Comp, Brackets, etc.), marine or any application requiring maximum power up to 8000 rpm. Standard 429/460 cast iron heads will require port matching of the head to fit manifold. Our 1" Cloverleaf Spacer #8718 provides maximum performance with #2965 where hood clearance is not a problem. Port exit size at head is 1.88" x 2.16" with enough extra material to open it up to the cast iron Cobra-Jet heads. Will not fit 1988 and later models. |
| Description_TRA |
Recommended intake gasket: Fel-Pro #1231 |
| Description_TRA |
Manifold height: A-6.30", B-6.30" |
| Description_TRA |
Carb recommendations: For 4500 Series carburetor. |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Center Maximum Height |
6.300 |
| Basic Operating RPM Range |
3500-8000 |
| Gasket Or Seal Included |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Vehicle Model |
Ford |
| Front Maximum Height |
6.300 |
| Material |
Aluminum |
| Rear Maximum Height |
6.300 |
| Flange Type |
4150 |
| EGR Port |
No |
| Grade Type |
Performance |
| Series |
Victor |
| Single Or Dual Plane Type |
Single |
| CNC Ported |
No |
| Finish |
Satin |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
26.0000 |
