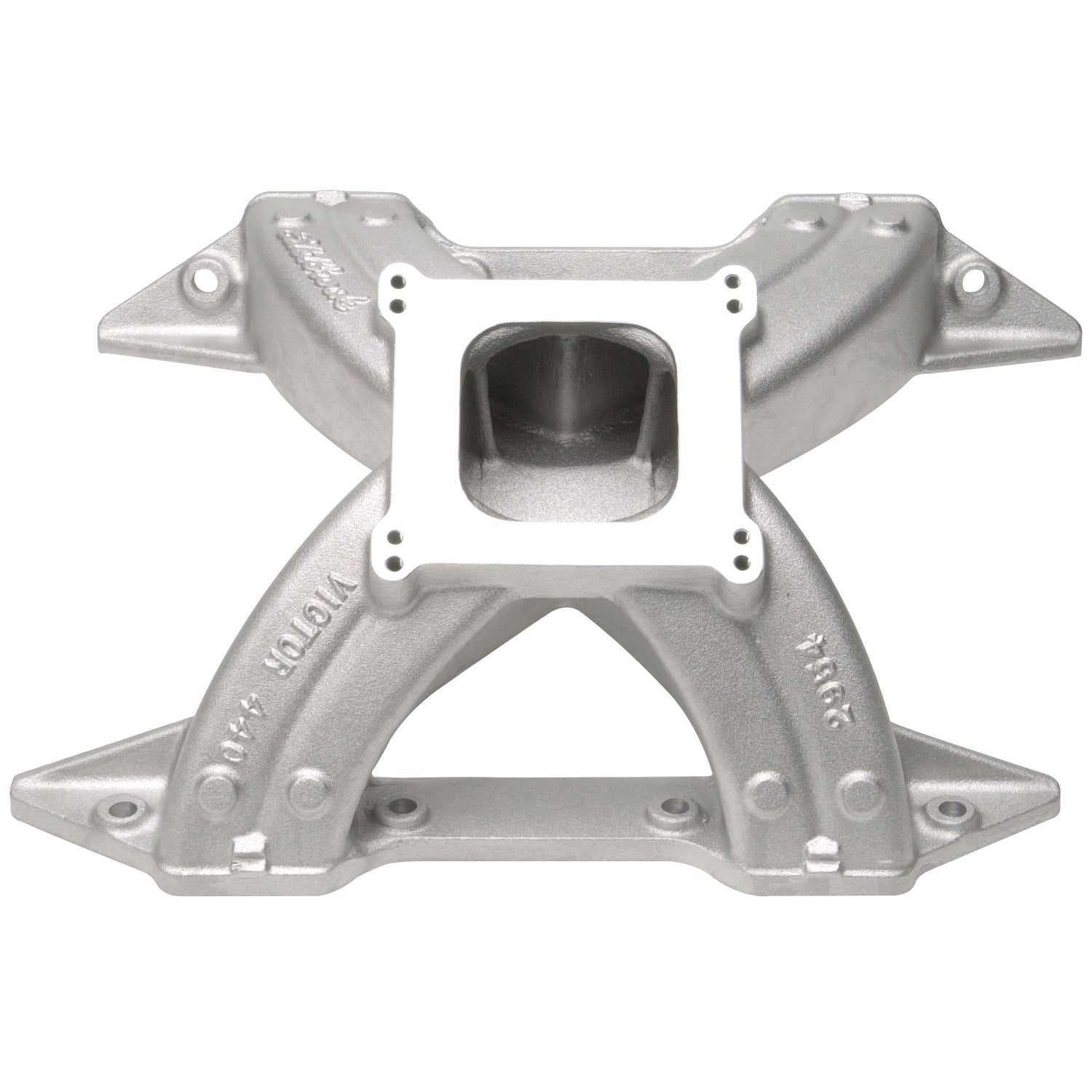

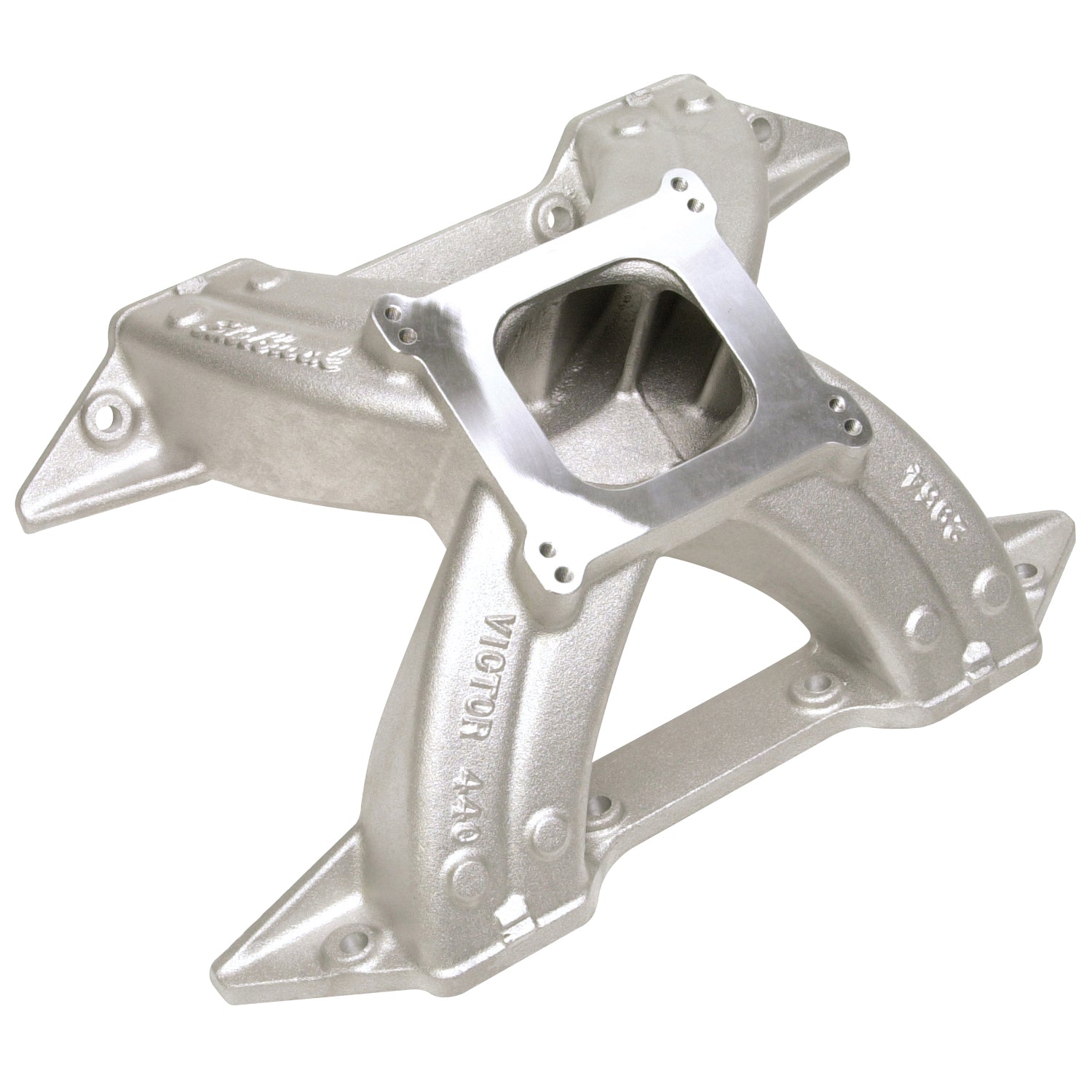

Edelbrock part #2954 Victor 440 intake manifold is for competition and high-rpm 413-426-440 c.i.d. Chrysler V8's. This Victor 440 has an all-new runner design that delivers maximum power from 3500 to 7500 rpm. This single-plane intake manifold includes nitrous bosses and is designed for square-bore carburetors. Dual carburetor bolt hole patterns are provided for both standard and Thermo-Quad carbs, with sufficient carburetor pad material for conversion to a Thermo-Quad carburetor for Super Stock applications. Match this race-winning manifold with Edelbrock Performer RPM Chrysler 440 aluminum cylinder heads #60189 or #60929 or Victor heads #77919 or #77929 for maximum performance. Will not fit 1962-64 Max Wedge heads. The #7798 valley cover is required when used with Edelbrock Victor Series heads.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Victor 440 Intake Manifold for Chrysler 413-426-440 Big-Block V8 RB Block |
| Description_INV |
Victor 413-440 Chrysler Intake Manifold |
| Description_MKT |
Edelbrock part #2954 Victor 440 intake manifold is for competition and high-rpm 413-426-440 c.i.d. Chrysler V8's. This Victor 440 has an all-new runner design that delivers maximum power from 3500 to 7500 rpm. This single-plane intake manifold includes nitrous bosses and is designed for square-bore carburetors. Dual carburetor bolt hole patterns are provided for both standard and Thermo-Quad carbs, with sufficient carburetor pad material for conversion to a Thermo-Quad carburetor for Super Stock applications. Match this race-winning manifold with Edelbrock Performer RPM Chrysler 440 aluminum cylinder heads #60189 or #60929 or Victor heads #77919 or #77929 for maximum performance. Will not fit 1962-64 Max Wedge heads. The #7798 valley cover is required when used with Edelbrock Victor Series heads. |
| Description_LAB |
Victor Chrysler 440 Intake Manifold |
| Description_TRA |
Recommended intake gasket: Edelbrock #7225. |
| Description_TRA |
Manifold height: A-6.10", B-6.10" |
| Description_TRA |
Port exit dimensions: 1.15" x 2.17" |
| Description_TRA |
Carb recommendations: Use appropriate racing carburetor |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Single Or Dual Plane Type |
Single |
| Grade Type |
Performance |
| Material |
Aluminum |
| Center Maximum Height |
6.250 |
| Basic Operating RPM Range |
3500-7500 |
| Gasket Or Seal Included |
No |
| Series |
Victor |
| Flange Type |
4150 |
| Rear Maximum Height |
6.250 |
| Vehicle Model |
Chrysler |
| Finish |
Satin |
| CNC Ported |
No |
| EGR Port |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Front Maximum Height |
6.250 |
| Length |
10.0000 |
| Width |
16.0000 |
| Height |
24.0000 |
| Weight |
16.0000 |
