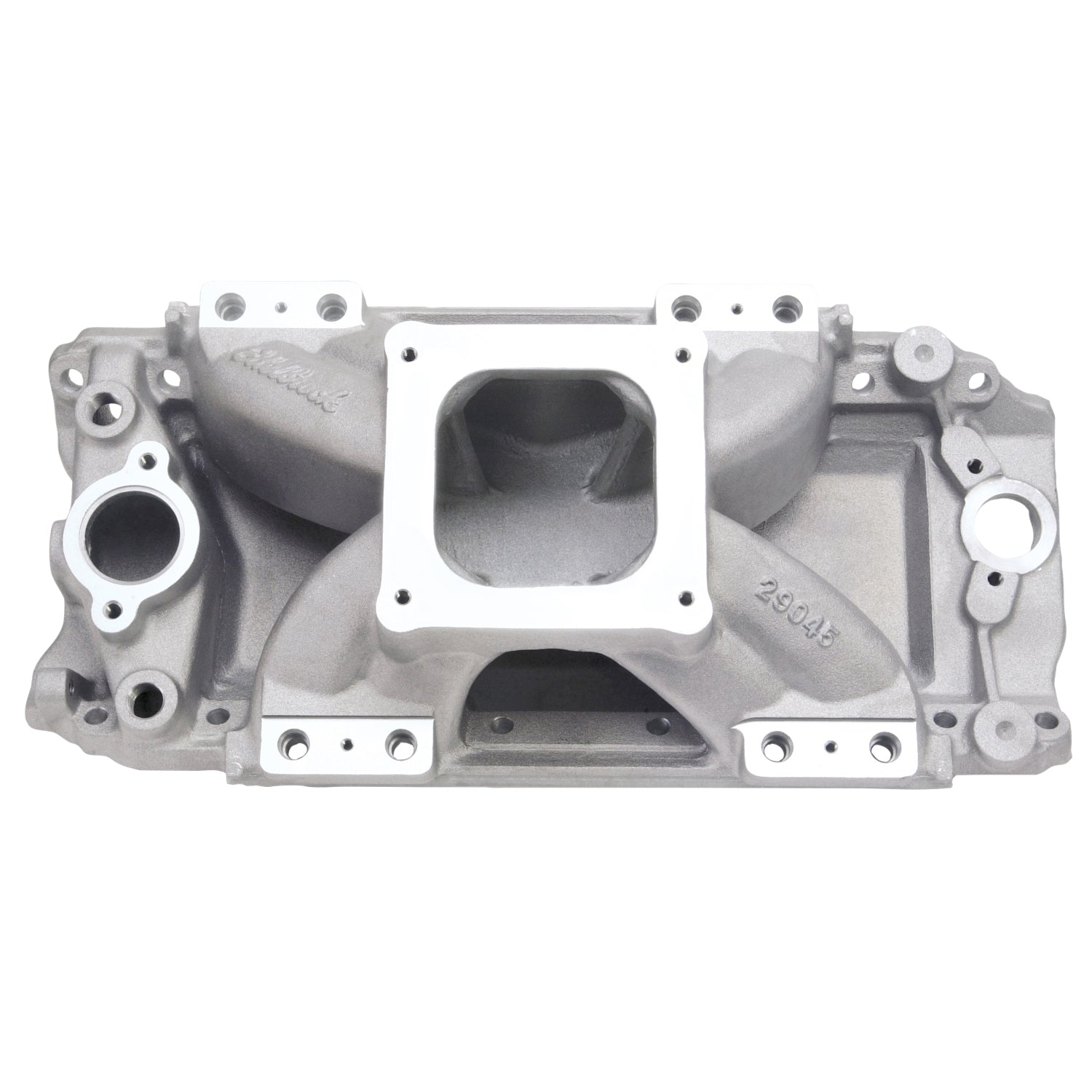

Edelbrock part #29045 Victor Jr. 454-O EFI intake manifold is designed for competition 396-502 big-block Chevy engines with large oval-port cylinder heads (1975 & earlier). Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This intake manifold is especially suited to 502 c.i.d. and smaller competition engines. The Edelbrock Victor Jr. 454-O EFI intake manifold is a single-plane design with a 4150 flange and can be used with standard deck blocks from 1965 to present. It is designed to be matched with our Edelbrock/Musi Victor 24 degree Pro-Port CNC heads #61419 or #61409 for 950+ hp out-of-the-box potential!
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Victor Jr. 454-O EFI Intake Manifold For Chevrolet 396-502 Big-Block V8 |
| Description_INV |
EFI Victor Jr BBC Oval Port Intake |
| Description_LAB |
Victor Jr. Big Block Chevy 454-O EFI Intake Manifold |
| Description_MKT |
Edelbrock part #29045 Victor Jr. 454-O EFI intake manifold is designed for competition 396-502 big-block Chevy engines with large oval-port cylinder heads (1975 & earlier). Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This intake manifold is especially suited to 502 c.i.d. and smaller competition engines. The Edelbrock Victor Jr. 454-O EFI intake manifold is a single-plane design with a 4150 flange and can be used with standard deck blocks from 1965 to present. It is designed to be matched with our Edelbrock/Musi Victor 24 degree Pro-Port CNC heads #61419 or #61409 for 950+ hp out-of-the-box potential! |
| Description_TRA |
Throttle Body Recommendations: Use #3878 4V series or #3849 EFI elbow and #3869 90mm throttle body. |
| Description_TRA |
Recommended intake gasket: Edelbrock #7203 |
| Description_TRA |
Manifold height: A-5.90" & B-5.90" |
| Vehicle Model |
Chevrolet |
| EGR Port |
No |
| Front Maximum Height |
5.960 |
| Finish |
Satin |
| Grade Type |
Performance |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Flange Type |
4150 |
| CNC Ported |
No |
| Center Maximum Height |
5.960 |
| Single Or Dual Plane Type |
Single |
| Gasket Or Seal Included |
No |
| Basic Operating RPM Range |
3500-7500 |
| Material |
Aluminum |
| Series |
Victor |
| Rear Maximum Height |
5.960 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
25.0000 |
