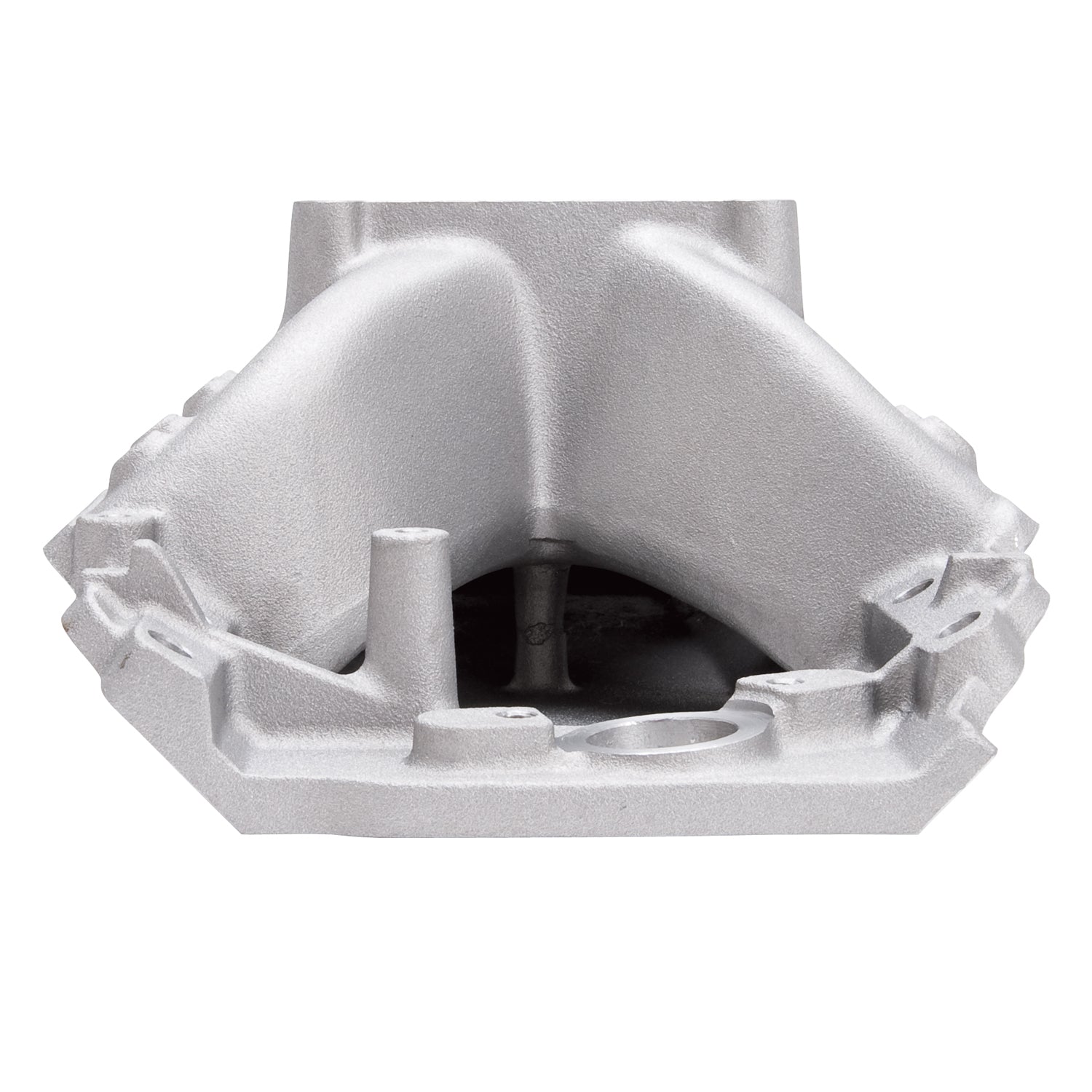

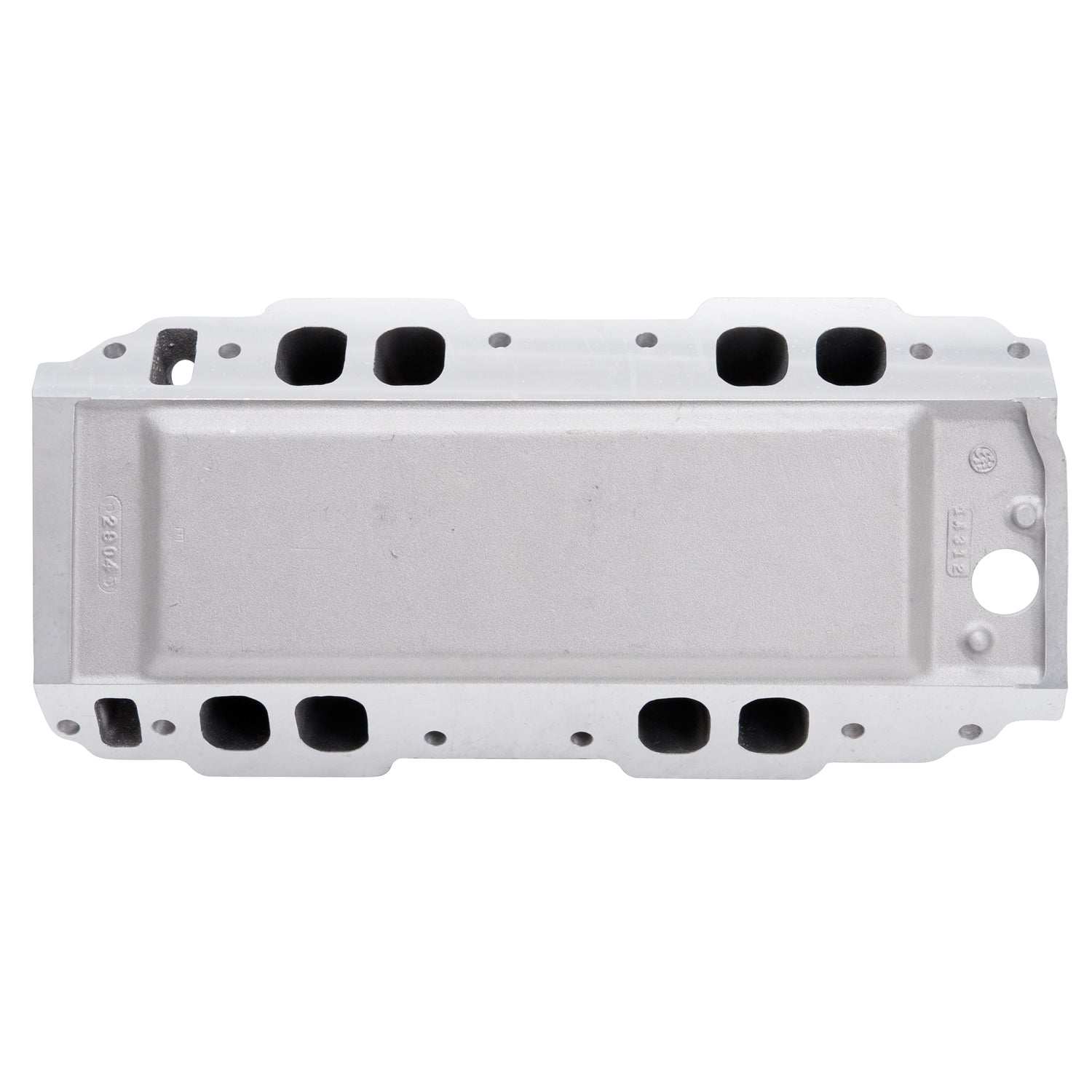

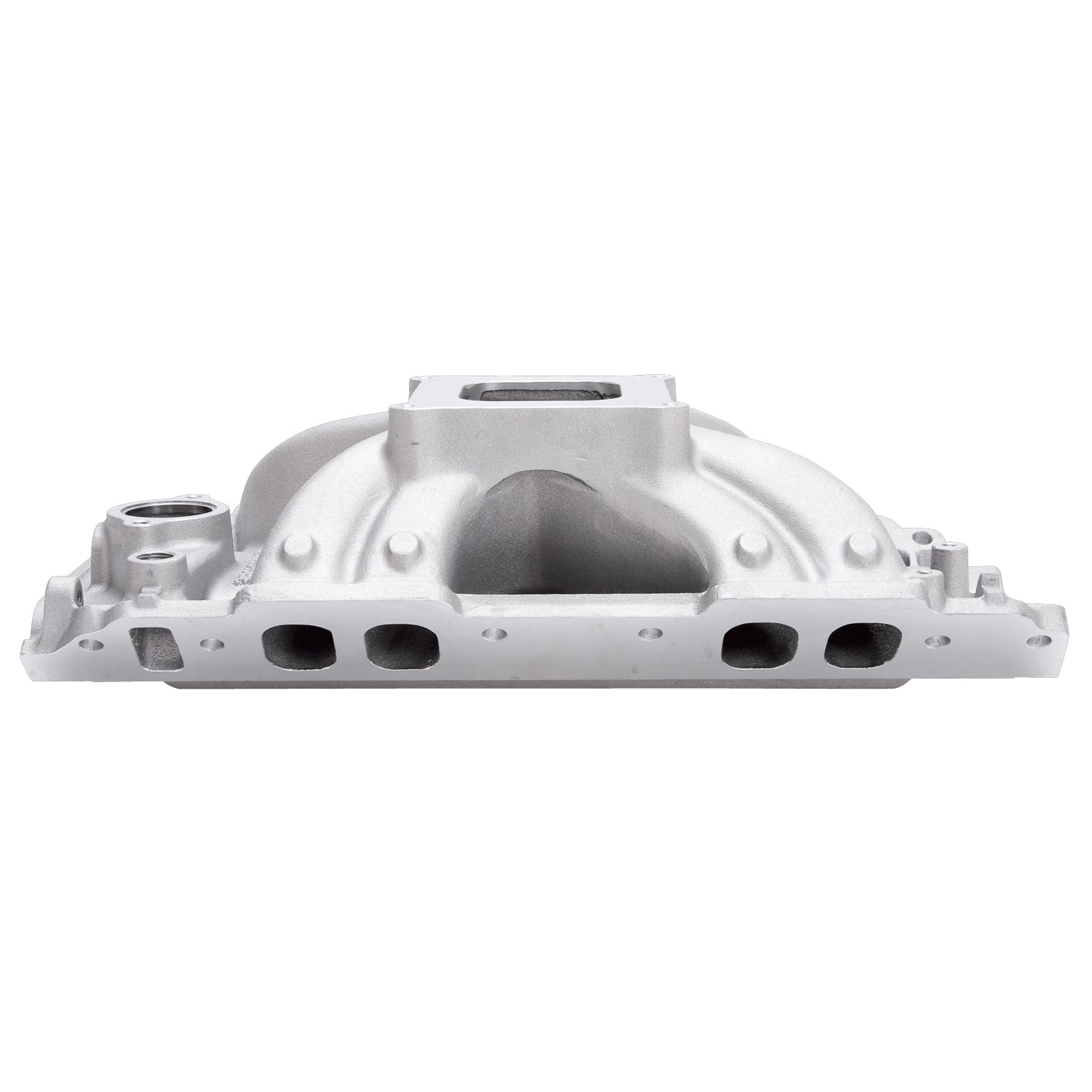

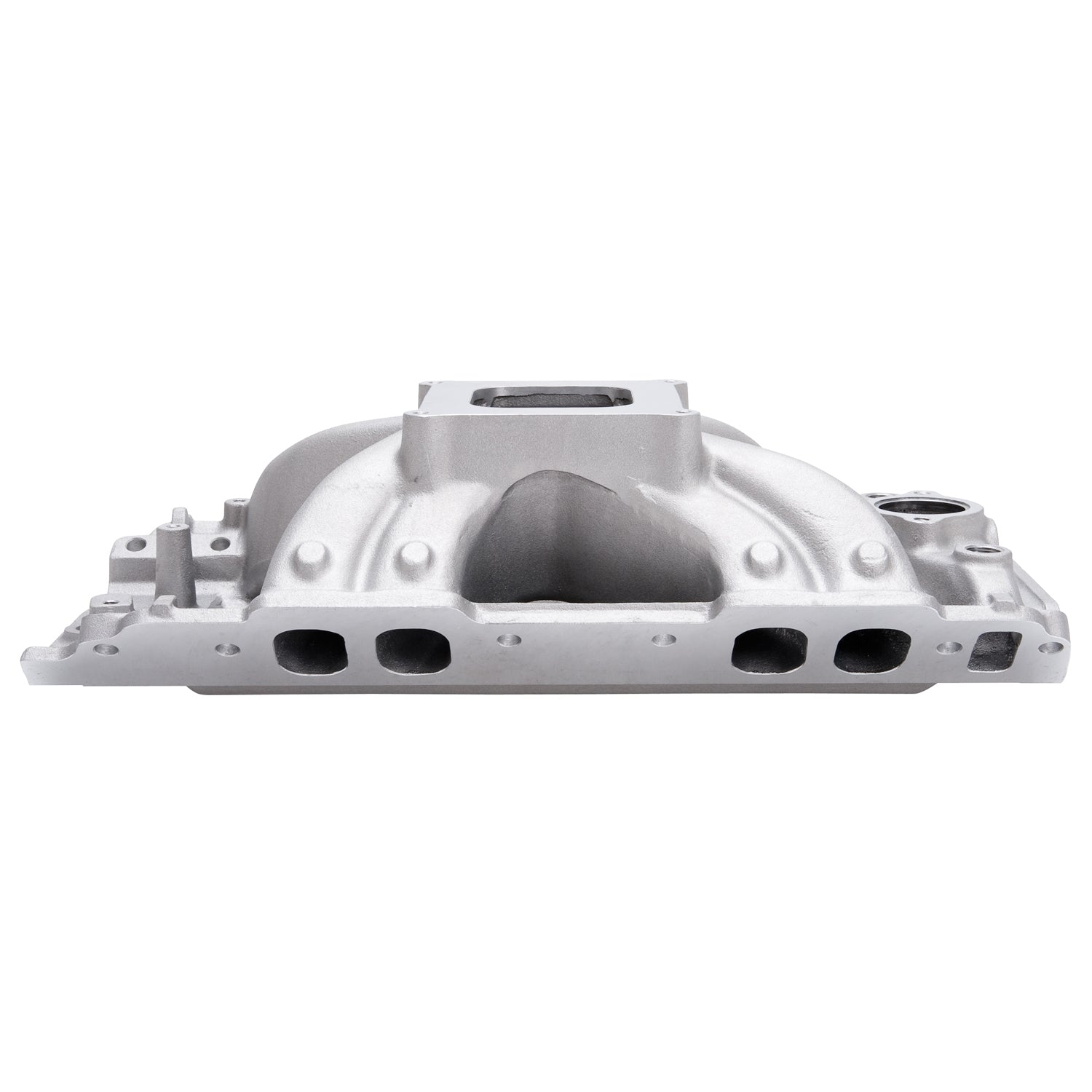

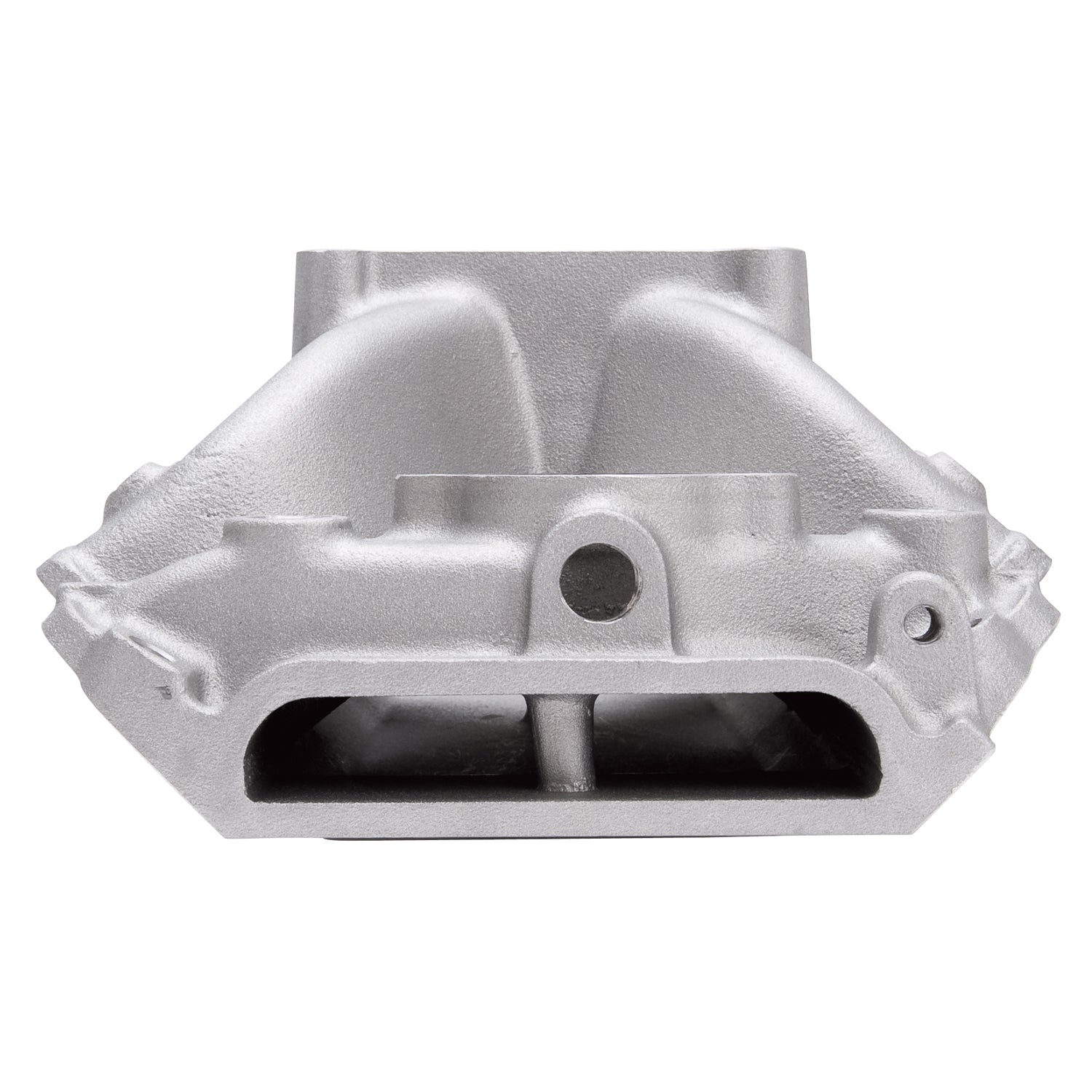

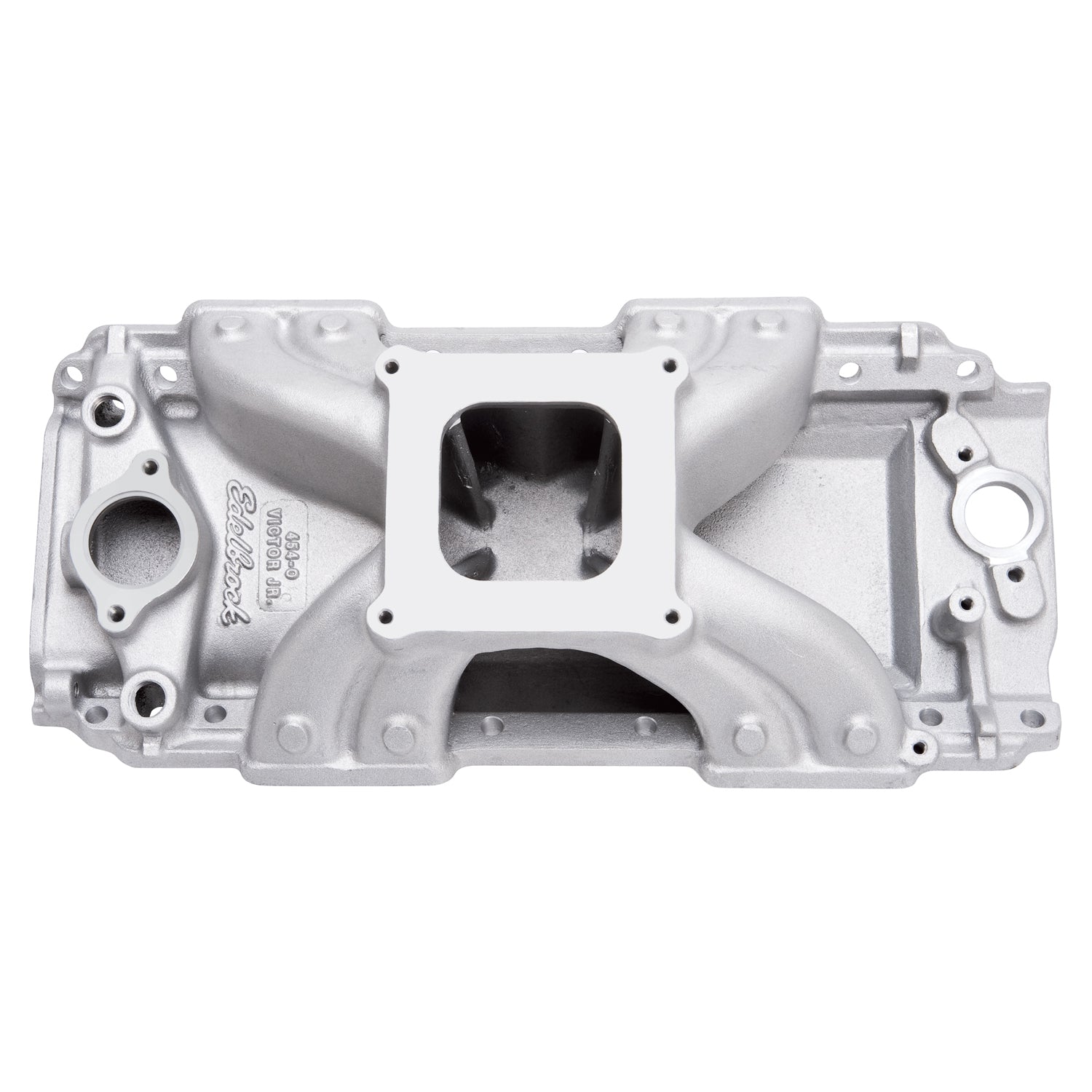

Edelbrock part #2904 Victor Jr. 454-O intake manifold is designed for competition 396-502 big-block Chevys with large oval-port heads (1975 & earlier). Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. This intake manifold is a single plane 4150 flange competition manifold designed to fit standard deck blocks from 1965 to present. It is designed to be matched with our Edelbrock/Musi Victor 24-degree Pro-Port CNC heads #61419 or #61409 for 950+ hp out-of-the-box potential!
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Victor Jr. 454-O Intake Manifold For Chevrolet 396-502 Big-Block V8 |
| Description_INV |
Victor Jr BBC Oval Port Intake Manifold |
| Description_LAB |
Victor Jr. 454-O Intake Manifold Big-Block Chevy |
| Description_MKT |
Edelbrock part #2904 Victor Jr. 454-O intake manifold is designed for competition 396-502 big-block Chevys with large oval-port heads (1975 & earlier). Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. This intake manifold is a single plane 4150 flange competition manifold designed to fit standard deck blocks from 1965 to present. It is designed to be matched with our Edelbrock/Musi Victor 24-degree Pro-Port CNC heads #61419 or #61409 for 950+ hp out-of-the-box potential! |
| Description_TRA |
Recommended intake gasket: Edelbrock #7203 |
| Description_TRA |
Manifold height: A-5.90" & B-5.90" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Series |
Victor |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Single |
| Basic Operating RPM Range |
3500-7500 |
| Material |
Aluminum |
| Gasket Or Seal Included |
No |
| Vehicle Model |
Chevrolet |
| Center Maximum Height |
5.960 |
| CNC Ported |
No |
| EGR Port |
No |
| Rear Maximum Height |
5.960 |
| Flange Type |
4150 |
| Front Maximum Height |
5.960 |
| Finish |
Satin |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
23.0000 |
