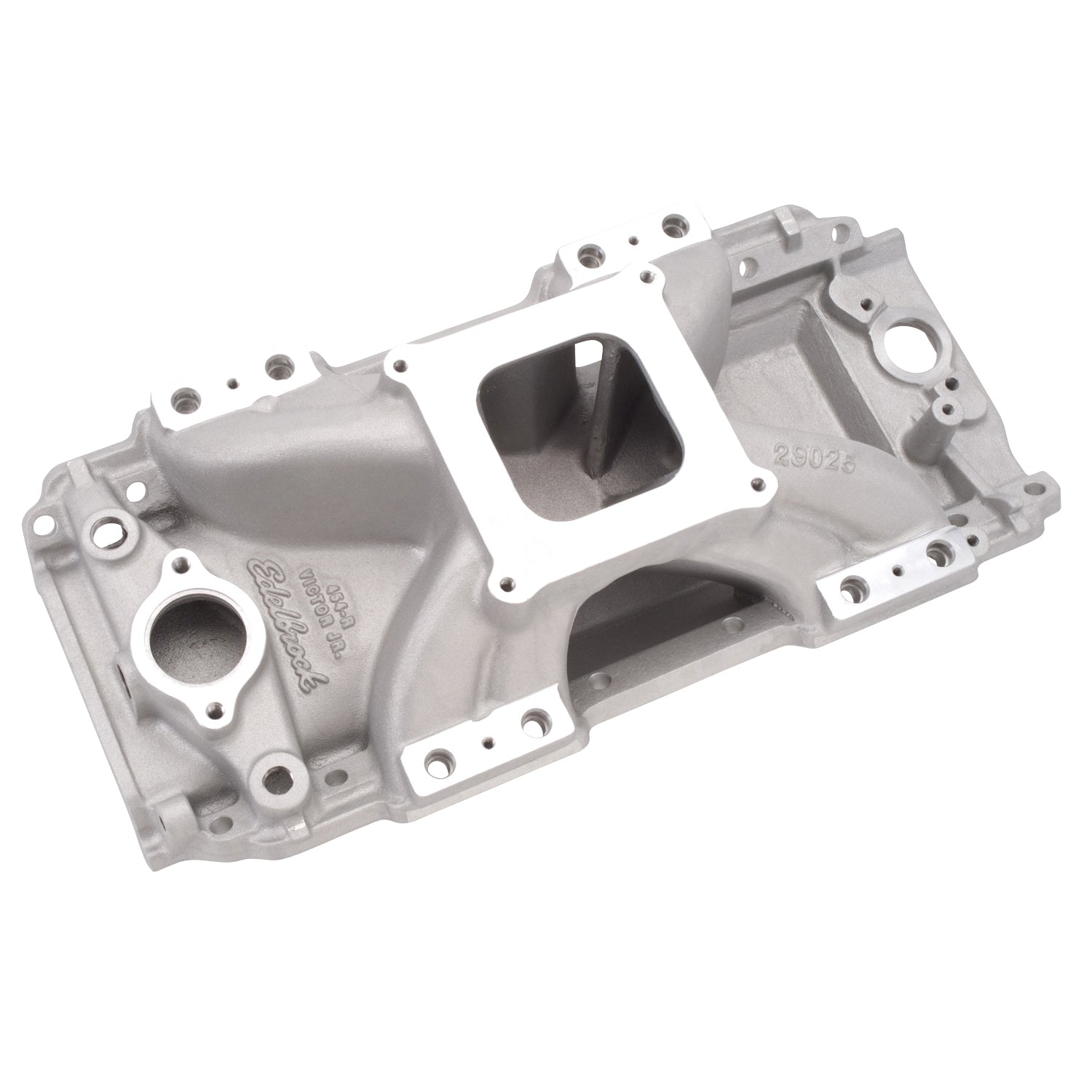

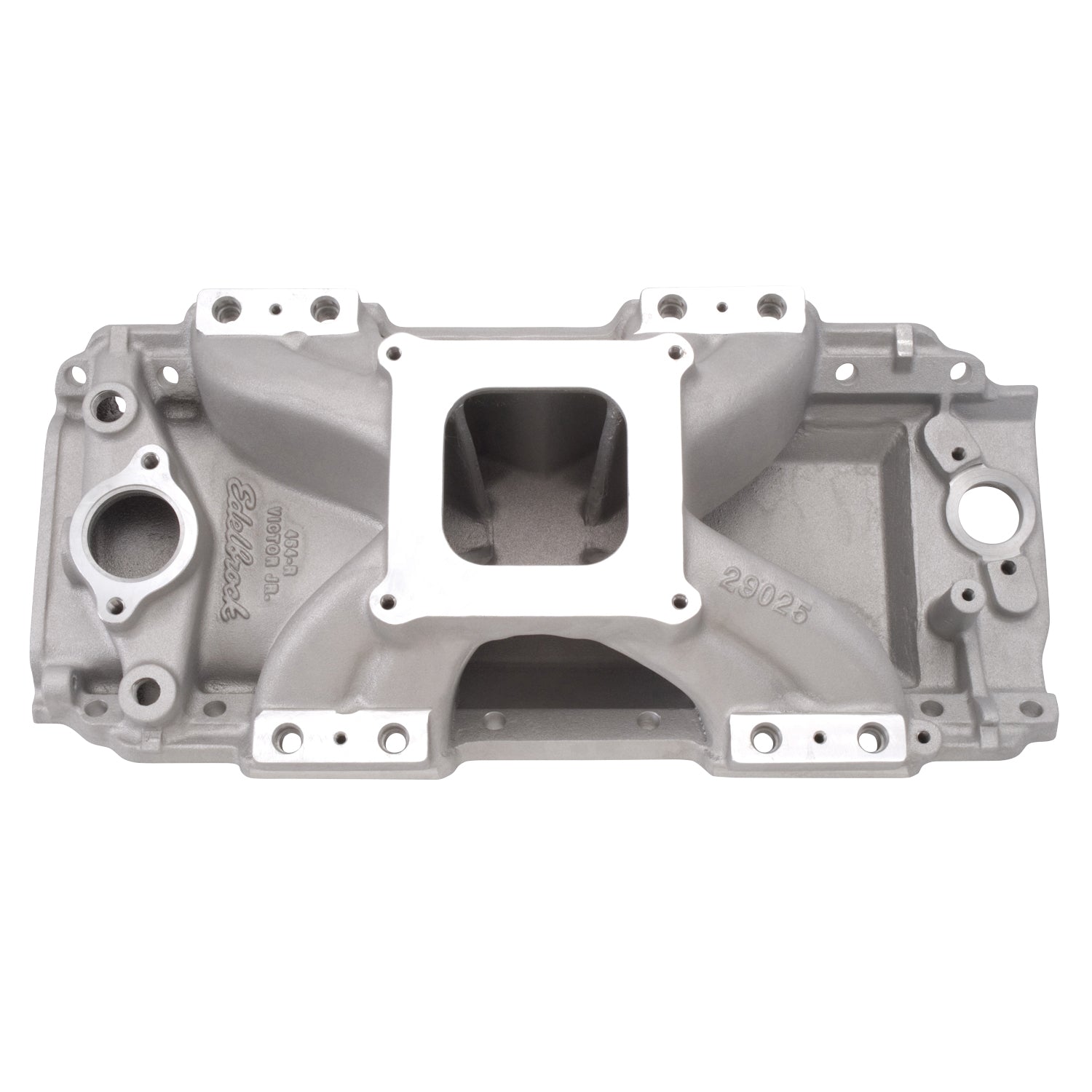

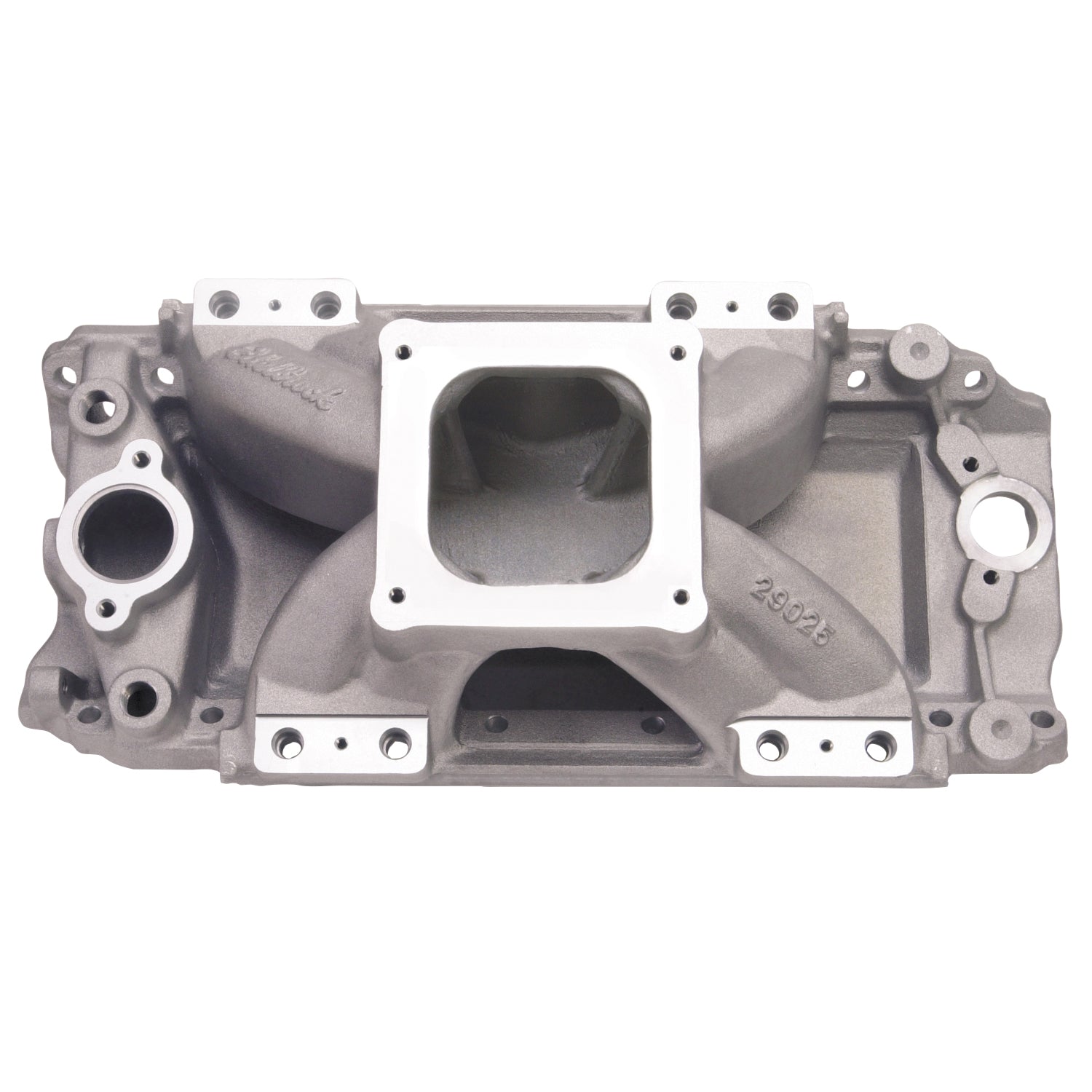

Edelbrock part #29025 Victor Jr. 454-R EFI intake manifold is designed for competition 396-502 big-block Chevy engines with rectangular-port cylinder heads. It features extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. These intake manifolds are especially suited to 502 c.i.d. and smaller competition engines. The Edelbrock Victor Jr. 454-R EFI intake manifold will fit Edelbrock Victor race cylinder heads #77609 and Victor 24 degree #77409, #77459, #77429, #77479 and #77489.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Victor Jr. 454-R EFI Intake Manifold For Chevrolet 396-502 Big-Block V8 |
| Description_MKT |
Edelbrock part #29025 Victor Jr. 454-R EFI intake manifold is designed for competition 396-502 big-block Chevy engines with rectangular-port cylinder heads. It features extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. These intake manifolds are especially suited to 502 c.i.d. and smaller competition engines. The Edelbrock Victor Jr. 454-R EFI intake manifold will fit Edelbrock Victor race cylinder heads #77609 and Victor 24 degree #77409, #77459, #77429, #77479 and #77489. |
| Description_LAB |
Victor Jr. Big Block Chevy 454-R EFI Intake Manifold |
| Description_INV |
EFI Victor Jr BBC Rectangular Port |
| Description_TRA |
Throttle Body Recommendations: Use #3878 4V series or #3849 EFI elbow and #3869 90mm throttle body. |
| Description_TRA |
Recommended intake gasket: Edelbrock #7208 |
| Description_TRA |
Manifold height: A-5.90" & B-5.90" |
| Flange Type |
4150 |
| Vehicle Model |
Chevrolet |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| EGR Port |
No |
| Grade Type |
Performance |
| CNC Ported |
No |
| Rear Maximum Height |
5.960 |
| Finish |
Satin |
| Center Maximum Height |
5.960 |
| Series |
Victor |
| Single Or Dual Plane Type |
Single |
| Gasket Or Seal Included |
No |
| Front Maximum Height |
5.960 |
| Material |
Aluminum |
| Basic Operating RPM Range |
3500-7500 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
23.0000 |
