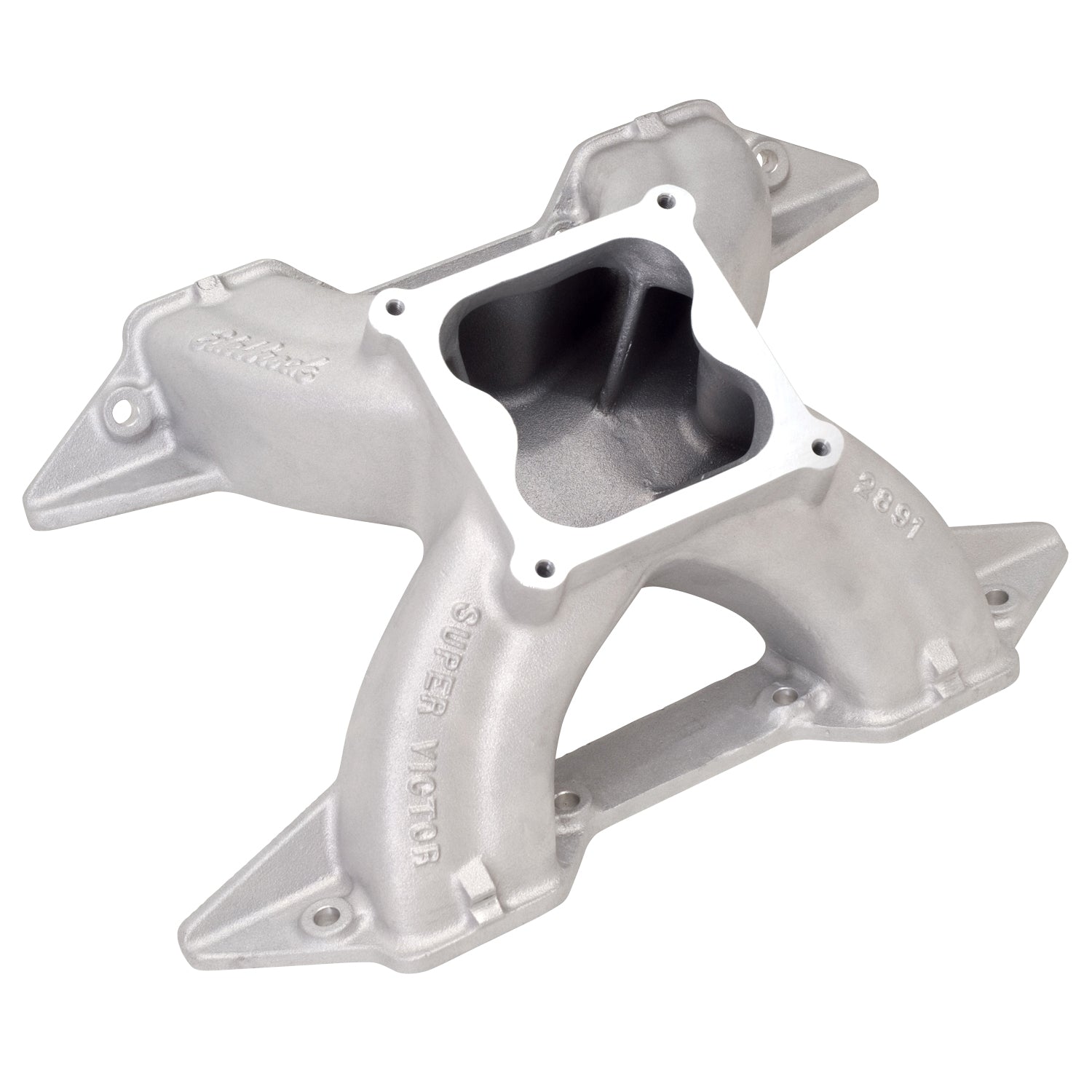

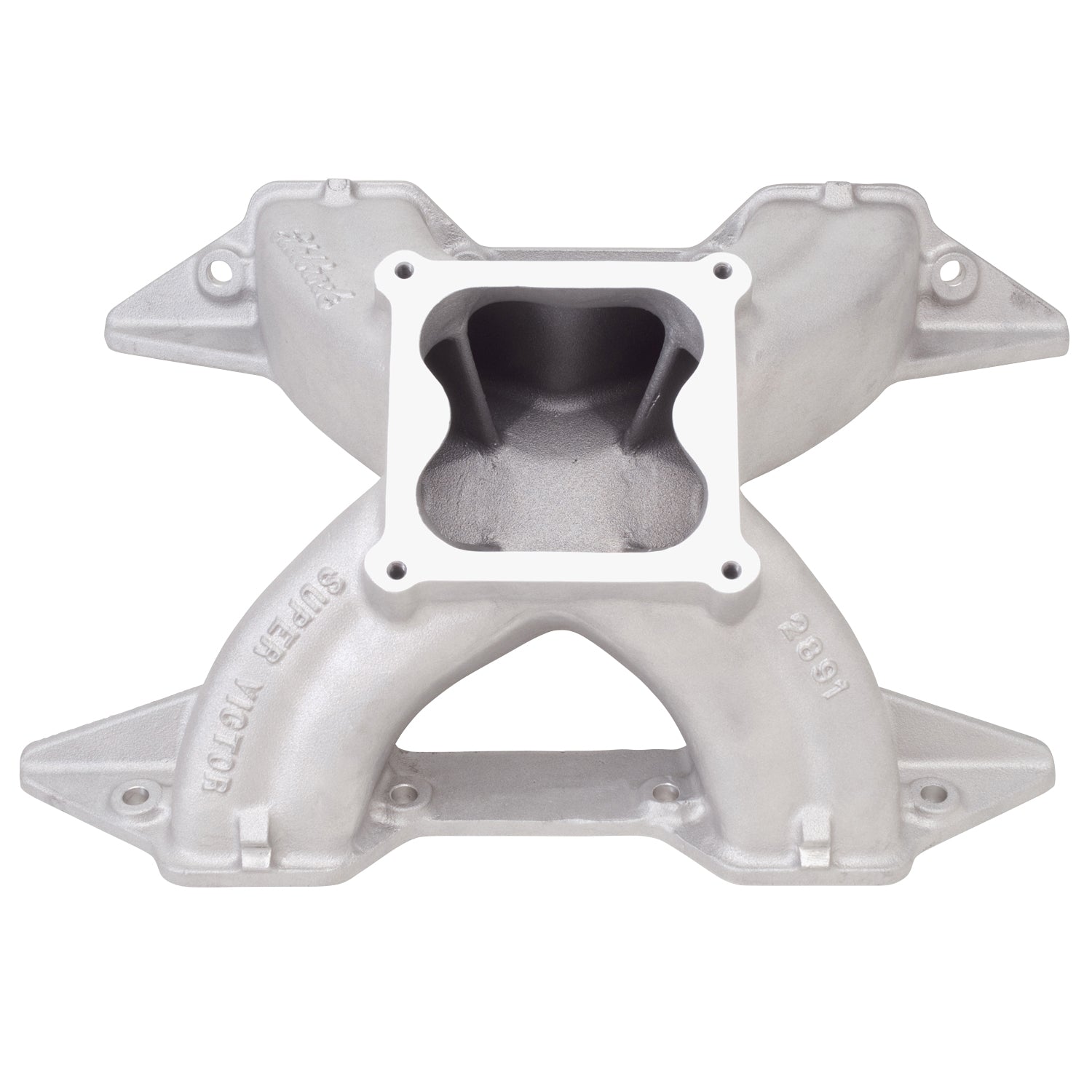

Edelbrock part #2891 Super Victor 440 intake manifold is designed for 413-440-500+ RB with standard or Max Wedge heads and 4500 Series carburetors. For competition and high-rpm Chrysler V8's, the Super Victor 440 has an all-new runner design that delivers maximum power from 3500 to 8000 rpm in drag race applications. This intake manifold features standard 440 port exit sizes 1.13" x 2.17" to match with Edelbrock Victor 440 aluminum cylinder heads #77919 or #77929. Edelbrock part #7798 valley cover is required when used with Edelbrock Victor Series cylinder heads
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Super Victor 440 Intake Manifold for Chrysler 413-426-440 Big-Block V8 |
| Description_INV |
Super Victor Chrysler 440 Dominator |
| Description_MKT |
Edelbrock part #2891 Super Victor 440 intake manifold is designed for 413-440-500+ RB with standard or Max Wedge heads and 4500 Series carburetors. For competition and high-rpm Chrysler V8's, the Super Victor 440 has an all-new runner design that delivers maximum power from 3500 to 8000 rpm in drag race applications. This intake manifold features standard 440 port exit sizes 1.13" x 2.17" to match with Edelbrock Victor 440 aluminum cylinder heads #77919 or #77929. Edelbrock part #7798 valley cover is required when used with Edelbrock Victor Series cylinder heads |
| Description_LAB |
Super Victor Chrysler 440 Intake Manifold |
| Description_TRA |
Recommended intake gasket: Fel-Pro #1216 or equivalent 1.23" x 2.27", for an area of 2.76 sq. inches. Custom gasket trimming is needed if larger area is desired. |
| Description_TRA |
Carb recommendations: Use appropriate 4500 Series racing carburetor |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Single Or Dual Plane Type |
Single |
| Flange Type |
4500 |
| Material |
Aluminum |
| CNC Ported |
No |
| Rear Maximum Height |
6.400 |
| Finish |
Satin |
| Center Maximum Height |
6.400 |
| Basic Operating RPM Range |
3500-8000 |
| Series |
Victor |
| Grade Type |
Performance |
| EGR Port |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Front Maximum Height |
6.400 |
| Vehicle Model |
Chrysler |
| Gasket Or Seal Included |
No |
| Length |
10.0000 |
| Width |
16.0000 |
| Height |
24.0000 |
| Weight |
19.0000 |
