Edelbrock 2890 Super Victor LS7 Dominator Flange Carb

2 sold in last 8 days

Brand: Edelbrock

SKU: ds_BDVJ_2890

Stock:

Product Code: Engine Intake Manifold

$947.78

Quantity

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

0 customers are viewing this product

Edelbrock 2890 Super Victor LS7 Dominator Flange Carb

Details
Reviews

Details

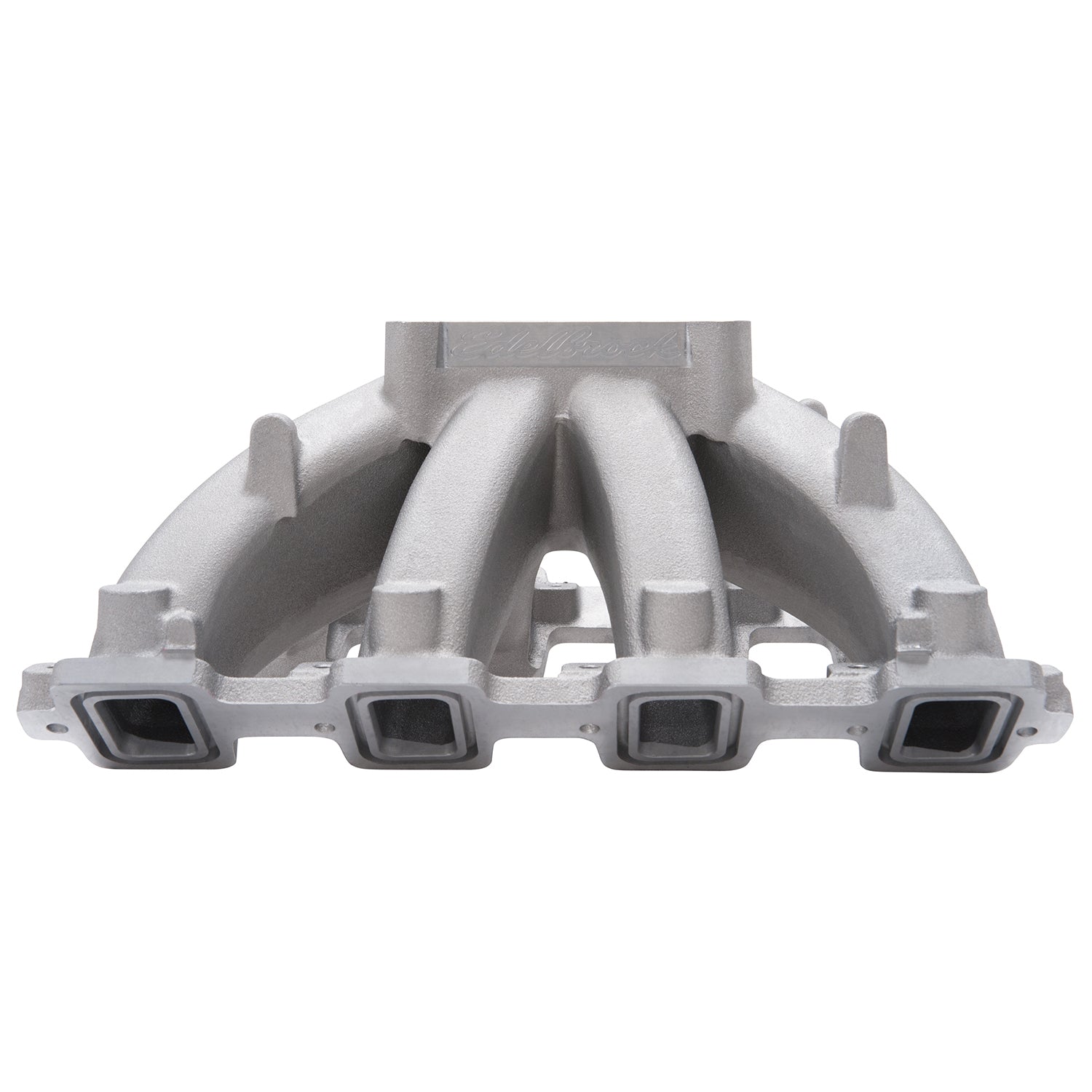

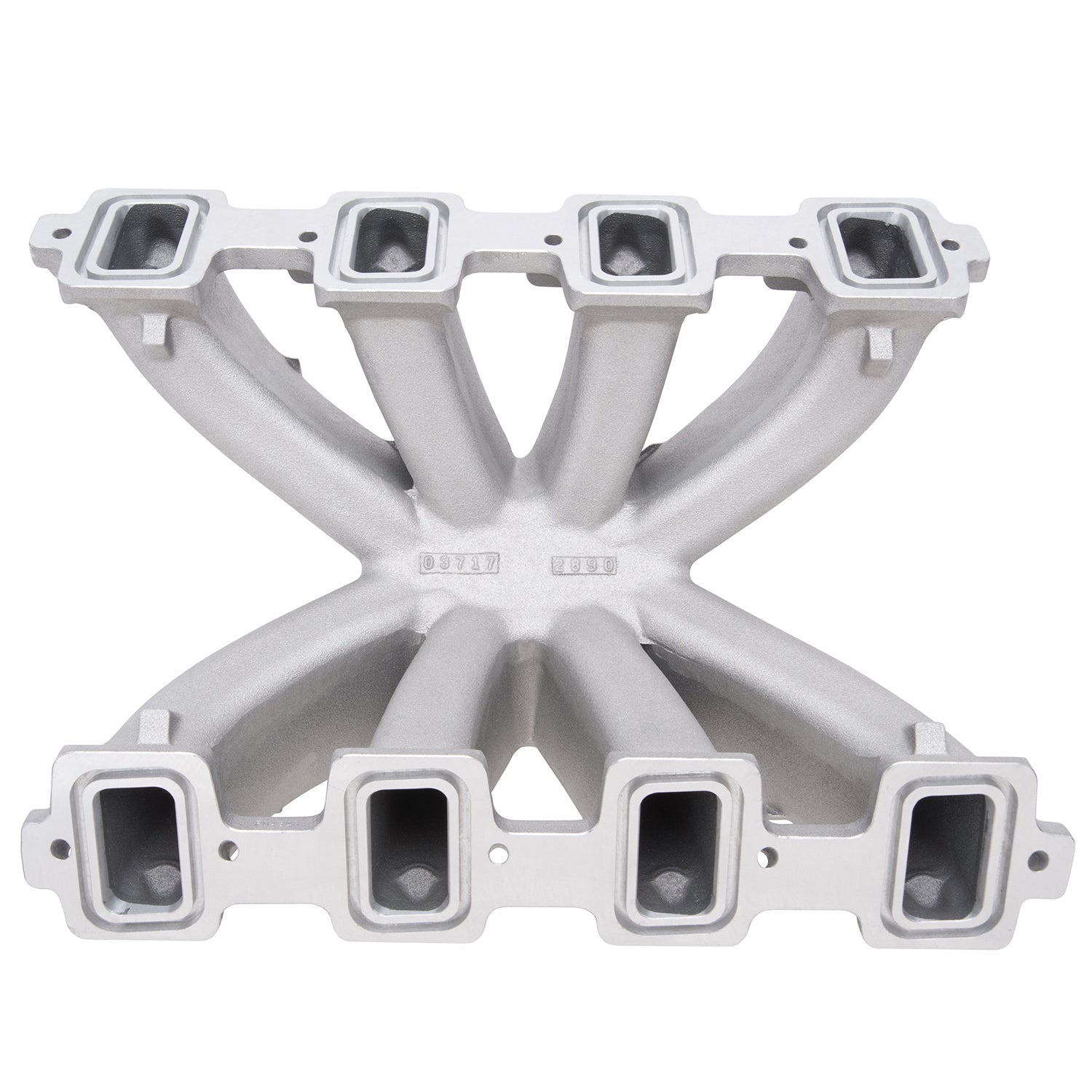

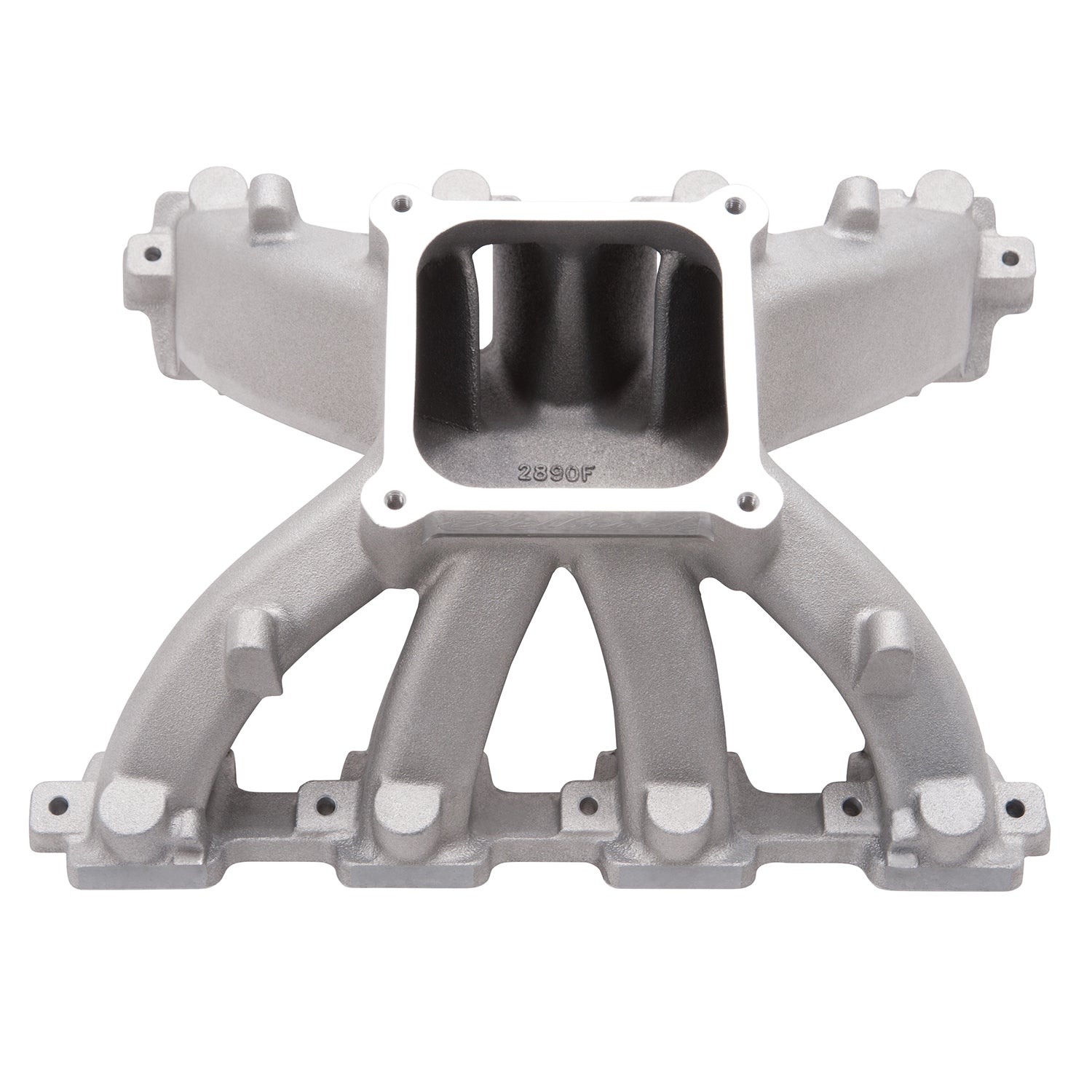

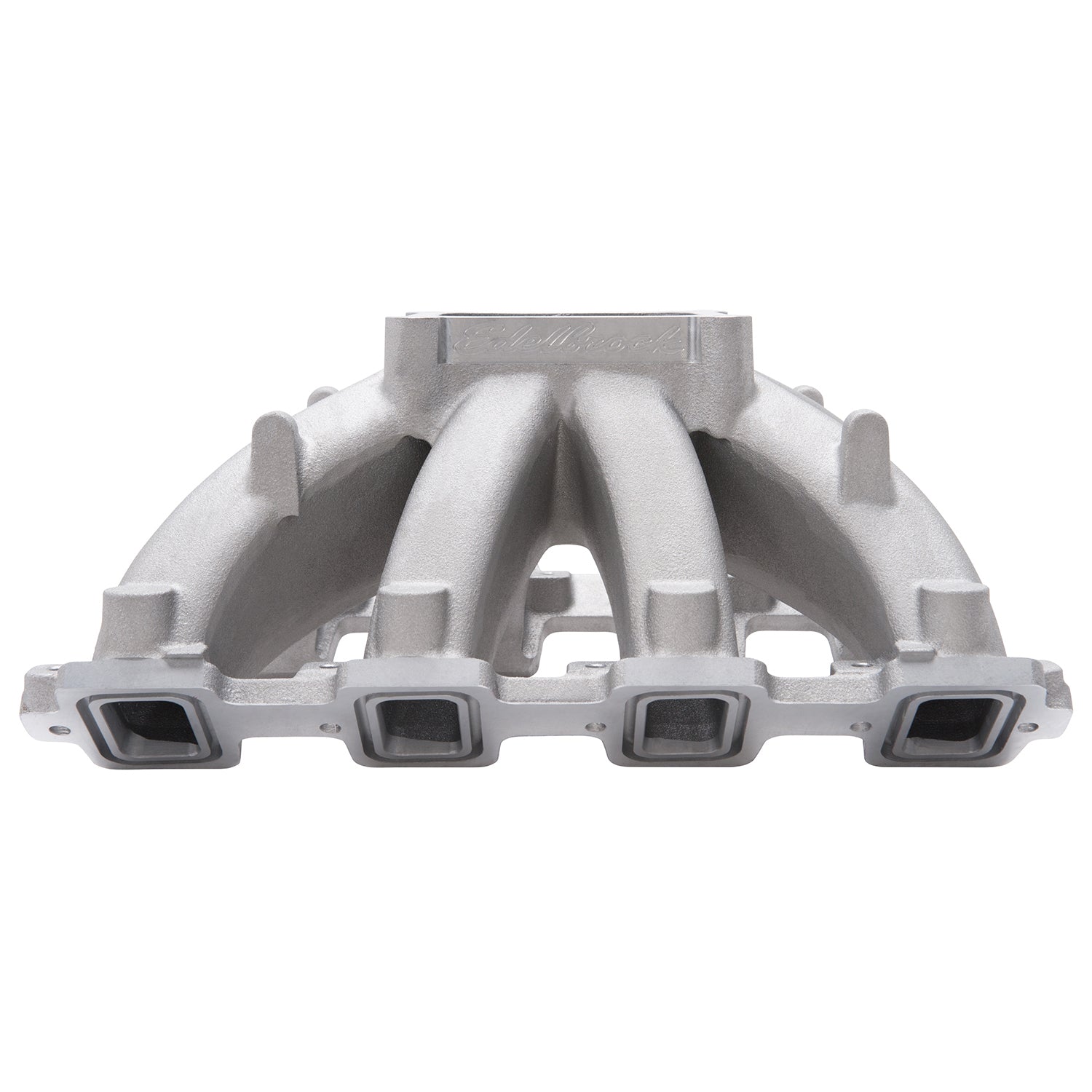

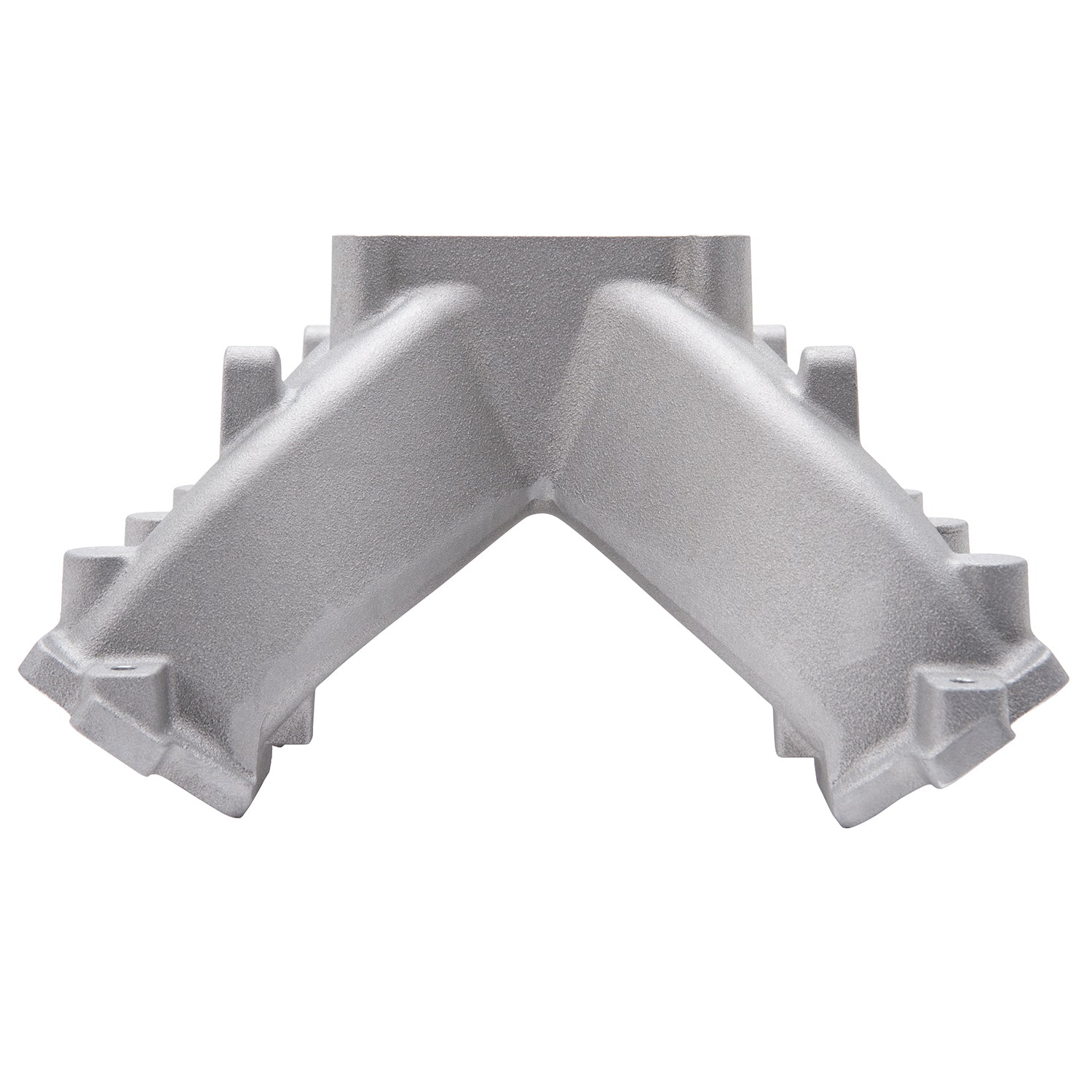

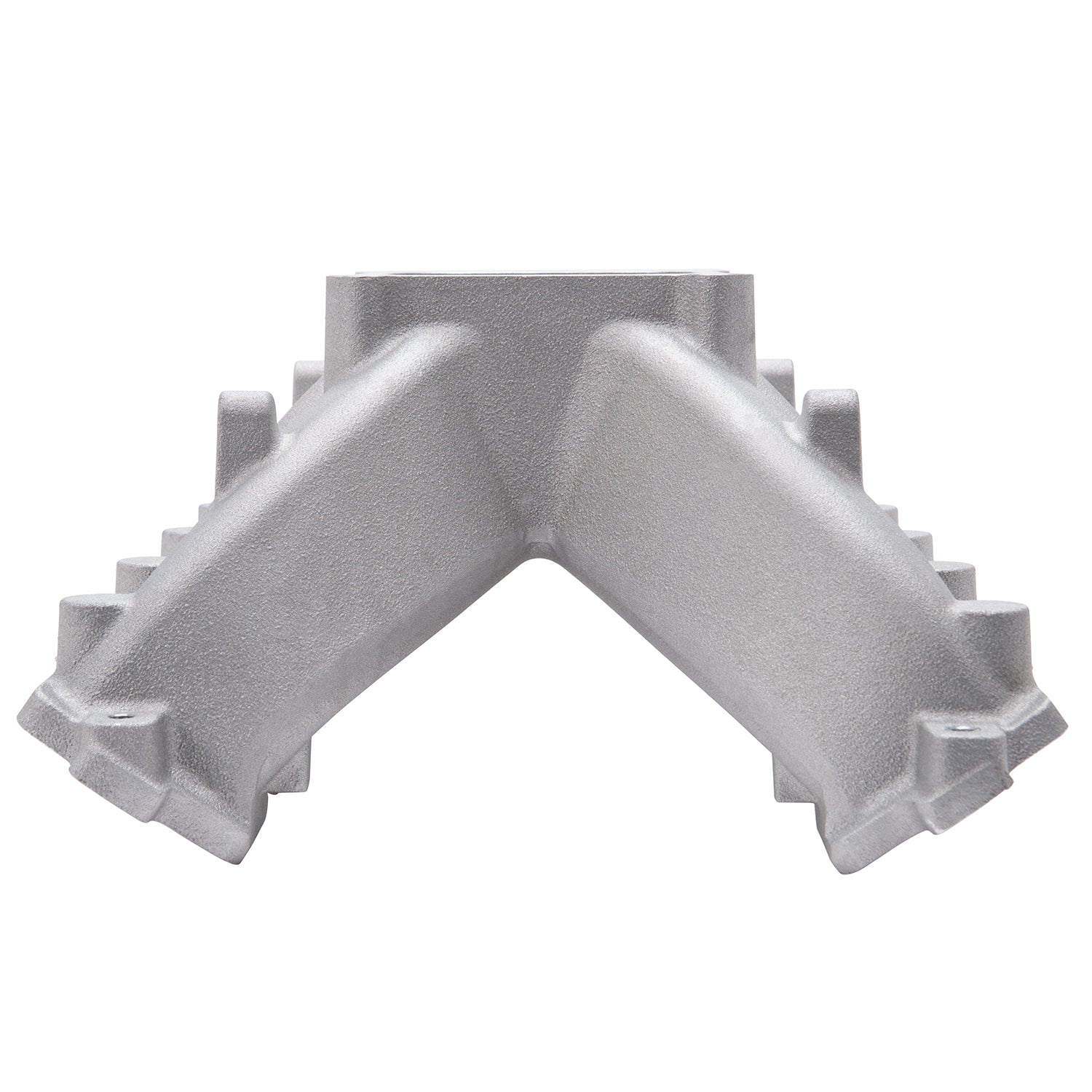

Edelbrock part #2890 Super Victor LS7 intake manifold is designed for Gen IV LS engines equipped with LS7 cylinder heads or Edelbrock Pro-Port Victor Jr. cylinder heads. This manifold is .75" taller than our LS3 Super Victor intakes. The new Super Victor intake manifold #2890 4500 Series carburetors has an increased intake runner area and is capable of 800+ hp operating in the 3,500-8,000 rpm range. A carburetor mounted style throttle bracket is recommended.

Specifications:

Description_ABR	Intake Mnfld
Description_ASM	Chevrolet:Small-Block Gen IV LS7:427 (7.0L)
Description_DEF	Engine Intake Manifold
Description_EXT	Edelbrock Super Victor LS7 Dominator Flange Carburetor Intake Manifold
Description_INV	Super Victor LS7 Dominator Flange Carb
Description_MKT	Edelbrock part #2890 Super Victor LS7 intake manifold is designed for Gen IV LS engines equipped with LS7 cylinder heads or Edelbrock Pro-Port Victor Jr. cylinder heads. This manifold is .75" taller than our LS3 Super Victor intakes. The new Super Victor intake manifold #2890 4500 Series carburetors has an increased intake runner area and is capable of 800+ hp operating in the 3,500-8,000 rpm range. A carburetor mounted style throttle bracket is recommended.
Description_LAB	Super Victor Small-Block Chevy LS7 Dominator Flange Carburetor Intake Manifold
Description_TRA	Recommended intake gasket: Edelbrock #9746, LS7 style individual port o-ring seals GM PN89017852
Description_TRA	Uses standard intake Edelbrock bolt kit #8515
Description_TRA	Manifold height: A-8.42, B-8.42"
Description_TRA	Carb pad height: 8.42"
Description_TRA	Carb height (CH) for this manifold is measured from the valley cover flange to the carb pad.
Description_TRA	Carb recommendations: Use appropriate 4500 Series racing carburetor
Description_TRA	Port exit dimensions machine matched: 1.34" x 2.38"
CNC Ported	No
Grade Type	Performance
Finish	Satin
Single Or Dual Plane Type	Single
Flange Type	4500
Rear Maximum Height	8.420
Material	Aluminum
Front Maximum Height	8.420
EGR Port	No
Series	Victor
Center Maximum Height	8.420
Vehicle Model	Chevrolet
Gasket Or Seal Included	No
RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Basic Operating RPM Range	3500-8000
Length	12.0000
Width	15.0000
Height	24.0000
Weight	20.0000
