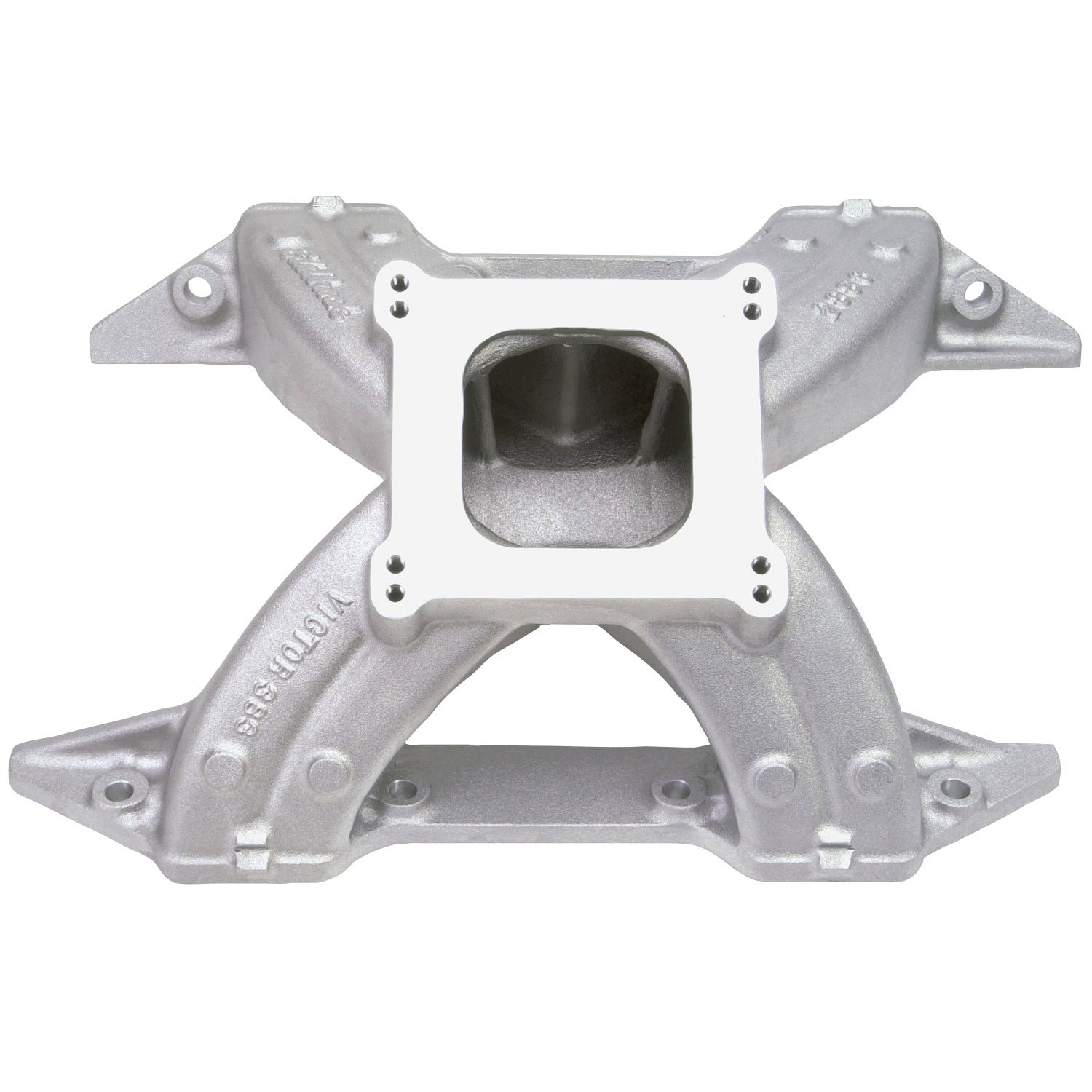

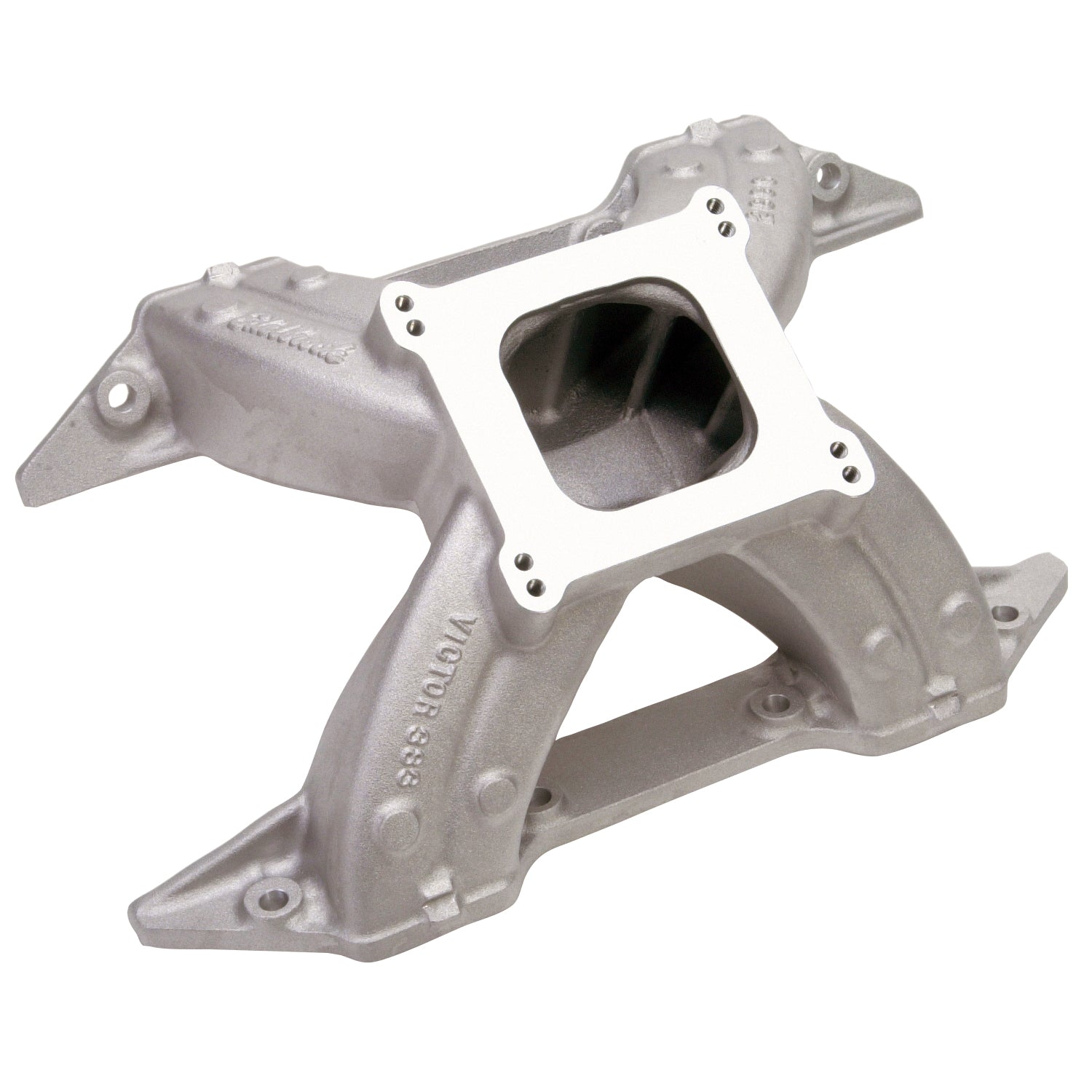

Edelbrock part #2886 Victor 383 intake manifold is available for competition Chrysler B Series Wedge 361-383-400 c.i.d. engines. The computer-generated runners easily handle the high airflow requirements demanded by large displacement low-deck engines. This extra tall single plane manifold combines a long runner, "line of sight" layout, and extended divider walls to maximize torque, power and fuel distribution throughout the mid and upper rpm range. We've added extra material to the square bore carburetor pad and included the inside bolt pattern so it can be easily opened up for Thermo-Quad applications. Match with Edelbrock Performer RPM or Victor aluminum cylinder heads for even higher performance potential. Edelbrock part #7799 valley cover is required when used with Edelbrock Victor series cylinder heads.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chrysler:Big-Block B-Series:361 (5.9L)/383 (6.3L)/400 (6.6L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Victor 383 Intake Manifold for Chrysler 361-383-400 Big-Block V8 |
| Description_INV |
Victor 383 Chrysler Intake manifold |
| Description_MKT |
Edelbrock part #2886 Victor 383 intake manifold is available for competition Chrysler B Series Wedge 361-383-400 c.i.d. engines. The computer-generated runners easily handle the high airflow requirements demanded by large displacement low-deck engines. This extra tall single plane manifold combines a long runner, "line of sight" layout, and extended divider walls to maximize torque, power and fuel distribution throughout the mid and upper rpm range. We've added extra material to the square bore carburetor pad and included the inside bolt pattern so it can be easily opened up for Thermo-Quad applications. Match with Edelbrock Performer RPM or Victor aluminum cylinder heads for even higher performance potential. Edelbrock part #7799 valley cover is required when used with Edelbrock Victor series cylinder heads. |
| Description_LAB |
Victor 383 Intake Manifold Chrysler B Block |
| Description_TRA |
Recommended intake gasket: #7225. |
| Description_TRA |
Manifold height: A-6.13", B-6.13" |
| Description_TRA |
Port exit dimensions: 1.15" x 2.17" |
| Description_TRA |
Carb recommendations: Use appropriate Racing carburetor |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Finish |
Satin |
| Flange Type |
4150 |
| Single Or Dual Plane Type |
Single |
| Basic Operating RPM Range |
3500-7500 |
| CNC Ported |
No |
| EGR Port |
No |
| Rear Maximum Height |
6.130 |
| Grade Type |
Performance |
| Vehicle Model |
Chrysler |
| Material |
Aluminum |
| Series |
Victor |
| Center Maximum Height |
6.130 |
| Gasket Or Seal Included |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Front Maximum Height |
6.130 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
16.0000 |
