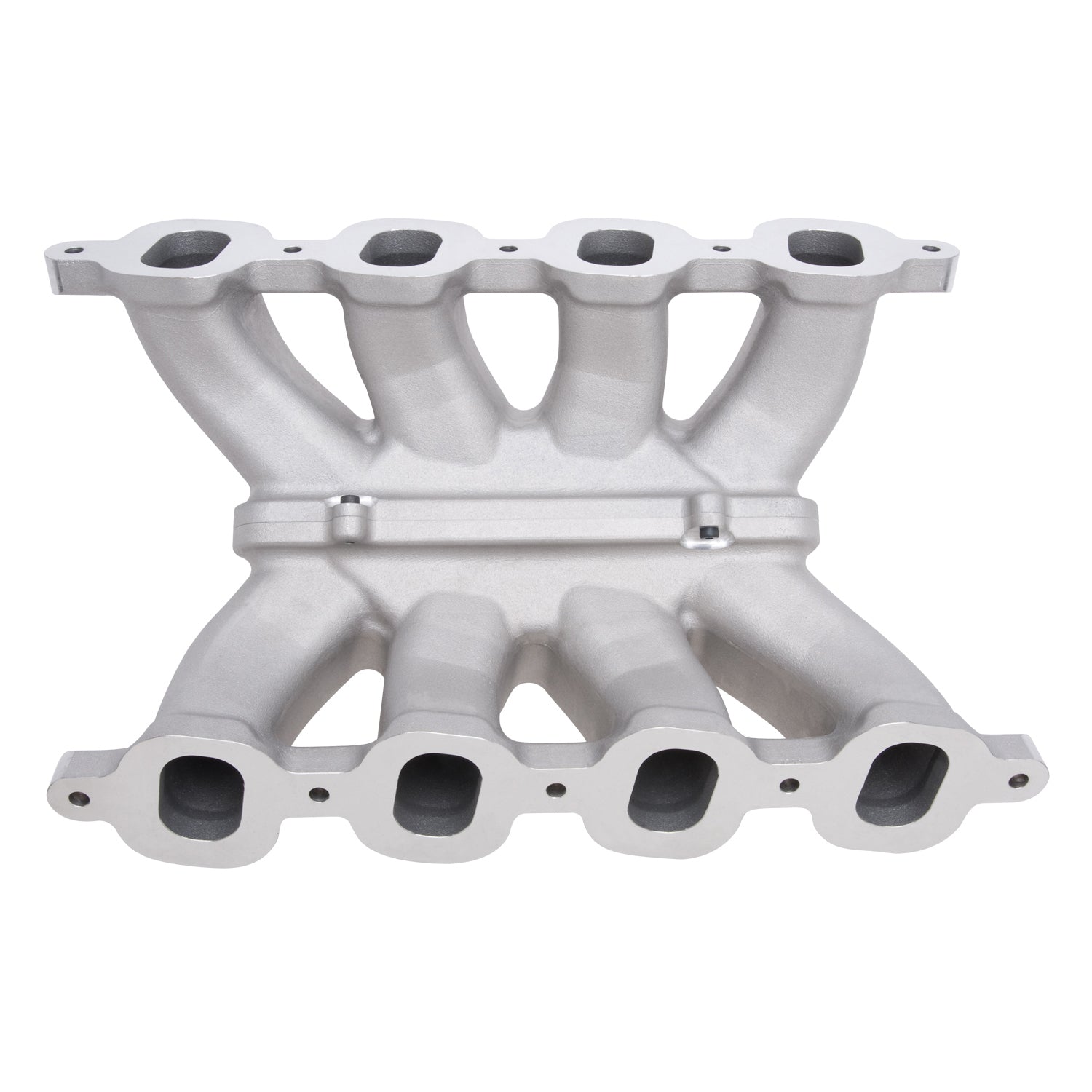

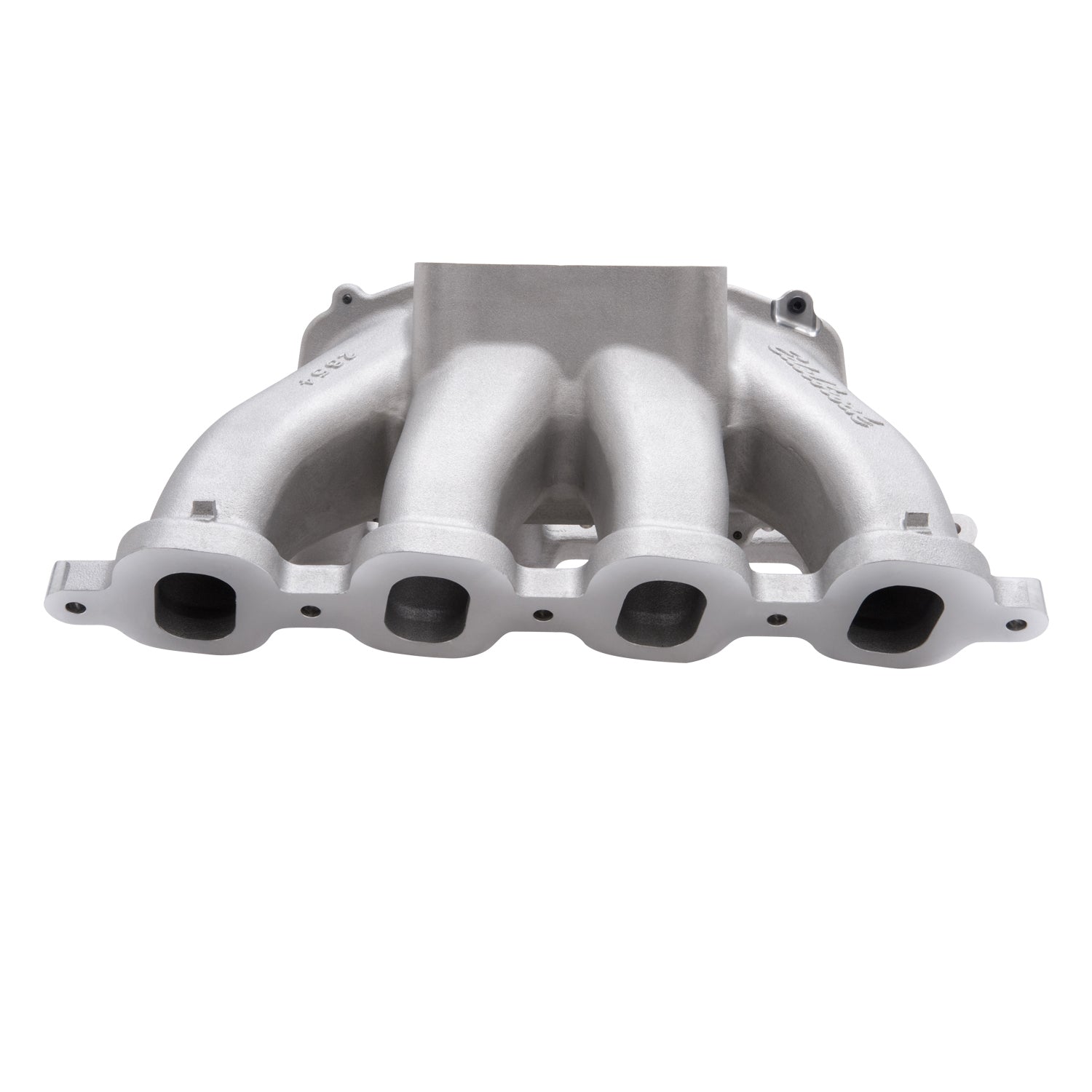

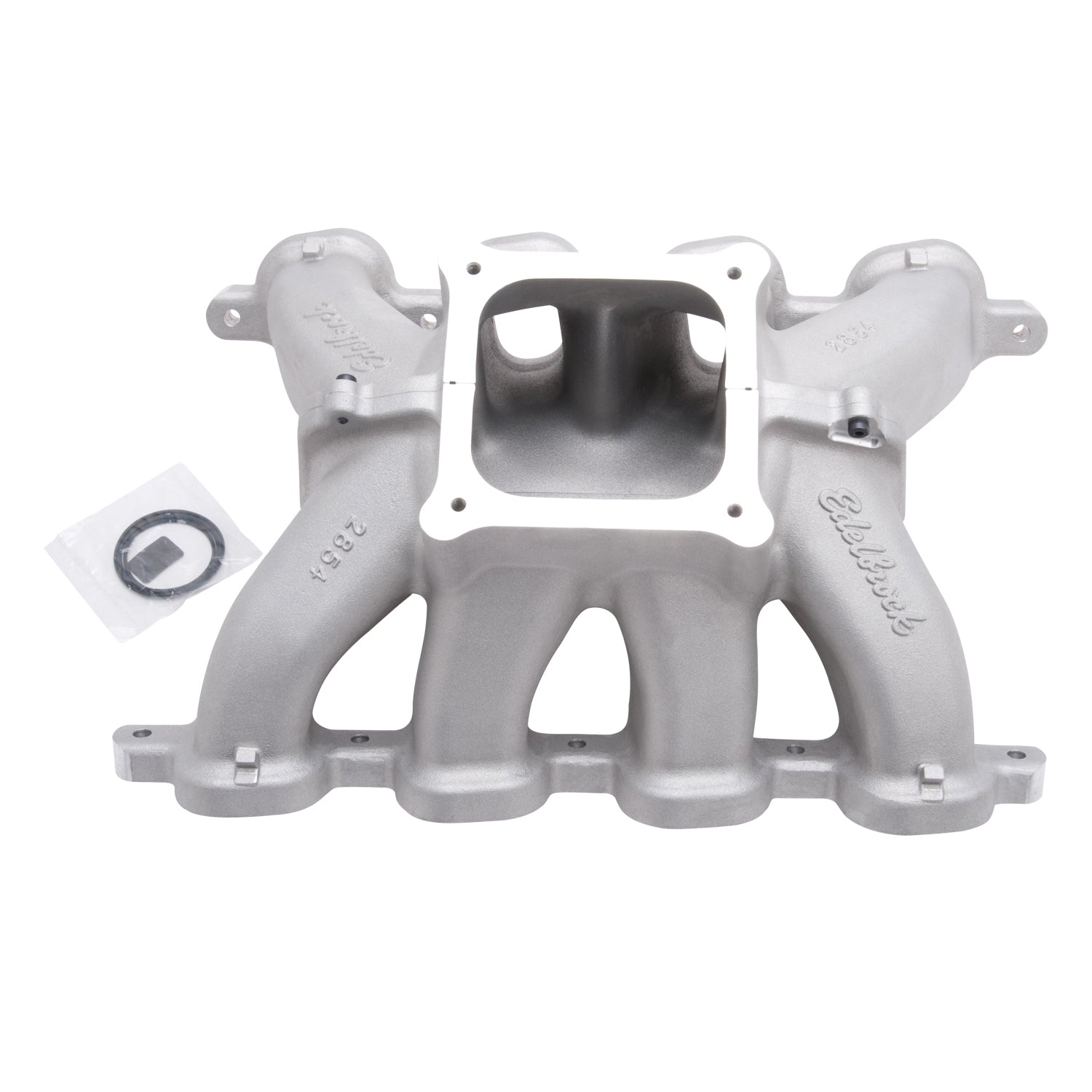

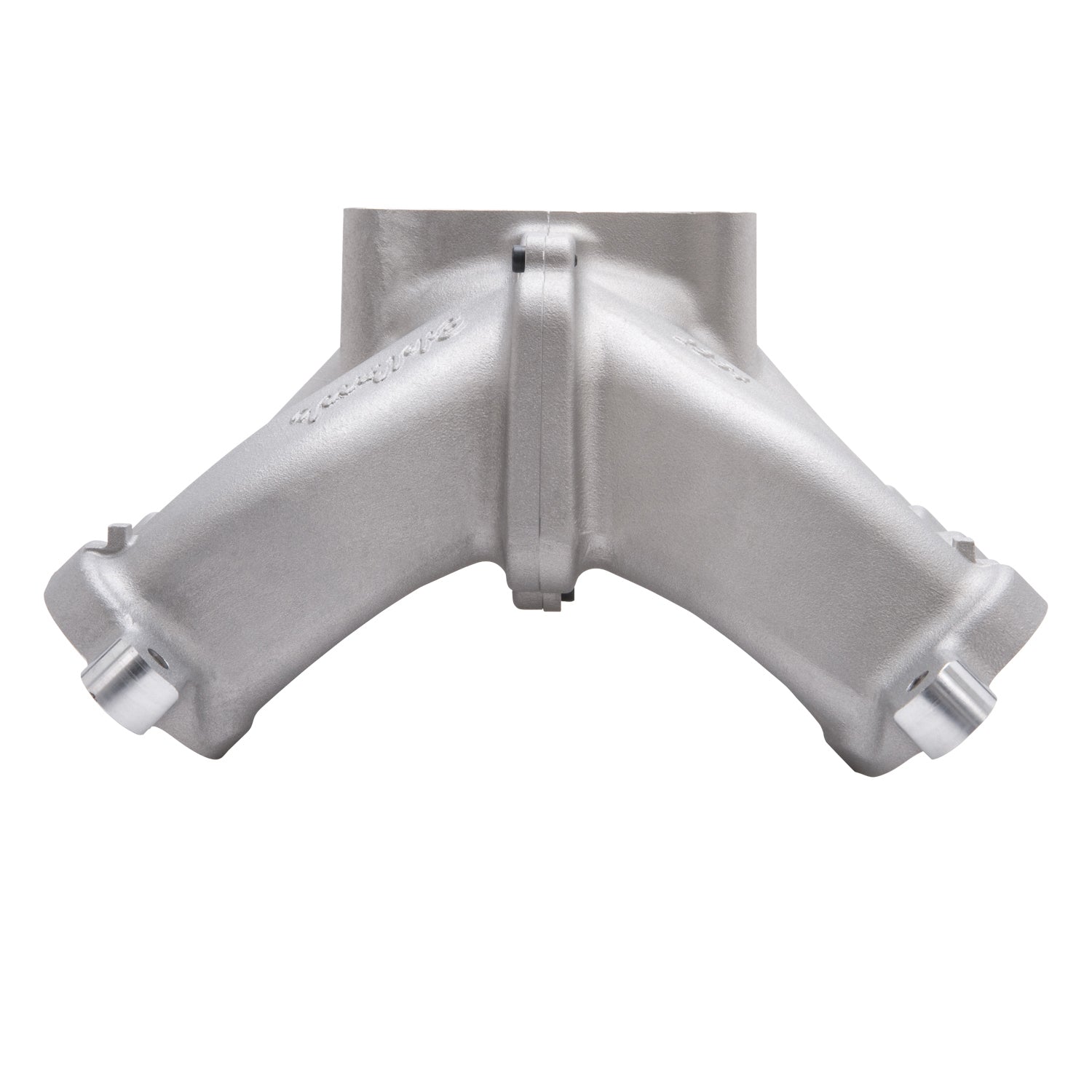

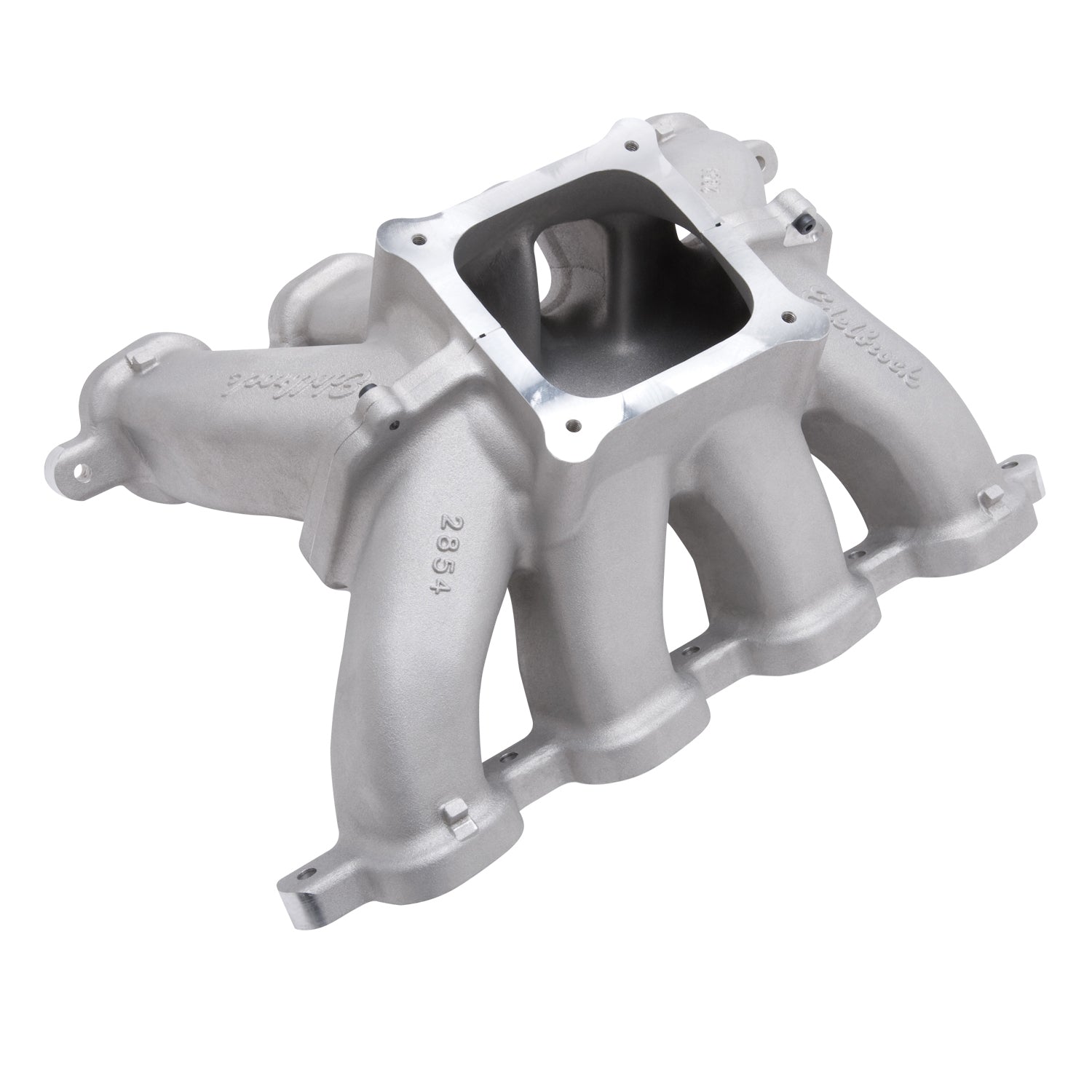

Edelbrock part #28542 BV3 CNC intake manifold is designed and has been CNC port matched for use with Edelbrock BV3 cylinder heads which feature a unique symmetrical port layout for the 4.84" bore spacing big-block Chevrolet applications. This manifold features a spider style single-plane design with efficient runners that are engineered to deliver peak performance across a wide range of applications. The manifold has a lengthened plenum and a narrowed runner design to deliver equal length runners. This manifold is also the first in the Big Victor Series to feature Edelbrock's unique two-piece design. This unique design simplifies and reduces time in applications that require CNC porting. The manifold is cast in two separate pieces, allowing them to be taken apart for better porting access and then they can be bolted back together while maintaining a perfect match. Each piece has a precision machined o-ring groove to ensure a proper seal. High quality bolts and washers are supplied. The manifold also has a matching valley plate with the proper flange thickness (sold separately). This unique valley plate features a highly efficient integrated water distribution system, reducing the need for external plumbing. The manifold features a carb pad with a 4500 Series flange that is also large enough to accommodate various throttle body and throttle stop applications on the market today.
Specifications:
Description_ABR |
Intake Mnfld |
Description_ASM |
Chevrolet:Big-Block Race |
Description_DEF |
Engine Intake Manifold |
Description_LAB |
BV3 Tall Deck Intake Manifold for Chevrolet Big-Block |
Description_EXT |
Edelbrock BV3 Intake Manifold for Tall Deck Chevrolet Big-Block V8 |
Description_INV |
Big Victor 3 4.84 Bore 10.2 Deck |
Description_MKT |
Edelbrock part #28542 BV3 CNC intake manifold is designed and has been CNC port matched for use with Edelbrock BV3 cylinder heads which feature a unique symmetrical port layout for the 4.84" bore spacing big-block Chevrolet applications. This manifold features a spider style single-plane design with efficient runners that are engineered to deliver peak performance across a wide range of applications. The manifold has a lengthened plenum and a narrowed runner design to deliver equal length runners. This manifold is also the first in the Big Victor Series to feature Edelbrock's unique two-piece design. This unique design simplifies and reduces time in applications that require CNC porting. The manifold is cast in two separate pieces, allowing them to be taken apart for better porting access and then they can be bolted back together while maintaining a perfect match. Each piece has a precision machined o-ring groove to ensure a proper seal. High quality bolts and washers are supplied. The manifold also has a matching valley plate with the proper flange thickness (sold separately). This unique valley plate features a highly efficient integrated water distribution system, reducing the need for external plumbing. The manifold features a carb pad with a 4500 Series flange that is also large enough to accommodate various throttle body and throttle stop applications on the market today. |
Description_TRA |
Recommended intake gasket: Edelbrock #7249 |
Description_TRA |
Carb recommendations: Use appropriate 4500 Series racing carburetor |
Description_TRA |
Valley Plate part number: Edelbrock #77732 |
Description_TRA |
Designed for Tall Deck 10.2" block |
Description_TRA |
Bore Spacing: 4.84" |
Center Maximum Height |
7.400 |
Gasket Or Seal Included |
No |
Grade Type |
Performance |
Single Or Dual Plane Type |
Single Plane |
CNC Ported |
No |
RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
Rear Maximum Height |
7.400 |
Finish |
Satin |
Front Maximum Height |
7.400 |
Material |
Aluminum |
Length |
9.0000 |
Width |
16.0000 |
Height |
23.0000 |
Weight |
29.0000 |
