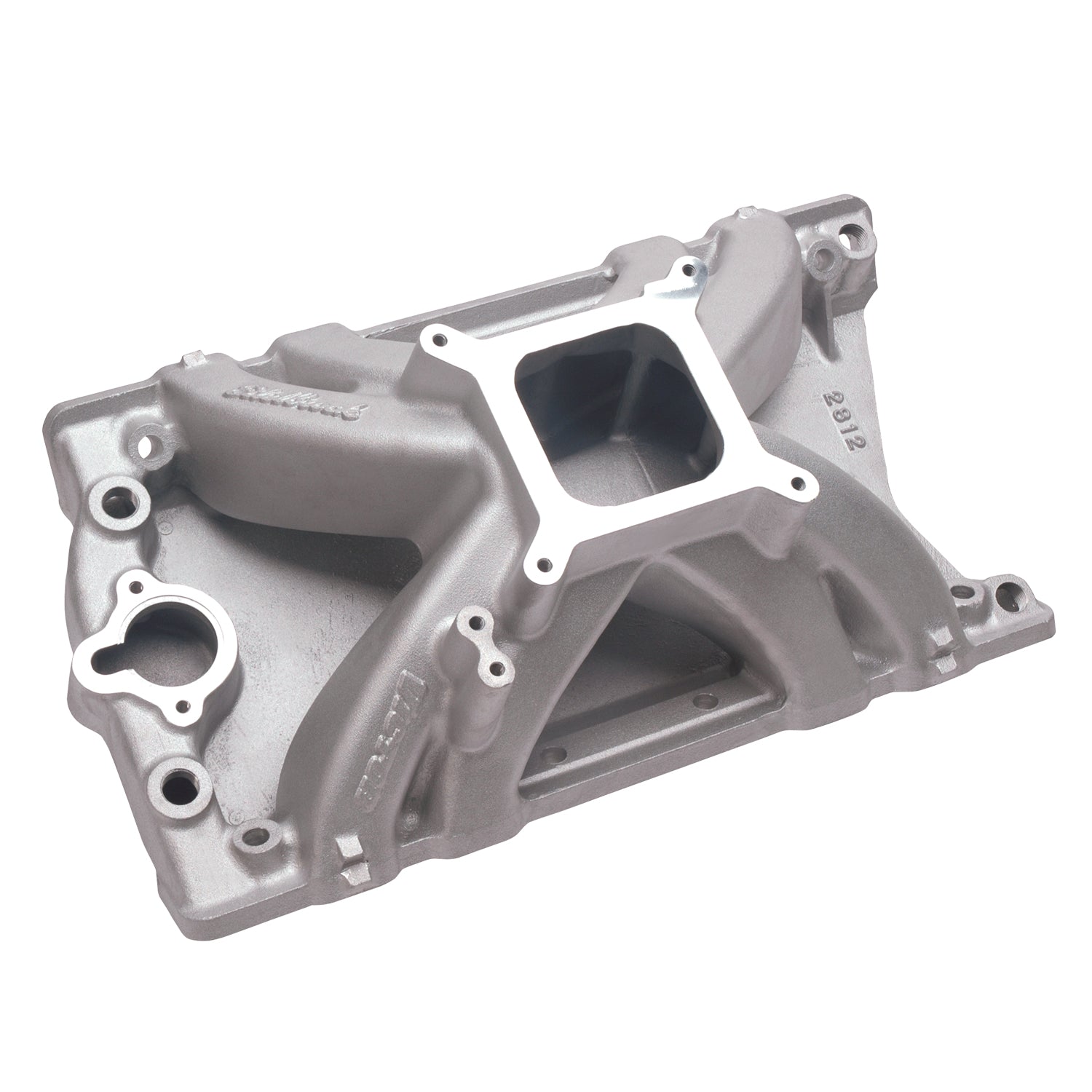

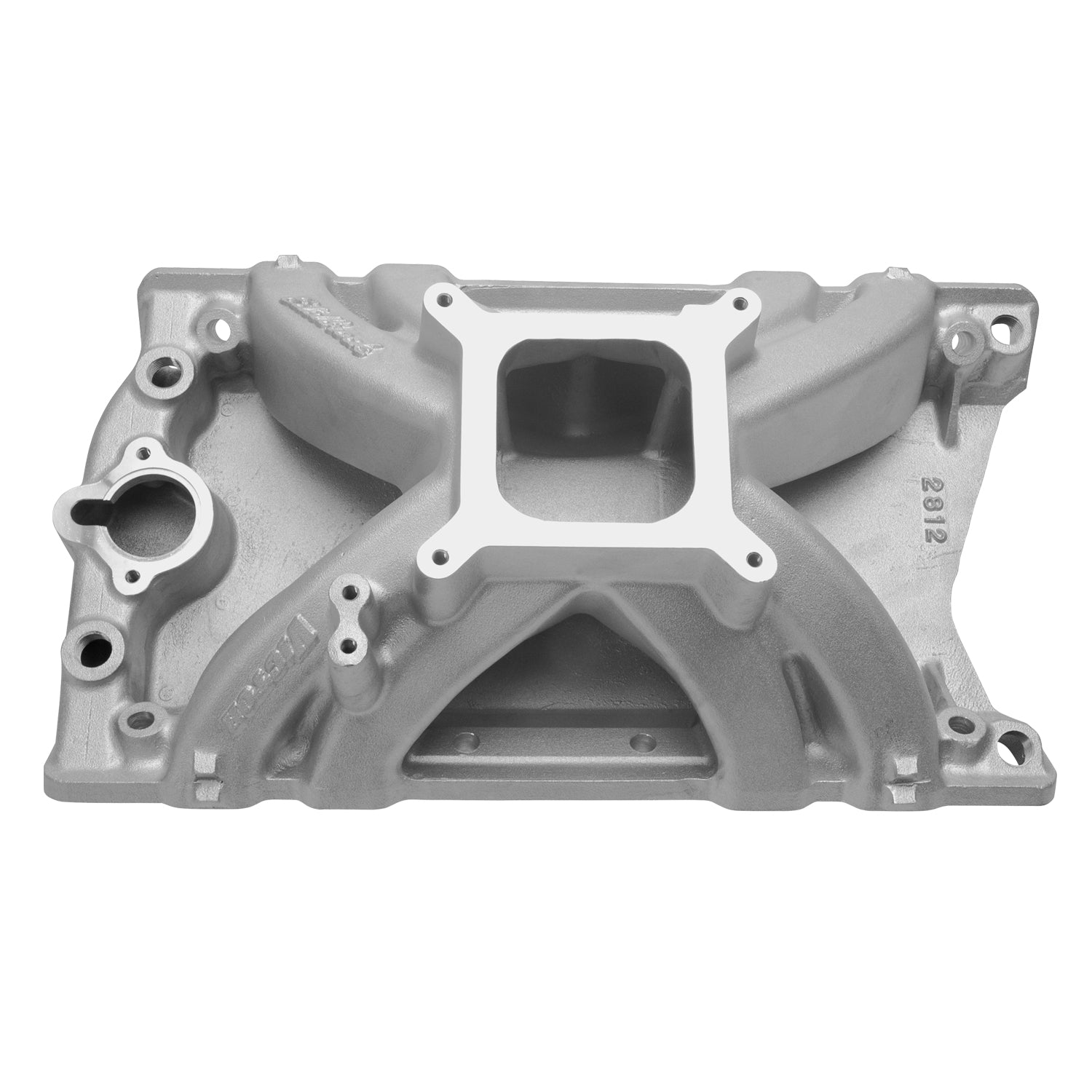

Edelbrock part #2812 Victor Oldsmobile intake manifold provides power levels never before available for competition single-carb 350-403 Olds engines. Featuring a single-plane "Air-Gap" design, it accepts square-bore carb and offers significant horsepower increases over existing intakes in the 4500 to 7500 rpm range. It features a carb mount pad height of 7" and high-flow constant area 3.2-square-inch runners. The runners have been optimized to match the flow characteristics of Edelbrock Performer RPM aluminum cylinder heads #60519 and the exit size, as-cast, is 1.28" by 1.94" with plenty of metal thickness for gasket matching and porting.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Oldsmobile:Small-Block:307 (5.0L)/330 (5.4L)/350 (5.7L)/403 (6.6L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Victor Olds 350-403 Intake Manifold for 350-403 c.i.d Oldsmobile Small-Block Engines is Designed for High-Performance Competition & Marine Engines. Accepts a 4150-Style Square-Bore Carburetor. Non-EGR. |
| Description_MKT |
Edelbrock part #2812 Victor Oldsmobile intake manifold provides power levels never before available for competition single-carb 350-403 Olds engines. Featuring a single-plane "Air-Gap" design, it accepts square-bore carb and offers significant horsepower increases over existing intakes in the 4500 to 7500 rpm range. It features a carb mount pad height of 7" and high-flow constant area 3.2-square-inch runners. The runners have been optimized to match the flow characteristics of Edelbrock Performer RPM aluminum cylinder heads #60519 and the exit size, as-cast, is 1.28" by 1.94" with plenty of metal thickness for gasket matching and porting. |
| Description_LAB |
Victor Olds 350 Intake Manifold for Small-Block 350-403 Oldsmobile Engines |
| Description_INV |
Victor 350 Intake Manifold |
| Description_TRA |
Recommended intake gasket: Fel-Pro #MS96027 |
| Description_TRA |
No provision for OEM choke. |
| Description_TRA |
Carb recommendations: Any carburetor class allows |
| Description_TRA |
Will not clear hood on 403 Olds, Firebird/TA. |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Basic Operating RPM Range |
3500-7500 |
| Gasket Or Seal Included |
No |
| Center Maximum Height |
7.000 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Front Maximum Height |
7.000 |
| Flange Type |
4500 |
| EGR Port |
No |
| Series |
Victor |
| Vehicle Model |
Oldsmobile |
| Rear Maximum Height |
7.000 |
| Finish |
Satin |
| CNC Ported |
No |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Single |
| Material |
Aluminum |
| Length |
9.0000 |
| Width |
16.0000 |
| Height |
22.0000 |
| Weight |
28.0000 |
