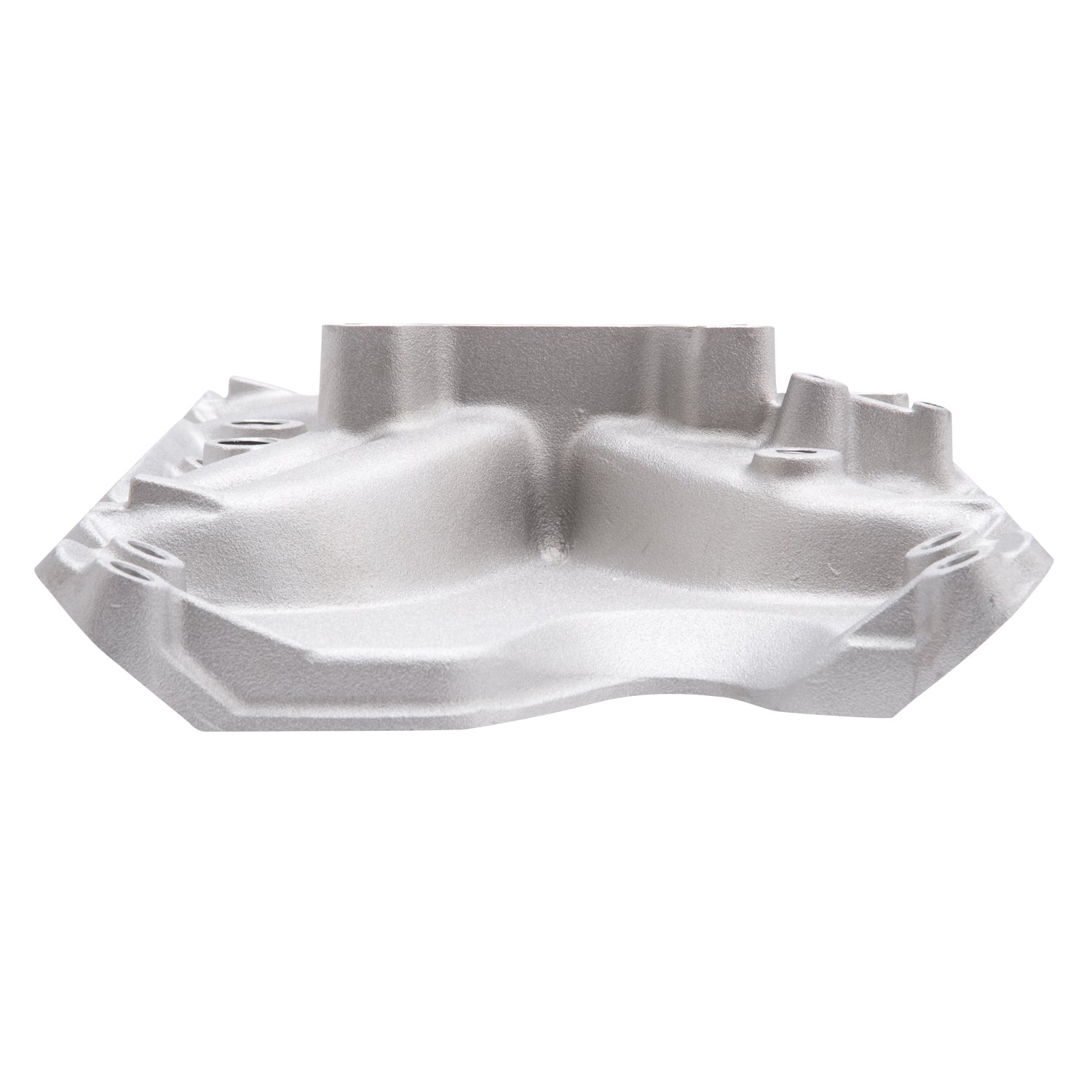

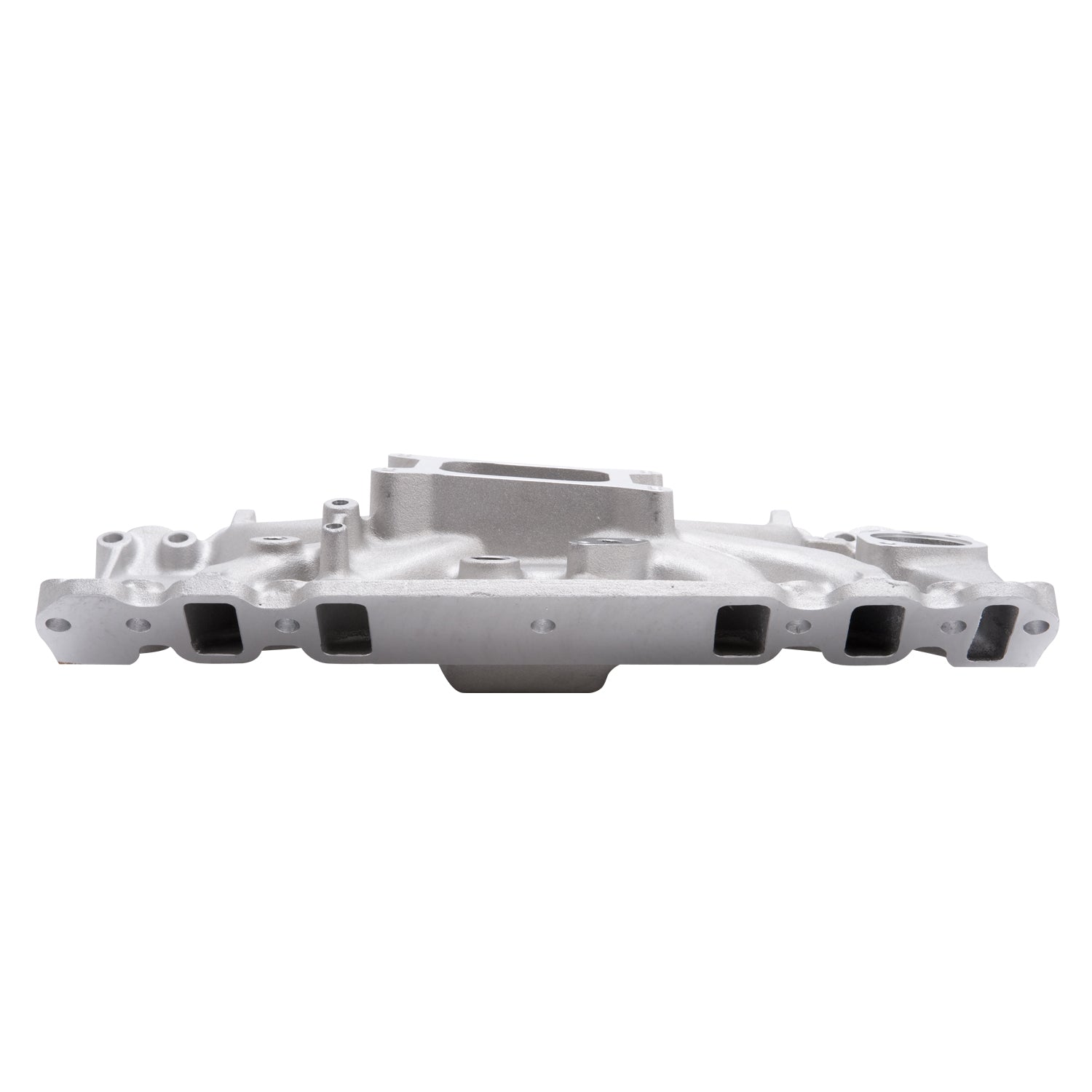

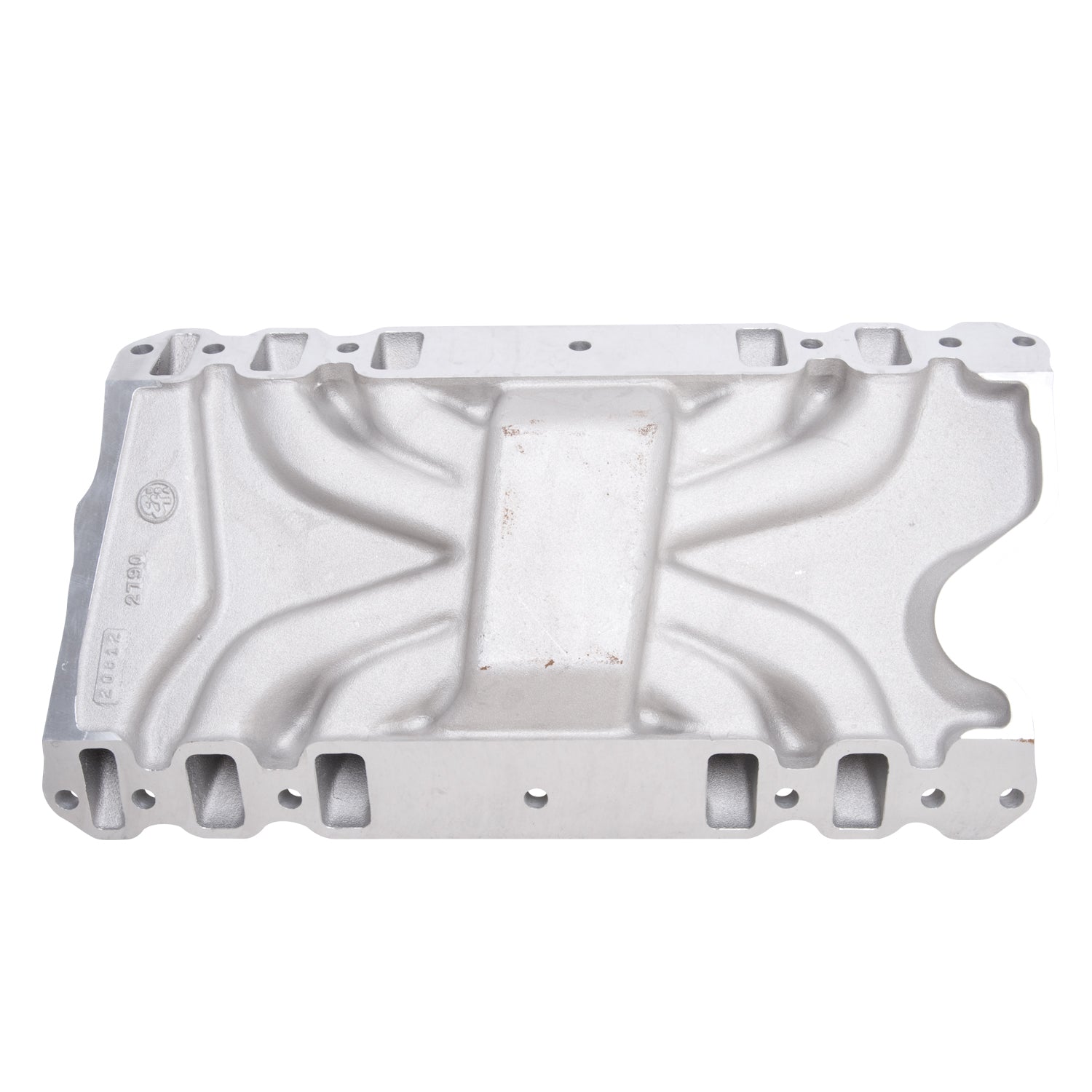

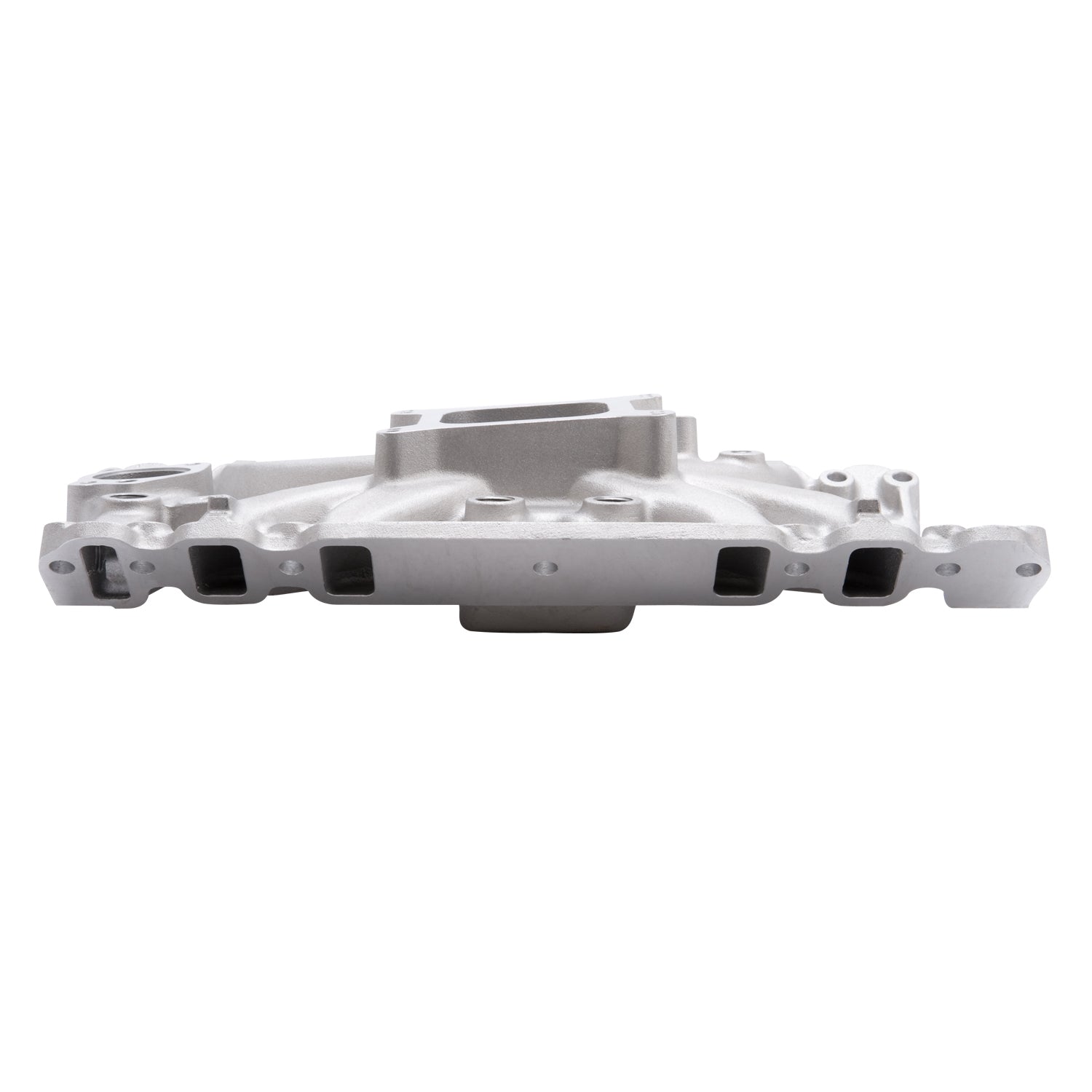

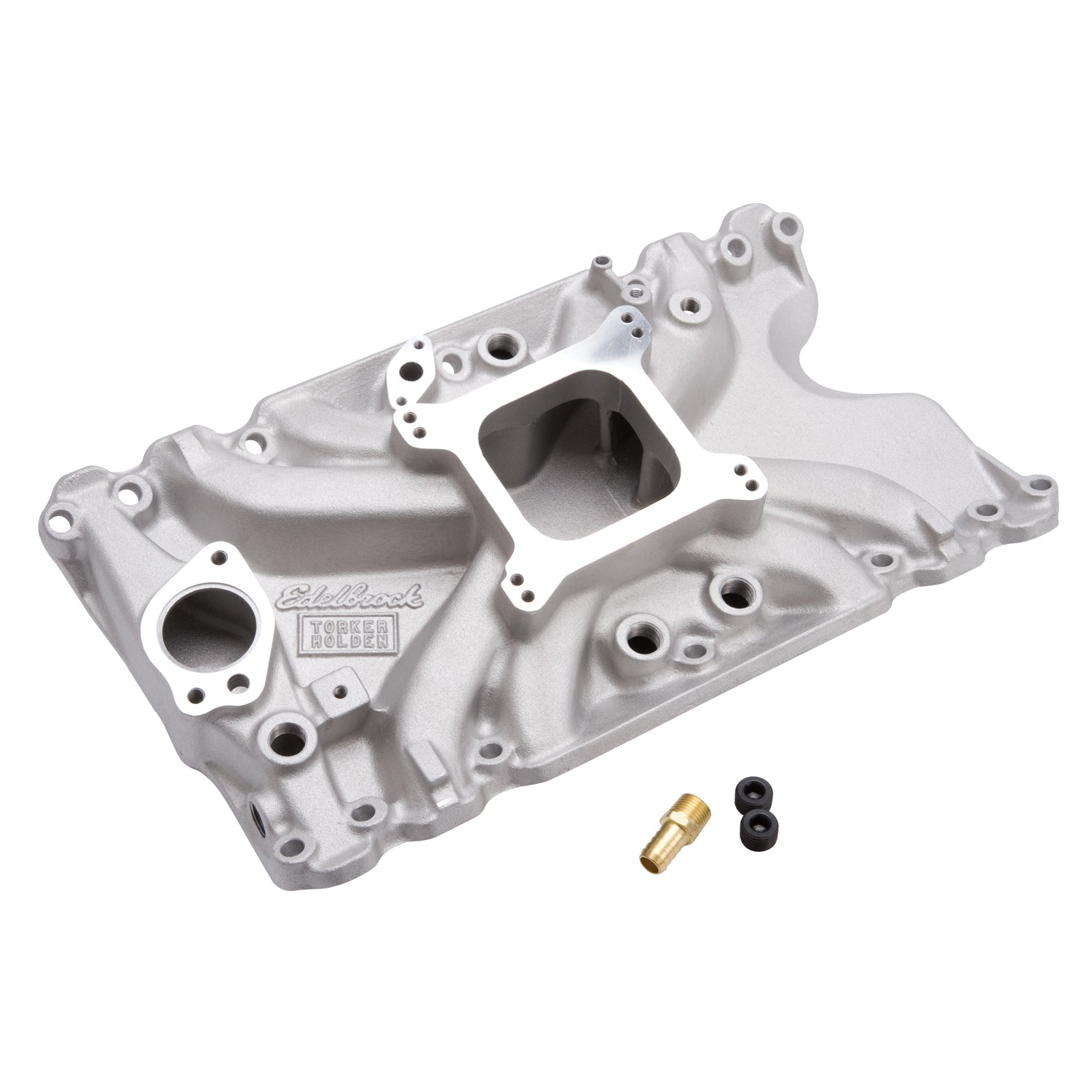

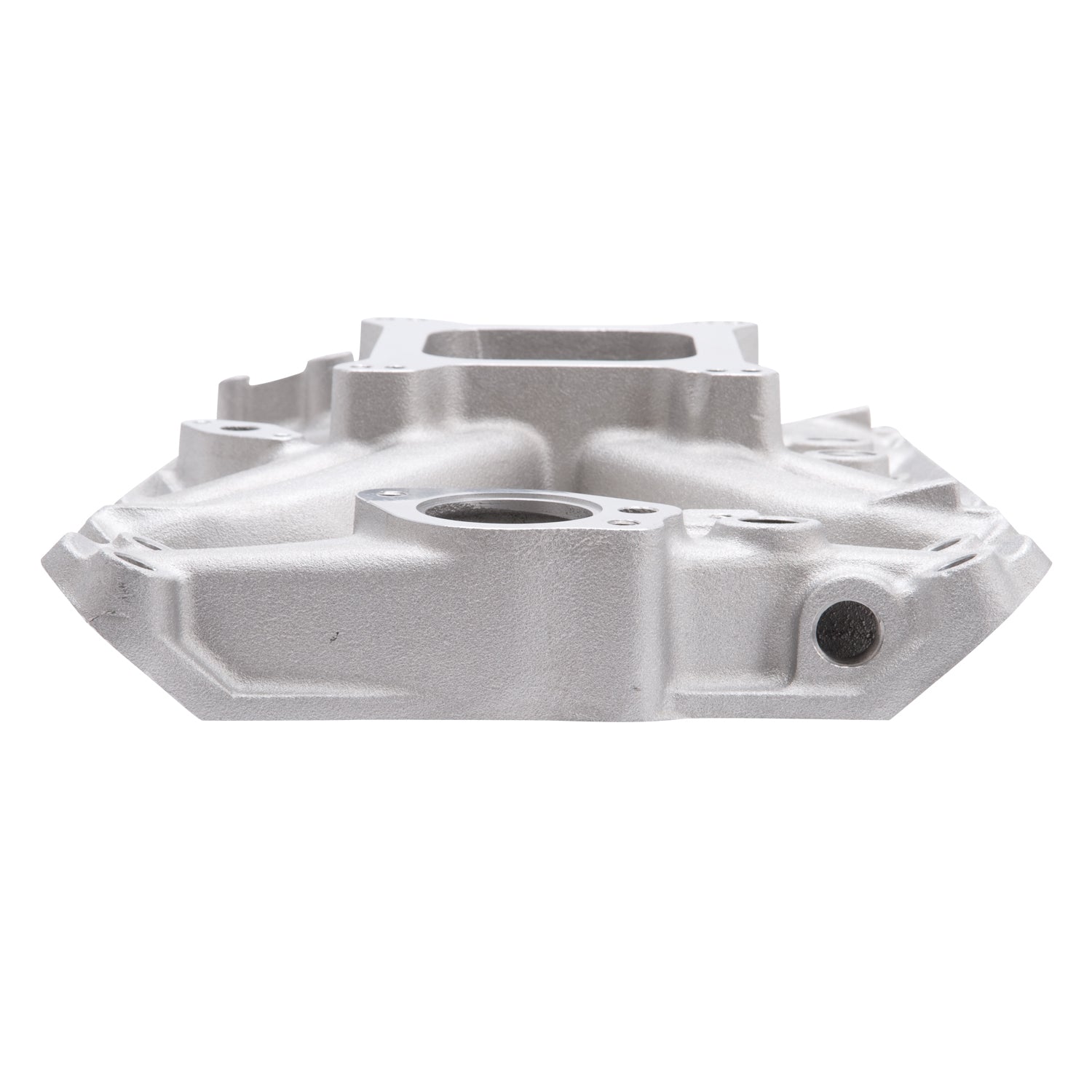

Manifold-Torker-Holden-308-Ci-V8-Satin
Manifold-Torker-Holden-308-Ci-V8-Satin
Manifold-Torker-Holden-308-Ci-V8-Satin
Manifold-Torker-Holden-308-Ci-V8-Satin
Manifold-Torker-Holden-308-Ci-V8-Satin
Manifold-Torker-Holden-308-Ci-V8-Satin
Manifold-Torker-Holden-308-Ci-V8-Satin
Click to zoom in
Load image into Gallery viewer, Manifold-Torker-Holden-308-Ci-V8-Satin
Load image into Gallery viewer, Manifold-Torker-Holden-308-Ci-V8-Satin
Load image into Gallery viewer, Manifold-Torker-Holden-308-Ci-V8-Satin
Load image into Gallery viewer, Manifold-Torker-Holden-308-Ci-V8-Satin
Load image into Gallery viewer, Manifold-Torker-Holden-308-Ci-V8-Satin
Load image into Gallery viewer, Manifold-Torker-Holden-308-Ci-V8-Satin
Load image into Gallery viewer, Manifold-Torker-Holden-308-Ci-V8-Satin

Have Questions?

(877) 743-7862 Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Performance matched parts

  • Nationwide Delivery

    Economy shipping

Edelbrock 2790 Torker Holden Intake Mnaifold 253-308

2 sold in last 8 days
Edelbrock
ds_BDVJ_2790
Engine Intake Manifold
$719.72
customers are viewing this product
Edelbrock 2790 Torker Holden Intake Mnaifold 253-308
Details

Edelbrock part #2790 Torker 308 intake manifold is designed for Holden 253-304-308 c.i.d. V8 engines with Red motor cylinder heads only (with single bolt in center of manifold), will not fit on Blue/Black cylinder head engines. The Torker 308 intake manifold is a single-plane design and is recommended for street high performance and race engines operating between the 2500 to 6500 rpm range where low-end torque is not required. Accepts square-bore carbs only.

Specifications:

Description_ABR Intake Mnfld
Description_ASM Holden:Small-Block VN:308 (5.0L)/355 (5.7)/383 (6.3L)
Description_DEF Engine Intake Manifold
Description_INV Torker Holden Intake Mnaifold 253-308
Description_EXT Edelbrock Torker 308 Intake Manifold for Small-Block Holden Engines is Designed for 253-304-308 C.I.D. V8's with Red Motor Cylinder Heads. Will Not Fit Black/Blue Cylinder Heads. Accepts a 4150-Style Square-Bore Carburetor. Non-EGR.
Description_LAB Torker Holden 253-308 w/ Red Motor Cylinder Heads
Description_TRA Do not use competition style intake gaskets for this street manifold. Due to material deterioration over time, internal leakage of vacuum, oil, and coolant may occur.
Description_TRA Recommended intake gasketHA265
Description_TRA Manifold height: A-2.95", B-4.50"
Description_TRA Carb pad height: 3.73"
Description_TRA Carb recommendations: OEM 4-Bbl, Edelbrock AVS2 or Performer Series 600-650 cfm
Description_TRA Port exit dimensions: 1.03" x 1.88"
Description_TRA Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
Description_TRA Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Description_MKT Edelbrock part #2790 Torker 308 intake manifold is designed for Holden 253-304-308 c.i.d. V8 engines with Red motor cylinder heads only (with single bolt in center of manifold), will not fit on Blue/Black cylinder head engines. The Torker 308 intake manifold is a single-plane design and is recommended for street high performance and race engines operating between the 2500 to 6500 rpm range where low-end torque is not required. Accepts square-bore carbs only.
RGL WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Front Maximum Height 2.950
Vehicle Model Holden
Gasket Or Seal Included No
Finish Satin
Center Maximum Height 3.730
Basic Operating RPM Range 2500-6500
Rear Maximum Height 4.500
Flange Type 4150
Series Torker/Torker II
EGR Port No
Material Aluminum
Single Or Dual Plane Type Single
Grade Type Performance
CNC Ported No
Length 8.0000
Width 15.0000
Height 24.0000
Weight 19.0000
