| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Small-Block Gen I Vortec:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |

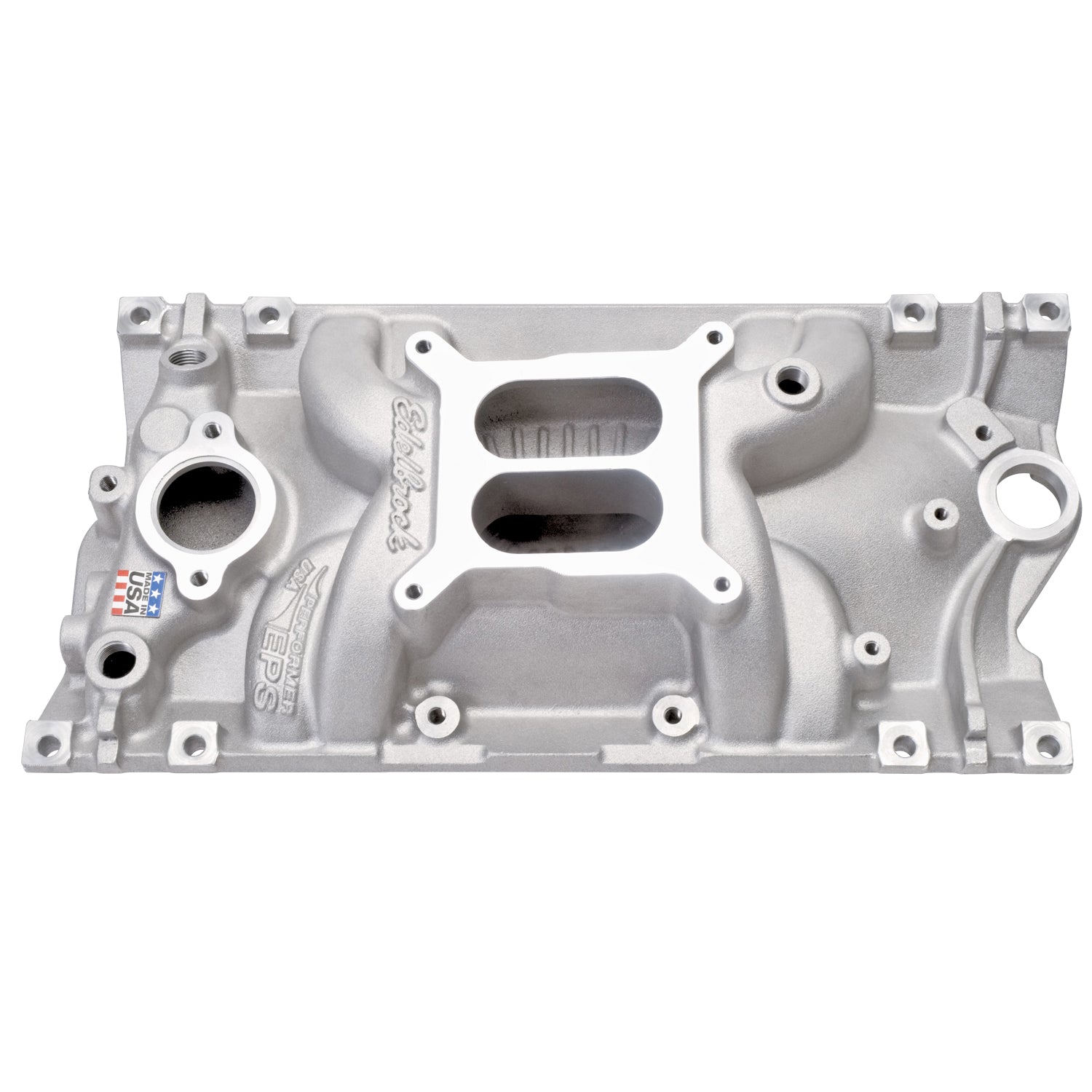

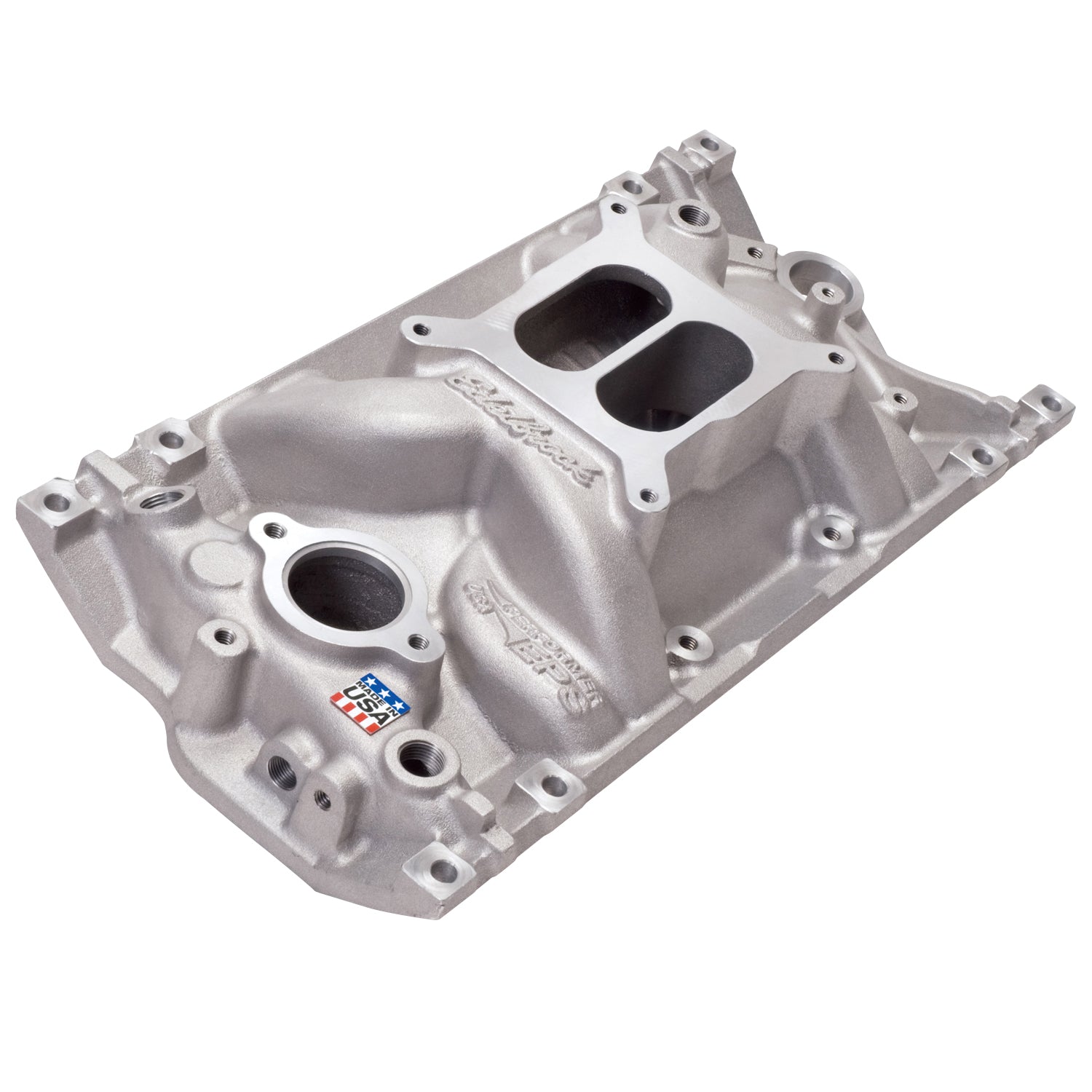

Edelbrock Performer EPS Vortec Intake Manifold for Small-Block Chevrolet 262-400 V8's with E-Tec or Vortec Cylinder Heads. Accepts a 4150-Style Square-Bore Carburetor. Non-EGR. |
| Description_INV |
Performer EPS Vortec SBC Intake Manfld |
| Description_MKT |
Edelbrock part #2716 Performer EPS Vortec intake manifold is now available for small-block Chevys with Vortec or Edelbrock E-Tec cylinder heads, the Performer EPS dual-plane manifold is optimized to deliver superior performance with Edelbrock square-bore Performer Series or Thunder Series AVS carburetors. The runner design is "tuned" for peak torque around 3500 rpm on a 350-inch engine and it's ideal for power from off-idle to 5500 rpm. Dyno tests showed gains averaging 5+ ft-lbs. of torque from 3000 to 4500 rpm for more performance where you need it most. Match with a dependable Edelbrock square-bore carburetor for maximum performance gains. Will not fit under stock Corvette hood. |
| Description_TRA |
Manifold ht: A-3.87", B-5.28 |
| Description_TRA |
Carb pad height: 4.57" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm |
| Description_TRA |
Port exit dimensions: 2.05" tall with slanted side walls. |
| Description_TRA |
Recommended intake gasket: Edelbrock #7235 |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA |
NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA |
DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Will not fit under stock Corvette hood. |
| Description_TRA |
Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_LAB |
Performer EPS Vortec Intake Manifold for Small-Block Chevy |
| Basic Operating RPM Range |
Idle-5500 |
| Gasket Or Seal Included |
No |
| Center Maximum Height |
3.200 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Front Maximum Height |
2.500 |
| Series |
Performer |
| Material |
Aluminum |
| Grade Type |
Performance |
| Finish |
Satin |
| CNC Ported |
No |
| Single Or Dual Plane Type |
Dual |
| Rear Maximum Height |
3.900 |
| Vehicle Model |
Chevrolet |
| Flange Type |
4150 |
| EGR Port |
No |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
19.0000 |
