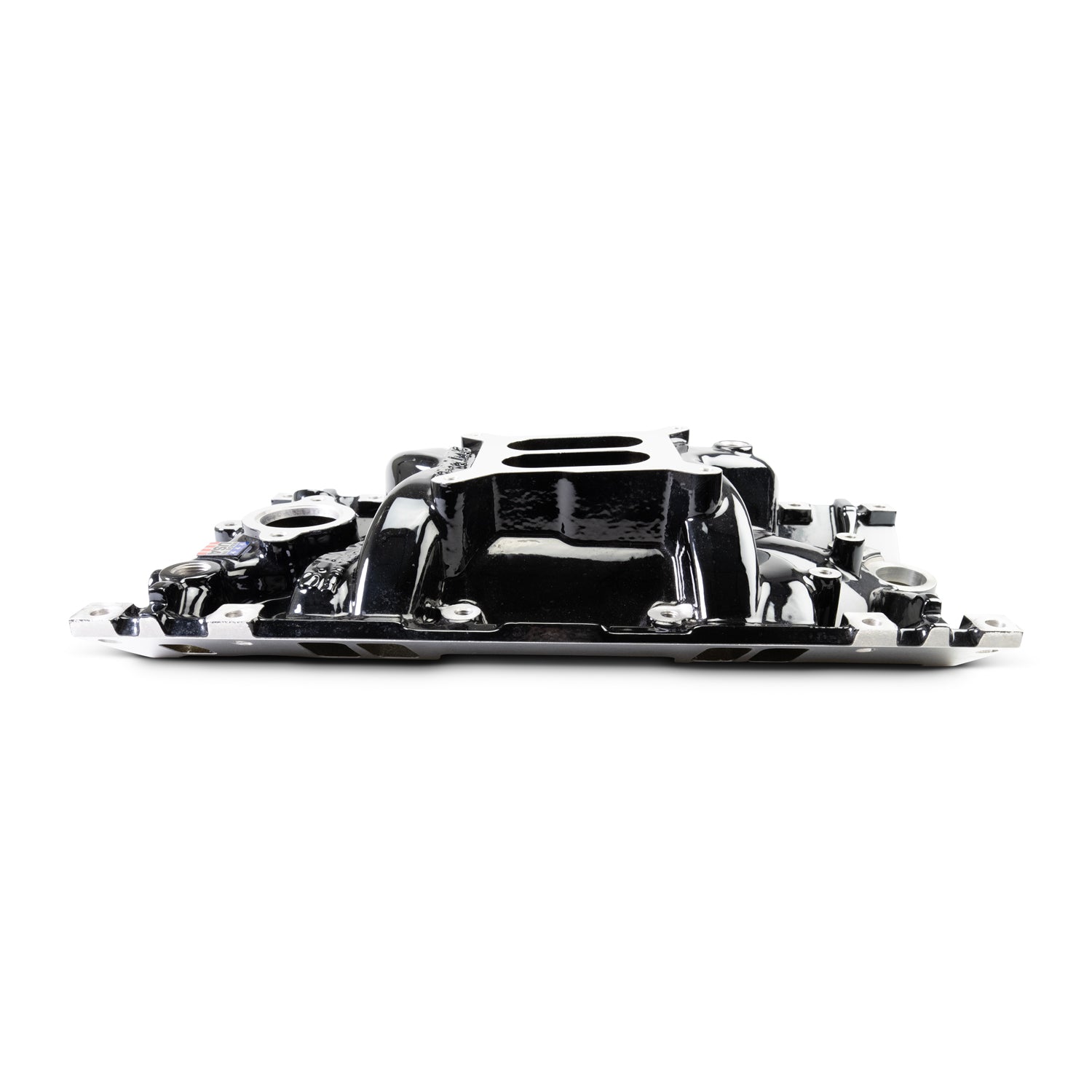

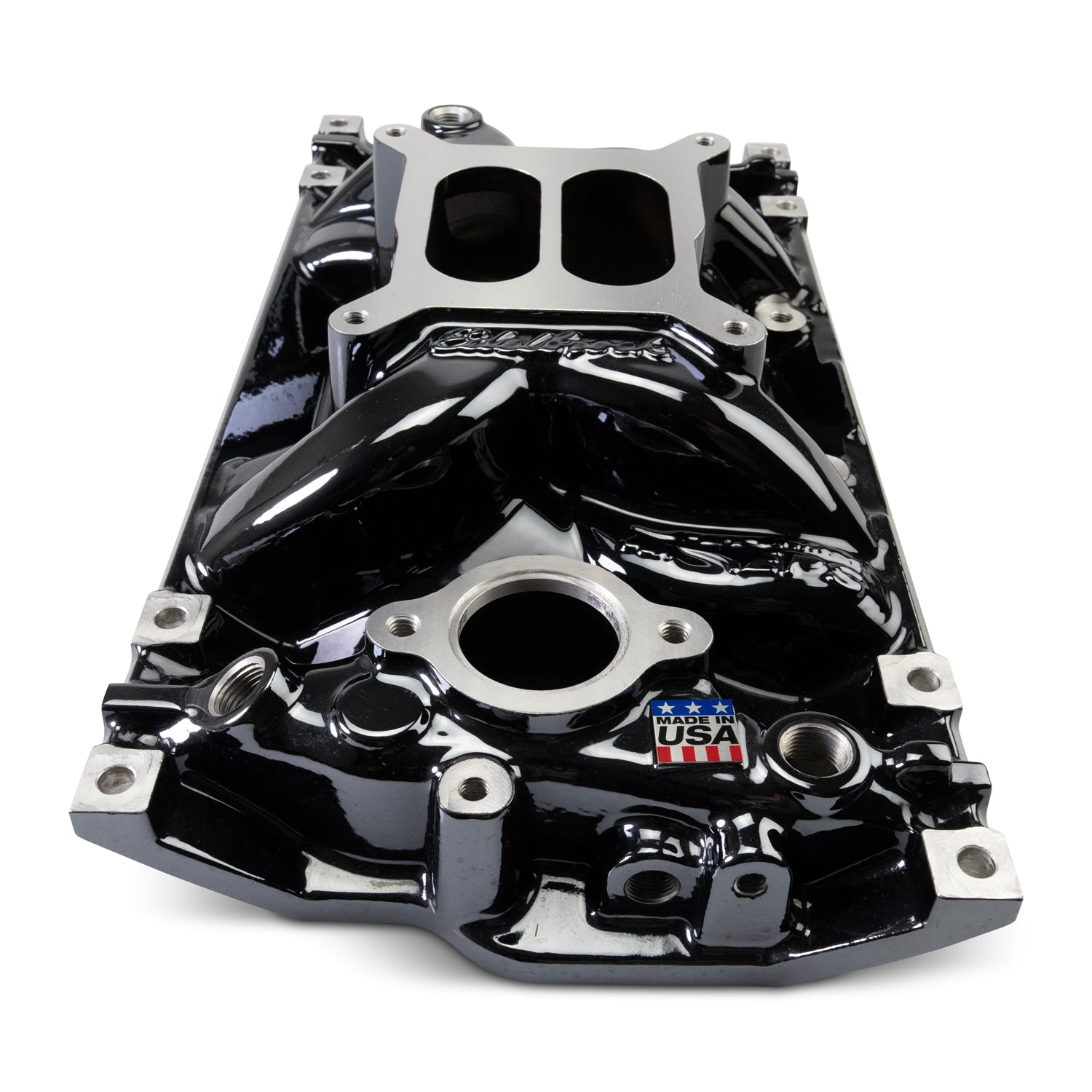

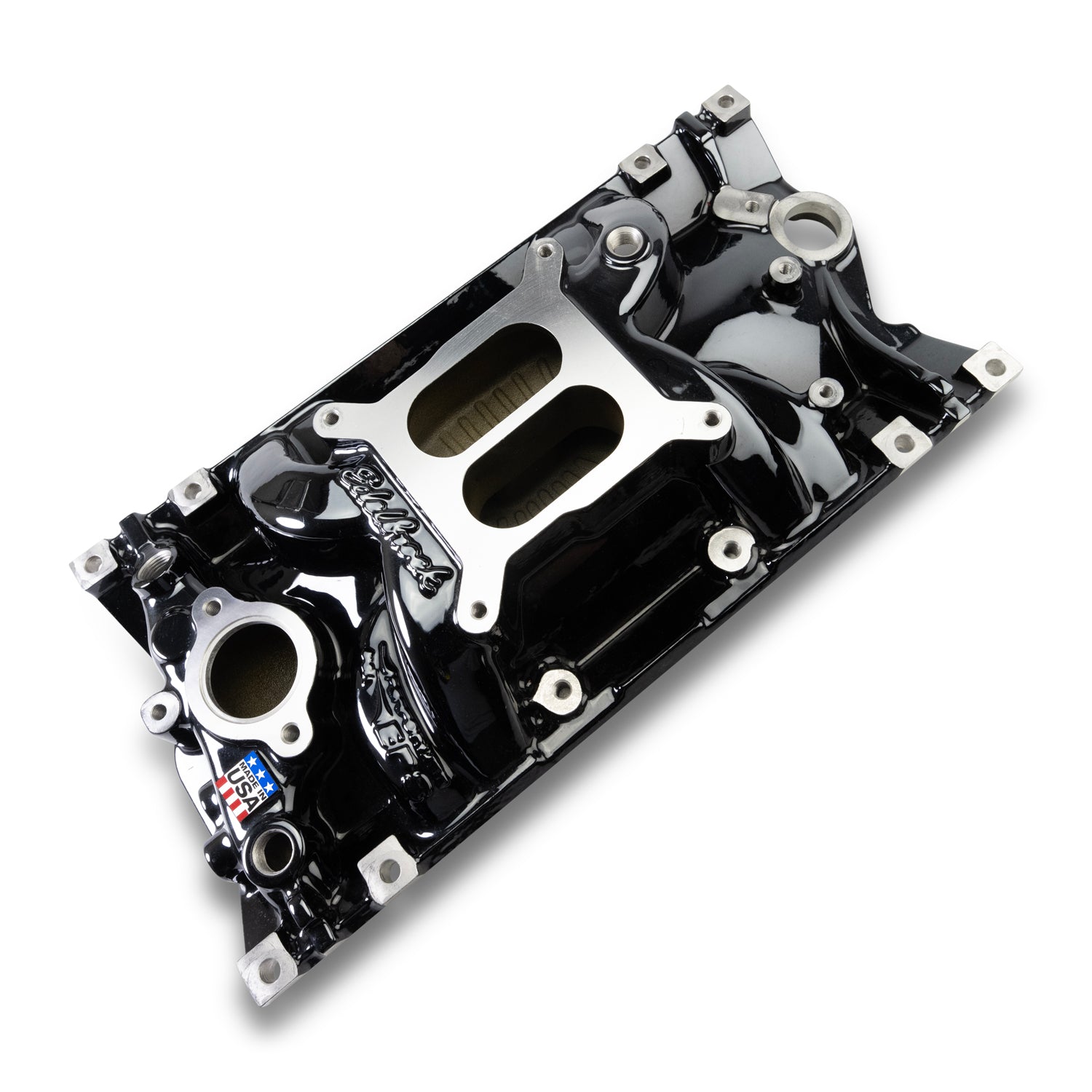

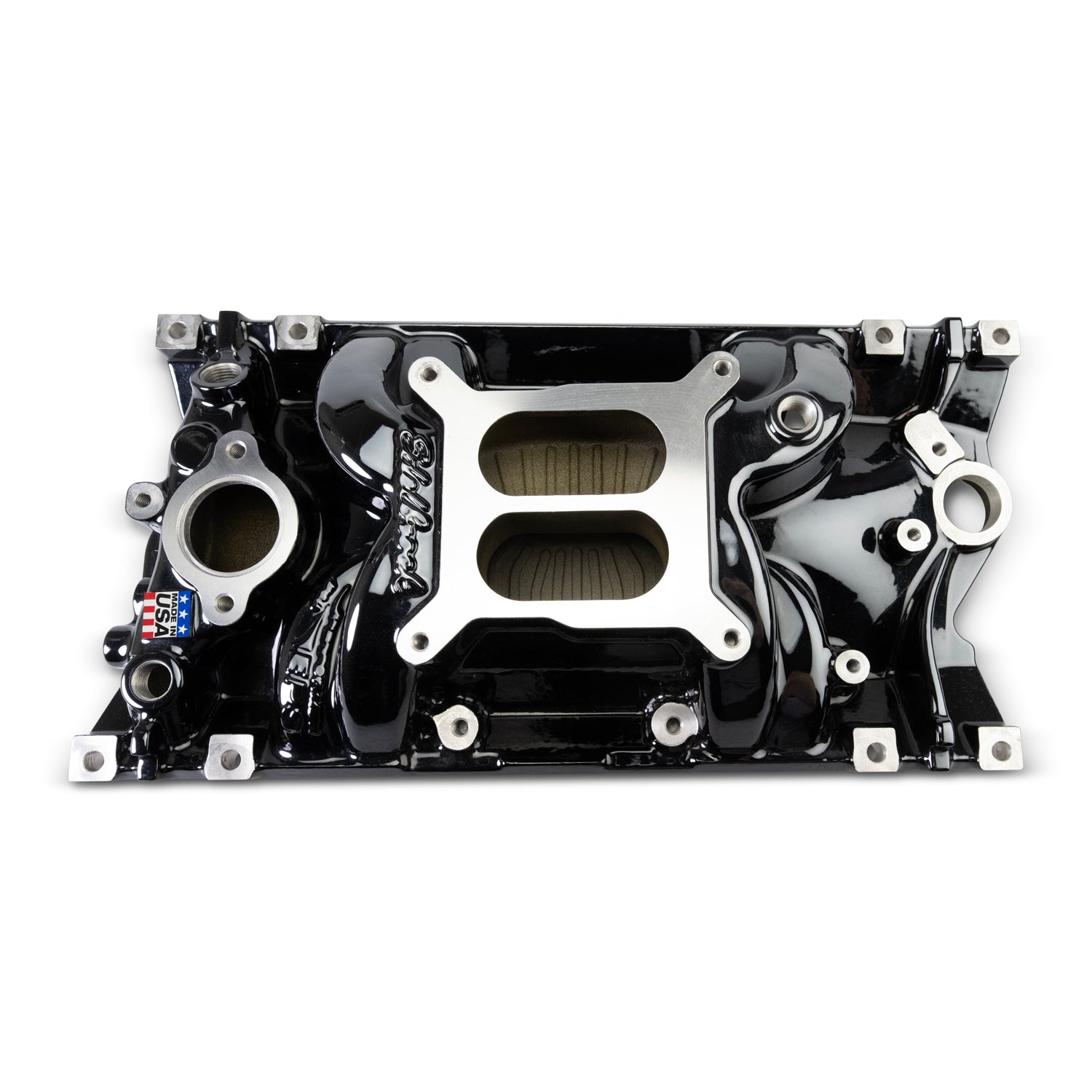

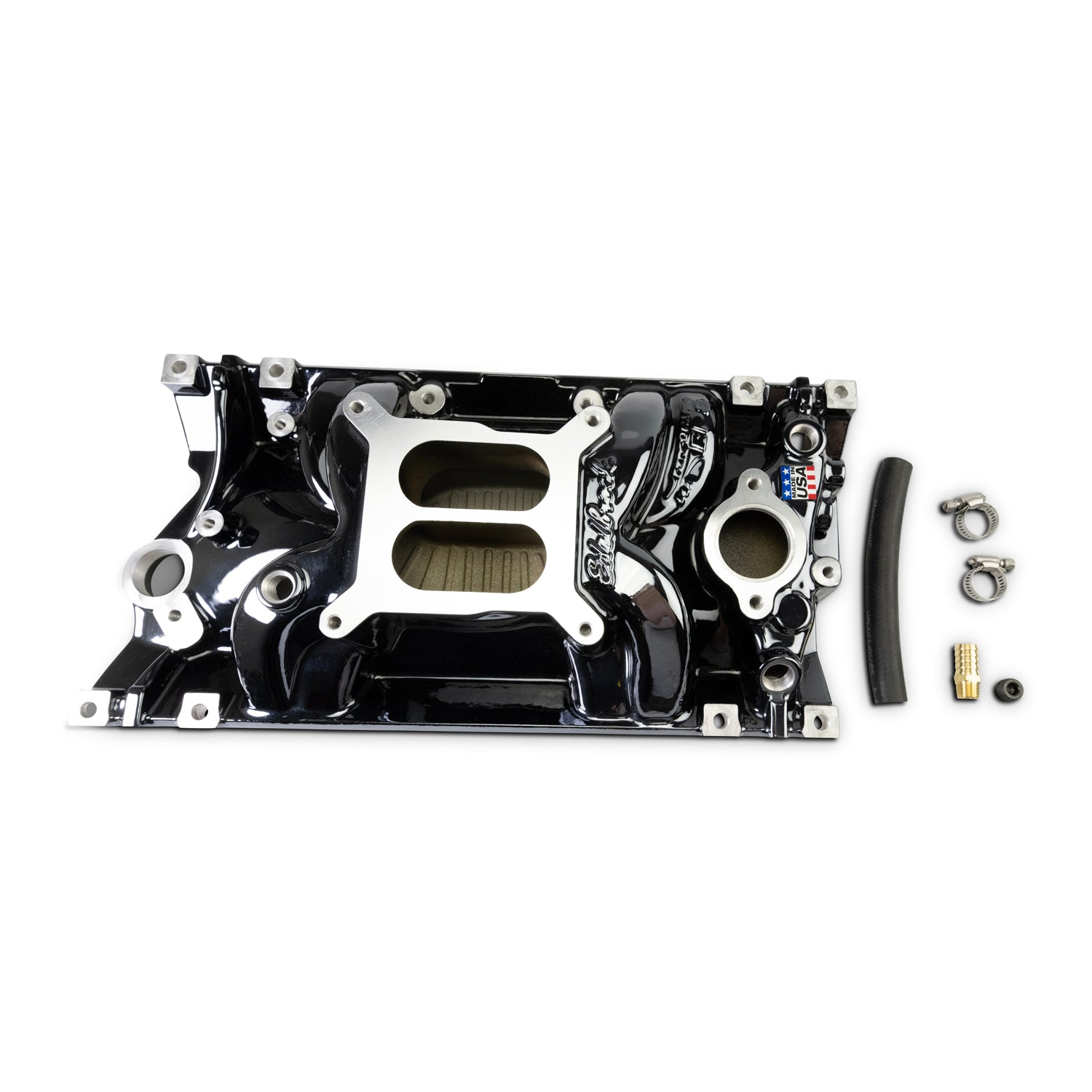

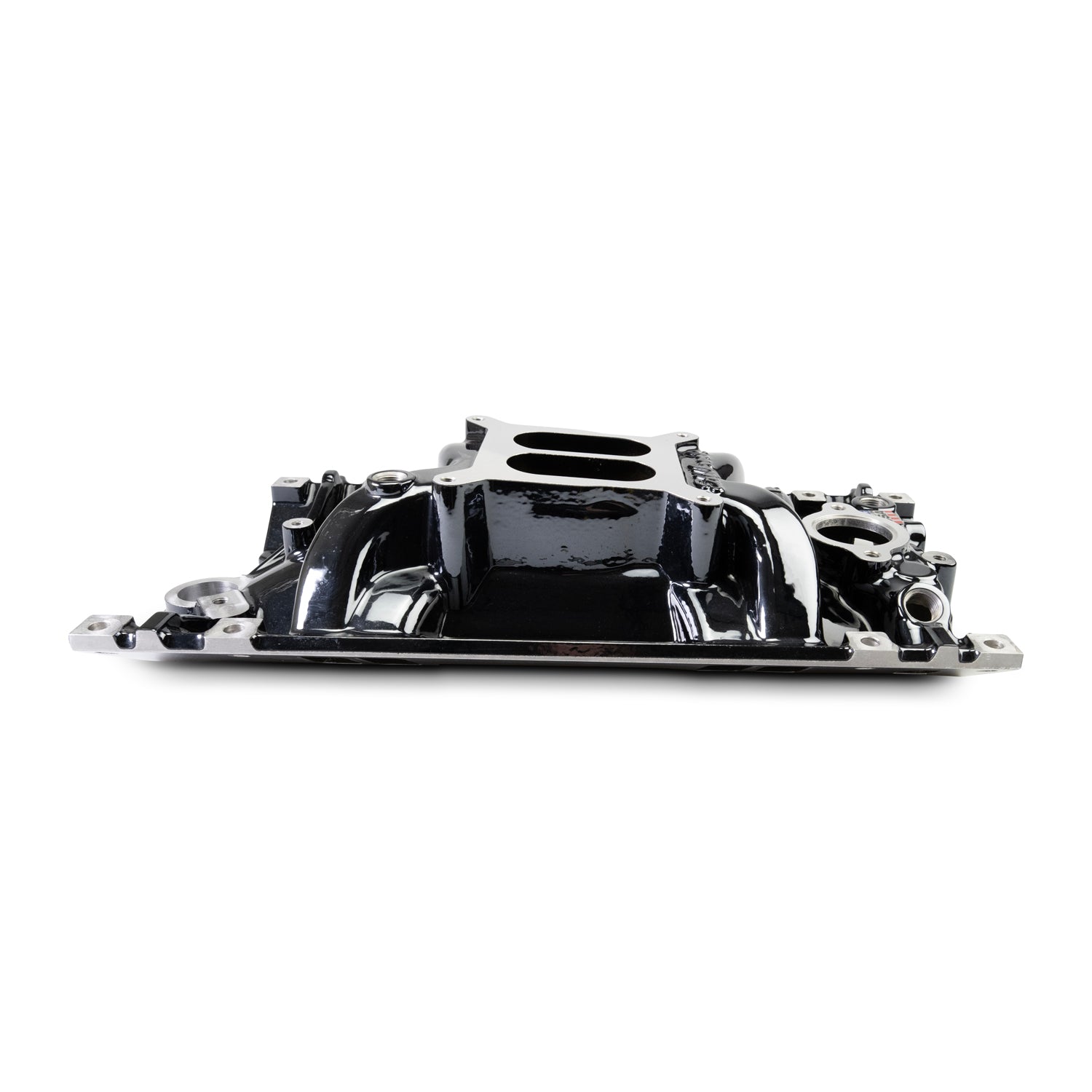

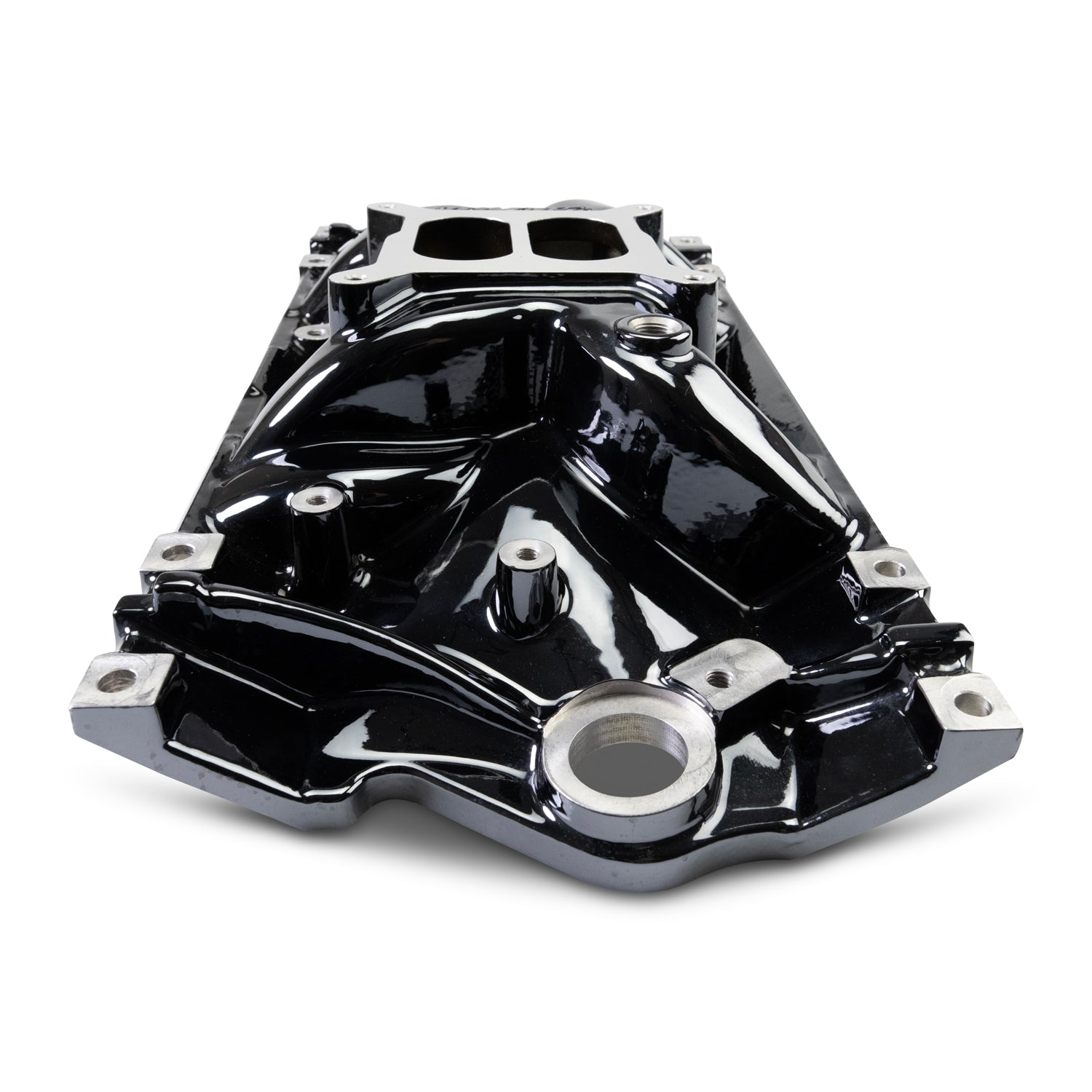

Edelbrock part #2716-BP Performer EPS intake manifold is designed for 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads. The Performer EPS dual-plane manifold is optimized to deliver superior performance with Edelbrock square-bore Performer Series or AVS2 series carburetors. The runner design is "tuned" for peak torque at 3500 rpm on a 350-inch engine and is ideal for power from off-idle to 5500 rpm. Dyno tests showed gains averaging 5+ ft-lbs. of torque from 3000 to 4500 rpm for more performance where you need it most. Match with a dependable Edelbrock square-bore carburetor for maximum performance gains. The PN 2716-BP version comes with a beautiful reflective Black Plasma finish that is durable and easy to maintain. The Plasma finishes are applied by a fully automated 7 stage prewash and 4 stage finish. A durable clear powder coat finishes the process.
Specifications:
Description_ABR |
Intake Mnfld |
Description_ASM |
Chevy Small-Block Vortec |
Description_ASM |
Chevy Small-Block Vortec |
Description_DES |
Edelbrock Perf EPS Manifold for Small-Block Chevy Vortec, Black Plasma Finish |
Description_DEF |
Engine Intake Manifold |
Description_EXT |
Edelbrock Part #2716-BP Performer EPS intake manifold is designed for Small-Block Chevy with Vortec or E-tec style cylinder heads. Perfect for any builder looking for optimum idle-5500 rpm performance with a beautiful Black Plasma finish. |
Description_INV |
Manifold |
Description_INV |
SB Chevy Perfmr Black Plasma |
Description_MKT |
Edelbrock part #2716-BP Performer EPS intake manifold is designed for 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads. The Performer EPS dual-plane manifold is optimized to deliver superior performance with Edelbrock square-bore Performer Series or AVS2 series carburetors. The runner design is "tuned" for peak torque at 3500 rpm on a 350-inch engine and is ideal for power from off-idle to 5500 rpm. Dyno tests showed gains averaging 5+ ft-lbs. of torque from 3000 to 4500 rpm for more performance where you need it most. Match with a dependable Edelbrock square-bore carburetor for maximum performance gains. The PN 2716-BP version comes with a beautiful reflective Black Plasma finish that is durable and easy to maintain. The Plasma finishes are applied by a fully automated 7 stage prewash and 4 stage finish. A durable clear powder coat finishes the process. |
Description_LAB |
Edelbrock Perf EPS Manifold for Small-Block Chevy Vortec, Black Plasma Finish |
Description_SHP |
None |
Description_TRA |
Manifold ht: A-3.95", B-5.02" |
Description_TRA |
Carb pad height: 4.52" |
Description_TRA |
Carb recommendations: Edelbrock AVS2, Performer Series. Port exit dimensions: 2.05" tall with slanted side walls |
Description_TRA |
Recommended intake gasket: Edelbrock #7235 or GM #89017465 |
Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
Description_TRA |
Use #8516 Edelbrock bolt kit which includes hardened washers to prevent galling of the alumnum manifold |
Description_TRA |
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. Will not fit under stock Corvette hood. |
Description_TRA |
Stock brackets will require modification to fit the upright manifold bolt holes. Use Edelbrock Vortec throttle bracket #8032. |
Basic Operating RPM Range |
Idle-5500 |
Grade Type |
Performance |
Series |
Performer |
Finish |
Black Plasma |
RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
Flange Type |
4150 |
EGR Port |
No |
Vehicle Model |
Chevrolet |
Length |
8.0000 |
Width |
15.0000 |
Height |
24.0000 |
Weight |
20.0000 |
