| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Small-Block Gen I:265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Performer EPS Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_INV |
Black Performer EPS SBC Intake Manifold |
| Description_LAB |
Performer EPS Intake Manifold for 1955-86 Small-Block Chevy, Black Finish |
| Description_MKT |

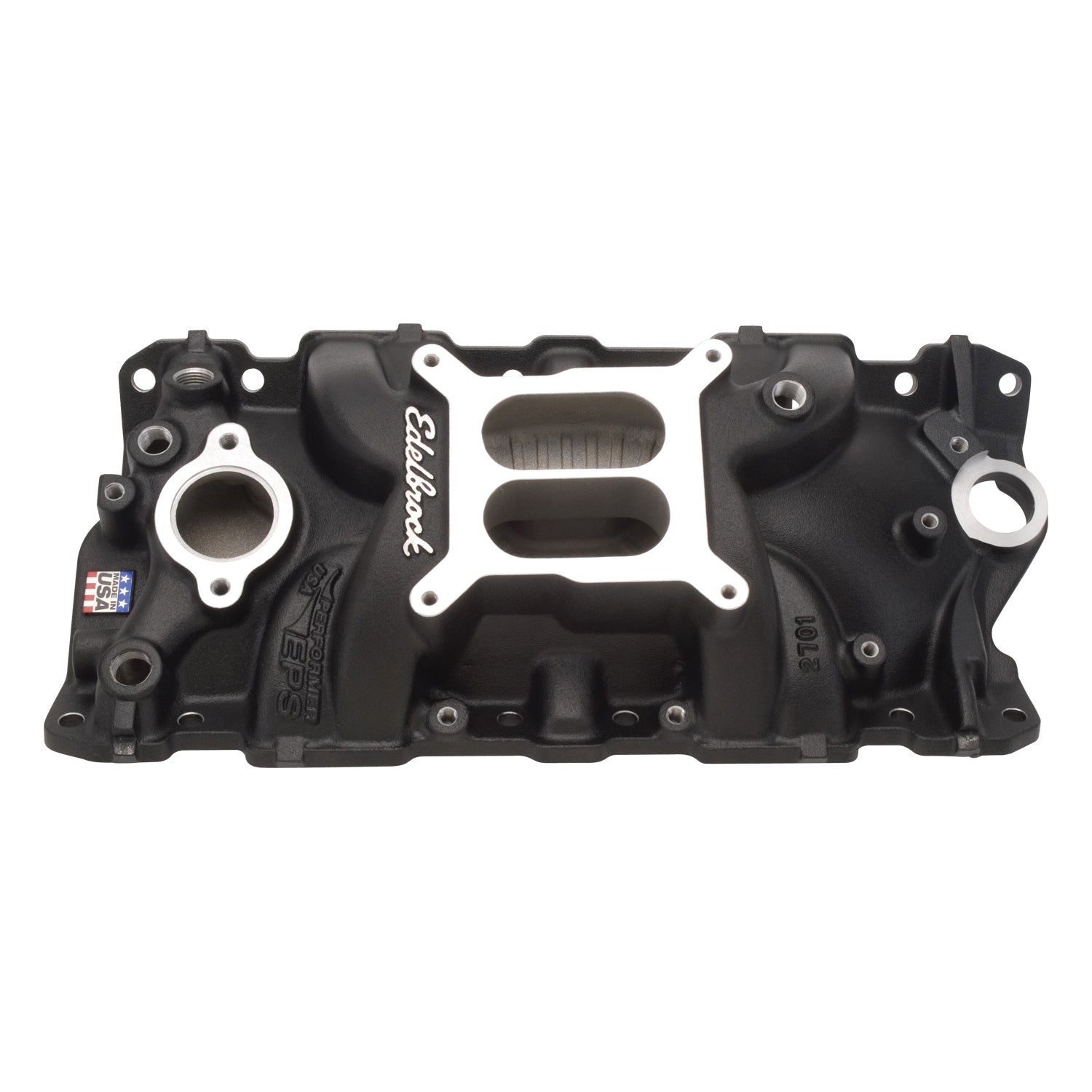

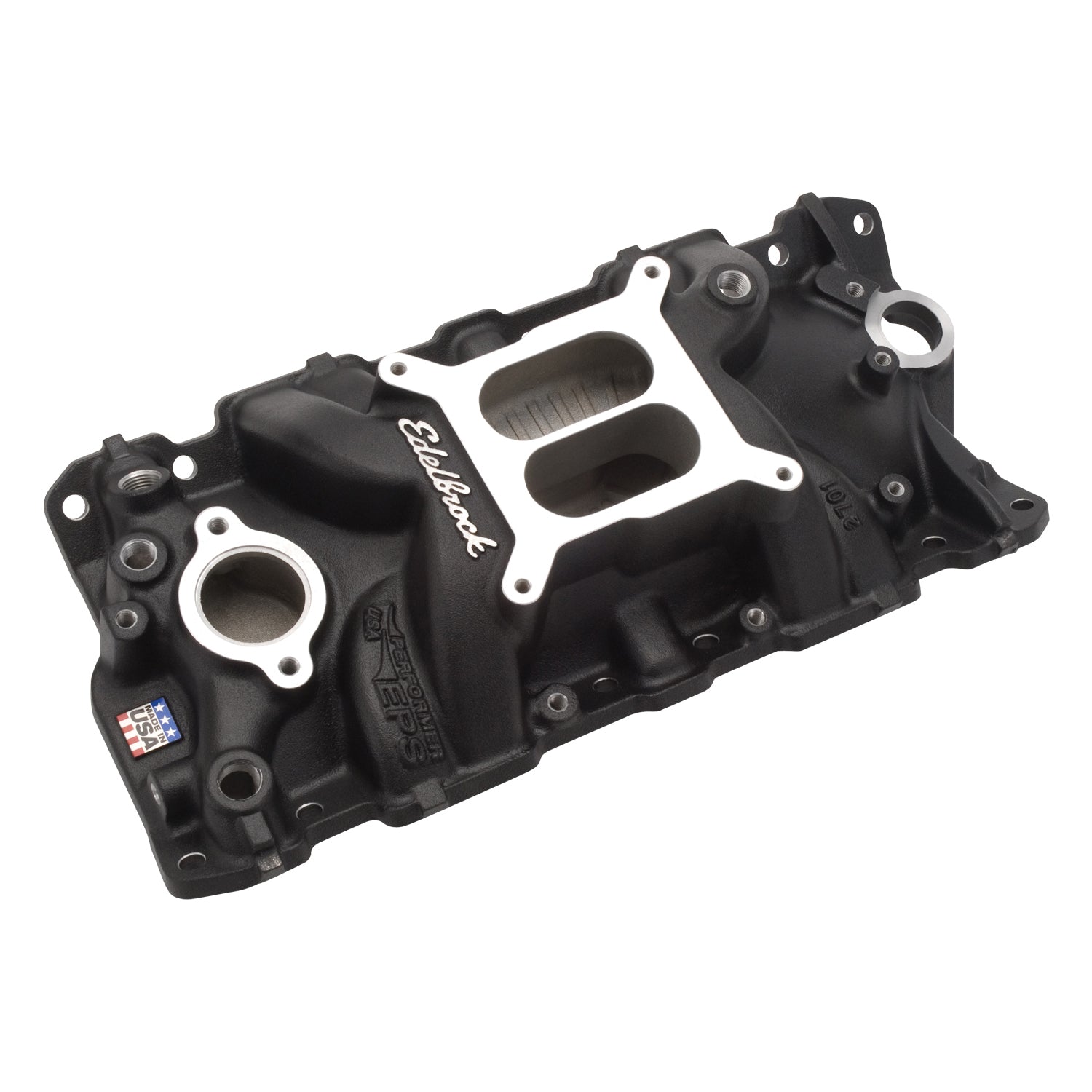

Edelbrock part #27013 Performer EPS intake manifold is designed for 1986 and earlier 262-400 cubic-inch Chevys. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response. With that the Edelbrock Performer EPS intake manifold has a runner design that's "tuned" for peak torque at 3500 rpm on a 350-inch engine making it ideal for power from off-idle to 5500 rpm. Dyno tests showed gains of 5 hp and 9 ft-lbs. of torque over the Edelbrock Performer manifold #2101 on a 350 Chevy. From 3000 to 4500 rpm, the power increases averaged 5+ ft-lbs. of torque for more performance where you need it most. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look. |
| Description_TRA |
Manifold ht: A-3.74", B-4.80" |
| Description_TRA |
Carb pad height: 4.27" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm. |
| Description_TRA |
Port exit dimensions: 1.15" x 1.87". |
| Description_TRA |
Recommended intake gasket: Edelbrock #7201. |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA |
NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA |
DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Will not fit under stock Corvette hood. |
| Description_TRA |
Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Rear Maximum Height |
4.800 |
| Finish |
Black Powder Coated |
| Series |
Performer |
| EGR Port |
No |
| Grade Type |
Performance |
| CNC Ported |
No |
| Flange Type |
4150 |
| Single Or Dual Plane Type |
Dual |
| Gasket Or Seal Included |
No |
| Center Maximum Height |
4.270 |
| Front Maximum Height |
3.740 |
| Material |
Aluminum |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Basic Operating RPM Range |
Idle-5500 |
| Vehicle Model |
Chevrolet |
| Length |
6.0000 |
| Width |
11.0000 |
| Height |
23.0000 |
| Weight |
17.0000 |
