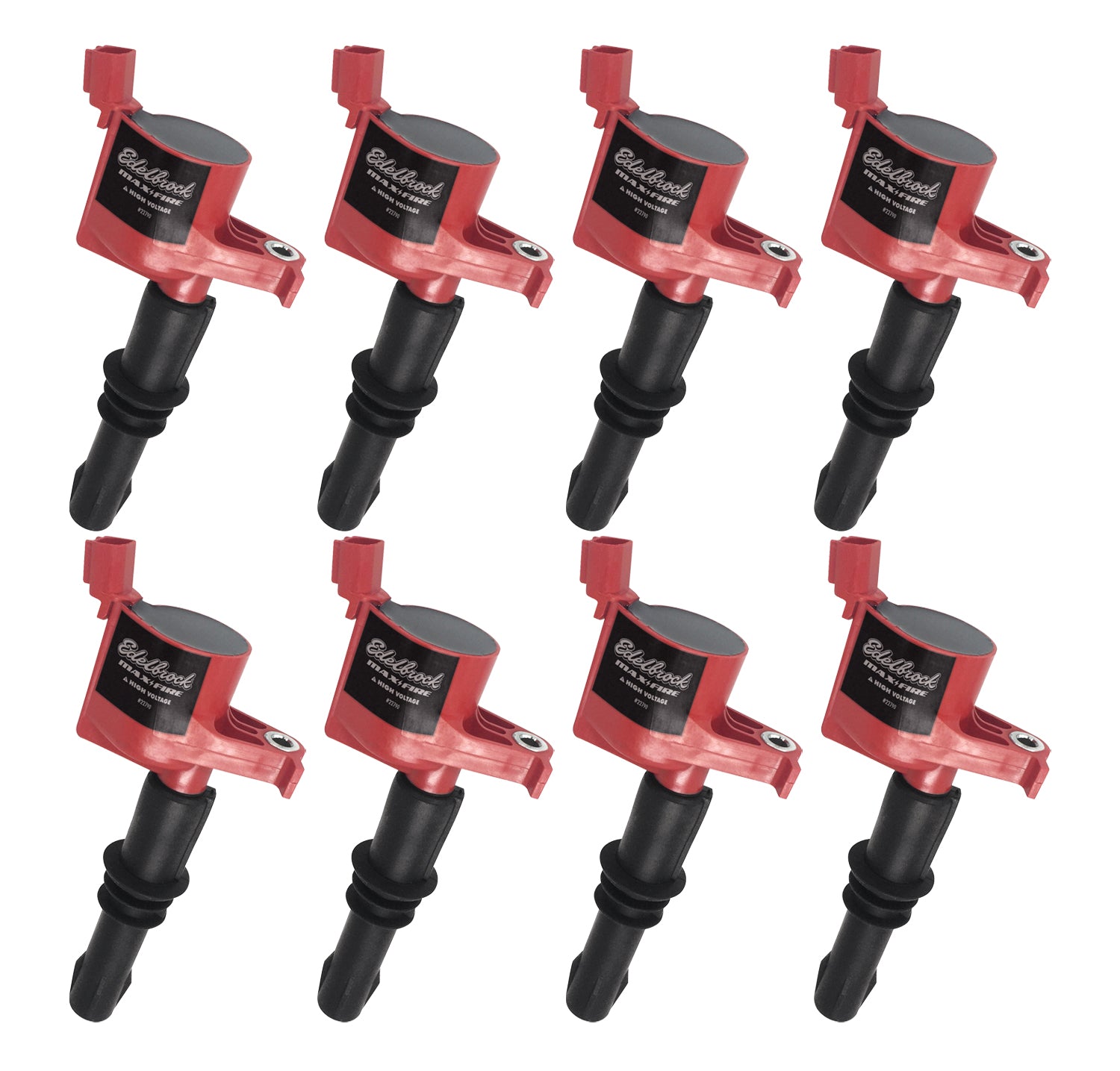

Edelbrock Coil Pack #22791 is a set of eight coil-on-plug coils designed as direct performance replacements for the OEM coils on 2008-18 Ford 4.6L-5.4L V8 engines. This coil pack can also be used to replace the OEM coils on 6.8L Triton V10 engines however you must add two additional single coils (#22790 x 2) to replace all 10 of the 6.8L coils. Each #22790 coil and #22791 coil pack feature advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion.
Specifications:
| Description_ABR |
Igntion Coil |
| Description_ASM |
Ford 4.6L-5.4L V8 and 6.8L V10 2008-18 |
| Description_DEF |
Ignition Coil Set |
| Description_EXT |
Edelbrock Part #22791 Coil on Plug |
| Description_EXT |
Ford V8 4.6L-5.4L and 6.8L V10 2008-18, 3-Valve Engine, Set of 8 |
| Description_DES |
Coil #22791 is a direct performance replacement coil pack for Ford |
| Description_INV |
Ford Ignition Coil On Plug Set #22791 |
| Description_LAB |
Ignition Coil #22791 2008-18 Ford V8 4.6L-5.4L, V10 6.8L, Set of 8 |
| Description_MKT |
Edelbrock Coil Pack #22791 is a set of eight coil-on-plug coils designed as direct performance replacements for the OEM coils on 2008-18 Ford 4.6L-5.4L V8 engines. This coil pack can also be used to replace the OEM coils on 6.8L Triton V10 engines however you must add two additional single coils (#22790 x 2) to replace all 10 of the 6.8L coils. Each #22790 coil and #22791 coil pack feature advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion. |
| Description_TRA |
75:1 Turn Ratio. Fits later model 3-valve engines with 12mm spark plugs. Coils feature a 4.5 in. long brown boot and is marked with 8L3E on top of the coil. |
| Coil Shape |
Round |
| Coil Wire Included |
No |
| Oil Filled |
No |
| Coil Type |
Coil Pack |
| Terminal Type |
Blade Pin |
| Connector Gender |
Female |
| Voltage |
Maximum 21000 |
| Primary Resistance |
0.600 |
| Terminal Gender |
Female |
| Quantity |
Set of 8 |
| Length |
(Long Brown Boot) 4.5 |
| Terminal Quantity |
1 |
| Requires External Resistor |
No |
| Mounting Bracket Included |
No |
| Recommended Use |
For Models With 3 Valves and Use 12mm Spark Plugs |
| Height |
(Long Brown Boot) 4.5 |
| Secondary Resistance |
6.01K |
| Mount Type |
Plug |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Length |
8.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
3.0000 |
