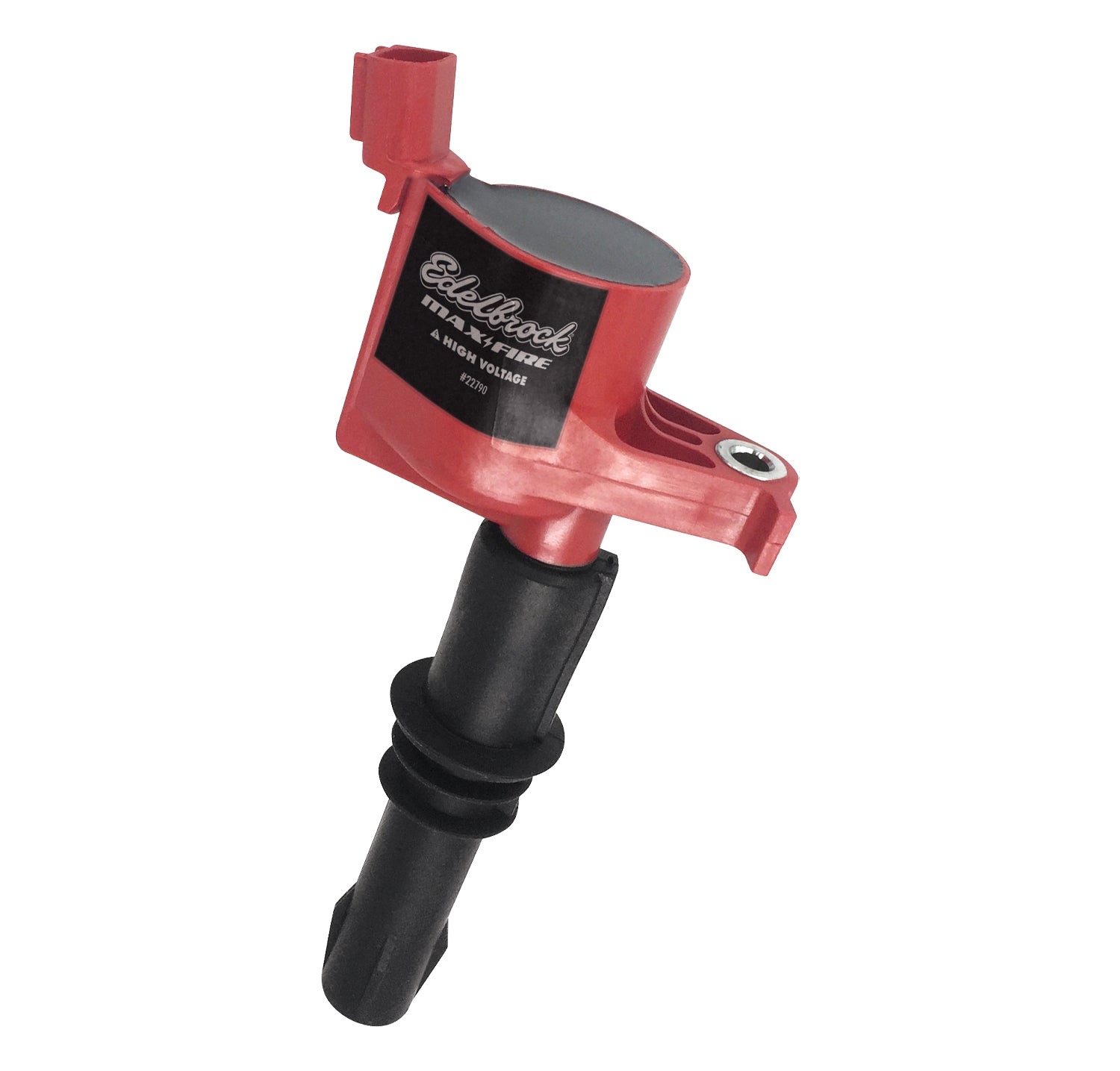

Edelbrock Coil #22790 is a single coil-on-plug coil designed as a direct performance replacement for the OEM coil on 2008-18 Ford 4.6L-5.4L V8 engines and the 6.8L Triton V10 engine. Each #22790 coil features advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion. This coil is available in a set of eight under #22791. For the Triton V10 engine, order one #22791 coil pack and two #22790 single coils for a set of 10.
Specifications:
| Description_ABR |
Igntion Coil |
| Description_ASM |
Ford V8 4.6L-5.4L and 6.8L V10 2008-18 |
| Description_DEF |
Ignition Coil |
| Description_EXT |
Edelbrock Part #22790 Coil on Plug |
| Description_EXT |
Ford V8 4.6L-5.4L and 6.8L V10 2008-18, 3-Valve Engine |
| Description_DES |
Coil #22790 is a direct performance replacement coil for Ford |
| Description_MKT |
Edelbrock Coil #22790 is a single coil-on-plug coil designed as a direct performance replacement for the OEM coil on 2008-18 Ford 4.6L-5.4L V8 engines and the 6.8L Triton V10 engine. Each #22790 coil features advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion. This coil is available in a set of eight under #22791. For the Triton V10 engine, order one #22791 coil pack and two #22790 single coils for a set of 10. |
| Description_LAB |
Ignition Coil #22790 2008-18 Ford V8 4.6L-5.4L, V10 6.8L, Sold Individually |
| Description_INV |
Ford Ignition Coil On Plug 22790 |
| Description_TRA |
75:1 Turn Ratio. Fits later model 3-valve engines with 12mm spark plugs. Coils feature a 4.5 in. long brown boot and is marked with 8L3E on top of the coil. |
| Secondary Resistance |
6.01K |
| Oil Filled |
No |
| Terminal Quantity |
1 |
| Recommended Use |
For Models With 3 Valves and Use 12mm Spark Plugs |
| Terminal Type |
Blade Pin |
| Coil Shape |
Round |
| Connector Gender |
Female |
| Height |
(Long Brown Boot) 4.5 |
| Primary Resistance |
0.600 |
| Requires External Resistor |
No |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Terminal Gender |
Female |
| Coil Wire Included |
No |
| Quantity |
Sold Individually |
| Coil Type |
Coil Pack |
| Length |
(Long Brown Boot) 4.5 |
| Mounting Bracket Included |
No |
| Mount Type |
Plug |
| Voltage |
Maximum 21000 |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
8.0000 |
| Weight |
1.0000 |
