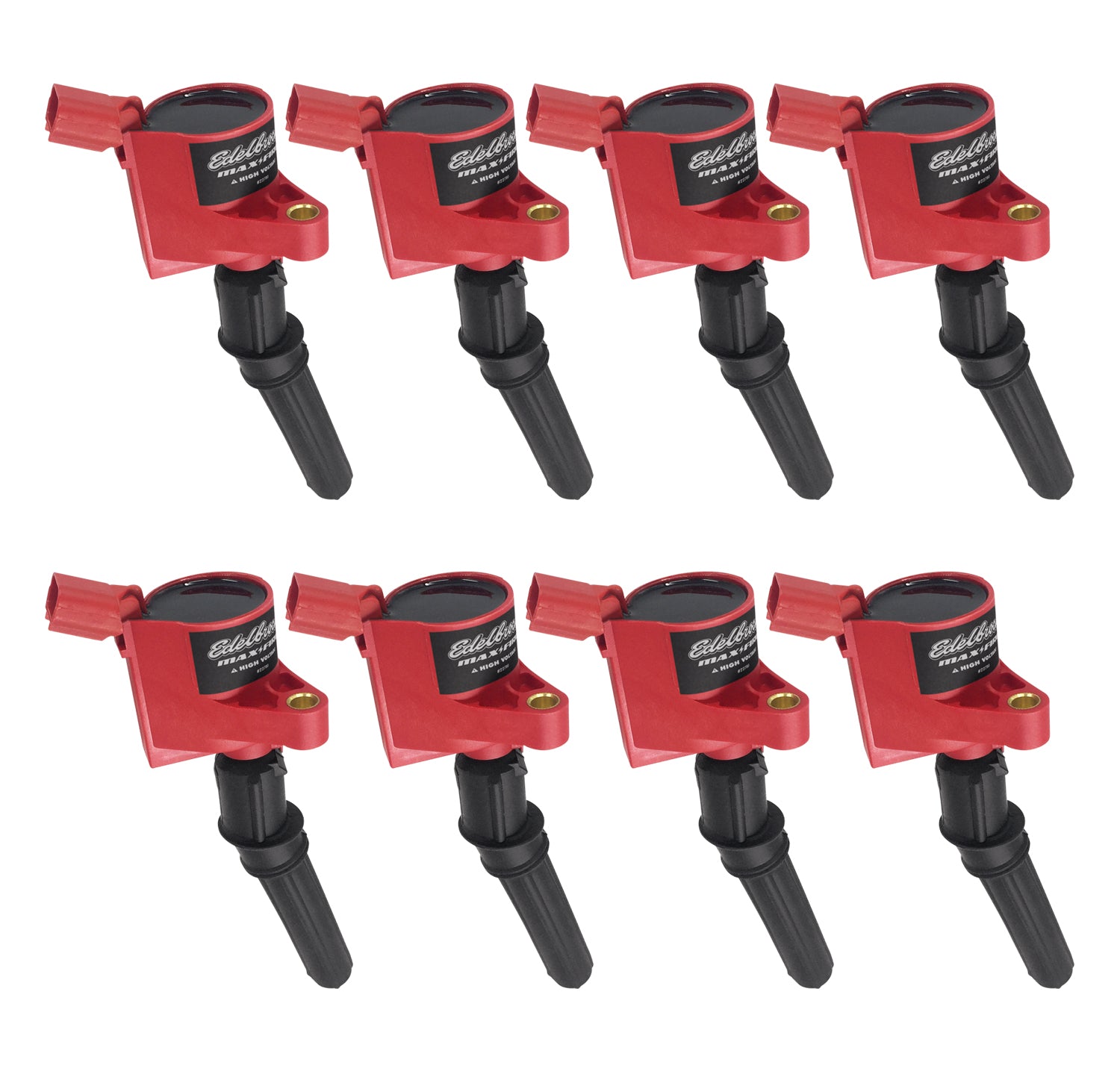

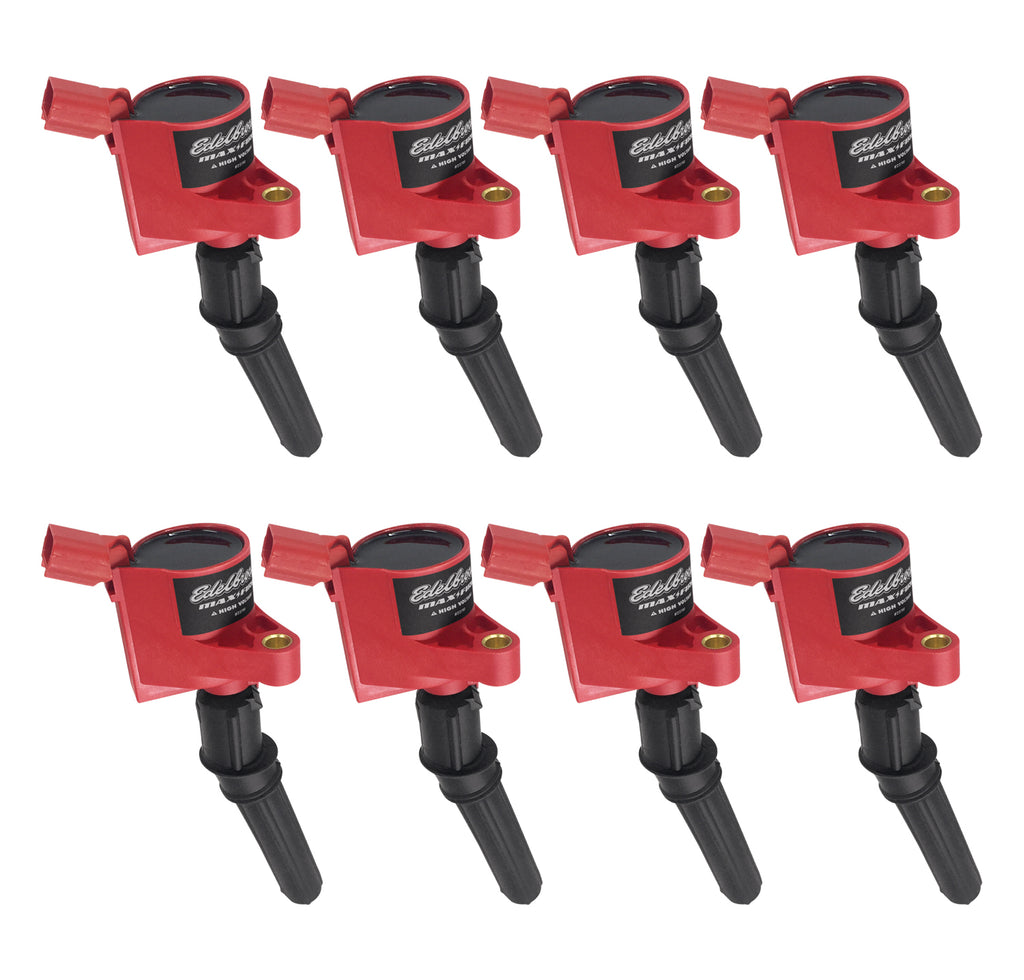

Edelbrock Coil Pack #22781 is a set of eight coil-on-plug coils designed as direct performance replacements for the OEM coils on 1998-08 Ford 4.6L-5.4L V8 engines. This coil pack can also be used to replace the OEM coils on 6.8L Triton V10 engines however you must add two additional single coils (#22780 x 2) to replace all 10 of the 6.8L coils. Each #22780 coil and #22781 coil pack features advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion.
Specifications:
| Description_ABR |
Igntion Coil |
| Description_ASM |
Ford V8 4.6L-5.4L, V10 6.8L, 1998-08 |
| Description_DEF |
Ignition Coil Set |
| Description_DES |
Coil Pack #22781 direct performance replacement coil pack for Ford V8 |
| Description_INV |
Ford Ignition Coil Pack #22781 for Ford |
| Description_EXT |
Edelbrock Part #22781 Coil-on-Plug Coil Pack |
| Description_EXT |
Ford V8 4.6L-5.4L, V10 6.8L, 1998-08, Set of 8, For Models W/ 2 Valves Per Engine |
| Description_LAB |
Ignition Coil #22781 1998-08 Ford V8 4.6L-5.4L, V10 6.8L, Set of 8 |
| Description_MKT |
Edelbrock Coil Pack #22781 is a set of eight coil-on-plug coils designed as direct performance replacements for the OEM coils on 1998-08 Ford 4.6L-5.4L V8 engines. This coil pack can also be used to replace the OEM coils on 6.8L Triton V10 engines however you must add two additional single coils (#22780 x 2) to replace all 10 of the 6.8L coils. Each #22780 coil and #22781 coil pack features advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion. |
| Description_TRA |
61:1 Turn Ratio. Fits models with 2-valve engines. |
| Oil Filled |
No |
| Requires External Resistor |
No |
| Secondary Resistance |
6.10K |
| Terminal Quantity |
1 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Coil Shape |
Round |
| Mounting Bracket Included |
No |
| Recommended Use |
For Models With 2 Valves Per Engine |
| Primary Resistance |
0.660 |
| Coil Wire Included |
No |
| Coil Type |
Coil Pack |
| Mount Type |
Plug |
| Terminal Gender |
Female |
| Terminal Type |
Blade Pin |
| Voltage |
Maximum 26000 |
| Quantity |
Set of 8 |
| Connector Gender |
Female |
| Length |
8.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
3.0000 |
