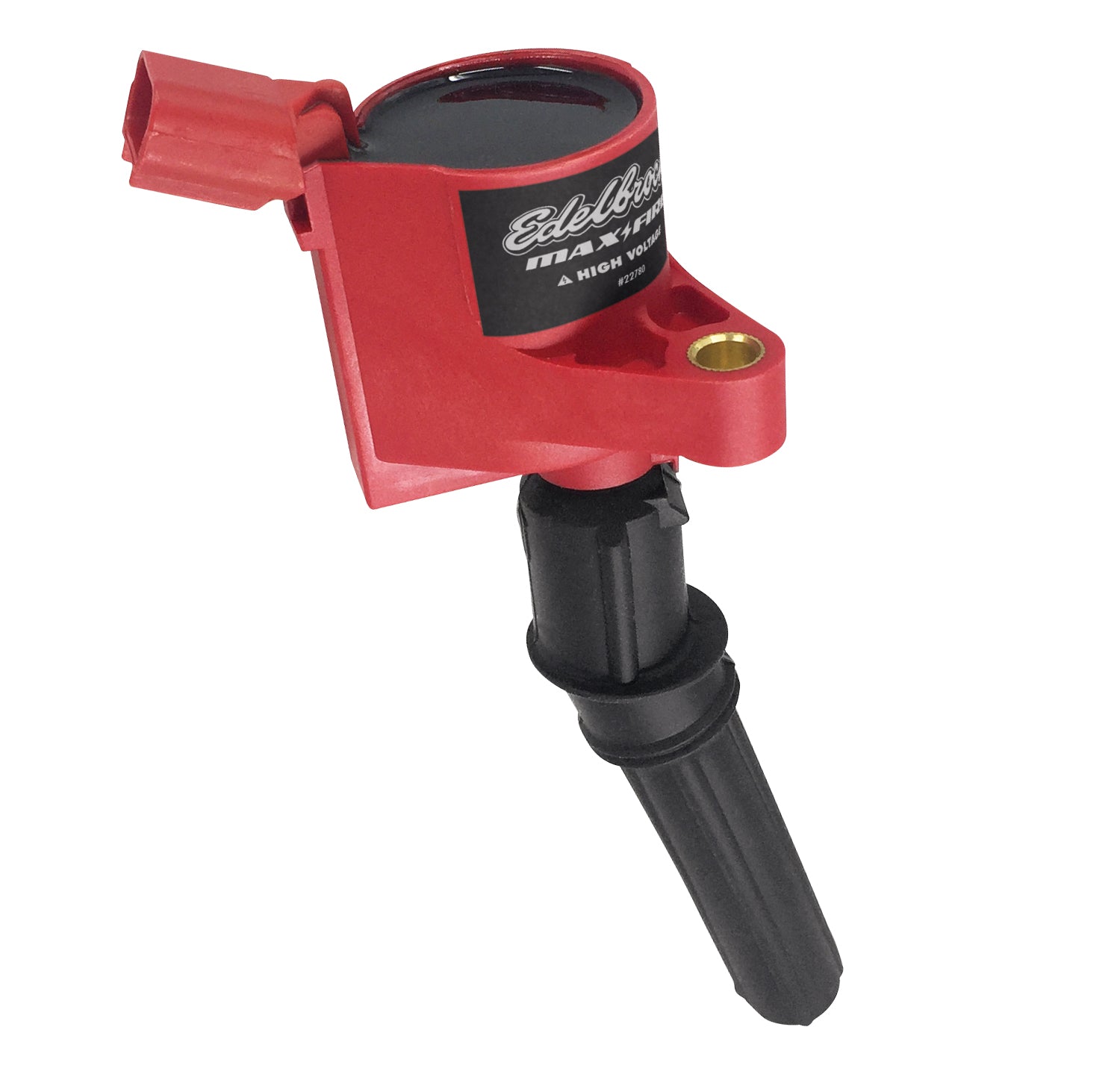

Edelbrock Coil #22780 is a single coil-on-plug coil designed as a direct performance replacement for the OEM coil on 1998-08 Ford 4.6L-5.4L V8 engines and the 6.8L Triton V10 engine. Each #22780 coil features advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion. This coil is available in a set of eight under #22781. For the Triton V10 engine, order one #22781 coil pack and two #22780 single coils for a set of 10.
Specifications:
| Description_ABR |
Igntion Coil |
| Description_ASM |
Ford V8 4.6L-5.4L, V10 6.8L, 1998-08 |
| Description_DEF |
Ignition Coil |
| Description_DES |
Coil #22780 is a direct performance replacement coil for Ford |
| Description_EXT |
Edelbrock Part #22780 single Coil on Plug for Ford V8 4.6L-5.4L and 6.8L V10 |
| Description_MKT |
Edelbrock Coil #22780 is a single coil-on-plug coil designed as a direct performance replacement for the OEM coil on 1998-08 Ford 4.6L-5.4L V8 engines and the 6.8L Triton V10 engine. Each #22780 coil features advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion. This coil is available in a set of eight under #22781. For the Triton V10 engine, order one #22781 coil pack and two #22780 single coils for a set of 10. |
| Description_LAB |
Ignition Coil #22780 1998-08 Ford V8 4.6L-5.4L, V10 6.8L, Sold Individually |
| Description_INV |
Ford Ignition Coil On Plug 22780 |
| Description_TRA |
61:1 Turn Ratio. Fits models with 2-valve engines. |
| Coil Type |
Coil Pack |
| Terminal Type |
Blade Pin |
| Voltage |
Maximum 26000 |
| Terminal Gender |
Female |
| Quantity |
Sold Individually |
| Mount Type |
Plug |
| Coil Wire Included |
No |
| Primary Resistance |
0.660 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Recommended Use |
For Models With 2 Valves Per Engine |
| Secondary Resistance |
6.10K |
| Coil Shape |
Round |
| Connector Gender |
Female |
| Terminal Quantity |
1 |
| Oil Filled |
No |
| Mounting Bracket Included |
No |
| Requires External Resistor |
No |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
8.0000 |
| Weight |
1.0000 |
