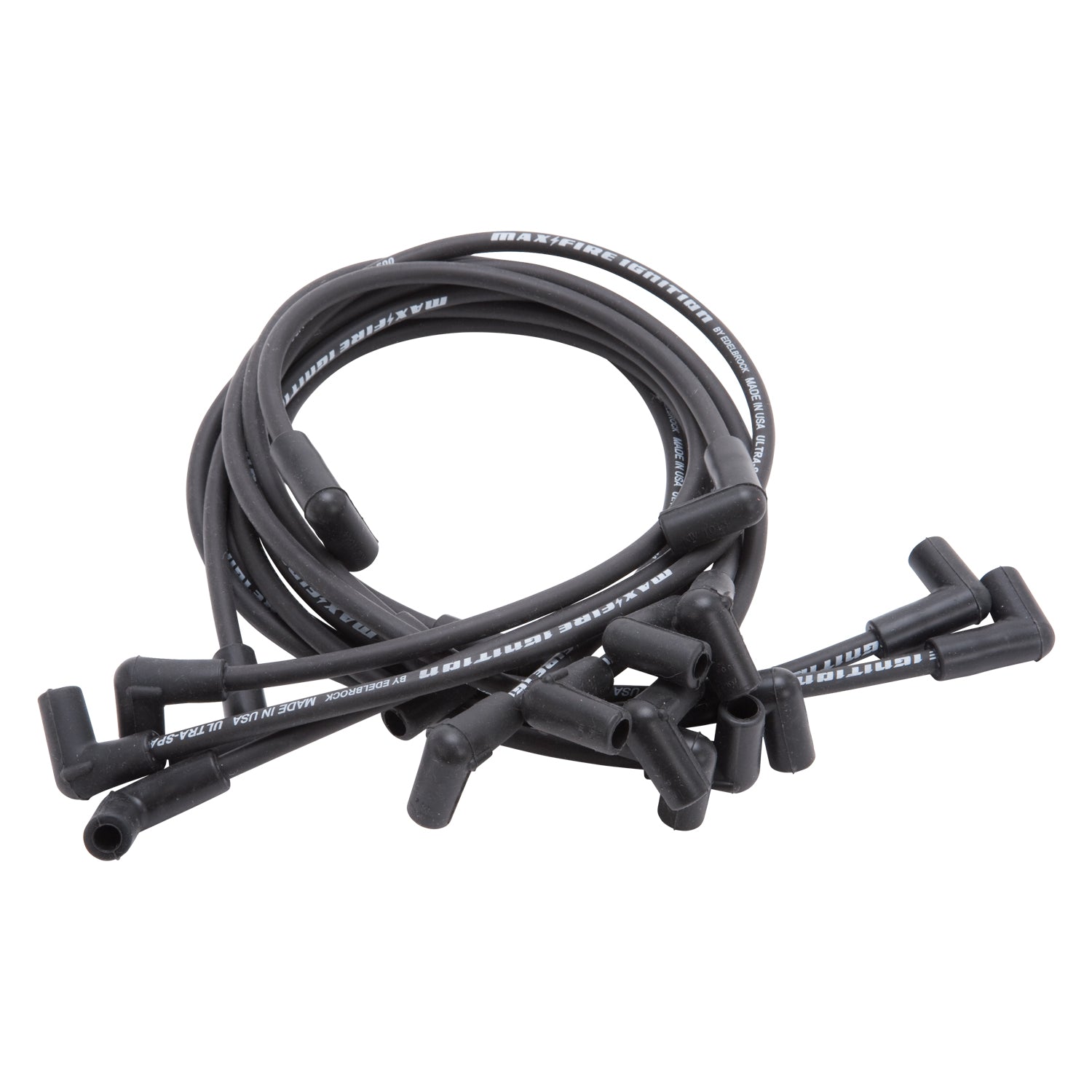

The Edelbrock #22702 Max-Fire Ultra-Spark 500 Performance's Spark plug wires are manufactured from highest quality materials to help deliver maximum voltage ensuring the ultimate performance. These wires have an extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible. They feature a heavy duty 8.5mm diameter silicone jacket to protect the Kevlar spiral wound core from heat, moisture and chemicals. Ultra-Spark 500 is a great choice for replacing OEM wires and are value priced. They feature high quality leads that deliver 500 ohms of EMI/RFI noise suppression with low resistance. They are ideal for daily drivers and for budget builds, offering the best combination of value and performance. See application chart for engine or vehicle specific kits.
Specifications:
| Description_ABR |
Sprk Plg Wir |
| Description_ASM |
Chevrolet:Small-Block Gen I:305 (5.0L)/350 (5.7L) |
| Description_DEF |
Spark Plug Wire Set |
| Description_EXT |
Edelbrock Max-Fire High Performance's Spark Plug Wires |
| Description_INV |
Edelbrock Spark Plug Wire Set |
| Description_LAB |
Max-Fire (Ultra-Spark 500) Small-Block Chevy 1974-88 Spark Plug Wire Set |
| Description_MKT |
The Edelbrock #22702 Max-Fire Ultra-Spark 500 Performance's Spark plug wires are manufactured from highest quality materials to help deliver maximum voltage ensuring the ultimate performance. These wires have an extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible. They feature a heavy duty 8.5mm diameter silicone jacket to protect the Kevlar spiral wound core from heat, moisture and chemicals. Ultra-Spark 500 is a great choice for replacing OEM wires and are value priced. They feature high quality leads that deliver 500 ohms of EMI/RFI noise suppression with low resistance. They are ideal for daily drivers and for budget builds, offering the best combination of value and performance. See application chart for engine or vehicle specific kits. |
| Description_TRA |
Check your spark plug wires regularly! Like everything else on your car, spark plug wires need to be checked and require periodic changing. If you want to keep the performance of your engine at the optimal level, we recommend you replace your spark plug wires at the same time you replace your spark plugs. Fouled, damaged, or worn out spark plugs can lead to a variety of engine problems, such as misfires, hard starts, increased emissions, poor fuel economy and reduce acceleration. For most vehicles, you should replace your spark plugs every 30,000 miles. |
| Universal Or Specific Fit |
Universal |
| Core Material |
Magnetic Kevlar Core |
| Resistance |
50 |
| Spark Plug Boot Material |
Compact Silicone |
| Wire 4 Length |
45.0 |
| Coil End Boot Color |
Black |
| Wire 1 Length |
53.0 |
| Distributor Coil End Boot Type |
Points, HEI |
| Coil Wire Length |
28.0 |
| Wire 5 Length |
41.0 |
| Distributor Coil End Boot Degree |
90 |
| Wire 7 Length |
33.0 |
| Wire 8 Length |
33.0 |
| Wire 2 Length |
49.0 |
| Spark Plug Wire Resistance |
50 |
| Insulation Color |
White |
| Spark Plug End Terminal Type |
Standard |
| Distributor Coil End Terminal Type |
HEI & Non_HEI |
| Noise Suppression Type |
Yes |
| Spark Plug End Boot Color |
Black |
| Insulation Outside Diameter |
0.23 |
| Insulation Material |
EPDM |
| Spark Plug End Boot Quantity Straight |
8 |
| Wire 3 Length |
45.0 |
| Wire 6 Length |
37.0 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Outside Diameter |
8.5 |
| Wire Separators Included |
No |
| Length |
13.0000 |
| Width |
6.0000 |
| Height |
11.0000 |
| Weight |
2.0000 |
