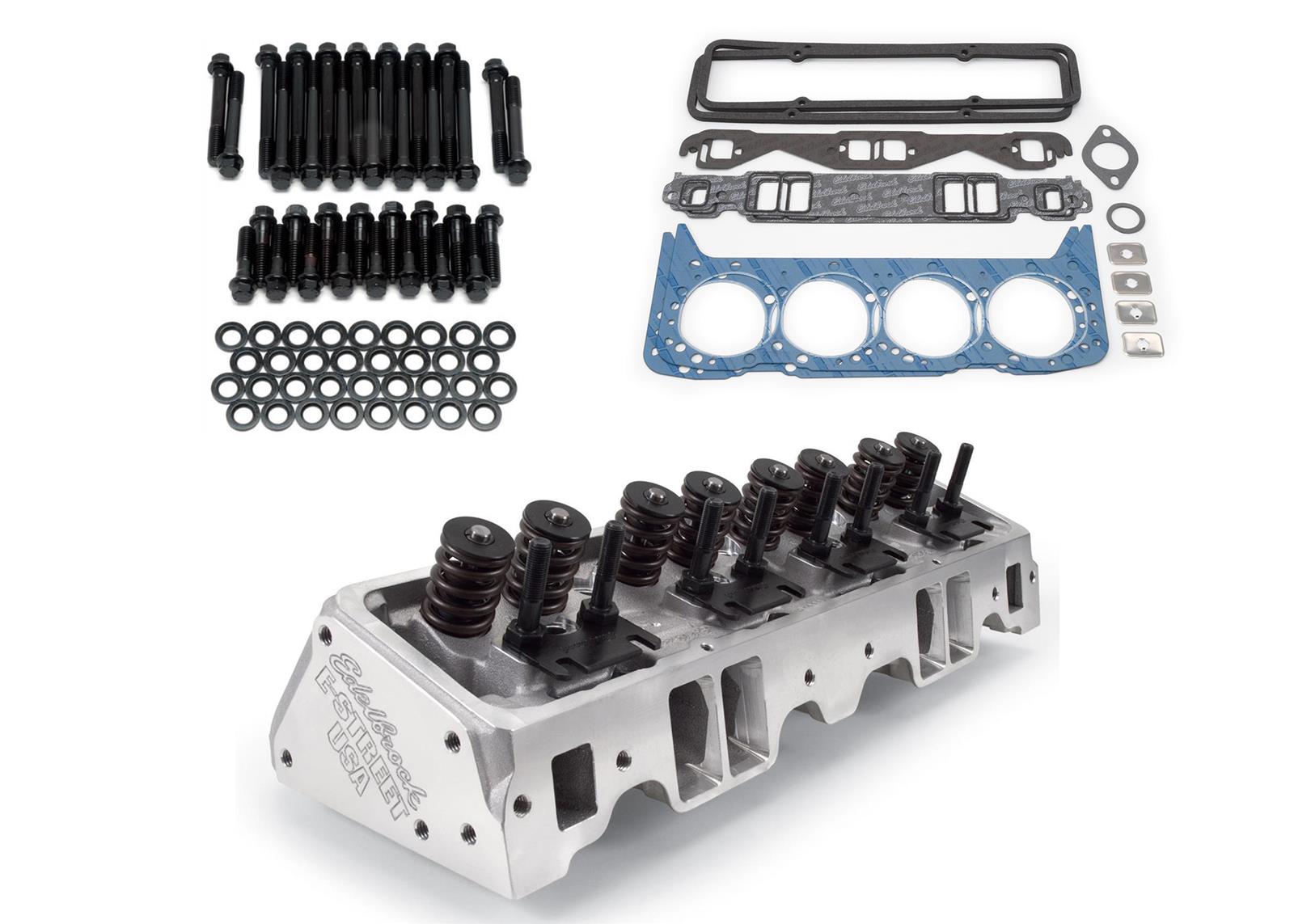

This Edelbrock cylinder head kit part #2240 is designed to include everything needed to successfully install a set of Edelbrock heads without having to hunt down the correct components. This will save the customer time and money and will give peace of mind knowing the correct items were chosen by our own Edelbrock Technical Staff.
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Cylinder Head |
| Description_EXT |
Edelbrock Complete Small Block Chevy E-Street Cylinder Heads with Install kit |
| Description_INV |
Edelbrock SBC Cylinder Head |
| Description_LAB |
E-Street Cylinder Head #2240 SB Chevy 262-400, Hydraulic Flat Tappet |
| Description_MKT |
This Edelbrock cylinder head kit part #2240 is designed to include everything needed to successfully install a set of Edelbrock heads without having to hunt down the correct components. This will save the customer time and money and will give peace of mind knowing the correct items were chosen by our own Edelbrock Technical Staff. |
| Description_TRA |
Designed for use with Hydraulic Flat Tappet Camshafts .550" max lift. (NOT Compatible with Hydraulic Roller Camshafts) |
| Description_TRA |
Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA |
Requires hardened pushrods. |
| Rotor Center Bore Inside Diameter |
Straight |
| Guide Plate Material |
Hardened Steel |
| Guide Material |
Manganese Bronze |
| Deck Thickness |
0.5625 |
| Camshaft Type |
Flat Tappet |
| Exhaust Valve Diameter |
1.60 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Stem Diameter |
0.3438 |
| Exhaust Runner Volume |
60 |
| Family |
E-Street |
| Horsepower |
300-400 |
| Construction Type |
Complete |
| Quantity |
Set of 2 |
| Material |
Aluminum |
| Intake Valve Diameter |
2.02 |
| Valve Spring Maximum Lift |
0.550 |
| EGR Port |
No |
| Rocker Arm Stud Diameter |
0.375 |
| Valve Angle |
23 |
| Retainer Included |
Yes |
| Head Casting Number |
N/A |
| Series |
E-Street |
| Push Rod Diameter |
(Suggested) 0.3125 |
| CNC Ported |
No |
| Guide Plates Included |
Yes |
| Seat Material |
Ductile Iron |
| Grade Type |
Performance |
| Valve Springs Included |
Yes |
| Valve Included |
Yes |
| Valve Spring Diameter |
1.46 |
| Combustion Chamber Volume |
64 |
| Seat Angle |
Exhaust 45 deg/Intake 45 |
| Exhaust Port Location |
Standard |
| Intake Runner Volume |
185 |
| Length |
21.0000 |
| Width |
19.0000 |
| Height |
27.0000 |
| Weight |
120.0000 |
